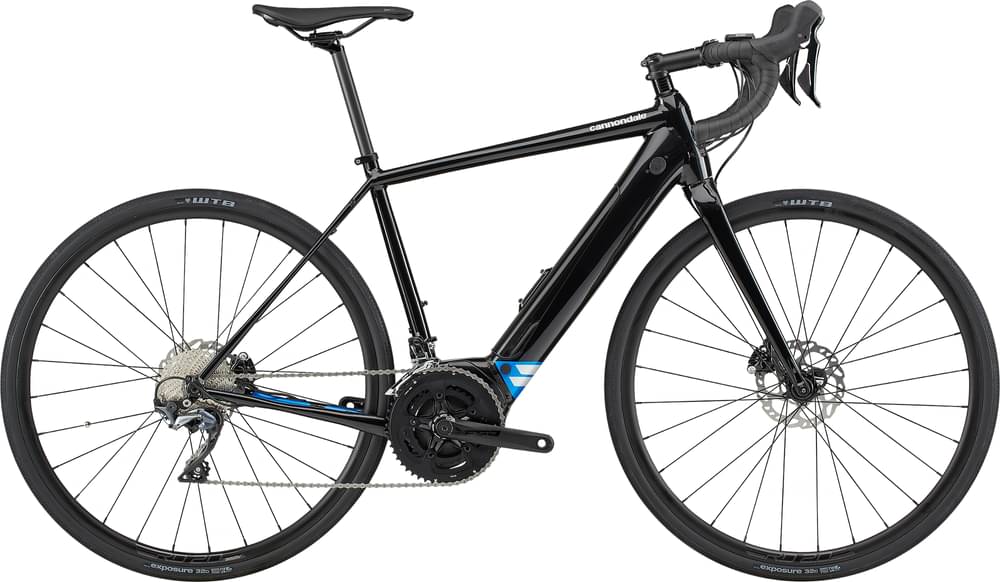

Cannondale Synapse Neo 1 2020
2020 E-bike
Estimate price |
4,499$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Ultegra, 105 -
Suspension Rigid -
Motor Bosch -
Battery Bosch PowerTube 500Wh -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SmartForm C1 Alloy, removable downtube battery, SAVE, Ai, internal cable routing, flat mount brake, 142x12 thru-axle, Si kickstand mount, rack/fender mounts, Removable downtube battery, SAVE, Ai, Internal cable routing, Flat mount brake, 142x12 thru-axle, Si kickstand mount, Rack/fender mounts
Suspension Fork
BallisTec Carbon, 1-1/8" to 1.5" tapered steerer, 55mm offset, flat mount brake, 12x100 thru axle, fender mounts, hidden cable routing
Drivetrain
Rear Derailleur
Shimano Ultegra GS
Front Derailleur
Shimano 105, braze-on
Shift Levers
Shimano 105 hydro disc, 2x11
Cassette
Shimano 105, 11-34, 11-speed
Crank
Bosch Gen3 w/ custom Ai offset & FSA rings, 50/34
Bottom Bracket
Cannondale AI, 83mm, press-fit
Chain
Shimano HG601, 11-speed
Pedals
Not Included
Wheels
Front Hub
Formula CL-712
Rear Hub
RXC-142S
Rims
RD 2.0, 28h
Spokes
DT Swiss Champion
Tires
WTB Exposure TCS, 700 x 32c, Distance+ compound, tubeless ready
Brakes
Brakes
Shimano 105 hydro disc, 160/160mm RT70 rotors
Brake Levers
Shimano 105 hydro disc
Cockpit
Stem
Cannondale 3, 6061 alloy, 7-degree
Handlebar
Cannondale 3, 6061 alloy, Compact
Grips
Cannondale Grip Bar Tape w/Gel, 3.5mm
Headset
Integrated, 1-1/8 to 1.5", sealed angular contact bearings
Seat
Saddle
Fabric Scoop Shallow Sport, steel rails
Seatpost
Cannondale 2, UD Carbon, 25.4, 350mm (S-M), 400mm (L-XL)
Motor & Battery
Motor
Bosch PowerTube 500Wh
Battery
Bosch PowerTube 500Wh
Remote
Bosch Purion
Charger
Bosch 4a
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.5 mm | 1.55 mm | 1.57 mm |
| Bottom Bracket Height | 282 mm | 282 mm | 282 mm | 282 mm |
| Front Center | 605 mm | 624 mm | 644 mm | 666 mm |
| Rake | 55 mm | 55 mm | 55 mm | 55 mm |
| Trail | 62 mm | 62 mm | 62 mm | 62 mm |
| Stack | 541 mm | 571 mm | 603 mm | 632 mm |
| Reach | 372 mm | 381 mm | 390 mm | 402 mm |
| Top Tube Length | 529 mm | 546 mm | 570 mm | 591 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 445 mm | 490 mm | 535 mm | 580 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 126 mm | 157 mm | 191 mm | 222 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1028 mm | 1047 mm | 1067 mm | 1028 mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 67 mm | 67 mm |
| Standover Height | 724 mm | 764 mm | 804 mm | 844 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Synapse Neo 1 is part of the Cannondale E Synapse model. Cannondale launched 19 e-bikes of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Cannondale Synapse Neo 1 2020 is the cheapest e-bike model and costs 4499$. Cannondale Synapse Neo SE 2020 is the most expensive one and costs 4500$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Endurance e-bikes average price
According to our calculations, the average cost of an Endurance e-bike that is reliable is 3800$. However, this doesn’t mean that if you spend less money on an Endurance e-bike, you couldn’t get a decent one. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
When Cannondale released this model in 2020, its price was 4499$. Comparing the average cost of an Endurance e-bike to this one, you will see that Synapse Neo 1 price is 18.39% more expensive.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork material
When it comes to the fork, this e-bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
The Synapse Neo 1 2020 e-bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Cannondale Synapse Neo 1 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Synapse Neo 1 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
