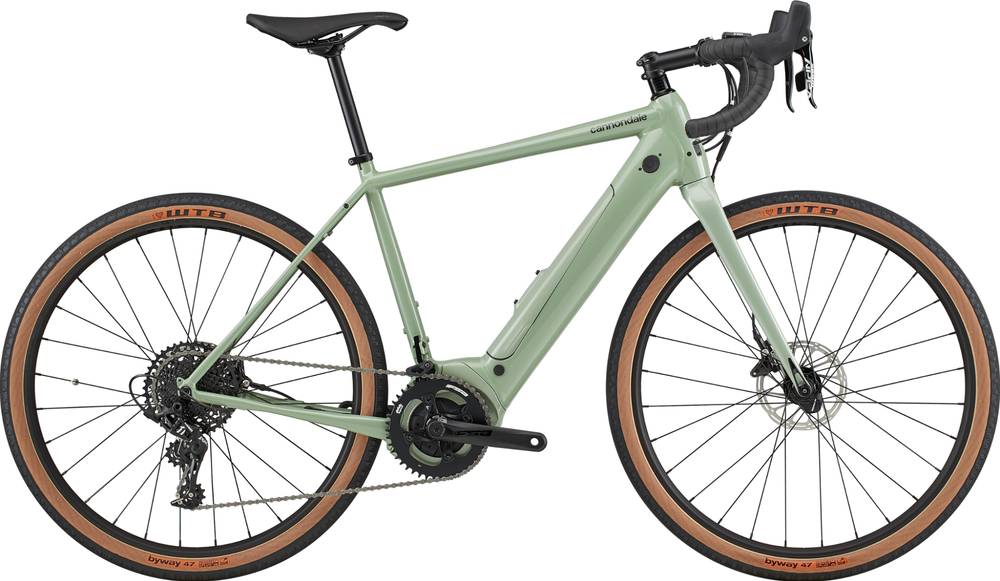

Cannondale Synapse Neo SE 2020
2020 E-bike
Estimate price |
4,500$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 650c -
Groupset Apex 1, FSA -
Suspension Rigid -
Motor Bosch -
Battery Bosch PowerTube 500Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SmartForm C1 Alloy, removable downtube battery, SAVE, Ai, internal cable routing, flat mount brake, 142x12 thru-axle, Si kickstand mount, rack/fender mounts, Removable downtube battery, SAVE, Ai, Internal cable routing, Flat mount brake, 142x12 thru-axle, Si kickstand mount, Rack/fender mounts
Suspension Fork
BallisTec Carbon, 1-1/8" to 1.5" tapered steerer, 55mm offset, flat mount brake, 12x100 thru axle, fender mounts, hidden cable routing
Drivetrain
Rear Derailleur
SRAM Apex 1, Long cage
Shift Levers
SRAM Apex hydro disc, 11-speed
Cassette
SRAM PG-1130, 11-42, 11-speed
Crank
Bosch Gen3 w/ custom Ai offset & FSA rings, 44T
Bottom Bracket
Cannondale AI, 83mm, press-fit
Chain
SRAM PC-1110, 11-speed
Pedals
Not Included
Wheels
Front Hub
Formula RX-512 12x100
Rear Hub
Formula DC-142 12x142
Rims
WTB STi23 TCS 2.0, 28h, tubeless ready
Spokes
DT Swiss Champion
Tires
WTB Byway TCS, 650b x 47mm, tubeless ready
Brakes
Brakes
SRAM Apex hydro disc, 160/160mm Centerline rotors
Brake Levers
SRAM Apex hydro disc
Cockpit
Stem
Cannondale 3, 6061 alloy, 7-degree
Handlebar
Cannondale 3, 6061 alloy, Compact
Grips
Cannondale Grip Bar Tape w/Gel, 3.5mm
Headset
Integrated, 1-1/8 to 1.5", sealed angular contact bearings
Seat
Saddle
Fabric Scoop Radius Sport, steel rails
Seatpost
Cannondale 3, 6061 Alloy, 25.4, 350mm (S-M), 400mm (L-XL)
Motor & Battery
Motor
Bosch PowerTube 500Wh
Battery
Bosch PowerTube 500Wh
Remote
Bosch Purion
Charger
Bosch 4a
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.5 mm | 1.55 mm | 1.57 mm |
| Bottom Bracket Height | 282 mm | 282 mm | 282 mm | 282 mm |
| Front Center | 605 mm | 624 mm | 644 mm | 666 mm |
| Rake | 55 mm | 55 mm | 55 mm | 55 mm |
| Trail | 62 mm | 62 mm | 62 mm | 62 mm |
| Stack | 541 mm | 571 mm | 603 mm | 632 mm |
| Reach | 372 mm | 381 mm | 390 mm | 402 mm |
| Top Tube Length | 529 mm | 546 mm | 570 mm | 591 mm |
| Seat Tube Length | 445 mm | 490 mm | 535 mm | 580 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 126 mm | 157 mm | 191 mm | 222 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1028 mm | 1047 mm | 1067 mm | 1028 mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 67 mm | 67 mm |
| Standover Height | 724 mm | 764 mm | 804 mm | 844 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Synapse Neo SE belongs to the Cannondale E Synapse model. Cannondale launched 19 e-bikes of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Cannondale Synapse Neo 1 2020 is the most economical model, with a starting price of 4499$. Cannondale Synapse Neo SE 2020 on the other hand costs 4500$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Endurance e-bikes
According to our calculations, the average cost of an Endurance e-bike that is reliable is 3800$. However, you could also get a good Endurance e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4500$. If we compare this with the average Endurance e-bike cost we notice that the price is 18.42% more expensive.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Synapse Neo SE components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
When it comes to wheels, the Synapse Neo SE e-bike is equipped with the aluminum model. The 650c wheels are smaller in diameter than 700c. However, 650c wheels have better acceleration, and can climb easier than 700c.
Brakes
When you want to stop the bike in time, the brakes are vital. The Synapse Neo SE has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Cannondale Synapse Neo SE e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
