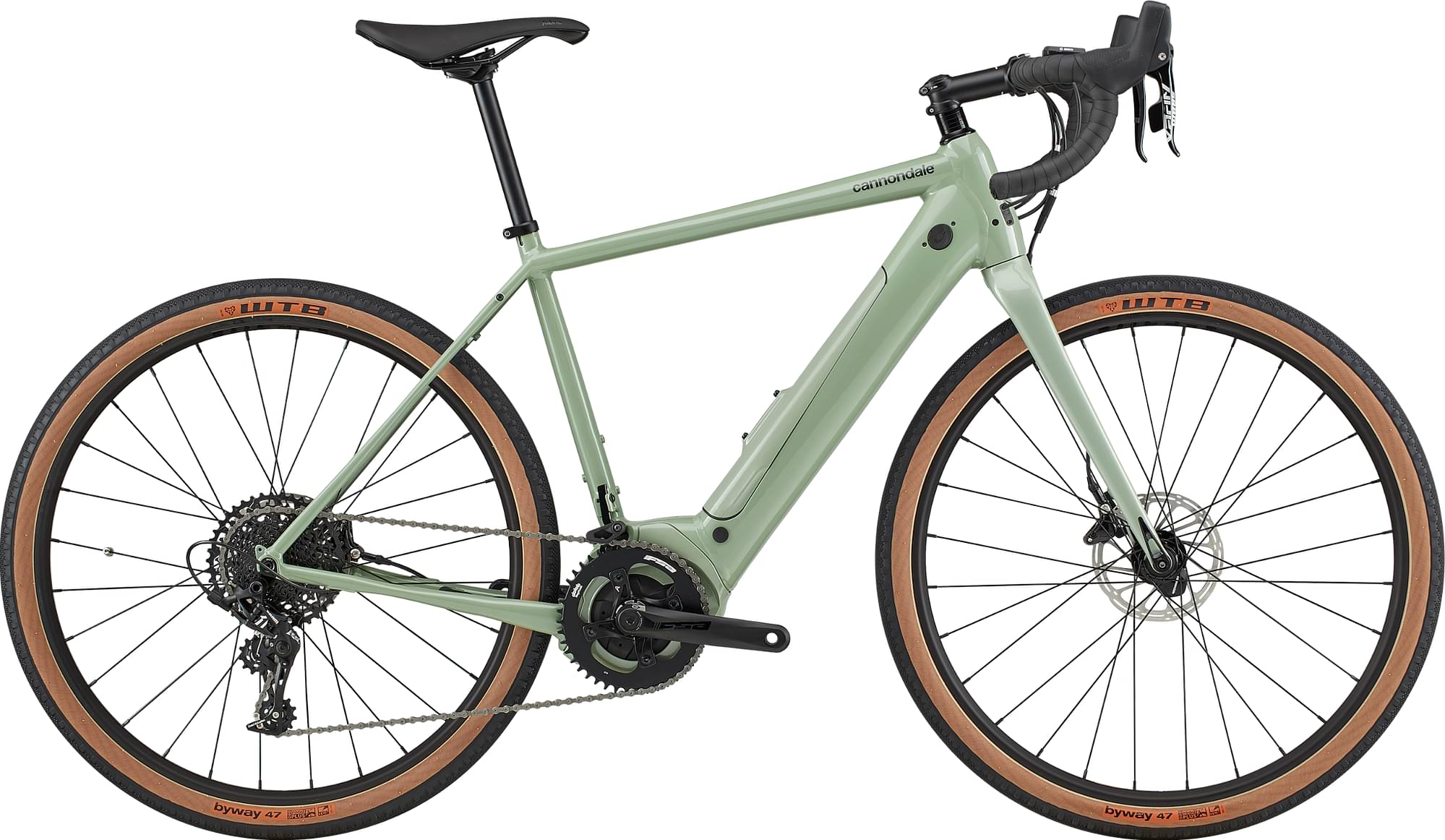

Cannondale Synapse Neo SE 2022
2022 E-bike
Estimate price |
4,357$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Groupset Apex 1, FSA -
Suspension Rigid -
Motor Bosch 250W 50Nm mid-drive -
Battery Bosch PowerTube 500Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 167cm
MD
162cm - 175cm
LG
170cm - 182cm
XL
175cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SmartForm C1 Alloy, removable downtube battery, SAVE, Ai, internal cable routing, flat mount brake, 12x142 thru-axle, Si kickstand mount, rack/fender mounts
Suspension Fork
BallisTec Carbon, 1-1/8" to 1.5" tapered steerer, 55mm offset, flat mount brake, 12x100 thru axle, fender mounts, hidden cable routing
Drivetrain
Rear Derailleur
SRAM Apex 1, Long cage
Shift Levers
SRAM Apex hydraulic disc, 11-speed
Cassette
SRAM PG-1130, 11-42, 11-speed
Crank
FSA Bosch E-Bike w/ custom Ai offset, 44T
Bottom Bracket
Cannondale AI, 83mm, press-fit
Chain
SRAM PC-1110, 11-speed
Pedals
Not Included
Wheels
Front Hub
Formula RX-512 12x100mm
Rear Hub
Formula DC-142 12x142mm
Rims
WTB ST i23 TCS 2.0, 28h, tubeless ready
Spokes
DT Swiss Champion
Tires
WTB Byway TCS, 650b x 47c, tubeless ready
Brakes
Brakes
SRAM Apex hydraulic disc, 160/160mm Centerline rotors
Brake Levers
SRAM Apex hydraulic disc
Cockpit
Stem
Cannondale 3, 6061 Alloy, 7-degree
Handlebar
Cannondale 3, 6061 alloy, Compact
Grips
Cannondale Bar Tape, 3.5mm
Headset
Integrated, 1-1/8 to 1.5", sealed angular contact bearings
Seat
Saddle
Fabric Scoop Radius Sport, steel rails
Seatpost
Cannondale 3, 6061 Alloy, 25.4, 350mm (S-M), 400mm (L-XL)
Motor & Battery
Motor
Bosch Active Line Plus 250W w/Cannondale ACR software
Battery
Bosch PowerTube 500Wh
Remote
Bosch Purion
Charger
Bosch 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.5 mm | 1.55 mm | 1.57 mm |
| Bottom Bracket Height | 282 mm | 282 mm | 282 mm | 282 mm |
| Front Center | 605 mm | 624 mm | 644 mm | 666 mm |
| Rake | 55 mm | 55 mm | 55 mm | 55 mm |
| Trail | 62 mm | 62 mm | 62 mm | 62 mm |
| Stack | 541 mm | 571 mm | 603 mm | 632 mm |
| Reach | 372 mm | 381 mm | 390 mm | 402 mm |
| Top Tube Length | 529 mm | 546 mm | 570 mm | 591 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 445 mm | 490 mm | 535 mm | 580 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 126 mm | 157 mm | 191 mm | 222 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1028 mm | 1047 mm | 1067 mm | 1028 mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 67 mm | 67 mm |
| Standover Height | 724 mm | 764 mm | 804 mm | 844 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 154 cm | 162 cm | 170 cm | 175 cm |
| Rider Max Height | 167 cm | 175 cm | 182 cm | 198 cm |
About this model
Synapse Neo SE is a Cannondale E Synapse model. Cannondale launched 19 e-bikes of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Cannondale Synapse Neo 2 2022 is the most economical model, with a starting price of 3928$. Cannondale Synapse Neo 1 2022 on the other hand costs 4246$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Endurance e-bikes
If you want to purchase a solid Endurance e-bike, it is important to know that the average cost is 3800$. However, you could also get a good Endurance e-bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4034$. In conclusion, this e-bike price is 6.16% more expensive than the price of the average Endurance e-bike.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your e-bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
When it comes to wheels, the Synapse Neo SE e-bike is equipped with the aluminum model. These wheels are less popular than 650b and 700c. However, 650c wheels have better acceleration, and can climb easier than 700c.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Synapse Neo SE comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 4 sizes. They vary from 154 cm – 198 cm (5.05 ft – 6.5 ft). In conclusion, finding one for you shouldn’t be a problem.
