Cannondale Synapse Neo SE 2023
2023 E-bike
Estimate price |
4,550$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Apex, FSA -
Suspension Rigid -
Motor Bosch 250W 50Nm mid-drive -
Battery Bosch PowerTube 500Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 167cm
MD
162cm - 175cm
LG
170cm - 182cm
XL
175cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SmartForm C1 Alloy, removable downtube battery, SAVE, Ai, internal cable routing, flat mount brake, 12x142 thru-axle, Si kickstand mount, rack/fender mounts
Suspension Fork
BallisTec Carbon, 1-1/8" to 1.5" tapered steerer, 55mm offset, flat mount brake, 12x100 thru axle, fender mounts, hidden cable routing
Drivetrain
Rear Derailleur
SRAM Apex 1, Long cage
Shift Levers
SRAM Apex hydraulic disc, 11-speed
Cassette
SRAM PG-1130, 11-42, 11-speed
Crank
FSA Bosch E-Bike w/ custom Ai offset, 44T
Bottom Bracket
Cannondale AI, 83mm, press-fit
Chain
SRAM PC-1110, 11-speed
Pedals
Not Included
Wheels
Front Hub
Formula RX-512 12x100mm
Rear Hub
Formula DC-142 12x142mm
Rims
WTB ST i23 TCS 2.0, 28h, tubeless ready
Spokes
DT Swiss Champion
Tires
WTB Byway TCS, 650b x 47c, tubeless ready
Brakes
Brakes
SRAM Apex hydraulic disc, 160/160mm Centerline rotors
Brake Levers
SRAM Apex hydraulic disc
Cockpit
Stem
Cannondale 3, 6061 Alloy, 7-degree
Handlebar
Cannondale 3, 6061 alloy, Compact
Grips
Cannondale Bar Tape, 3.5mm
Headset
Integrated, 1-1/8 to 1.5", sealed angular contact bearings
Seat
Saddle
Fabric Scoop Radius Sport, steel rails
Seatpost
Cannondale 3, 6061 Alloy, 25.4, 350mm (S-M), 400mm (L-XL)
Motor & Battery
Motor
Bosch Active Line Plus 250W w/Cannondale ACR software
Battery
Bosch PowerTube 500Wh
Charger
Bosch 4A
Fit data

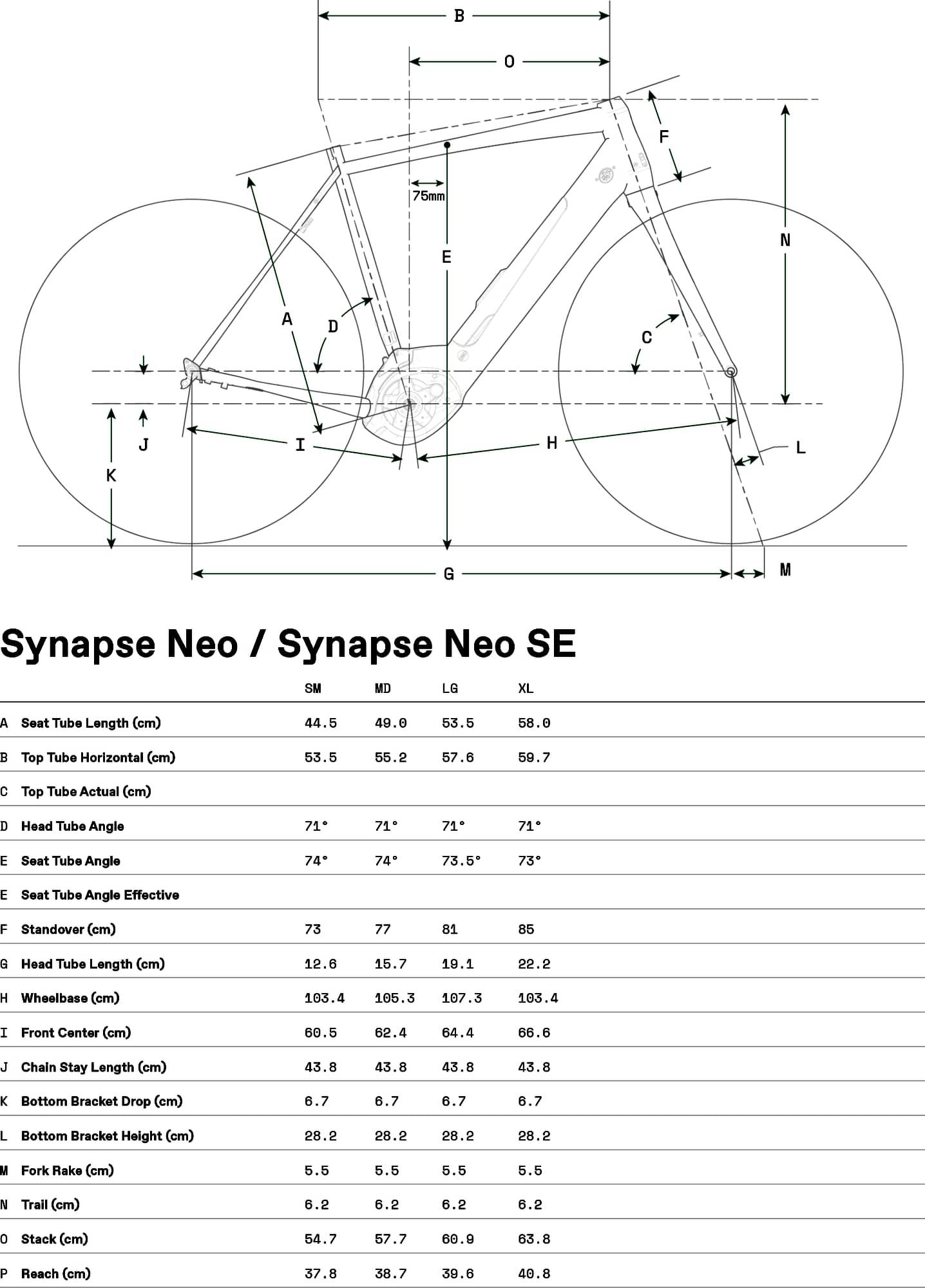

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.5 mm | 1.55 mm | 1.57 mm |
| Bottom Bracket Height | 282 mm | 282 mm | 282 mm | 282 mm |
| Front Center | 605 mm | 624 mm | 644 mm | 666 mm |
| Rake | 55 mm | 55 mm | 55 mm | 55 mm |
| Trail | 62 mm | 62 mm | 62 mm | 62 mm |
| Stack | 541 mm | 571 mm | 603 mm | 632 mm |
| Reach | 372 mm | 381 mm | 390 mm | 402 mm |
| Top Tube Length | 529 mm | 546 mm | 570 mm | 591 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 445 mm | 490 mm | 535 mm | 580 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 126 mm | 157 mm | 191 mm | 222 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1028 mm | 1047 mm | 1067 mm | 1028 mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 67 mm | 67 mm |
| Standover Height | 724 mm | 764 mm | 804 mm | 844 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 154 cm | 162 cm | 170 cm | 175 cm |
| Rider Max Height | 167 cm | 175 cm | 182 cm | 198 cm |
Model Overview
Synapse Neo SE belongs to the Cannondale E Synapse model. Cannondale launched 19 e-bikes of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
The most economical model, the Cannondale Synapse Neo 2 2023 has a starting price of 4257$. Cannondale Synapse Neo EQ 2023 on the other hand is the most expensive at 4744$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Endurance e-bikes average price
According to our calculations, the average cost of an Endurance e-bike that is reliable is 3800$. However, even though the average price of an Endurance e-bike is lower, you might still be able to get a top-quality e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2023 for 4550$. If we compare this with the average Endurance e-bike cost we notice that the price is 19.74% more expensive.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Synapse Neo SE components
Fork material
When it comes to the fork, this e-bike has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
As for the wheels, Cannondale Synapse Neo SE 2023, has a aluminum model. These wheels are less popular than 650b and 700c. However, 650c wheels have better acceleration, and can climb easier than 700c.
Brakes
For your safety, it is important to have quality breaks on your bike. Cannondale Synapse Neo SE has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 154 cm – 198 cm (5.05 ft – 6.5 ft). In conclusion, finding one for you shouldn’t be a problem.
