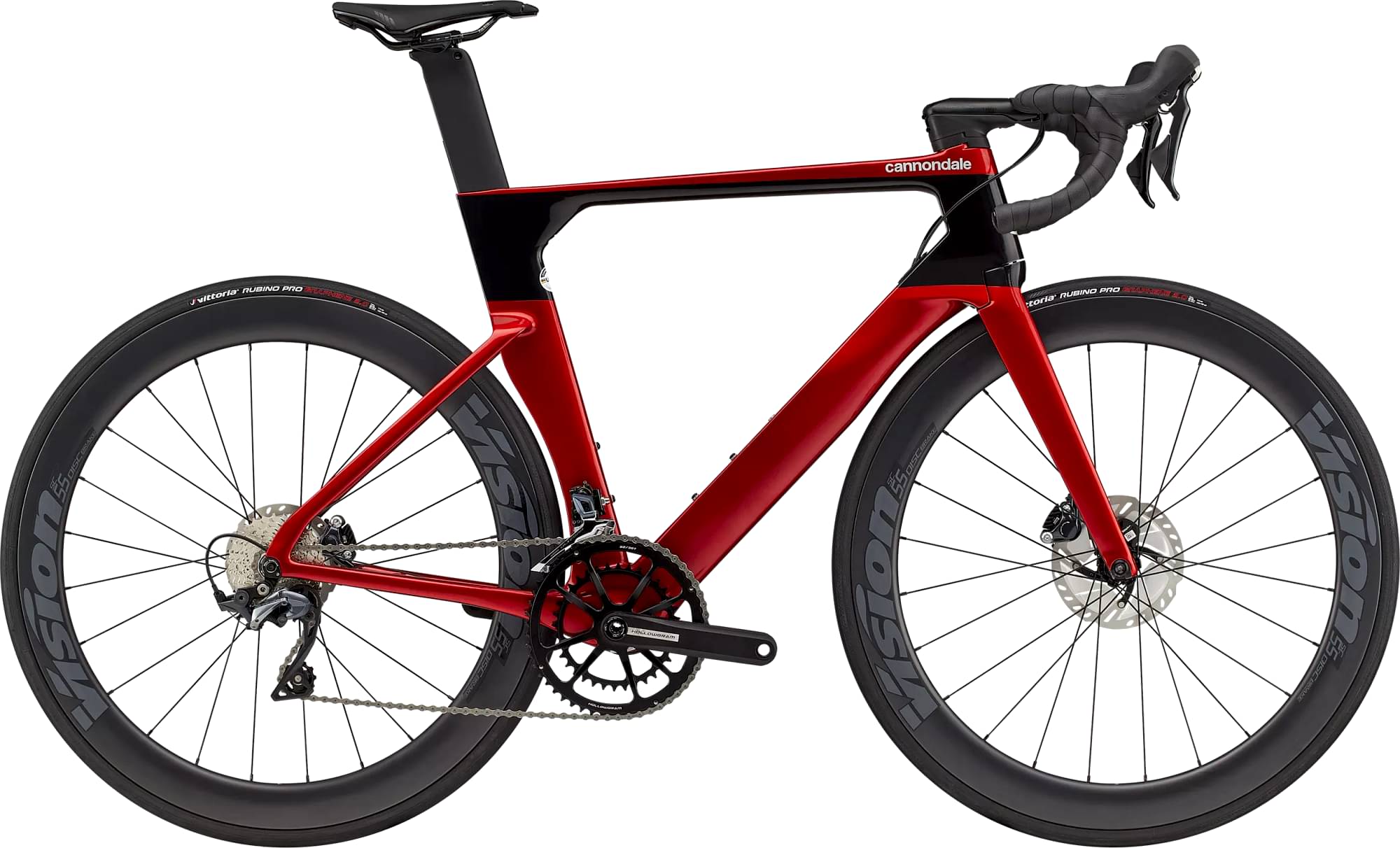

Cannondale SystemSix Carbon Ultegra 2023
2023 Road
Estimate price |
5,400$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
47cm
160cm - 170cm
51cm
165cm - 175cm
54cm
170cm - 180cm
56cm
177cm - 188cm
58cm
182cm - 193cm
60cm
188cm - 198cm
62cm
195cm - 205cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SystemSix Carbon, integrated cable routing w/ Switchplate, SAVE, PF30a, flat mount disc, 12x142 Speed Release thru-axle
Suspension Fork
SystemSix Carbon, 1-1/8" - 1-1/4" steerer, 12x100mm Speed Release thru-axle, flat mount disc, 55mm offset (47-51cm) 45mm offset (54-62cm)
Drivetrain
Rear Derailleur
Shimano Ultegra
Front Derailleur
Shimano Ultegra, braze-on
Shift Levers
Shimano Ultegra, 11-speed
Cassette
Shimano 105, 11-30, 11-speed
Crank
HollowGram, BB30a, OPI SpideRing, 52/36
Bottom Bracket
Cannondale Alloy PressFit30
Chain
Shimano HG601, 11-speed
Pedals
Not included
Wheels
Front Hub
TBD
Rear Hub
TBA
Rims
Vision SC55, carbon clincher disc, tubeless ready
Spokes
DP Spokes - 21F / 24R
Tires
Vittoria Rubino Pro Bright Black, 700x25c, reflective strip
Brakes
Brakes
Shimano Ultegra hydraulic disc, 160/140mm RT800 rotors
Brake Levers
Shimano Ultegra
Cockpit
Stem
HollowGram KNØT, Alloy w/ cable cover, -17°
Handlebar
HollowGram KNØT SystemBar, Carbon, 8 deg. pitch adjust
Grips
Cannondale Bar Tape, 3.5mm
Headset
Integrated, 1-1/8" - 1-1/4"
Seat
Saddle
Fizik Aliante Delta, S-alloy rails
Seatpost
HollowGram 60 KNØT Carbon, 330mm
Fit data

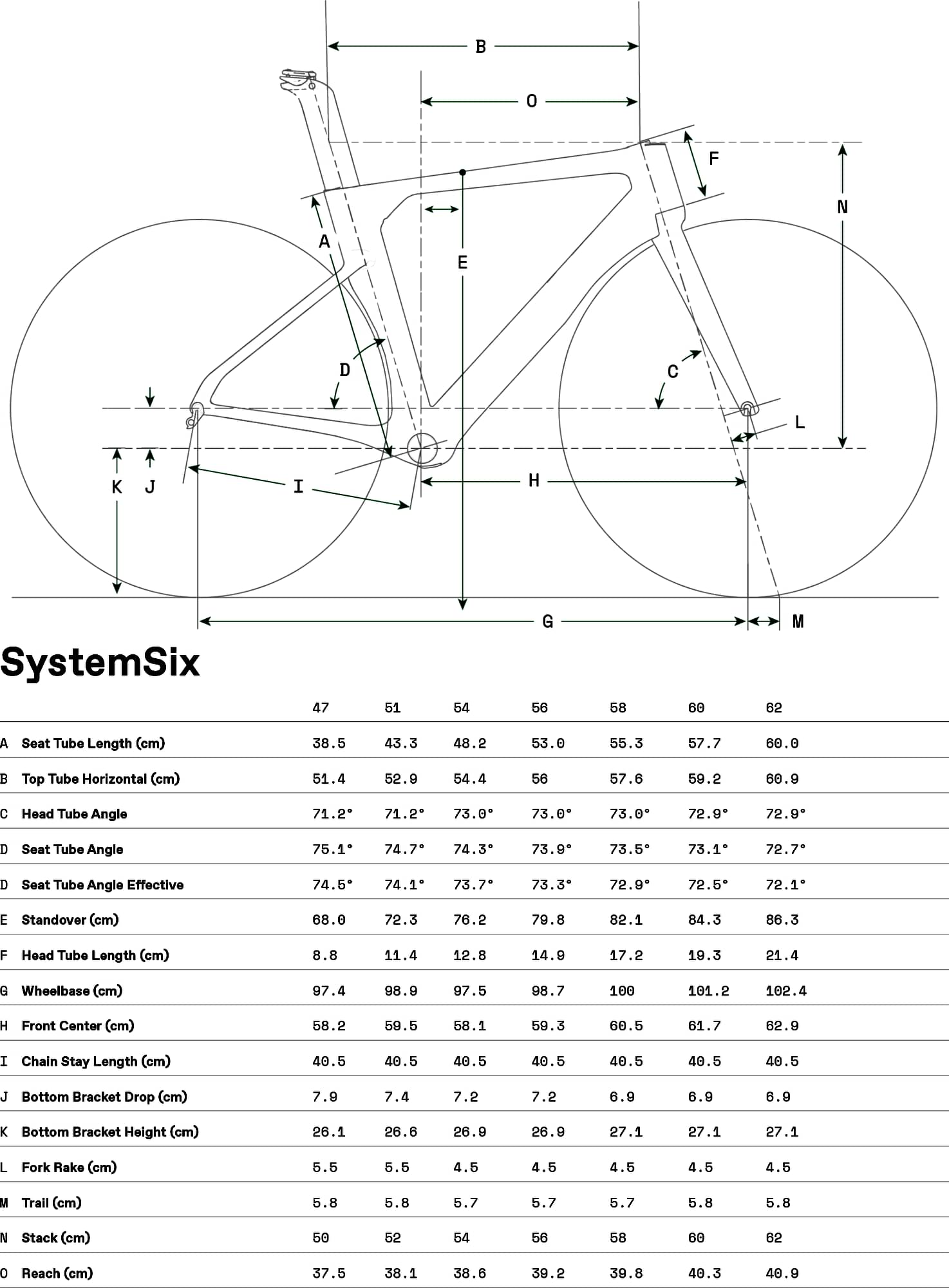

Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 51cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.33 mm | 1.36 mm | 1.4 mm | 1.43 mm | 1.46 mm | 1.49 mm | 1.51 mm |
| Bottom Bracket Height | 261 mm | 266 mm | 269 mm | 269 mm | 271 mm | 271 mm | 271 mm |
| Front Center | 582 mm | 595 mm | 581 mm | 593 mm | 605 mm | 617 mm | 629 mm |
| Rake | 55 mm | 55 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 58 mm | 58 mm | 57 mm | 57 mm | 57 mm | 58 mm | 58 mm |
| Stack | 502 mm | 522 mm | 542 mm | 562 mm | 582 mm | 602 mm | 622 mm |
| Reach | 377 mm | 383 mm | 388 mm | 394 mm | 400 mm | 405 mm | 411 mm |
| Top Tube Length | 516 mm | 531 mm | 546 mm | 562 mm | 578 mm | 594 mm | 611 mm |
| Seat Tube Angle | 74.5 ° | 74.1 ° | 73.7 ° | 73.3 ° | 72.9 ° | 72.5 ° | 72.1 ° |
| Seat Tube Length | 385 mm | 433 mm | 482 mm | 530 mm | 553 mm | 577 mm | 600 mm |
| Head Tube Angle | 71.2 ° | 71.2 ° | 73 ° | 73 ° | 73 ° | 72.9 ° | 72.9 ° |
| Head Tube Length | 88 mm | 114 mm | 128 mm | 149 mm | 172 mm | 193 mm | 214 mm |
| Chainstay Length | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm |
| Wheelbase | 976 mm | 991 mm | 977 mm | 989 mm | 1002 mm | 1014 mm | 1026 mm |
| Bottom Bracket Drop | 79 mm | 74 mm | 72 mm | 72 mm | 69 mm | 69 mm | 69 mm |
| Standover Height | 682 mm | 725 mm | 764 mm | 800 mm | 823 mm | 845 mm | 865 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 160 cm | 165 cm | 170 cm | 177 cm | 182 cm | 188 cm | 195 cm |
| Rider Max Height | 170 cm | 175 cm | 180 cm | 188 cm | 193 cm | 198 cm | 205 cm |
About this model
SystemSix Carbon Ultegra completes the Cannondale Systemsix model. Cannondale launched 33 bikes of this model so far. Take a sneak peek at all Cannondale Systemsix bikes models from 2023, by clicking here.
Model range prices
The most economical model, the Cannondale SystemSix Carbon Ultegra 2023 has a starting price of 5400$. Cannondale SystemSix Hi-MOD Dura-Ace Di2 2023 on the other hand is the most expensive at 13050$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Aero bikes average price
Our math shows that the average cost of a dependable Aero bike is 4211$. However, this doesn’t mean that if you spend less money on an Aero bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Cannondale SystemSix Carbon Ultegra price was 5400$. Comparing this to the average Aero bike price, we see that the price is 28.24% higher.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
As for the wheels, Cannondale SystemSix Carbon Ultegra 2023, has a 700c carbon model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Cannondale SystemSix Carbon Ultegra has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 7 sizes. They vary from 160 cm – 205 cm (5.25 ft – 6.73 ft). In conclusion, finding one for you shouldn’t be a problem.
