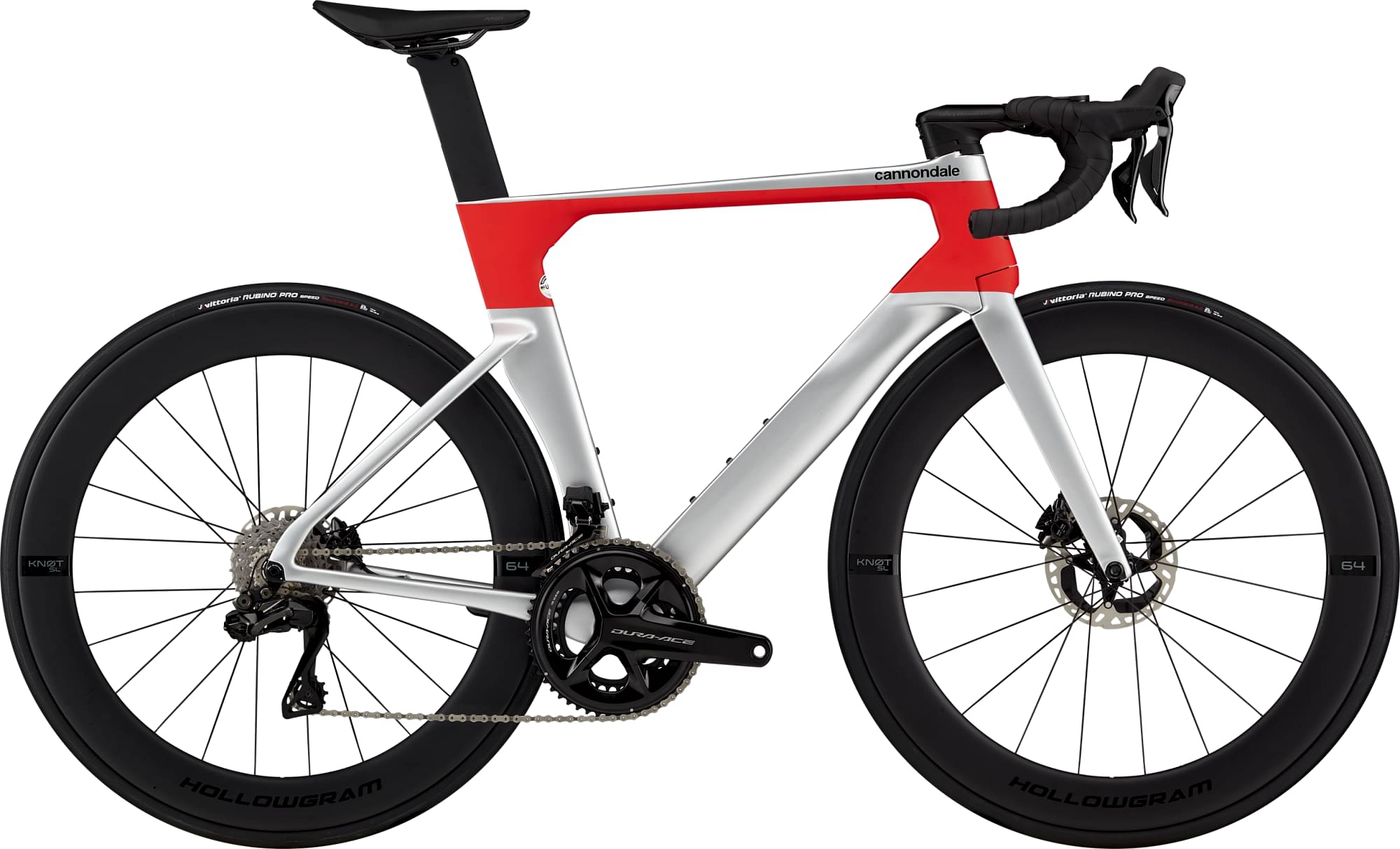

Cannondale SystemSix Hi-MOD Dura-Ace Di2 2023
2023 Road
Estimate price |
13,050$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
47cm
160cm - 170cm
51cm
165cm - 175cm
54cm
170cm - 180cm
56cm
177cm - 188cm
58cm
182cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SystemSix Hi-MOD Carbon, integrated cable routing w/ Switchplate, SAVE, PF30a, flat mount disc, 12x142 Speed Release thru-axle
Suspension Fork
SystemSix Hi-MOD Carbon, 1-1/8" - 1-1/4" steerer, 12x100mm Speed Release thru-axle, flat mount disc, 55mm offset (47-51cm) 45mm offset (54-62cm)
Drivetrain
Rear Derailleur
Shimano Dura-Ace Di2 R9250, 12-speed
Front Derailleur
Shimano Dura-Ace Di2 R9250
Shift Levers
Shimano Dura-Ace Di2 R9270, wireless, 2x12
Cassette
Shimano Dura-Ace R9200, 11-30, 12-speed
Crank
Shimano Dura-Ace R9200, 52/36T
Bottom Bracket
FSA PF30A to 24mm Reducer
Chain
Shimano Dura-Ace Di2
Pedals
Not included
Wheels
Front Hub
(F) HollowGram KNØT, sealed bearing 12x100mm centerlock / (R) HollowGram KNØT, 12x142mm centerlock w/ DT Swiss 240 internals
Rear Hub
(F) HollowGram KNØT, sealed bearing 12x100mm centerlock / (R) HollowGram KNØT, 12x142mm centerlock w/ DT Swiss 240 internals
Rims
HollowGram 64 SL KNØT, Carbon, 20h front, 24h rear, 64mm deep, 21mm inner width, tubeless ready
Spokes
DT Swiss Aerolite, straight-pull
Tires
Vittoria Rubino Pro Speed, 700x25c
Brakes
Brakes
Shimano Dura-Ace R9270 hydraulic disc, 160/140mm MT900 rotors
Brake Levers
Shimano Dura-Ace Di2 R9270 hydraulic disc
Cockpit
Stem
HollowGram KNØT, Alloy w/ cable cover, -17°
Handlebar
HollowGram KNØT SystemBar, Carbon, 8 deg. pitch adjust
Grips
Cannondale Bar Tape, 3.5mm
Headset
Integrated, 1-1/8" - 1-1/4"
Seat
Saddle
Fizik Tempo Argo R3, 150mm width, K:ium rails
Seatpost
HollowGram 60 KNØT Carbon, 330mm
Fit data

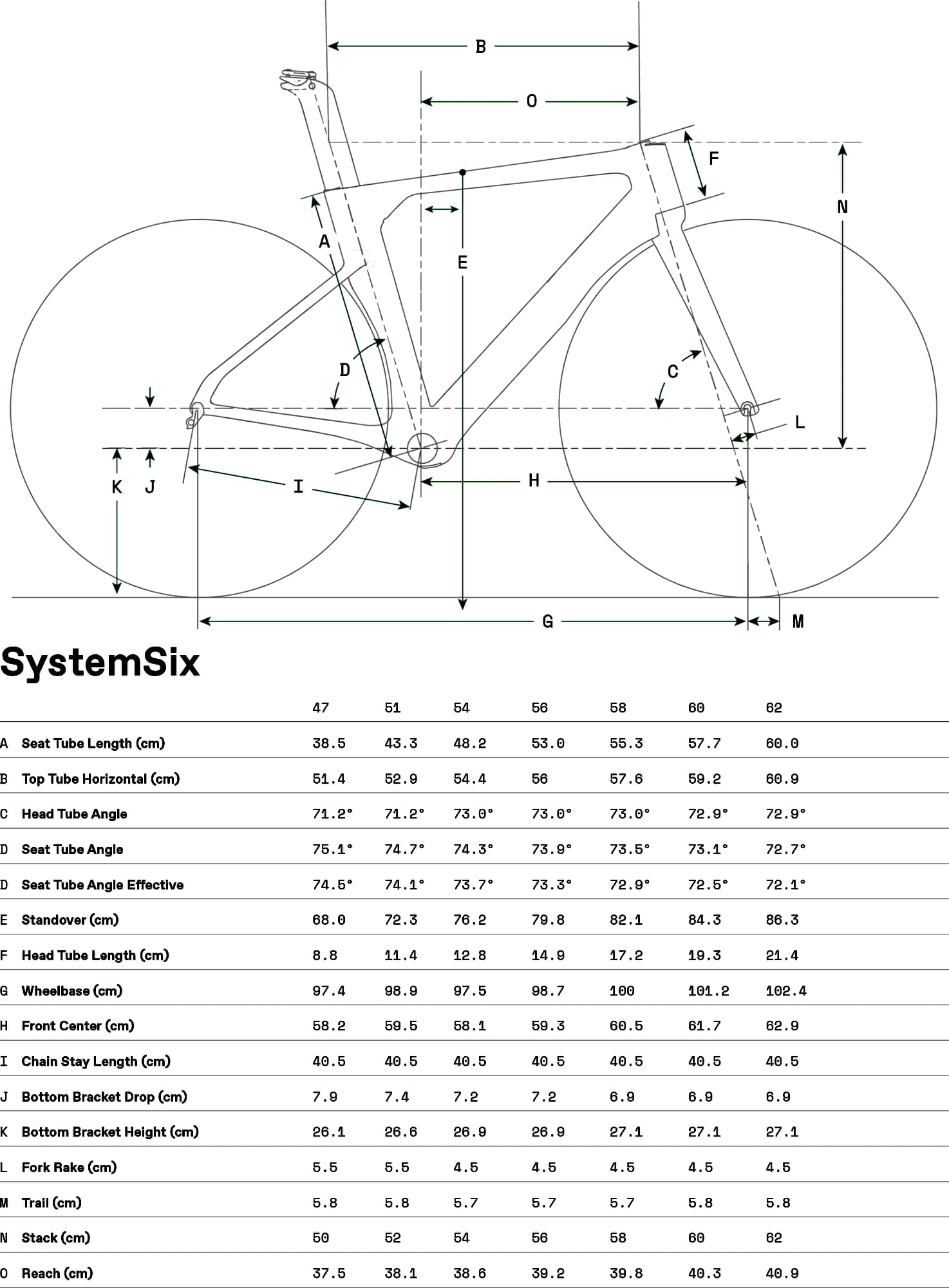

Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 51cm | 54cm | 56cm | 58cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.33 mm | 1.36 mm | 1.4 mm | 1.43 mm | 1.46 mm |
| Bottom Bracket Height | 261 mm | 266 mm | 269 mm | 269 mm | 271 mm |
| Front Center | 582 mm | 595 mm | 581 mm | 593 mm | 605 mm |
| Rake | 55 mm | 55 mm | 45 mm | 45 mm | 45 mm |
| Trail | 58 mm | 58 mm | 57 mm | 57 mm | 57 mm |
| Stack | 502 mm | 522 mm | 542 mm | 562 mm | 582 mm |
| Reach | 377 mm | 383 mm | 388 mm | 394 mm | 400 mm |
| Top Tube Length | 516 mm | 531 mm | 546 mm | 562 mm | 578 mm |
| Seat Tube Angle | 74.5 ° | 74.1 ° | 73.7 ° | 73.3 ° | 72.9 ° |
| Seat Tube Length | 385 mm | 433 mm | 482 mm | 530 mm | 553 mm |
| Head Tube Angle | 71.2 ° | 71.2 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 88 mm | 114 mm | 128 mm | 149 mm | 172 mm |
| Chainstay Length | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm |
| Wheelbase | 976 mm | 991 mm | 977 mm | 989 mm | 1002 mm |
| Bottom Bracket Drop | 79 mm | 74 mm | 72 mm | 72 mm | 69 mm |
| Standover Height | 682 mm | 725 mm | 764 mm | 800 mm | 823 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 160 cm | 165 cm | 170 cm | 177 cm | 182 cm |
| Rider Max Height | 170 cm | 175 cm | 180 cm | 188 cm | 193 cm |
About this model
SystemSix Hi-MOD Dura-Ace Di2 is a Cannondale Systemsix model. 33 bikes variations carry this model name so far. You can easily view all of the Cannondale Systemsix bikes models from 2023, here.
Model range prices
Cannondale SystemSix Carbon Ultegra 2023 is the most affordable bike of this model and has a price of 5400$. On the other hand, Cannondale SystemSix Hi-MOD Dura-Ace Di2 2023, is the most expensive and costs 13050$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Aero bikes
Our math shows that the average cost of a dependable Aero bike is 4211$. However, you could also get a good Aero bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Cannondale SystemSix Hi-MOD Dura-Ace Di2 price was 13050$. Doing a quick comparison, we notice that SystemSix Hi-MOD Dura-Ace Di2 price is 209.9% higher than the average cost of an Aero bike.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
The SystemSix Hi-MOD Dura-Ace Di2 2023 bike is equipped with 700c carbon wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 5 sizes. They vary from 160 cm – 193 cm (5.25 ft – 6.33 ft). In short, you can easily find one that suits you.
