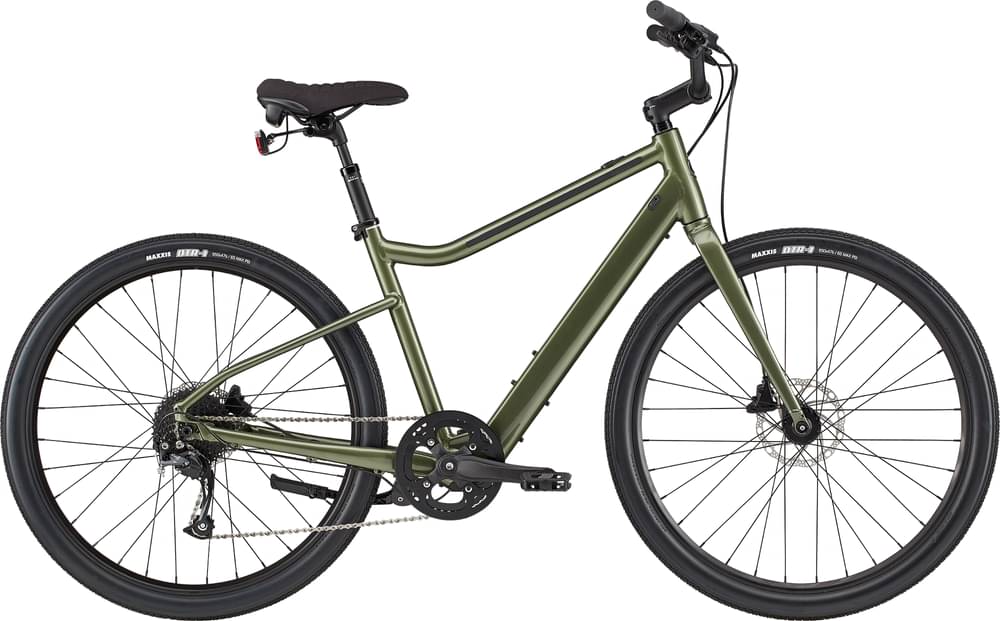

Cannondale Treadwell Neo 2020
2020 E-bike
Estimate price |
2,300$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 650b -
Groupset Altus -
Suspension Rigid -
Motor MAHLE 250W 40Nm hub-drive -
Battery MAHLE ebikemotion X35 250Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
All-New, SmartForm C3 Alloy, low standover Ride-Easy geometry, internal downtube battery, hidden cable routing, Urban Armor frame bumpers, flat mount disc, rack/fender mounts, kickstand mount, Low standover Ride-Easy geometry, Internal downtube battery, Hidden cable routing, Urban Armor frame bumpers, Flat mount disc, Rack/fender mounts, Kickstand mount
Suspension Fork
All-New, SmartForm C3 Alloy blades, 1-1/8" steerer, OutFront offset, flat mount disc, mid-blade rack/fender mounts
Drivetrain
Rear Derailleur
Shimano Altus
Shift Levers
Shimano Altus, 9-speed
Cassette
Sunrace, 11-36, 9-speed
Crank
Prowheel, 42T
Bottom Bracket
Cartridge Sealed
Chain
KMC E9T, 9-speed
Pedals
Cannondale Comfort
Wheels
Front Hub
Sealed Alloy Disc, 12x100
Rear Hub
MAHLE ebikemotion X35 250W
Rims
Shining, 32 hole
Spokes
Stainless Steel, 14g
Tires
Maxxis DTR-1, 650b x 47c
Brakes
Brakes
Tektro HD-R280 hydraulic disc, 160/140mm rotors
Brake Levers
Tektro hydro disc
Cockpit
Stem
Cannondale 3 with Intellimount, alloy, 31.8mm clamp
Handlebar
Cannondale Cruise Control riser, 6061 alloy, 31.8mm clamp, 15 degree backsweep, 740mm width
Grips
Cannondale Comfort
Headset
FSA, Alloy, 1-1/8" Ahead, semi-integrated
Seat
Saddle
Cannondale Treadwell, 170mm, steel rails
Seatpost
Promax Suspension Seatpost, 31.6, 40mm
Motor & Battery
Motor
MAHLE ebikemotion X35 250W
Battery
MAHLE ebikemotion X35 250Wh
Remote
MAHLE ebikemotion iWoc ONE
Charger
MAHLE ebikemotion X35
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.52 mm | 1.56 mm |
| Bottom Bracket Height | 280 mm | 280 mm | 280 mm |
| Front Center | 601 mm | 618 mm | 639 mm |
| Rake | 55 mm | 55 mm | 55 mm |
| Trail | 63 mm | 60 mm | 60 mm |
| Stack | 554 mm | 584 mm | 614 mm |
| Reach | 372 mm | 383 mm | 394 mm |
| Top Tube Length | 561 mm | 583 mm | 604 mm |
| Seat Tube Angle | 71 ° | 71 ° | 71 ° |
| Seat Tube Length | 387 mm | 450 mm | 513 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71 ° |
| Head Tube Length | 135 mm | 165 mm | 196 mm |
| Chainstay Length | 464 mm | 464 mm | 464 mm |
| Wheelbase | 1058 mm | 1075 mm | 1096 mm |
| Bottom Bracket Drop | 64 mm | 64 mm | 64 mm |
| Standover Height | 669 mm | 713 mm | 751 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
Treadwell Neo is a Cannondale E Treadwell model. Cannondale launched 24 e-bikes of this model so far. Take a sneak peek at all Cannondale E Treadwell e-bikes models from 2020, by clicking here.
Model range prices
Cannondale Treadwell Neo Remixte 2020 is the cheapest e-bike model and costs 1952$. Cannondale Treadwell Neo EQ 2020 is the most expensive one and costs 2750$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Hybrid e-bikes
According to our calculations, the average cost of a Hybrid e-bike that is reliable is 2480$. However, you could also get a good Hybrid e-bike even if you pay a lower amount than the average price. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
At the moment of the release date, Cannondale Treadwell Neo price was 2300$. Comparing the average cost of a Hybrid e-bike to this one, you will see that Treadwell Neo price is 7.83% smaller.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Treadwell Neo components
Fork material
Treadwell Neo has an aluminum fork, which doesn’t add too much extra weight to the e-bike. However, it is not so stiff as steel or carbon forks are.
Wheels size
When leaving the production line, the Treadwell Neo model has aluminum wheels. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
