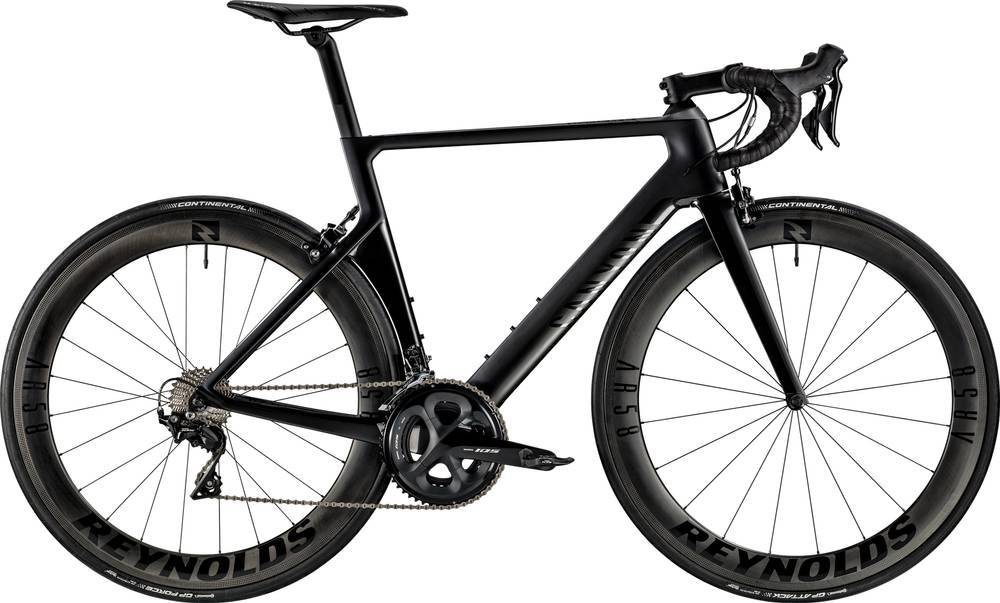

Canyon Aeroad CF SL 7.0 2019
2019 Road
Estimate price |
2,999$
Weight | 7.6 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Sizing
Recommended size guide.
XXS
157cm - 167cm
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 185cm
LG
183cm - 190cm
XL
188cm - 195cm
XXL
193cm - 204cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Aeroad CF SL, Material: Carbon, Axle Dimension: 9 x 130 mm, Brake Mount: Direct Mount
Suspension Fork
Canyon FK0068 CF, Material: Carbon, Steerer: 1 1/4", Axle Dimension: 5 x 100 mm, Brake Mount: Direct Mount
Drivetrain
Rear Derailleur
Shimano 105 R7000 SS
Front Derailleur
Shimano 105 R7000
Shift Levers
Shimano 105 R7000 2s, Weight: 251 g | Shimano 105 R7000 11s, Weight: 251 g
Cassette
Shimano 105 R7000 11-28 11s
Crank
Shimano 105 R7000, 52/36
Bottom Bracket
Shimano Pressfit BB72
Chain
Shimano CN-HG700-11
Pedals
None included
Wheels
Rims
Reynolds AR58, Rim Material: Carbon, Rim Height: 58 mm, Inner Width: 19 mm, Weight: 1700 g (set) | Reynolds AR58 SH11, Rim Material: Carbon, Rim Height: 58 mm, Inner Width: 19 mm, Weight: 1600 g (set)
Tires
Continental Grand Prix Attack 23 mm, Casing: Vectran Breaker, Compound: BlackChili, Technology: Foldable | Continental Grand Prix 5000 / Attack 25 mm, Aeroad & Speedmax: Continental Grand Prix Force, Ultimate: Continental Grand Prix 4000 S II
Brakes
Brakes
Shimano 105 R7010
Brake Levers
Shimano 105 R7000 2s, Weight: 251 g | Shimano 105 R7000 11s, Weight: 251 g
Cockpit
Stem
Canyon V13
Handlebar
Canyon H16 Aerobar AL, Material: Aluminium, Shape: Ergo, Reach: 70 mm, Drop: 130 mm
Headset
Canyon | Acros
Seat
Saddle
Fizik Arione R5
Seatpost
Canyon S27 VCLS CF Seatpost, Trident shape specific to Canyon Aeroad, Full carbon material, Allows for setback adjustments between 15 and -1 mm, 1 x S27 VCLS CF seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.35 mm | 1.36 mm | 1.38 mm | 1.41 mm | 1.42 mm | 1.44 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 569 mm | 573 mm | 582 mm | 589 mm | 601 mm | 621 mm | 633 mm |
| Rake | 41 mm | 41 mm | 41 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 82 mm | 71 mm | 61 mm | 57 mm | 57 mm | 57 mm | 57 mm |
| Stack | 496 mm | 511 mm | 535 mm | 552 mm | 572 mm | 594 mm | 614 mm |
| Reach | 365 mm | 378 mm | 393 mm | 399 mm | 405 mm | 419 mm | 425 mm |
| Top Tube Length | 511 mm | 529 mm | 551 mm | 562 mm | 574 mm | 594 mm | 606 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 470 mm | 489 mm | 508 mm | 531 mm | 551 mm | 568 mm | 587 mm |
| Head Tube Angle | 69.5 ° | 71.2 ° | 72.75 ° | 73.3 ° | 73.3 ° | 73.3 ° | 73.3 ° |
| Head Tube Length | 100 mm | 110 mm | 130 mm | 146 mm | 167 mm | 190 mm | 210 mm |
| Chainstay Length | 412 mm | 412 mm | 412 mm | 412 mm | 412 mm | 412 mm | 412 mm |
| Wheelbase | 971 mm | 975 mm | 984 mm | 991 mm | 1003 mm | 1023 mm | 1035 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 742 mm | 760 mm | 783 mm | 800 mm | 820 mm | 842 mm | 863 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 165 cm | 171 cm | 177 cm | 183 cm | 188 cm | 193 cm |
| Rider Max Height | 167 cm | 173 cm | 179 cm | 185 cm | 190 cm | 195 cm | 204 cm |
About this model
Aeroad CF SL 7.0 belongs to the Canyon Aeroad model. Canyon released 92 bikes variations of this model so far. You can easily view all of the Canyon Aeroad bikes models from 2019, here.
Model range prices
The most economical model, the Canyon Aeroad CF SL 7 2019 has a starting price of 2791$. Canyon Aeroad CF SLX Disc 9.0 SL 2019 on the other hand is the most expensive at 8500$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Aero bikes
If you want an acceptable Aero bike you should know that the average price is 4211$. However, even if your budget is less than the average, you might still be able to get a top-quality Aero bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2019 for 2999$. Comparing this to the average Aero bike price, we see that the price is 40.41% smaller.
Aero bikes average weight
Aero bikes weigh an average of 7.34 kg (16.18 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Aeroad CF SL 7.0 weighs 7.6 kg (16.76 lbs) and is slightly heavier than the average. In other words, this model is 3.54% heavier than the average Aero bike.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
When it comes to wheels, the Aeroad CF SL 7.0 bike is equipped with the 700c carbon model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, you could spend a little extra and get a bike that has hydraulic brakes.
Sizes
This bike is available in 7 sizes. They vary from 157 cm – 204 cm (5.15 ft – 6.69 ft). In short, it won’t be difficult to find the right one for you.
