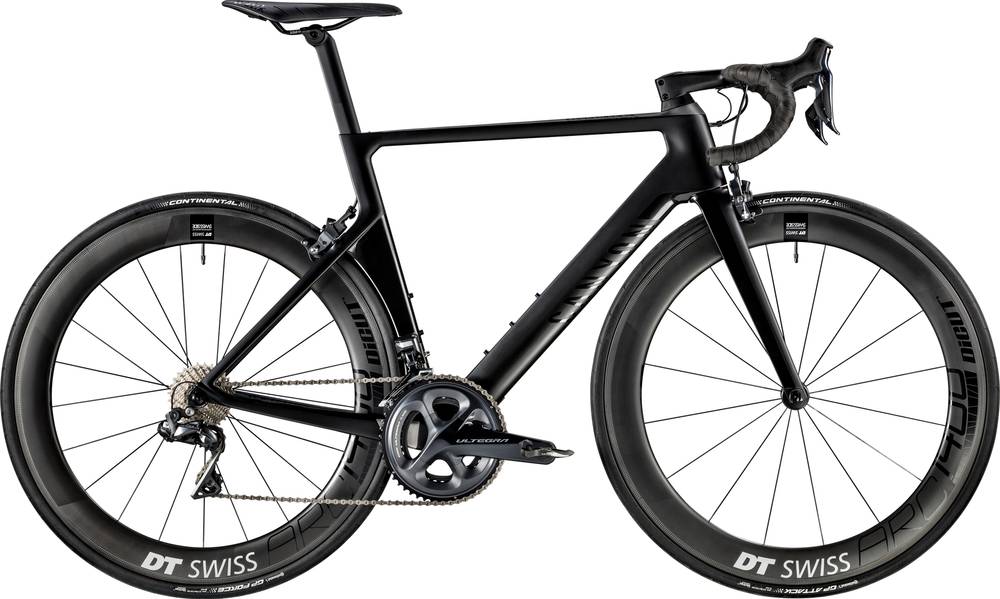

Canyon Aeroad CF SL 8.0 Di2 2019
2019 Road
Estimate price |
4,816$
Weight | 7.3 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Rim
Sizing
Recommended size guide.
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 185cm
LG
183cm - 190cm
XL
188cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Aeroad CF SL, Material: Carbon, Axle Dimension: 9 x 130 mm, Brake Mount: Direct Mount
Suspension Fork
Canyon FK0068 CF, Material: Carbon, Steerer: 1 1/4", Axle Dimension: 5 x 100 mm, Brake Mount: Direct Mount
Drivetrain
Rear Derailleur
Shimano Ultegra Di2 R8050 SS
Front Derailleur
Shimano Ultegra Di2 R8050
Shift Levers
Shimano Ultegra Di2 R8050 2s, Weight: 148 g | Shimano Ultegra Di2 R8050 11s, Weight: 148 g
Cassette
Shimano Ultegra R8000 11-28 11s
Crank
Shimano Ultegra R8000 52/36
Bottom Bracket
Shimano Pressfit BB72
Chain
Shimano CN-HG701 11s
Pedals
None included
Wheels
Rims
DT Swiss ARC 1400 Dicut, Rim Material: Carbon, Rim Height: 62 mm, Inner Width: 17 mm, Weight: 744 g | DT Swiss ARC 1400 Dicut SH11, Rim Material: Carbon, Rim Height: 62 mm, Inner Width: 17 mm, Weight: 889 g
Tires
Continental Grand Prix Attack 23 mm, Casing: Vectran Breaker, Compound: BlackChili, Technology: Foldable | Continental Grand Prix 5000 / Attack 25 mm, Aeroad & Speedmax: Continental Grand Prix Force, Ultimate: Continental Grand Prix 4000 S II
Brakes
Brakes
Shimano Ultegra R8010
Brake Levers
Shimano Ultegra Di2 R8050 2s, Weight: 148 g | Shimano Ultegra Di2 R8050 11s, Weight: 148 g
Seat
Saddle
Fizik Arione R5
Seatpost
Canyon S27 VCLS CF Seatpost, Trident shape specific to Canyon Aeroad, Full carbon material, Allows for setback adjustments between 15 and -1 mm, 1 x S27 VCLS CF seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.35 mm | 1.36 mm | 1.38 mm | 1.41 mm | 1.42 mm | 1.44 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 569 mm | 573 mm | 582 mm | 589 mm | 601 mm | 621 mm | 633 mm |
| Rake | 41 mm | 41 mm | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 82 mm | 71 mm | 60 mm | 57 mm | 57 mm | 57 mm | 57 mm |
| Stack | 496 mm | 511 mm | 535 mm | 552 mm | 572 mm | 594 mm | 614 mm |
| Reach | 365 mm | 378 mm | 393 mm | 399 mm | 405 mm | 419 mm | 425 mm |
| Top Tube Length | 511 mm | 529 mm | 551 mm | 562 mm | 574 mm | 594 mm | 606 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 470 mm | 489 mm | 508 mm | 531 mm | 551 mm | 568 mm | 587 mm |
| Head Tube Angle | 69.5 ° | 71.2 ° | 72.8 ° | 73.3 ° | 73.3 ° | 73.3 ° | 73.3 ° |
| Head Tube Length | 100 mm | 110 mm | 130 mm | 146 mm | 167 mm | 190 mm | 210 mm |
| Chainstay Length | 412 mm | 412 mm | 412 mm | 412 mm | 412 mm | 412 mm | 412 mm |
| Wheelbase | 971 mm | 975 mm | 984 mm | 991 mm | 1003 mm | 1023 mm | 1035 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 742 mm | 760 mm | 783 mm | 800 mm | 820 mm | 842 mm | 863 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 167 cm | 173 cm | 179 cm | 185 cm | 190 cm | 195 cm | cm |
Model Overview
Aeroad CF SL 8.0 Di2 is part of the Canyon Aeroad model. 92 bikes variations carry this model name so far. Take a sneak peek at all Canyon Aeroad bikes models from 2019, by clicking here.
Model range prices
Canyon Aeroad CF SL 7 2019 is the cheapest bike model and costs 2791$. Canyon Aeroad CF SLX Disc 9.0 SL 2019 is the most expensive one and costs 8500$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Aero bikes
According to our calculations, the average cost of an Aero bike that is reliable is 4211$. However, you could also get a good Aero bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Canyon released this model in 2019, its price was 4458$. If we compare this with the average Aero bike cost we notice that the price is 5.87% more expensive.
Average weight for Aero bikes
On a deeper look, we notice that the average weight of an Aero bike is 7.34 kg (16.18 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
slightly lighter than average, Aeroad CF SL 8.0 Di2 has a weight of 7.3 kg (16.09 lbs). In other words, this model is 0.55% lighter than the average Aero bike.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
The Aeroad CF SL 8.0 Di2 2019 bike is equipped with 700c carbon wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Aeroad CF SL 8.0 Di2 has Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they have problems in wet conditions.
