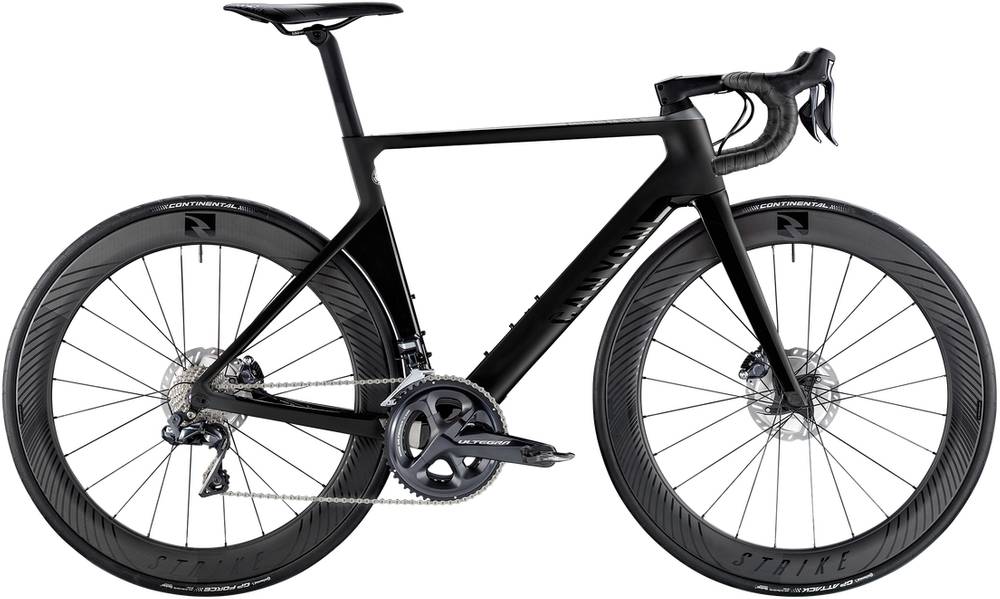

Canyon Aeroad CF SLX Disc 8.0 Di2 2019
2019 Road
Estimate price |
4,599$
Weight | 7.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XXS
157cm - 167cm
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 185cm
LG
183cm - 191cm
XL
188cm - 197cm
XXL
194cm - 204cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Aeroad CF SLX Disc, Frame: Carbon, Geometry: PRO, Trident 2.0 Down Tube, Head Tube Stiffness: 100Nm/°, Bottom Bracket Stiffness: 70N/mm, Flat Mount Disc Brakes, Integrated Seat Clamp, Integrated Cable Routing, Weight: 980 g (M)
Suspension Fork
Canyon Aeroblade SL Disc, Full-carbon fork, 1 1/4" fork shaft, Flat mount disc brake mount, Hollow fork crown
Drivetrain
Rear Derailleur
Shimano Ultegra DI2, 11s, Short Cage (SS), 11-speed, RD-R8050
Front Derailleur
Shimano Ultegra DI2, 11s
Shift Levers
Shimano Ultegra DI2 Disc, 11s, SH ST-R8070
Cassette
Shimano Ultegra, 11s, SH CS-8000, 11-12-13-14-15-17-19-21-23-25-28 T
Crank
Shimano Ultegra, 11s
Bottom Bracket
Shimano Pressfit, Press Fit, Small housing for less weight, Improved seal construction, SM-BB92-41B
Pedals
none included
Wheels
Rims
Reynolds Strike SLG Carbon Disc Tubeless, tubeless ready, DT Aero Comp spokes, Width: 25 mm (external), 17 mm (internal), Weight: 1635 g (approx.)
Tires
Continental Grand Prix Attack III | Grand Prix Force III, Front: Grand Prix Attack III, 23 mm, Rear: Grand Prix Force III, 25 mm
Brakes
Brakes
Shimano Ultegra Disc
Brake Levers
Shimano Ultegra DI2 Disc, 11s, SH ST-R8070
Cockpit
Headset
Canyon | Acros
Seat
Saddle
Fizik Arione R5, Manganese rails, Wing Flex composite glass fibre shell, Mictrotex saddle cover, Weight: 205 g
Seatpost
Canyon S27 Aero VCLS CF, In-house developed Canyon seatpost, Trident 2.0 form for best aerodynamic performance and integration with frame, Adjustable setback (15 mm/-1 mm) thanks to Flip Head mechanism, Length: 330 mm, Compliant with Canyon Category 1 testing
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.35 mm | 1.36 mm | 1.38 mm | 1.41 mm | 1.42 mm | 1.44 mm |
| Stack | 496 mm | 511 mm | 535 mm | 552 mm | 572 mm | 594 mm | 614 mm |
| Reach | 365 mm | 378 mm | 393 mm | 399 mm | 405 mm | 419 mm | 425 mm |
| Top Tube Length | 511 mm | 529 mm | 551 mm | 562 mm | 574 mm | 594 mm | 606 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 470 mm | 489 mm | 508 mm | 531 mm | 551 mm | 568 mm | 587 mm |
| Head Tube Angle | 69.5 ° | 71.2 ° | 72.8 ° | 73.3 ° | 73.3 ° | 73.3 ° | 73.3 ° |
| Head Tube Length | 100 mm | 110 mm | 130 mm | 146 mm | 167 mm | 190 mm | 210 mm |
| Chainstay Length | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm |
| Wheelbase | 977 mm | 980 mm | 989 mm | 996 mm | 1008 mm | 1028 mm | 1040 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 165 cm | 171 cm | 177 cm | 183 cm | 188 cm | 194 cm |
| Rider Max Height | 167 cm | 173 cm | 179 cm | 185 cm | 191 cm | 197 cm | 204 cm |
Model Overview
Aeroad CF SLX Disc 8.0 Di2 completes the Canyon Aeroad model. 92 bikes variations carry this model name so far. Take a sneak peek at all Canyon Aeroad bikes models from 2019, by clicking here.
Model range prices
The most economical model, the Canyon Aeroad CF SL 7 2019 has a starting price of 2791$. Canyon Aeroad CF SLX Disc 9.0 SL 2019 on the other hand is the most expensive at 8500$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Aero bikes
According to our calculations, the average cost of an Aero bike that is reliable is 4211$. However, this doesn’t mean that if you spend less money on an Aero bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2019 and its price was 4599$. If we compare this with the average Aero bike cost we notice that the price is 9.21% more expensive.
Average weight for Aero bikes
On a deeper look, we notice that the average weight of an Aero bike is 7.34 kg (16.18 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Aeroad CF SLX Disc 8.0 Di2 weighs 7.5 kg (16.53 lbs) and is slightly heavier than the average. In short, the average Aero bike weight is 2.18% lower than this one.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Aeroad CF SLX Disc 8.0 Di2 components
Fork material
The fork on this bike is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
The wheels on Aeroad CF SLX Disc 8.0 Di2 are the 700c carbon type. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Canyon Aeroad CF SLX Disc 8.0 Di2 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Canyon Aeroad CF SLX Disc 8.0 Di2 bike has 7 sizes, in the range of 157 cm – 204 cm (5.15 ft – 6.69 ft). In short, it won’t be difficult to find the right one for you.
