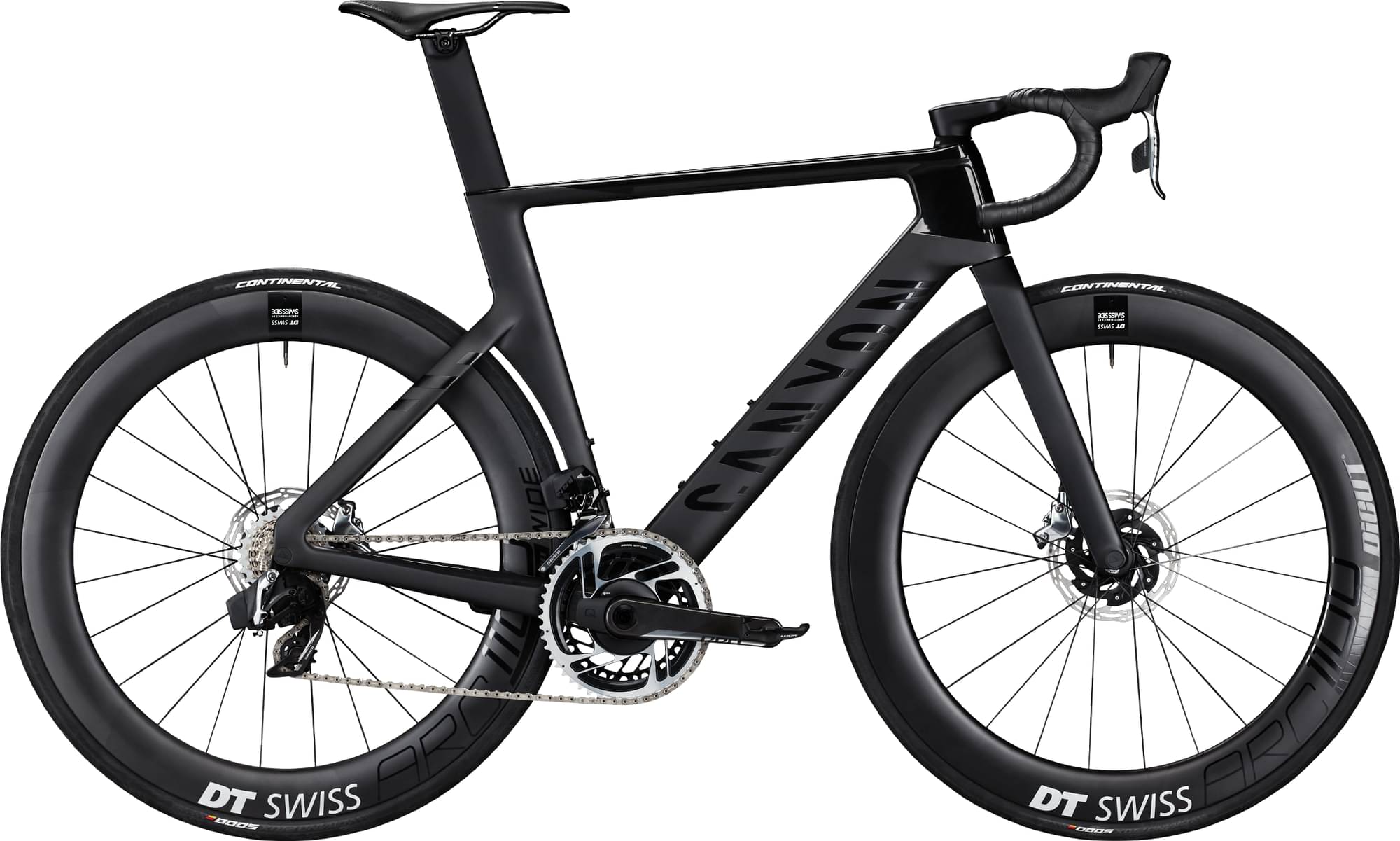

Canyon Aeroad CFR Disc AXS 2022
2022 Road
Estimate price |
9,000$
Weight | 7.37 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset RED eTap -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 185cm
LG
183cm - 191cm
XL
189cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Aeroad CFR Disc, Canyon Factory Racing R065 aero carbon frame, featuring ultra-rare Toray M40X carbon fibres. Shaped by extensive computational fluid dynamics analysis, validated in the wind tunnel. Fully internal routing, 12x142 mm through axle, flat-mount disc standard. Weight: 915 g
Suspension Fork
Canyon FK0060 CF Disc, All-new design, 12x120 mm through axle, flat-mount disc standard. CT scanner tested and approved. Weight: 425 g, Hub spacing: 12x100mm
Drivetrain
Rear Derailleur
SRAM RED eTap AXS, 12-speed, 12-speed, wireless shifting, max cassette size: 33T. Weight: 277 g
Front Derailleur
SRAM RED eTap AXS, Wireless shifting, for 2x12 drivetrains, braze-on mount. Weight: 105 g
Shift Levers
SRAM RED eTap AXS HRD, 12-speed, Left-hand shifter, 12-speed, wireless shifting. With bite point and reach adjustment. Weight: 143 g | SRAM RED eTap AXS HRD, 12-speed, Right-hand shifter, 12-speed, wireless shifting. With bite point and reach adjustment. Weight: 143 g
Cassette
SRAM RED XG-1290, 12-speed, 10-28, Machined one-piece design for smoother, faster shifting and weight savings. Gear range: 10-28T, weight: 175 g
Crank
SRAM RED D1, Featuring integrated dual-sided power meter, 2x12-speed, gearing: 50/37. Bottom bracket: SRAM Pressfit RED DUB, weight: 616g
Bottom Bracket
SRAM Pressfit RED DUB, Pressfit BB86 road standard, compatible with SRAM DUB axles. Weight: 72 g
Chain
SRAM Red D1 12-speed
Pedals
None included
Wheels
Rims
DT Swiss ARC 1100 Dicut, Front wheel with 62mm-deep carbon rim. With DT Aerolite spokes, tubeless-ready | DT Swiss ARC 1100 Dicut, Rear wheel with 62mm-deep carbon rim. With DT Aerolite spokes, tubeless-ready
Tires
Continental Grand Prix 5000, 25 mm, Aeroad & Speedmax: Continental Grand Prix Force, Ultimate: Continental Grand Prix 4000 S II | Continental Grand Prix 5000 28 mm, Casing: Vectran Breaker, Compound: BlackChili, Technology: Foldable
Brakes
Brakes
hydraulicDisc
Brake Levers
SRAM RED eTap AXS HRD, 12-speed, Left-hand shifter, 12-speed, wireless shifting. With bite point and reach adjustment. Weight: 143 g | SRAM RED eTap AXS HRD, 12-speed, Right-hand shifter, 12-speed, wireless shifting. With bite point and reach adjustment. Weight: 143 g
Disk Rotors
SRAM Centerline X, Two-piece design centerlock brake rotor, rounded edges for easier wheel installs. Weight: 135 g
Seat
Saddle
Selle Italia SLR, Featuring lightweight manganese rails, durable Fibra-Tek covering
Seatpost
Canyon SP0046 Aero Seatpost, Aero-optimised carbon seatpost with new sleeve bearing that creates a seal and reduces seatpost and seat tube friction and prevents dirt from entering.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.39 mm | 1.39 mm | 1.43 mm | 1.46 mm | 1.45 mm | 1.46 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 573 mm | 578 mm | 584 mm | 589 mm | 602 mm | 625 mm | 638 mm |
| Rake | 43 mm | 43 mm | 42 mm | 43 mm | 42 mm | 41 mm | 42 mm |
| Trail | 73 mm | 67 mm | 60 mm | 56 mm | 57 mm | 57 mm | 54 mm |
| Stack | 490 mm | 513 mm | 531 mm | 552 mm | 572 mm | 598 mm | 616 mm |
| Reach | 364 mm | 370 mm | 382 mm | 385 mm | 393 mm | 411 mm | 421 mm |
| Top Tube Length | 512 mm | 525 mm | 541 mm | 551 mm | 564 mm | 590 mm | 605 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 443 mm | 473 mm | 503 mm | 533 mm | 563 mm | 593 mm | 623 mm |
| Head Tube Angle | 70.5 ° | 71.5 ° | 72.75 ° | 73.25 ° | 73.25 ° | 73.5 ° | 73.75 ° |
| Head Tube Length | 89 mm | 109 mm | 126 mm | 147 mm | 167 mm | 193 mm | 211 mm |
| Chainstay Length | 402 mm | 402 mm | 402 mm | 402 mm | 402 mm | 402 mm | 402 mm |
| Wheelbase | 964 mm | 969 mm | 976 mm | 981 mm | 994 mm | 1017 mm | 1030 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 725 mm | 751 mm | 777 mm | 802 mm | 826 mm | 852 mm | 876 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 167 cm | 173 cm | 179 cm | 185 cm | 191 cm | 197 cm | cm |
Model Overview
Aeroad CFR Disc AXS completes the Canyon Aeroad model. There are 92 bikes that carry this model name. Take a sneak peek at all Canyon Aeroad bikes models from 2022, by clicking here.
Model range prices
Canyon Aeroad CF SL 7 WMN Disc 2022 is the cheapest bike model and costs 3609$. Canyon Aeroad CFR DISC MvdP 2022 is the most expensive one and costs 10617$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Aero bikes average price
If you want an acceptable Aero bike you should know that the average price is 4211$. However, you could also get a good Aero bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2022 for 9000$. Doing a quick comparison, we notice that Aeroad CFR Disc AXS price is 113.73% more expensive than the average cost of an Aero bike.
Aero bikes average weight
The average weight for Aero bikes is 7.34 kg (16.18 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 7.37 kg (16.25 lbs), Canyon bike is slightly heavier than average. In conclusion, the average Aero bike weighs 0.41% less than Aeroad CFR Disc AXS.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
When leaving the production line, the Aeroad CFR Disc AXS model has 700c carbon wheels. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Canyon Aeroad CFR Disc AXS has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
