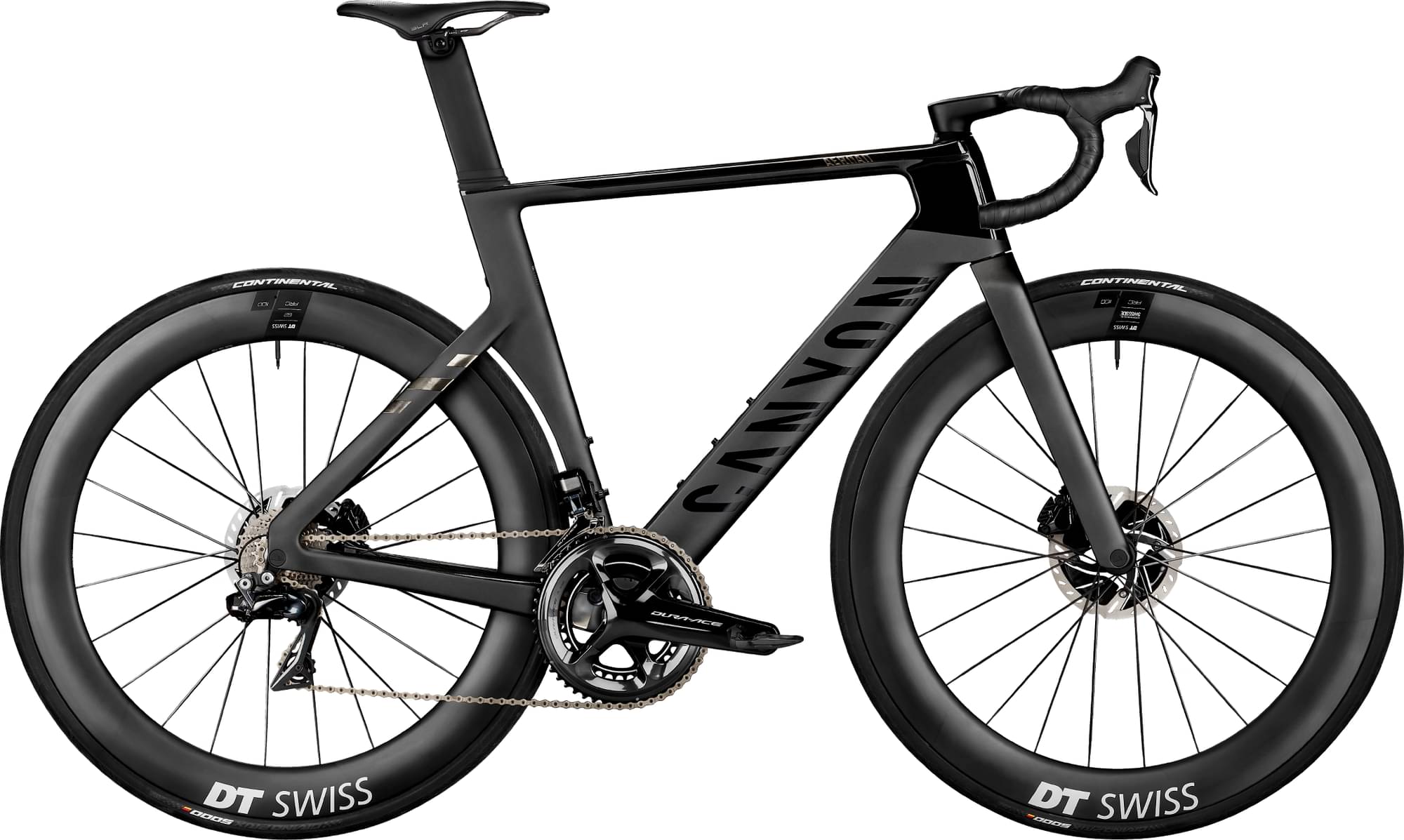

Canyon Aeroad CFR Disc Di2 2022
2022 Road
Estimate price |
10,551$
Weight | 7.14 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace Di2 -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 185cm
LG
183cm - 191cm
XL
189cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aeroad CFR DISC Di2
Suspension Fork
Canyon FK0060 CF Disc, All-new design, 12x120 mm through axle, flat-mount disc standard. CT scanner tested and approved. Weight: 425 g, Hub spacing: 12x100mm
Drivetrain
Rear Derailleur
Shimano Dura-Ace Di2 R9150, 11-speed, Short-cage 11-speed derailleur, max. cassette size: 30T, Shadow shifting technology. Weight: 205 g
Front Derailleur
Shimano Dura-Ace Di2 R9150, For 2x11 speed setups, with automatic trimming, braze-on mount. Weight: 105 g
Shift Levers
Shimano Dura Ace Di2 R9170, 11-speed, Left-hand electronic shifter, 2-by setup, reach adjustment. Weight: 160 g | Shimano Dura Ace Di2 R9170, 11-speed, Right-hand electronic shifter, 11-speed, reach adjustment. Weight: 160 g
Cassette
Shimano Dura-Ace R9100, 11-speed, 11-28, With mix of steel and titanium sprockets mounted on an ultralight aluminium spider for minimal weight. Gear range: 11-28T, weight: 180 g
Crank
Shimano Dura-Ace R9100 PM, 2x11-speed crankset with integrated dual-sided power meter and 52/36 gearing. With HollowTech II design for superlight construction. Weight: 670 g, *US size small comes with 170mm cranks
Bottom Bracket
Shimano Pressfit BB92, Pressfit BB86 standard, compatible with 24 mm axles, featuring Hollowtech 2 technology. Weight: 54 g
Chain
Shimano HG901 11-speed, High-end chain with complete SIL-TEC treatment on plates and roller, for increased durability and efficiency.
Pedals
None included
Wheels
Rims
DT Swiss ARC 1100 Dicut, Front wheel with Aero+ technology for stability, low drag, and all-round performance. With new DT Swiss aero spokes and SINC ceramic bearings. Tubeless-ready. Rim height: 62 mm, inner width: 20 mm, weight: 776 g | DT Swiss ARC 1100 Dicut, Rear wheel with Aero+ technology for stability, low drag, and all-round performance. With new DT Swiss aero spokes and SINC ceramic bearings. Tubeless-ready. Rim depth: 62 mm, inner width: 20 mm, driver: Shimano 11-speed road, weight: 900 g
Tires
Continental Grand Prix 5000, 25 mm, Aeroad & Speedmax: Continental Grand Prix Force, Ultimate: Continental Grand Prix 4000 S II | Continental Grand Prix 5000 28 mm, Casing: Vectran Breaker, Compound: BlackChili, Technology: Foldable
Brakes
Brakes
hydraulicDisc
Brake Levers
Shimano Dura Ace Di2 R9170, 11-speed, Left-hand electronic shifter, 2-by setup, reach adjustment. Weight: 160 g | Shimano Dura Ace Di2 R9170, 11-speed, Right-hand electronic shifter, 11-speed, reach adjustment. Weight: 160 g
Disk Rotors
Shimano RT900, Premium lightweight Centerlock brake rotor featuring Ice Freeza technology., Weight: 117 g
Seat
Saddle
Selle Italia SLR Boost Superflow Kit Carbonio, Superlight saddle with carbon rails, modern short-nose design and unisex ergonomics. Width: 130mm (S), rail material: carbon (oval), weight: 122 g
Seatpost
Canyon SP0046 Aero Seatpost, Aero-optimised carbon seatpost with new sleeve bearing that creates a seal and reduces seatpost and seat tube friction and prevents dirt from entering.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.39 mm | 1.39 mm | 1.43 mm | 1.46 mm | 1.45 mm | 1.46 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 573 mm | 585 mm | 577 mm | 589 mm | 602 mm | 625 mm | 638 mm |
| Rake | 43 mm | 49 mm | 36 mm | 43 mm | 42 mm | 41 mm | 42 mm |
| Trail | 73 mm | 61 mm | 66 mm | 56 mm | 57 mm | 57 mm | 54 mm |
| Stack | 490 mm | 513 mm | 531 mm | 552 mm | 572 mm | 598 mm | 616 mm |
| Reach | 364 mm | 370 mm | 382 mm | 385 mm | 393 mm | 411 mm | 421 mm |
| Top Tube Length | 512 mm | 525 mm | 541 mm | 551 mm | 564 mm | 590 mm | 605 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 443 mm | 473 mm | 503 mm | 533 mm | 563 mm | 593 mm | 623 mm |
| Head Tube Angle | 70.5 ° | 71.5 ° | 72.8 ° | 73.3 ° | 73.3 ° | 73.5 ° | 73.8 ° |
| Head Tube Length | 89 mm | 109 mm | 126 mm | 147 mm | 167 mm | 193 mm | 211 mm |
| Chainstay Length | 402 mm | 402 mm | 402 mm | 402 mm | 402 mm | 402 mm | 402 mm |
| Wheelbase | 964 mm | 976 mm | 969 mm | 981 mm | 994 mm | 1017 mm | 1030 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 725 mm | 751 mm | 777 mm | 802 mm | 826 mm | 852 mm | 876 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 167 cm | 173 cm | 179 cm | 185 cm | 191 cm | 197 cm | cm |
Model Overview
Aeroad CFR Disc Di2 completes the Canyon Aeroad model. Canyon released 92 bikes variations of this model so far. You can easily view all of the Canyon Aeroad bikes models from 2022, here.
Model range prices
Canyon Aeroad CF SL 7 WMN Disc 2022 is the cheapest bike model and costs 3609$. Canyon Aeroad CFR DISC MvdP 2022 is the most expensive one and costs 10617$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Aero bikes average price
Our math shows that the average cost of a dependable Aero bike is 4211$. However, this doesn’t mean that if you spend less money on an Aero bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2022 for 9767$. Comparing the average cost of an Aero bike to this one, you will see that Aeroad CFR Disc Di2 price is 131.94% higher.
Aero bikes average weight
Aero bikes have an average weight of 7.34 kg (16.18 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
slightly lighter than average, Aeroad CFR Disc Di2 has a weight of 7.14 kg (15.74 lbs). In conclusion, the average Aero bike weighs 2.8% more than Aeroad CFR Disc Di2.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
When leaving the production line, the Aeroad CFR Disc Di2 model has 700c carbon wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Aeroad CFR Disc Di2 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
