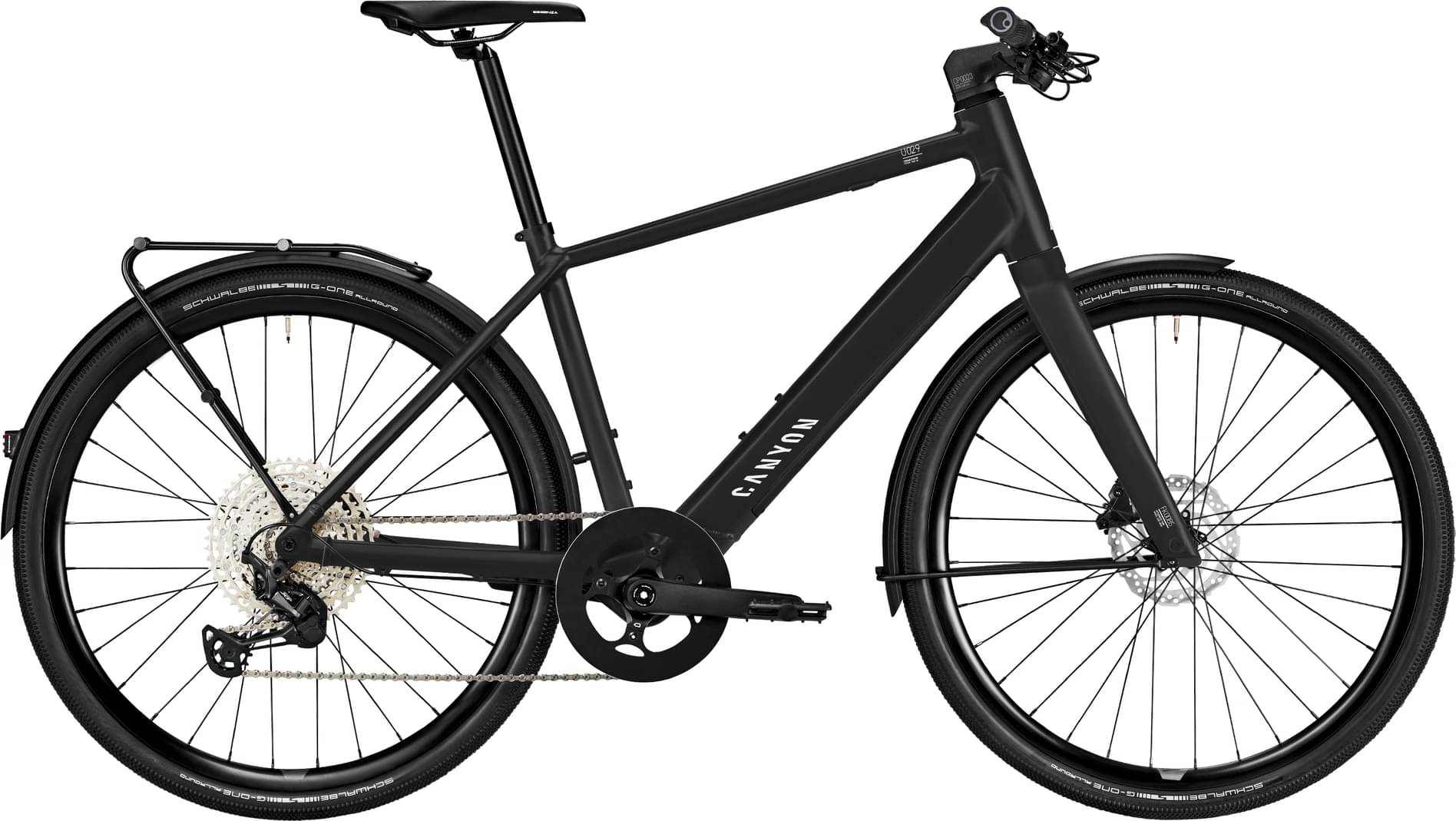

Canyon Commuter:ON 7 2023
2023 E-bike
Estimate price |
3,784$
Weight | 18.26 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset XT, Deore -
Suspension Rigid -
Motor Fazua mid-drive -
Battery FAZUA ENERGY 430 -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
LG
179cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Commuter:ON, Axle dimension: 12x142 mm, Material: Aluminium (AL)
Suspension Fork
Canyon FK0085 CF Disc, Fork steer tube diameter: 1 1/8", Material: Carbon (CF)
Drivetrain
Rear Derailleur
Shimano DEORE XT M8100, Cage length: long, Weight: 286 g
Shift Levers
Shimano Deore M6100 12s
Cassette
Shimano DEORE M6100, Number of sprockets: 12 | Shimano CS-M6100 Deore 12-speed Cassette 10-51
Crank
Samox EC37F, Number of chainrings: 1
Chain
Shimano CN-M6100 | Shimano SM-CN910 12-speed Quick-Link Chain Connector | Shimano CN-M6100 Deore 12-speed Chain 138 Links
Wheels
Rims
Alexrims GX26P | Shimano MT400, Rotor mount: Center Lock, Rim height: 26 mm, Inner width: 23 mm, Weight: 979 g | Alexrims GX26P | Shimano MT410 SH12, Axle dimension: 12x142 mm, Rotor mount: Center Lock, Rim height: 26 mm, Inner width: 23 mm
Tires
Schwalbe G-One Allround 40mm, Width: 1.5", Weight: 400 g | Schwalbe G-One Allround Super Ground 27.5" & 28" Gravel Tyres
Brakes
Brakes
Shimano MT200 | Shimano MT200 / UR300?
Cockpit
Grips
Ergon GA3
Seat
Saddle
SR Royal Essenza
Seatpost
Iridium, Clamp diameter: 30,9 mm, Material: Aluminium (AL), Weight: 280 g
Motor & Battery
Motor
FAZUA RIDE 60 DRIVE UNIT
Battery
FAZUA ENERGY 430
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.47 mm | 1.46 mm |
| Front Center | 637 mm | 656 mm | 690 mm |
| Rake | 41 mm | 42 mm | 43 mm |
| Trail | 73 mm | 66 mm | 71 mm |
| Stack | 593 mm | 627 mm | 660 mm |
| Reach | 409 mm | 426 mm | 451 mm |
| Top Tube Length | 583 mm | 611 mm | 645 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 456 mm | 504 mm | 553 mm |
| Head Tube Angle | 70.5 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 193 mm | 226 mm | 228 mm |
| Chainstay Length | 430 mm | 430 mm | 438 mm |
| Wheelbase | 1060 mm | 1079 mm | 1118 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 73 mm |
| Standover Height | 762 mm | 790 mm | 838 mm |
| Wheels | 650 | 650 | 700 |
| Rider Max Height | 181 cm | 191 cm | cm |
Model Overview
Commuter:ON 7 completes the Canyon E Commuteron model. 12 e-bikes variations carry this model name so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Canyon Commuter:ON 7 2023 is the most economical model, with a starting price of 3503$. Canyon Commuter:ON 8 LTD 2023 on the other hand costs 4034$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Commuter e-bikes
According to our calculations, the average cost of a Commuter e-bike that is reliable is 2569$. However, you could also get a good Commuter e-bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
When Canyon released this model in 2023, its price was 3503$. In conclusion, this e-bike price is 36.36% higher than the price of the average Commuter e-bike.
Commuter e-bikes average weight
Commuter e-bikes weigh an average of 25.2 kg (55.56 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Commuter:ON 7 weighs 18.26 kg (40.26 lbs) and is much lighter than the average. To sum up, it’s 38.01% lighter than the average weight of Commuter e-bikes.
Commuter:ON 7 components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
When leaving the production line, the Commuter:ON 7 model has aluminum wheels. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Commuter:ON 7 has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
