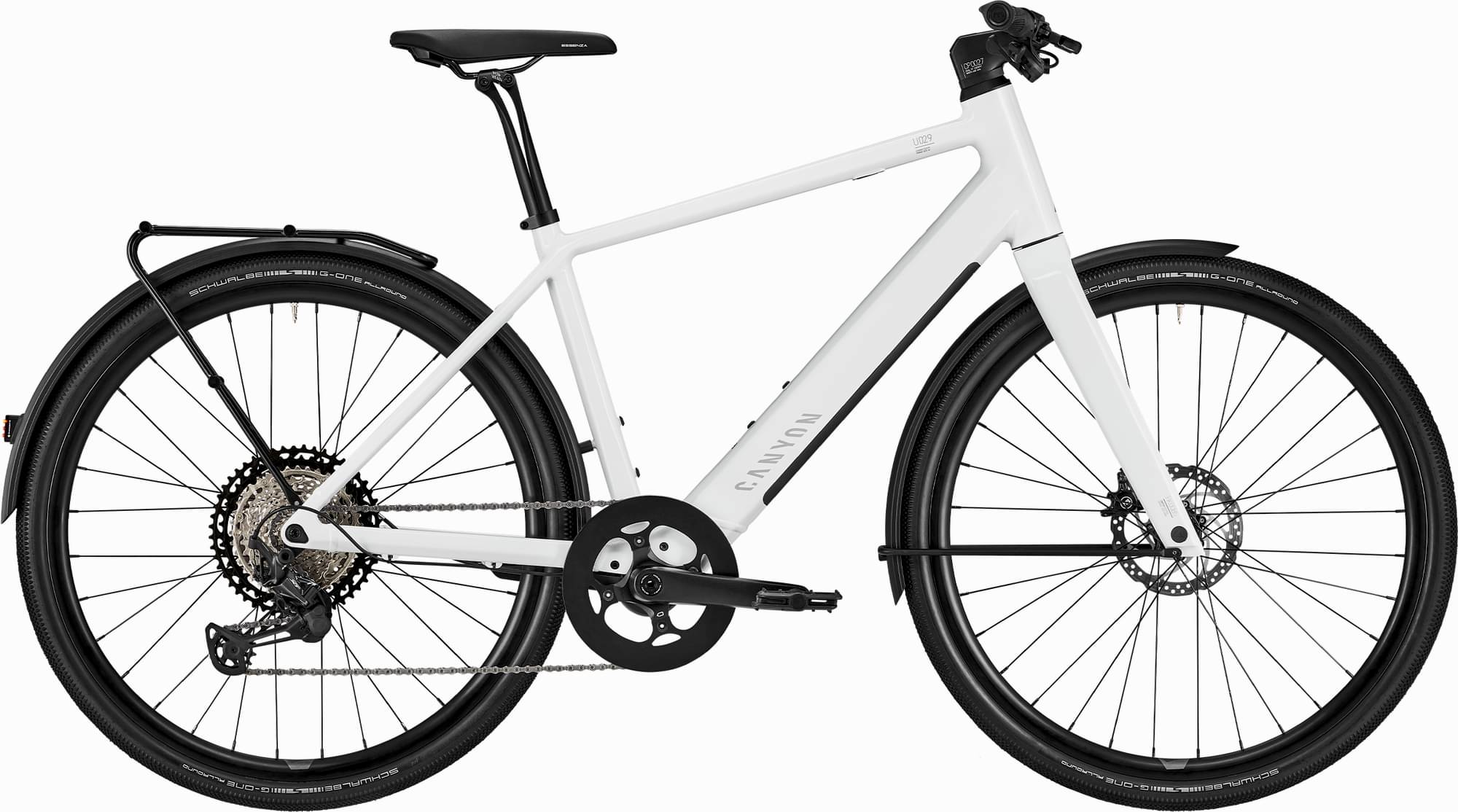

Canyon Commuter:ON 8 LTD 2023
2023 E-bike
Estimate price |
4,357$
Weight | 17.54 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset XT -
Suspension Rigid -
Motor Fazua 450W mid-drive -
Battery FAZUA ENERGY 430, Compact, lightweight battery., Capacity: 430 Wh, Weight: 2.3 kg, Integrated into down tube -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
LG
179cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Commuter:ON, Material: Aluminium (AL)
Suspension Fork
Canyon FK0085 Disc, Material: Carbon
Drivetrain
Rear Derailleur
Shimano Deore XT M8100 12speed, Precise 1x12 drivetrain.
Shift Levers
Shimano Deore XT, 12-speed, Rear derailleur shifter, 12-speed, Textured rubber lever pad, Multi-Release, 2-way release, I-Spec EV clamp allows 14mm lateral adjustment and 20-degrees rotation adjustment, 130 g
Cassette
Shimano XT, 12-speed (10-51), Cassette size: 10-51T, Gear range: 510%
Crank
Samox EC37F, Number of chainrings: 1
Chain
Shimano CN-M6100 12s | Shimano CN-M6100 Deore 12-speed Chain
Wheels
Rims
Alexrims GX26P | Shimano MT400, Rotor mount: Center Lock, Rim height: 26 mm, Inner width: 23 mm, Wheelsize: 27.5" | Alexrims GX26P | Shimano MT410 SH12, Axle dimension: 12x142 mm, Rotor mount: Center Lock, Rim height: 26 mm, Inner width: 23 mm, Wheelsize: 27.5"
Tires
Schwalbe G-One Allround 40mm, Width: 1.5"
Brakes
Brakes
Hydraulic Disc
Cockpit
Grips
Ergon GA3, Premium grips design for extra hand support.
Seat
Saddle
Selle Royal Essenza, Gender: Unisex
Seatpost
Canyon S25 VCLS 2.0 CF, Material: Carbon, Setback: -2 mm / 10 mm, Technology: VCLS 2.0 | Fliphead, Weight: 235 g
Motor & Battery
Motor
FAZUA RIDE 60 DRIVE UNIT, Lightweight, advanced electric motor., Power: 450 W, Weight (without battery): 1.96 kg, Motor assist up to 25 kph
Battery
FAZUA ENERGY 430, Compact, lightweight battery., Capacity: 430 Wh, Weight: 2.3 kg, Integrated into down tube
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.47 mm | 1.46 mm |
| Front Center | 637 mm | 656 mm | 690 mm |
| Rake | 41 mm | 42 mm | 43 mm |
| Trail | 73 mm | 66 mm | 71 mm |
| Stack | 593 mm | 627 mm | 660 mm |
| Reach | 409 mm | 426 mm | 451 mm |
| Top Tube Length | 583 mm | 611 mm | 645 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 456 mm | 504 mm | 553 mm |
| Head Tube Angle | 70.5 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 193 mm | 226 mm | 228 mm |
| Chainstay Length | 430 mm | 430 mm | 438 mm |
| Wheelbase | 1060 mm | 1079 mm | 1118 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 73 mm |
| Standover Height | 762 mm | 790 mm | 838 mm |
| Wheels | 650 | 650 | 700 |
| Rider Max Height | 181 cm | 191 cm | cm |
Model Overview
Commuter:ON 8 LTD is a Canyon E Commuteron model. Canyon released 12 e-bikes variations of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
The most economical model, the Canyon Commuter:ON 7 2023 has a starting price of 3503$. Canyon Commuter:ON 8 LTD 2023 on the other hand is the most expensive at 4034$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Commuter e-bikes
According to our calculations, the average cost of a Commuter e-bike that is reliable is 2569$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
When Canyon released this model in 2023, its price was 4034$. If we compare this with the average Commuter e-bike cost we notice that the price is 57.03% more expensive.
Commuter e-bikes average weight
Commuter e-bikes have an average weight of 25.2 kg (55.56 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 17.54 kg (38.67 lbs), Canyon e-bike is much lighter than average. In conclusion, the average Commuter e-bike weighs 43.67% more than Commuter:ON 8 LTD.
Overview of components
Fork material
Commuter:ON 8 LTD has a carbon fork, so, it’s a great addition to the e-bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
When it comes to wheels, the Commuter:ON 8 LTD e-bike is equipped with the aluminum model. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
