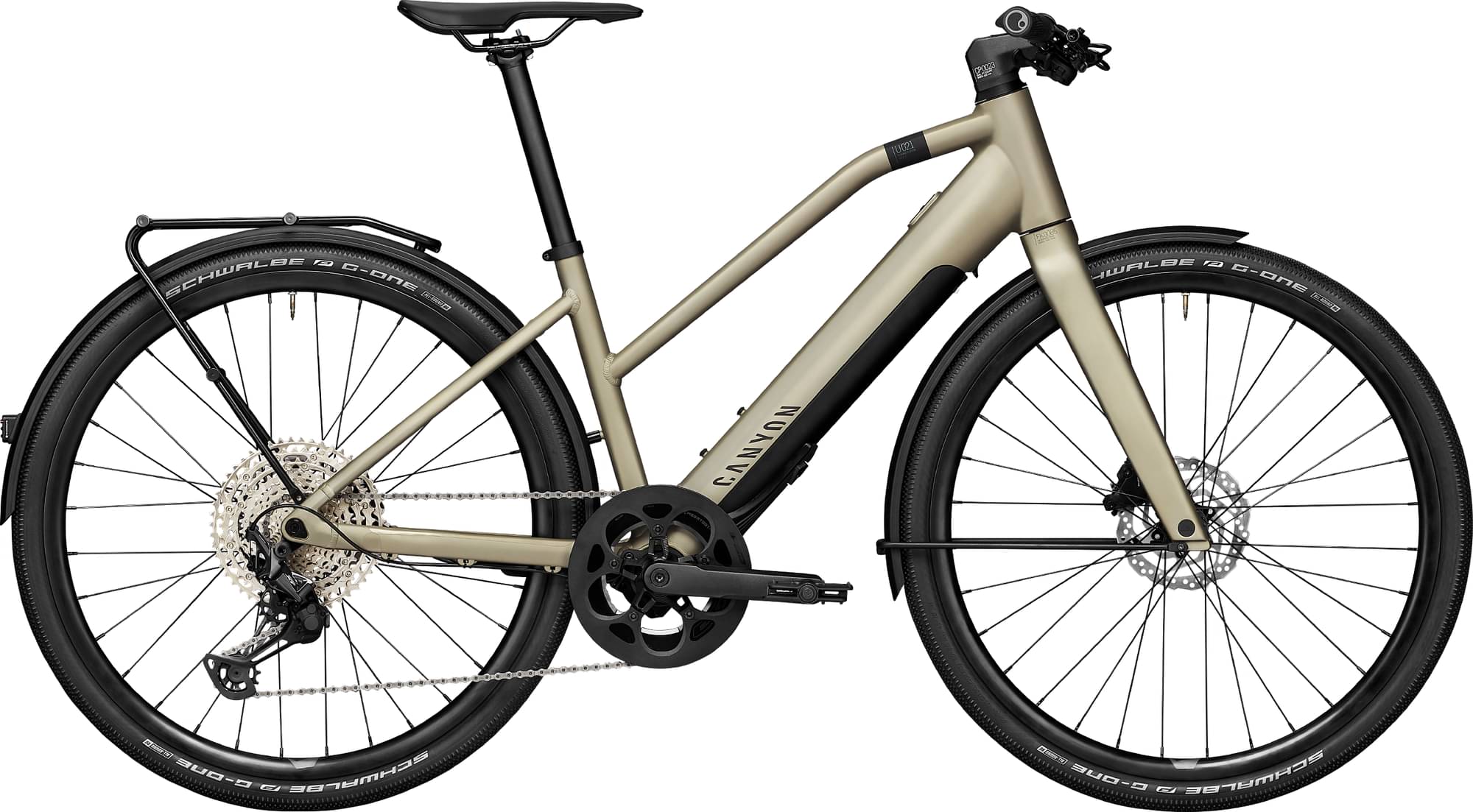

Canyon Commuter:ON 7 WMN 2022
2022 E-bike
Estimate price |
3,784$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Groupset XT, Deore -
Suspension Rigid -
Motor Fazua 350W 58Nm mid-drive -
Battery Fazua Evation X, Compact, lightweight battery., Capacity: 252 Wh, Weight: 1.4 kg, Integrated into down tube -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
157cm - 169cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Commuter:ON Step-Through, Material: Aluminium (AL)
Suspension Fork
Canyon FK0085 CF Disc
Drivetrain
Rear Derailleur
Shimano Deore XT M8100 12speed, Precise 1x12 drivetrain.
Shift Levers
Shimano Deore M6100 12s, Right shift lever. Shifts up to 3 gears at a time.
Cassette
Shimano Deore M6100 12speed, Cassette packed with trickle-down performance features. Hyperglide+ tech provides fast, smooth shifting. Beam spider construction cuts weights and boosts stiffness. Gear range: 10-51.
Crank
Samox EC38 48T, E-bike specific crank. Constructed from forged 6061 aluminium.
Chain
Shimano CN-M6100 12s
Wheels
Rims
Alexrims GX26P | Shimano MT400, Rotor Mount: Center Lock | Alexrims GX26P | Shimano MT410 SH12, Rotor Mount: Center Lock
Tires
Schwalbe G-One Allround 40mm, Width: 1.5"
Brakes
Brakes
Shimano MT200, Hydraulic disc brakes. With ergonomic 3-finger levers. | Shimano MT200 / UR300?, Hydraulic disc brakes. With ergonomic 3-finger levers.
Disk Rotors
Shimano RT10, Rotor diameter: 160 mm. | Shimano EM300 Center Lock
Cockpit
Grips
Ergon GA3, Premium grips design for extra hand support.
Seat
Saddle
Canyon Sport Saddle EP1249, Canyon Sport Saddle
Seatpost
Iridium, Clamp diameter: 30,9 mm
Motor & Battery
Motor
Fazua RIDE 50 STREET, Smooth drivepack with new housing, lighter design & more torque., Max power: 350 W, Torque: 58 Nm, Weight: 1.8 kg
Battery
Fazua Evation X, Compact, lightweight battery., Capacity: 252 Wh, Weight: 1.4 kg, Integrated into down tube
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.37 mm | 1.37 mm |
| Front Center | 591 mm | 614 mm | 636 mm |
| Rake | 42 mm | 41 mm | 41 mm |
| Trail | 66 mm | 67 mm | 67 mm |
| Stack | 543 mm | 562 mm | 581 mm |
| Reach | 392 mm | 409 mm | 425 mm |
| Top Tube Length | 551 mm | 574 mm | 595 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 390 mm | 400 mm | 440 mm |
| Head Tube Angle | 71.5 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 135 mm | 155 mm | 175 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1016 mm | 1039 mm | 1061 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 681 mm | 696 mm | 748 mm |
| Wheels | 650 | 650 | 650 |
| Rider Max Height | 159 cm | 169 cm | cm |
About this model
Commuter:ON 7 WMN completes the Canyon E Commuteron model. Canyon released 12 e-bikes variations of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Canyon Commuter:ON 7 WMN 2022 is the most affordable e-bike of this model and has a price of 3503$. On the other hand, Canyon Commuter:ON 8 LTD mid-step 2022, is the most expensive and costs 4034$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Commuter e-bikes
If you want to purchase a solid Commuter e-bike, it is important to know that the average cost is 2569$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Commuter e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
At the moment of the release date, Canyon Commuter:ON 7 WMN price was 3503$. Comparing this to the average Commuter e-bike price, we see that the price is 36.36% more expensive.
Overview of components
Fork material
Commuter:ON 7 WMN has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
When it comes to wheels, the Commuter:ON 7 WMN e-bike is equipped with the aluminum model. After 700c wheels, 650b is the second most popular choice for road bikes. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Commuter:ON 7 WMN has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
