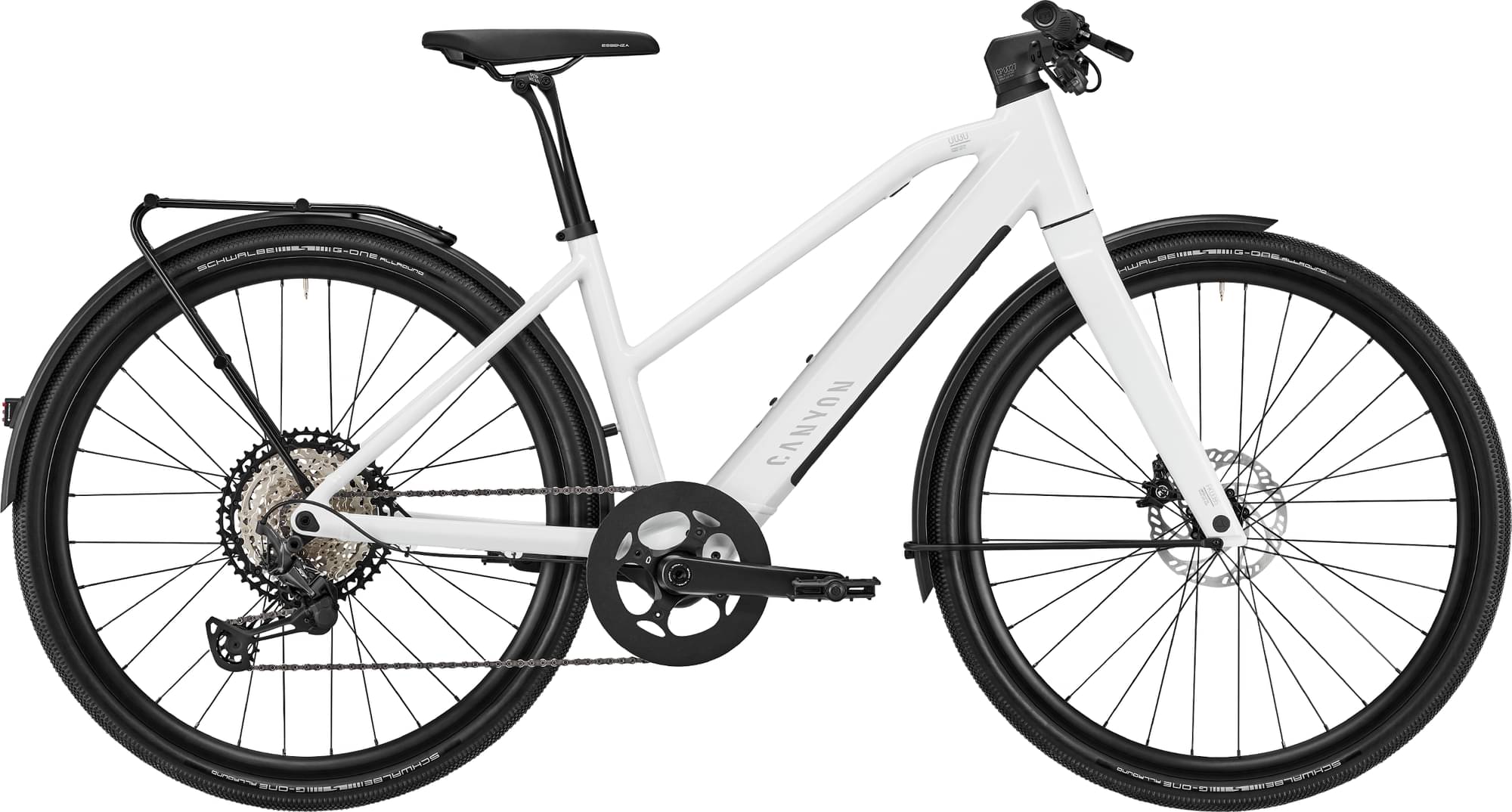

Canyon Commuter:ON 8 LTD mid-step 2022
2022 E-bike
Estimate price |
4,357$
Weight | 17.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset XT -
Suspension Rigid -
Motor Fazua 450W mid-drive -
Battery FAZUA ENERGY 430, Compact, lightweight battery., Capacity: 430 Wh, Weight: 2.3 kg, Integrated into down tube -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
169cm - 181cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Commuter:ON, Material: Aluminium (AL)
Suspension Fork
Canyon FK0085 Disc, Material: Carbon
Drivetrain
Rear Derailleur
Shimano Deore XT M8100 12speed, Precise 1x12 drivetrain.
Shift Levers
Shimano Deore XT, 12-speed, Rear derailleur shifter, 12-speed, Textured rubber lever pad, Multi-Release, 2-way release, I-Spec EV clamp allows 14mm lateral adjustment and 20-degrees rotation adjustment, 130 g
Cassette
Shimano XT, 12-speed (10-51), Cassette size: 10-51T, Gear range: 510%
Crank
Samox EC37F, Number of chainrings: 1
Chain
Shimano CN-M6100 12s
Wheels
Rims
Alexrims GX26P | Shimano MT400, Rotor mount: Center Lock | Alexrims GX26P | Shimano MT410 SH12, Rotor mount: Center Lock
Tires
Schwalbe G-One Allround 40mm, Width: 1.5"
Brakes
Brakes
Hydraulic Disc
Cockpit
Grips
Ergon GA3, Premium grips design for extra hand support.
Seat
Saddle
Selle Royal Essenza
Seatpost
Canyon S25 VCLS 2.0 CF, Material: Carbon, Setback: -2 mm / 10 mm, Technology: VCLS 2.0 | Fliphead, Weight: 235 g
Motor & Battery
Motor
FAZUA RIDE 60 DRIVE UNIT, Lightweight, advanced electric motor., Power: 450 W, Weight (without battery): 1.96 kg, Motor assist up to 25 kph
Battery
FAZUA ENERGY 430, Compact, lightweight battery., Capacity: 430 Wh, Weight: 2.3 kg, Integrated into down tube
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.46 mm | 1.48 mm |
| Front Center | 617 mm | 637 mm | 656 mm |
| Rake | 41 mm | 41 mm | 41 mm |
| Trail | 76 mm | 73 mm | 67 mm |
| Stack | 535 mm | 580 mm | 613 mm |
| Reach | 387 mm | 396 mm | 414 mm |
| Top Tube Length | 548 mm | 570 mm | 598 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 409 mm | 456 mm | 504 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71.5 ° |
| Head Tube Length | 148 mm | 193 mm | 224 mm |
| Chainstay Length | 417 mm | 417 mm | 417 mm |
| Wheelbase | 1027 mm | 1047 mm | 1066 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 657 mm | 678 mm | 736 mm |
| Wheels | 650 | 650 | 650 |
| Rider Max Height | 171 cm | 181 cm | cm |
Model Overview
Commuter:ON 8 LTD mid-step completes the Canyon E Commuteron model. Canyon launched 12 e-bikes of this model so far. Take a sneak peek at all Canyon E Commuteron e-bikes models from 2022, by clicking here.
Model range prices
Canyon Commuter:ON 7 WMN 2022 is the cheapest e-bike model and costs 3503$. Canyon Commuter:ON 8 LTD mid-step 2022 is the most expensive one and costs 4034$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Commuter e-bikes average price
According to our math, the average price for a trustworthy Commuter e-bike is 2569$. However, you could also get a good Commuter e-bike even if you pay a lower amount than the average price. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
When Canyon released this model in 2022, its price was 4034$. Doing a quick comparison, we notice that Commuter:ON 8 LTD mid-step price is 57.03% more expensive than the average cost of a Commuter e-bike.
Average weight for Commuter e-bikes
If we make a quick analysis of the average weight of a Commuter e-bike, we get 25.2 kg (55.56 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
much lighter than average, Commuter:ON 8 LTD mid-step has a weight of 17.5 kg (38.58 lbs). In other words, this model is 44% lighter than the average Commuter e-bike.
Overview of components
Fork material
When it comes to the fork, this e-bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
When leaving the production line, the Commuter:ON 8 LTD mid-step model has aluminum wheels. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
