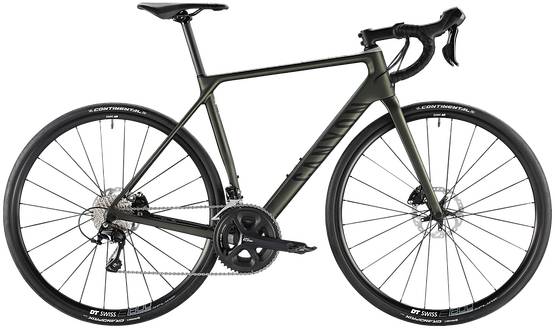

Canyon Endurace CF SL Disc 7.0 2018
2018 Road
Estimate price |
1,999$
Weight | 8.1 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XXS
157cm - 167cm
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 185cm
LG
183cm - 191cm
XL
188cm - 197cm
XXL
194cm - 204cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Endurace CF SL Disc, Frame material: Carbon, Flat mount brake disc mount, Sport geometry, 5th generation of the Maximus seat tube, Quick-release axle (12 x 142 mm), Integrated seat post clamp, Weight: 960 g (size M)
Suspension Fork
Canyon One One Four SLX Disc, Full carbon fork, 1 1/4" fork shaft, Flat mount disc brake standard, Through Axles (12 x 100 mm), Weight: 325 g
Drivetrain
Rear Derailleur
Shimano 105, 11s, Quick and accurate shifting procedure thanks to a new spring mechanism, Broad gear range, SH RD-5800, 11-speed
Front Derailleur
Shimano 105, 11s, Quick and precise shifting procedures, SH FD-5800, 11-speed
Shift Levers
Shimano 105 Disc, 11s, Hydraulic shift/brake lever, Great brake force, Consistent braking performance in all weather conditions, Grip width adjustment, 11-speed, ST-RS505
Cassette
Shimano 105, 11s, HG-EV 11-Speed Cassette, Stainless steel sprockets, Range: 11-12-13-14-16-18-20-22-25-28-32T, SH CS-5800
Crank
Shimano 105, 11s, Optimised power transmission, Tried and tested four-arm design: stiffer and more lightweight, SH-FC-5800, 11-speed
Bottom Bracket
Shimano Pressfit, Press-Fit, 86,5 x 41mm, SM BB72-41B
Chain
Shimano CN-HG600-11
Pedals
none included
Wheels
Rims
DT Swiss E 1800 Spline DB, Tubeless-ready rims, DT new aero spokes, DT Pro Lock nipples, Pawl System hubs, 12 mm Through Axle with RWS release system for both wheels, Width: 20 mm internal / 24 mm external, Profile: 23 mm, Weight: 1.655 g (700C); 1.577 g (650B)
Tires
Continental Grand Prix SL, Perfect combination of puncture protection, low rolling resistance, durability and grip, BlackChili Compound, Width: 28mm
Brakes
Brakes
Shimano 105 Disc, Flat mount, ST-BR 505, Shimano Centerlock disc RT-81S, 160 mm brake disk diameter, Framesize 2XS und 3XS 140 mm
Brake Levers
Shimano 105 Disc, 11s, Hydraulic shift/brake lever, Great brake force, Consistent braking performance in all weather conditions, Grip width adjustment, 11-speed, ST-RS505
Cockpit
Stem
Canyon V13, Angle: +/- 6°, 1 1/4" Stem clamp, In-house developed Canyon stem with new clamping concept for added security, Square profile design for extra torsional stiffness, Compliant with Canyon Category 2 testing standards
Handlebar
Canyon H17 Ergo AL, In-house developed Canyon aluminium ergonomic handlebars, Short reach and width-dependent drop facilitate a quick change of grip, Variable top handlebar diameter: Depending on the width of the handlebar, adapted to average palm size for a perfect ergonomic fit, Compliant with Canyon Category 2 Testing Standards
Headset
Canyon | Acros
Seat
Saddle
Selle Italia X3 Canyon Edition
Seatpost
Canyon S23 VCLS CF (25 mm Setback), Length: 330 mm, Diameter: 27.2 mm, In-house developed Canyon seatpost with VCLS technology for extra comfort and stability, Setback: 25 mm, Compliant with Canyon Category 2 testing standards
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.44 mm | 1.49 mm | 1.52 mm | 1.56 mm | 1.54 mm | 1.55 mm |
| Stack | 505 mm | 528 mm | 553 mm | 574 mm | 600 mm | 621 mm | 639 mm |
| Reach | 356 mm | 366 mm | 372 mm | 378 mm | 385 mm | 403 mm | 412 mm |
| Top Tube Length | 507 mm | 523 mm | 537 mm | 549 mm | 564 mm | 588 mm | 603 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 430 mm | 460 mm | 490 mm | 520 mm | 550 mm | 580 mm | 610 mm |
| Head Tube Angle | 69.2 ° | 71 ° | 72 ° | 73 ° | 73 ° | 73.25 ° | 73.25 ° |
| Head Tube Length | 98 mm | 115 mm | 139 mm | 156 mm | 184 mm | 206 mm | 225 mm |
| Chainstay Length | 411 mm | 411 mm | 411 mm | 411 mm | 411 mm | 411 mm | 411 mm |
| Wheelbase | 976 mm | 978 mm | 984 mm | 986 mm | 1002 mm | 1024 mm | 1039 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 165 cm | 171 cm | 177 cm | 183 cm | 188 cm | 194 cm |
| Rider Max Height | 167 cm | 173 cm | 179 cm | 185 cm | 191 cm | 197 cm | 204 cm |
About this model
Endurace CF SL Disc 7.0 belongs to the Canyon Endurace model. There are 171 bikes that carry this model name. Check out the entire range from 2018 of this model, by clicking this link.
Model range prices
Canyon Endurace AL Disc 7.0 2018 is the cheapest bike model and costs 1499$. Canyon Endurace CF SLX Disc 9.0 SL 2018 is the most expensive one and costs 6499$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Endurance bikes
According to our math, the average price for a trustworthy Endurance bike is 2346$. However, even though the average price of an Endurance bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2018 and its price was 1999$. If we compare this with the average Endurance bike cost we notice that the price is 17.36% lower.
Average weight for Endurance bikes
Endurance bikes weigh an average of 8.2 kg (18.08 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
slightly lighter than average, Endurace CF SL Disc 7.0 has a weight of 8.1 kg (17.86 lbs). To sum up, it’s 1.23% lighter than the average weight of Endurance bikes.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
When it comes to wheels, the Endurace CF SL Disc 7.0 bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Endurace CF SL Disc 7.0 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Endurace CF SL Disc 7.0 comes in 7 sizes, that range from 157 cm – 204 cm (5.15 ft – 6.69 ft). In short, you can easily find one that suits you.
