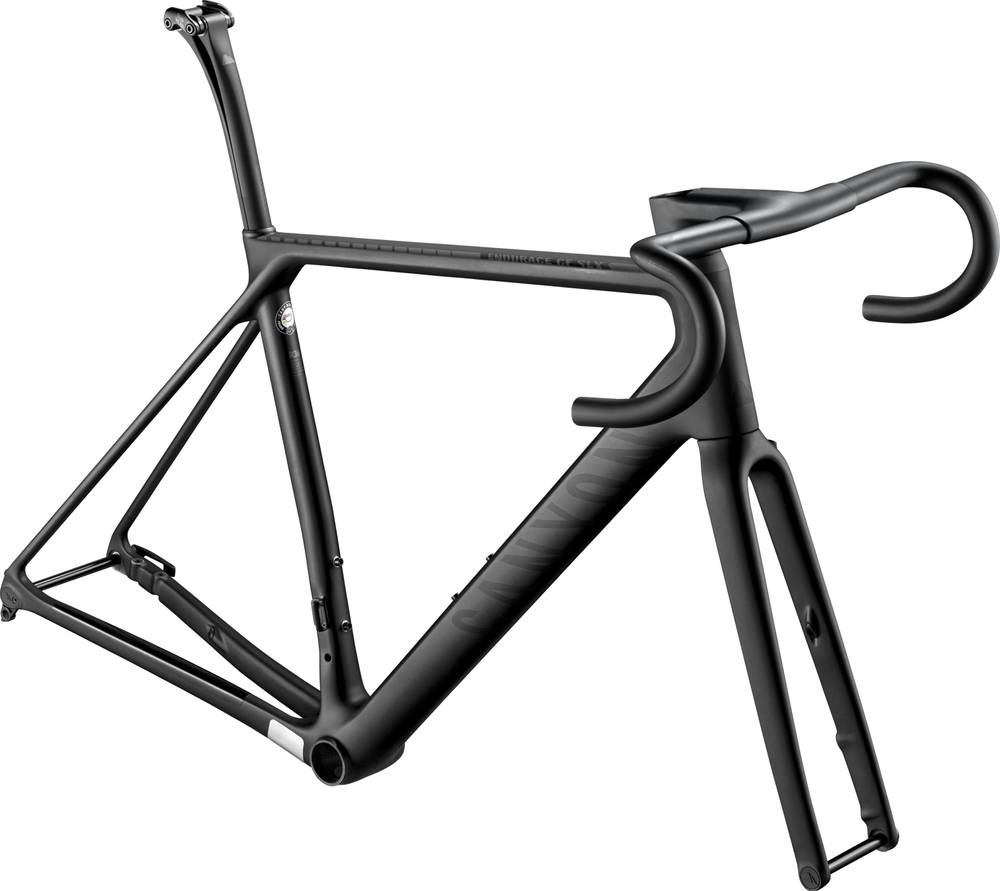

Canyon Endurace CF SLX Disc Frameset Mechanical 2018
2018 Road
Estimate price |
2,750$
Weight | 1.2 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Sizing
Recommended size guide.
XXS
158cm - 167cm
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 185cm
LG
183cm - 191cm
XL
189cm - 197cm
XXL
195cm - 204cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Endurace CF SLX Disc, Material: Carbon, Axle Dimension: 12 x 142 mm, Brake Mount: Flat Mount
Suspension Fork
Canyon F38 CF Disc, Material: Carbon, Steerer: 1 1/4", Axle Dimension: 12 x 100 mm, Brake Mount: Flat Mount
Drivetrain
Bottom Bracket
BSA, 68mm, threaded
Cockpit
Headset
Canyon | Acros
Seat
Seatpost
Canyon S15 VCLS 2.0 CF, Material: Carbon, Setback: 13 mm / 25 mm, Technology: VCLS 2.0 | Fliphead, Weight: 220 g
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.7 mm | 1.44 mm | 1.48 mm | 1.52 mm | 1.56 mm | 1.54 mm | 1.55 mm |
| Bottom Bracket Height | 261 mm | 261 mm | 263 mm | 263 mm | 263 mm | 263 mm | 263 mm |
| Front Center | 577 mm | 579 mm | 584 mm | 586 mm | 602 mm | 624 mm | 639 mm |
| Rake | 7 mm | 44 mm | 44 mm | 43 mm | 44 mm | 47 mm | 46 mm |
| Trail | 121 mm | 70 mm | 64 mm | 59 mm | 58 mm | 51 mm | 52 mm |
| Stack | 610 mm | 530 mm | 555 mm | 576 mm | 602 mm | 623 mm | 642 mm |
| Reach | 358 mm | 368 mm | 374 mm | 380 mm | 387 mm | 405 mm | 415 mm |
| Top Tube Length | 509 mm | 525 mm | 539 mm | 551 mm | 566 mm | 590 mm | 605 mm |
| Seat Tube Angle | 72.6 ° | 72.7 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 432 mm | 462 mm | 492 mm | 522 mm | 552 mm | 582 mm | 612 mm |
| Head Tube Angle | 69.2 ° | 71 ° | 72 ° | 73 ° | 73 ° | 73.5 ° | 73.5 ° |
| Head Tube Length | 98 mm | 115 mm | 139 mm | 158 mm | 184 mm | 206 mm | 225 mm |
| Chainstay Length | 413 mm | 413 mm | 413 mm | 413 mm | 413 mm | 413 mm | 413 mm |
| Wheelbase | 978 mm | 980 mm | 986 mm | 988 mm | 1004 mm | 1026 mm | 1041 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 73 mm | 73 mm | 73 mm | 73 mm | 73 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 165 cm | 171 cm | 177 cm | 183 cm | 189 cm | 195 cm |
| Rider Max Height | 167 cm | 173 cm | 179 cm | 185 cm | 191 cm | 197 cm | 204 cm |
About this model
Endurace CF SLX Disc Frameset Mechanical completes the Canyon Endurace model. Canyon released 171 frames variations of this model so far. You can easily view all of the Canyon Endurace frames models from 2018, here.
Model range prices
Canyon Endurace AL Frameset Mechanical 2018 is the most economical model, with a starting price of 742$. Canyon Endurace CF SLX Disc Frameset Electrical 2018 on the other hand costs 2760$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Endurance frames average price
According to our math, the average price for a trustworthy Endurance frame is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Endurance frame. In conclusion, always check frame reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Canyon Endurace CF SLX Disc Frameset Mechanical price was 2750$. Doing a quick comparison, we notice that Endurace CF SLX Disc Frameset Mechanical price is 44.36% more expensive than the average cost of an Endurance frame.
Average weight for Endurance frames
On a deeper look, we notice that the average weight of an Endurance frame is 1.64 kg (3.62 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 1.2 kg (2.65 lbs), the Endurace CF SLX Disc Frameset Mechanical model is much lighter than average. To sum up, it’s 36.67% lighter than the average weight of Endurance frames.
Endurace CF SLX Disc Frameset Mechanical components
Fork material
The fork on this frame is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Sizes
There are 7 sizes available for this model. Rider height can be anywhere between 158 cm – 204 cm (5.18 ft – 6.69 ft). In short, you can easily find one that suits you.
