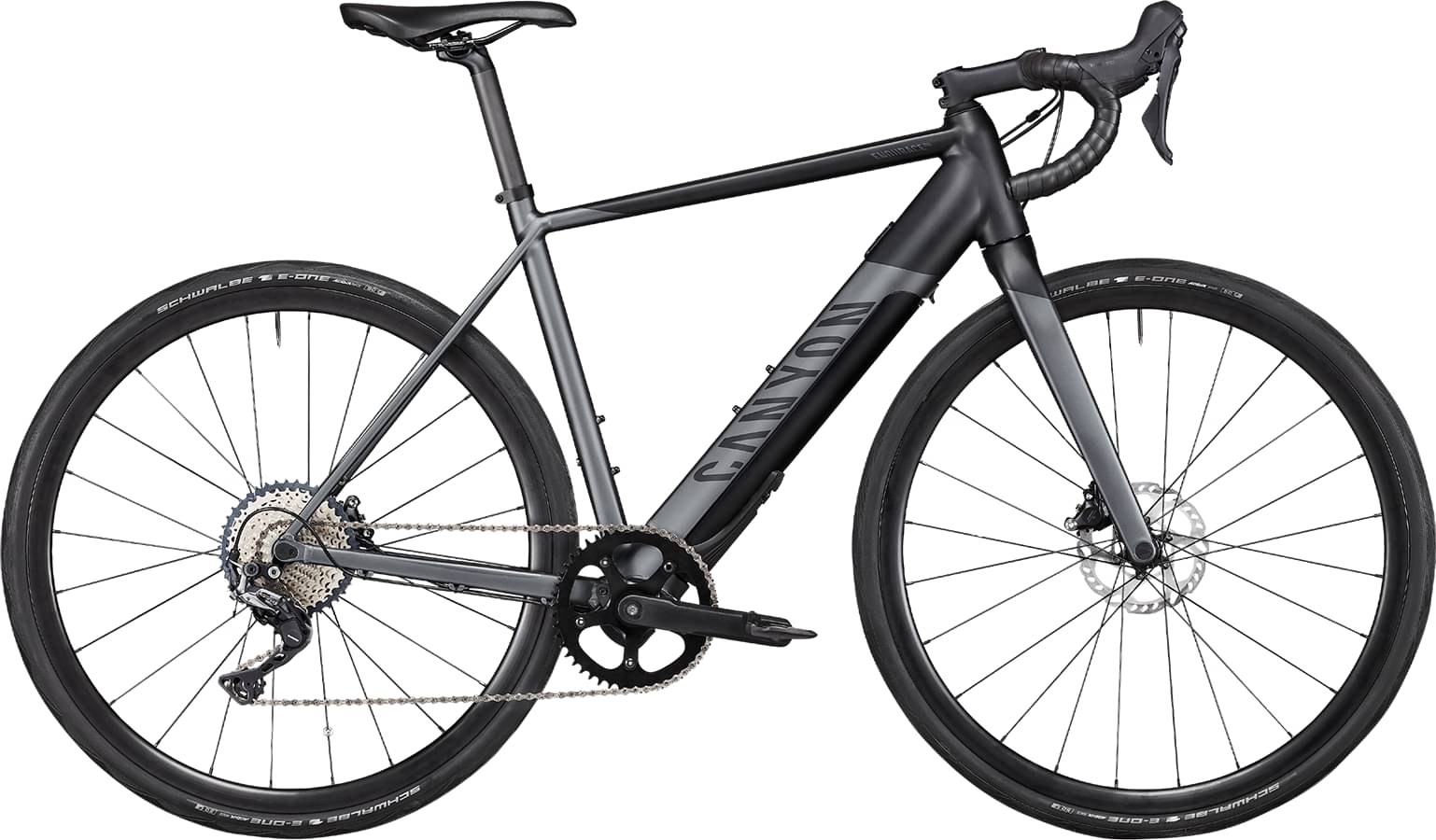

Canyon Endurace:ON 7.0 2022
2022 E-bike
Estimate price |
3,440$
Weight | 15.18 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Groupset GRX 800, GRX 600 -
Suspension Rigid -
Motor Fazua 350W 58Nm mid-drive -
Battery Fazua Evation 1.0, The Fazua Energy 250X battery is light and efficient. A remote makes switching the system on and off simple, without needing to remove the battery. The Fazua-developed Battery Management System (BMS) protects the battery from overcharging, overheating, undervoltage, and short circuiting. -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
177cm - 185cm
LG
183cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Endurace:ON, Material: Aluminium (AL)
Suspension Fork
CANYON FK0074 CF DISC
Drivetrain
Rear Derailleur
Shimano GRX RX812 GS, Cage Length: long
Shift Levers
Shimano RX600 2s | Shimano GRX RX600 11s, High-quality shift/brake lever with gravel-specific ergonomics and outstanding control on rough terrain. With shifting lightness on par with road groupsets.
Cassette
Shimano SLX M7000 11-42 11s, 11-speed cassette. Gearing: 11-42T.
Crank
Samox EC38 48T, E-bike specific crank. Constructed from forged 6061 aluminium.
Chain
KMC X11-93, Durable 11-speed chain with nickel-plated outer links. The precision-manufactured KMC Double X Bridge, combined with specially chamfered inner and outer plates, keep the chain running super-smooth and guarantee fast, clean gear changes.
Wheels
Rims
Alexrims RXD5C, Rotor Mount: Center Lock | Alexrims RXD5C SH11, Rotor Mount: Center Lock
Tires
Schwalbe E-One Evolution, Width: 32mm
Brakes
Brakes
hydraulicDisc
Brake Levers
Shimano RX600 2s | Shimano GRX RX600 11s, High-quality shift/brake lever with gravel-specific ergonomics and outstanding control on rough terrain. With shifting lightness on par with road groupsets.
Disk Rotors
Shimano RT70, Disc Mount: Centerlock
Cockpit
Stem
Canyon V15, High-grade aluminium stem, Clamp diameter: 31.8 mm, Head tube diameter: 1 1/8”, Weight: 148 g
Handlebar
Canyon H17 Ergobar AL, Material: Aluminium, Shape: Ergo, Reach: 70 mm, Drop: 128 mm
Seat
Saddle
Iridium Fitness, High-grade saddle developed for endurance riding. With aluminium rails.
Seatpost
Canyon SP-41 CF, Clamp diameter: 30,9 mm
Motor & Battery
Motor
Fazua RIDE 50 STREET, Smooth drivepack with new housing, lighter design & more torque., Max power: 350 W, Torque: 58 Nm, Weight: 1.8 kg
Battery
Fazua Evation 1.0, The Fazua Energy 250X battery is light and efficient. A remote makes switching the system on and off simple, without needing to remove the battery. The Fazua-developed Battery Management System (BMS) protects the battery from overcharging, overheating, undervoltage, and short circuiting.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.53 mm | 1.56 mm | 1.58 mm |
| Bottom Bracket Height | 263 mm | 263 mm | 263 mm | 263 mm |
| Front Center | 593 mm | 600 mm | 613 mm | 631 mm |
| Rake | 43 mm | 43 mm | 42 mm | 43 mm |
| Trail | 62 mm | 59 mm | 60 mm | 57 mm |
| Stack | 568 mm | 590 mm | 612 mm | 638 mm |
| Reach | 381 mm | 386 mm | 393 mm | 405 mm |
| Top Tube Length | 551 mm | 562 mm | 575 mm | 596 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 480 mm | 520 mm | 540 mm | 565 mm |
| Head Tube Angle | 72.5 ° | 73 ° | 73 ° | 73.25 ° |
| Head Tube Length | 138 mm | 159 mm | 182 mm | 208 mm |
| Chainstay Length | 420 mm | 420 mm | 420 mm | 420 mm |
| Wheelbase | 1002 mm | 1009 mm | 1022 mm | 1040 mm |
| Bottom Bracket Drop | 73 mm | 73 mm | 73 mm | 73 mm |
| Standover Height | 769 mm | 795 mm | 822 mm | 847 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Max Height | 179 cm | 185 cm | 191 cm | cm |
Model Overview
Endurace:ON 7.0 is part of the Canyon E Enduraceon model. There are 5 e-bikes that carry this model name. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
The most economical model, the Canyon Endurace:ON 7 2022 has a starting price of 3184$. Canyon Endurace:ON 7.0 2022 on the other hand is the most expensive at 3184$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Endurance e-bikes
According to our math, the average price for a trustworthy Endurance e-bike is 3800$. However, this doesn’t mean that if you spend less money on an Endurance e-bike, you couldn’t get a decent one. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
When Canyon released this model in 2022, its price was 3184$. In conclusion, this e-bike price is 19.35% smaller than the price of the average Endurance e-bike.
Endurance e-bikes average weight
The average weight for Endurance e-bikes is 13.52 kg (29.81 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Endurace:ON 7.0 weighs 15.18 kg (33.47 lbs) and is considerably heavier than the average. In other words, this model is 12.28% heavier than the average Endurance e-bike.
Overview of components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your e-bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
When leaving the production line, the Endurace:ON 7.0 model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Endurace:ON 7.0 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
