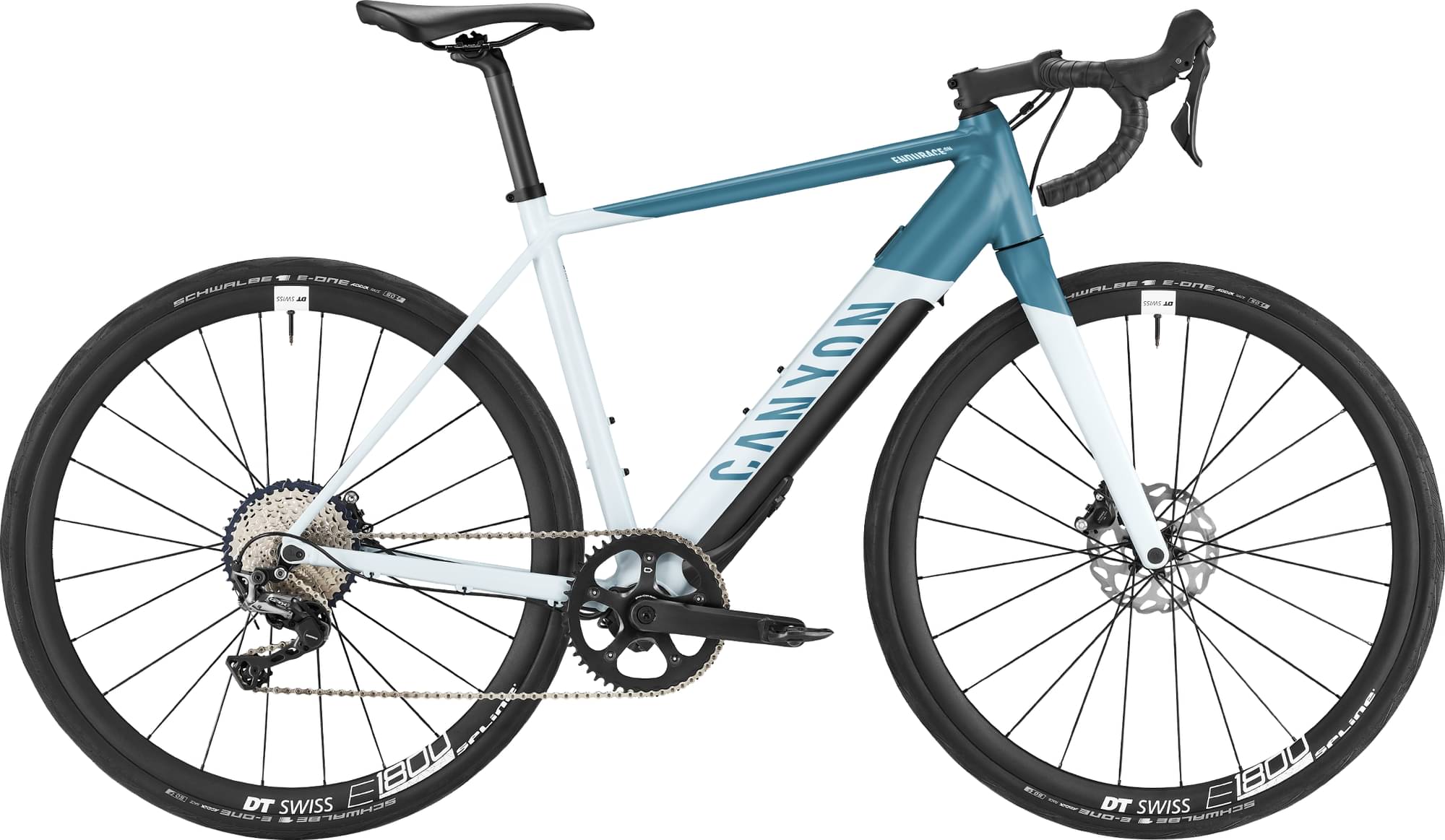

Canyon Endurace:ON 7 2022
2022 E-bike
Estimate price |
3,440$
Weight | 15.22 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Groupset GRX 800, GRX 600 -
Suspension Rigid -
Motor Fazua 350W 58Nm mid-drive -
Battery Fazua Evation X, Compact, lightweight battery., Capacity: 252 Wh, Weight: 1.4 kg, Integrated into down tube -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
173cm - 183cm
LG
181cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Endurace:ON, Material: Aluminium (AL)
Suspension Fork
Canyon FK0074, Material: carbon, Fork dimensions: 1 ¼”, Axle dimensions: 12 x 100 mm, Brake type: disc brakes
Drivetrain
Rear Derailleur
Shimano GRX RX812 GS, Cage Length: long
Shift Levers
Shimano RX600 2s, Premium left-hand shift/brake unit with anti-slip brake lever for more control on mixed terrain. With ergonomic shifter design for incredible comfort. | Shimano GRX RX600 11s, High-quality shift/brake lever with gravel-specific ergonomics and outstanding control on rough terrain. With shifting lightness on par with road groupsets.
Cassette
Shimano SLX M7000 11-42 11s, 11-speed cassette. Gearing: 11-42T.
Crank
Samox EC38 48T, E-bike specific crank. Constructed from forged 6061 aluminium.
Chain
KMC X11-93, Durable 11-speed chain with nickel-plated outer links. The precision-manufactured KMC Double X Bridge, combined with specially chamfered inner and outer plates, keep the chain running super-smooth and guarantee fast, clean gear changes.
Wheels
Tires
Schwalbe E-One Evolution, Width: 32mm
Brakes
Brakes
hydraulicDisc
Brake Levers
Shimano RX600 2s, Premium left-hand shift/brake unit with anti-slip brake lever for more control on mixed terrain. With ergonomic shifter design for incredible comfort. | Shimano GRX RX600 11s, High-quality shift/brake lever with gravel-specific ergonomics and outstanding control on rough terrain. With shifting lightness on par with road groupsets.
Disk Rotors
Shimano RT70, Disc Mount: Centerlock | Shimano SM-RT70 Brake Rotor
Cockpit
Stem
Canyon V15, High-grade aluminium stem, Clamp diameter: 31.8 mm, Head tube diameter: 1 1/8”, Weight: 148 g
Handlebar
Canyon H17 Ergobar AL, Material: Aluminium, Shape: Ergo, Reach: 70 mm, Drop: 128 mm
Seat
Saddle
Iridium Fitness, High-grade saddle developed for endurance riding. With aluminium rails.
Seatpost
Canyon SP-41 CF, Clamp diameter: 30,9 mm
Motor & Battery
Motor
Fazua RIDE 50 STREET, Smooth drivepack with new housing, lighter design & more torque., Max power: 350 W, Torque: 58 Nm, Weight: 1.8 kg
Battery
Fazua Evation X, Compact, lightweight battery., Capacity: 252 Wh, Weight: 1.4 kg, Integrated into down tube
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.53 mm | 1.56 mm | 1.56 mm |
| Bottom Bracket Height | 263 mm | 263 mm | 263 mm | 263 mm |
| Front Center | 593 mm | 600 mm | 613 mm | 613 mm |
| Rake | 43 mm | 38 mm | 37 mm | 37 mm |
| Trail | 62 mm | 67 mm | 68 mm | 68 mm |
| Stack | 568 mm | 590 mm | 612 mm | 612 mm |
| Reach | 381 mm | 386 mm | 393 mm | 393 mm |
| Top Tube Length | 551 mm | 562 mm | 575 mm | 575 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 480 mm | 520 mm | 540 mm | 540 mm |
| Head Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 138 mm | 159 mm | 182 mm | 182 mm |
| Chainstay Length | 420 mm | 420 mm | 420 mm | 420 mm |
| Wheelbase | 1002 mm | 1009 mm | 1022 mm | 1022 mm |
| Bottom Bracket Drop | 73 mm | 73 mm | 73 mm | 73 mm |
| Standover Height | 746 mm | 777 mm | 804 mm | 833 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Max Height | 175 cm | 183 cm | 191 cm | cm |
Model Overview
Endurace:ON 7 completes the Canyon E Enduraceon model. 5 e-bikes variations carry this model name so far. Take a sneak peek at all Canyon E Enduraceon e-bikes models from 2022, by clicking here.
Model range prices
Canyon Endurace:ON 7 2022 is the cheapest e-bike model and costs 3184$. Canyon Endurace:ON 7.0 2022 is the most expensive one and costs 3184$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Endurance e-bikes
Our math shows that the average cost of a dependable Endurance e-bike is 3800$. However, you could also get a good Endurance e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Canyon Endurace:ON 7 price was 3184$. Comparing the average cost of an Endurance e-bike to this one, you will see that Endurace:ON 7 price is 19.35% lower.
Endurance e-bikes average weight
Endurance e-bikes have an average weight of 13.52 kg (29.81 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
considerably heavier than average, Endurace:ON 7 has a weight of 15.22 kg (33.55 lbs). In other words, this model is 12.57% heavier than the average Endurance e-bike.
Endurace:ON 7 components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your e-bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
When it comes to wheels, the Endurace:ON 7 e-bike is equipped with the 700c model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Canyon Endurace:ON 7 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
