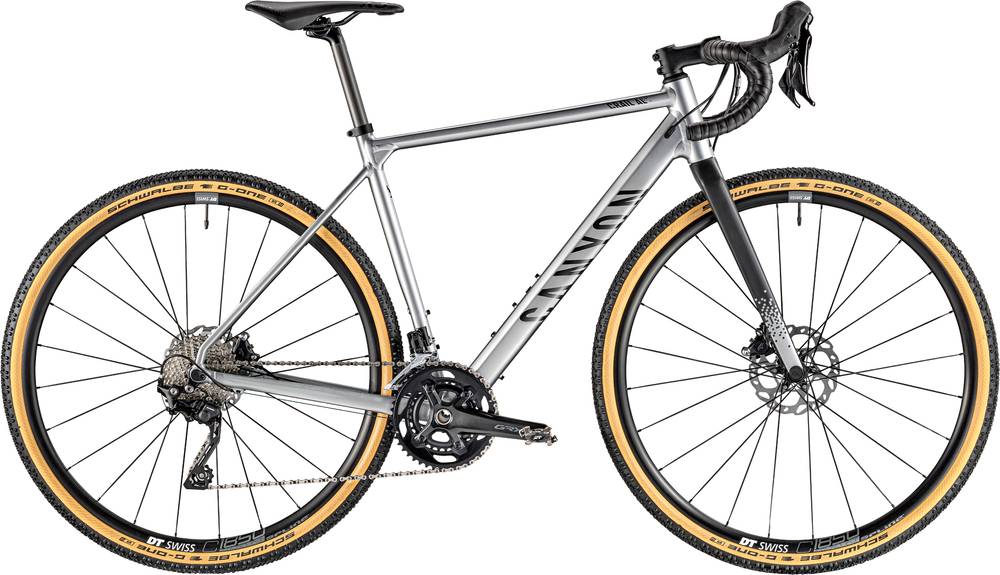

Canyon Grail AL 6.0 2020
2020 Road
Estimate price |
1,719$
Weight | 9.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 650b / 700c -
Groupset GRX 400, Tiagra -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 185cm
LG
183cm - 190cm
XL
188cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Grail AL Disc, Material: Aluminium 6061, Axle Dimension: 12 x 142 mm, Brake Mount: Flat Mount, Weight: 1480 g (M)
Suspension Fork
Canyon FK0070 CF Disc, Material: Carbon, Steerer: 1 1/4", Axle Dimension: 12 x 100 mm, Brake Mount: Flat Mount
Drivetrain
Rear Derailleur
Shimano GRX RX400 GS
Front Derailleur
Shimano GRX RX400
Shift Levers
Shimano GRX RX400 2s | Shimano Tiagra RX400 10s
Cassette
Shimano HG500 11-34 10s
Crank
Shimano RX600 46/30
Bottom Bracket
Shimano Pressfit BB72
Pedals
None included
Wheels
Rims
DT Swiss C 1850 Spline db, Rim Material: Aluminium, Rim Height: 23 mm, Inner Width: 22 mm, Weight: 842 g | DT Swiss C 1850 Spline db SH11, Rim Material: Aluminium, Rim Height: 23 mm, Inner Width: 22 mm, Weight: 979 g
Tires
Schwalbe G-One Bite 40 mm, Technology: Tubeless Easy
Brakes
Brake Levers
Shimano GRX RX400 2s | Shimano Tiagra RX400 10s
Disk Rotors
Shimano RT70, Disc Mount: Centerlock
Cockpit
Stem
Canyon V13
Handlebar
Canyon HB 0050 Ergobar AL, Material: Aluminium, Shape: Ergo, Reach: 70 mm, Drop: 130 mm
Seat
Saddle
Selle Italia X3
Seatpost
Canyon SP0043 VCLS CF, Material: Carbon, Setback: 20 mm, Technology: VCLS
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.43 mm | 1.43 mm | 1.43 mm | 1.47 mm | 1.45 mm | 1.47 mm |
| Front Center | 576 mm | 582 mm | 608 mm | 616 mm | 628 mm | 651 mm | 666 mm |
| Rake | 41 mm | 41 mm | 44 mm | 44 mm | 42 mm | 43 mm | 43 mm |
| Trail | 76 mm | 70 mm | 75 mm | 65 mm | 66 mm | 63 mm | 63 mm |
| Stack | 512 mm | 531 mm | 554 mm | 577 mm | 603 mm | 624 mm | 642 mm |
| Reach | 362 mm | 371 mm | 388 mm | 403 mm | 410 mm | 429 mm | 438 mm |
| Top Tube Length | 514 mm | 529 mm | 553 mm | 575 mm | 589 mm | 614 mm | 629 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 432 mm | 462 mm | 492 mm | 522 mm | 552 mm | 582 mm | 612 mm |
| Head Tube Angle | 70 ° | 71 ° | 70.8 ° | 72.3 ° | 72.5 ° | 72.8 ° | 72.8 ° |
| Head Tube Length | 117 mm | 133 mm | 124 mm | 143 mm | 169 mm | 190 mm | 209 mm |
| Chainstay Length | 413 mm | 413 mm | 428 mm | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 982 mm | 988 mm | 1025 mm | 1033 mm | 1045 mm | 1068 mm | 1083 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 723 mm | 749 mm | 779 mm | 806 mm | 832 mm | 857 mm | 879 mm |
| Wheels | 650 | 650 | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 167 cm | 173 cm | 179 cm | 185 cm | 190 cm | 195 cm | cm |
About this model
Grail AL 6.0 is part of the Canyon Grail model. Canyon launched 90 bikes of this model so far. Take a sneak peek at all Canyon Grail bikes models from 2020, by clicking here.
Model range prices
Canyon Grail 6 2020 is the most affordable bike of this model and has a price of 1549$. On the other hand, Canyon Grail CF SLX 8.0 ETAP 2020, is the most expensive and costs 5499$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Gravel bikes average price
Our math shows that the average cost of a dependable Gravel bike is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Canyon Grail AL 6.0 price was 1592$. Comparing the average cost of a Gravel bike to this one, you will see that Grail AL 6.0 price is 54.65% lower.
Gravel bikes average weight
If we make a quick analysis of the average weight of a Gravel bike, we get 8.13 kg (17.92 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
much heavier than average, Grail AL 6.0 has a weight of 9.5 kg (20.94 lbs). To sum up, it’s 16.85% heavier than the average weight of Gravel bikes.
Grail AL 6.0 components
Fork material
Grail AL 6.0 has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
The wheels on Grail AL 6.0 are the aluminum type. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Grail AL 6.0 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
