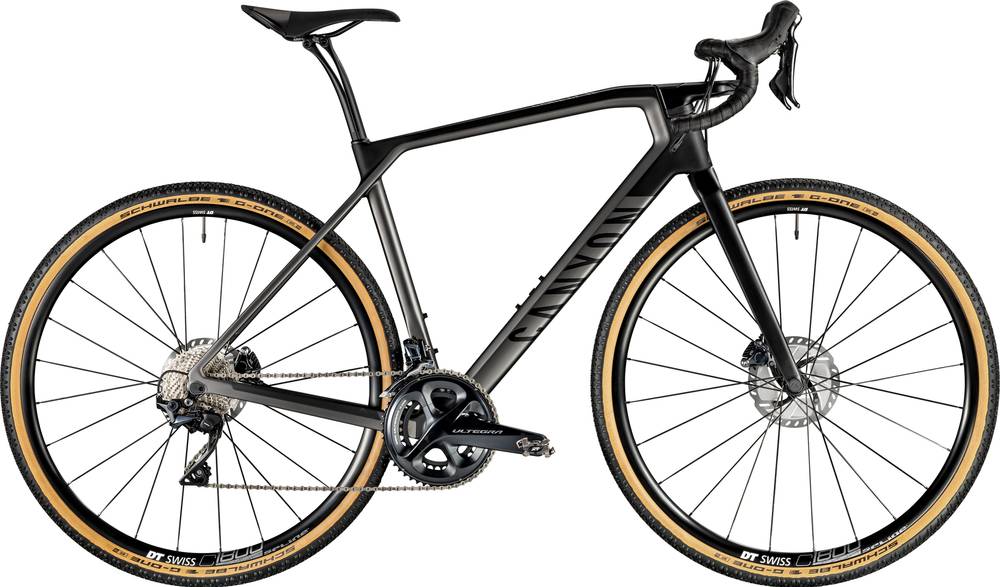

Canyon Grail CF SL 8.0 2019
2019 Road
Estimate price |
2,999$
Weight | 8.7 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 650b / 700c -
Groupset Ultegra -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XXS
156cm - 167cm
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 185cm
LG
183cm - 191cm
XL
189cm - 197cm
XXL
195cm - 204cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Grail CF SL Disc, Material: Carbon, Axle Dimension: 12 x 142 mm, Brake Mount: Flat Mount
Suspension Fork
Canyon FK0047 CF SLX Disc, Material: Carbon, Steerer: 1 1/4", Axle Dimension: 12 x 100 mm, Brake Mount: Flat Mount
Drivetrain
Rear Derailleur
Shimano Ultegra RX800 GS
Front Derailleur
Shimano Ultegra R8000
Shift Levers
Shimano Ultegra R8020 2s, Weight: 277 g | Shimano Ultegra R8020 11s, Weight: 277 g
Cassette
Shimano Ultegra HG800 11-34 11s
Crank
Shimano Ultegra R8000 50/34
Bottom Bracket
Shimano Pressfit BB72
Chain
Shimano CN-HG600-11
Pedals
None included
Wheels
Rims
DT Swiss C 1800 Spline db, Rim Material: Aluminium, Rim Height: 23 mm, Inner Width: 22 mm, Weight: 804 g | DT Swiss C 1800 Spline db SH11, Rim Material: Aluminium, Rim Height: 23 mm, Inner Width: 22 mm, Weight: 941 g
Tires
Schwalbe G-One Bite 40 mm, Technology: Tubeless Easy
Brakes
Brake Levers
Shimano Ultegra R8020 2s, Weight: 277 g | Shimano Ultegra R8020 11s, Weight: 277 g
Disk Rotors
Shimano RT800, Disc Mount: Centerlock
Cockpit
Headset
Canyon | Acros
Seat
Saddle
Fizik Aliante R5
Seatpost
Canyon S15 VCLS 2.0 CF, Material: Carbon, Setback: 13 mm / 25 mm, Technology: VCLS 2.0 | Fliphead, Weight: 220 g
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Front Center | 580 mm | 582 mm | 606 mm | 615 mm | 626 mm | 649 mm | 659 mm |
| Top Tube Length | 521 mm | 531 mm | 555 mm | 577 mm | 588 mm | 612 mm | 623 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 432 mm | 462 mm | 492 mm | 522 mm | 552 mm | 582 mm | 612 mm |
| Head Tube Angle | 70.25 ° | 71.25 ° | 71 ° | 72.5 ° | 72.5 ° | 72.75 ° | 72.75 ° |
| Head Tube Length | 70 mm | 88 mm | 78 mm | 97 mm | 125 mm | 146 mm | 167 mm |
| Chainstay Length | 413 mm | 413 mm | 423 mm | 423 mm | 423 mm | 423 mm | 423 mm |
| Wheelbase | 986 mm | 988 mm | 1018 mm | 1027 mm | 1038 mm | 1061 mm | 1071 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 751 mm | 776 mm | 803 mm | 831 mm | 858 mm | 886 mm | 910 mm |
| Wheels | 650 | 650 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 165 cm | 171 cm | 177 cm | 183 cm | 189 cm | 195 cm |
| Rider Max Height | 167 cm | 173 cm | 179 cm | 185 cm | 191 cm | 197 cm | 204 cm |
Model Overview
Grail CF SL 8.0 is part of the Canyon Grail model. 90 bikes variations carry this model name so far. Take a sneak peek at all Canyon Grail bikes models from 2019, by clicking here.
Model range prices
Canyon Grail WMN AL 6.0 2019 is the most affordable bike of this model and has a price of 1273$. On the other hand, Canyon Grail CF SLX 8.0 Di2 2019, is the most expensive and costs 5000$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Gravel bikes
If you want to purchase a solid Gravel bike, it is important to know that the average cost is 2462$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Canyon Grail CF SL 8.0 price was 2999$. If we compare this with the average Gravel bike cost we notice that the price is 21.81% more expensive.
Average weight for Gravel bikes
Gravel bikes weigh an average of 8.13 kg (17.92 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Grail CF SL 8.0 weighs 8.7 kg (19.18 lbs) and is a bit heavier than the average. In conclusion, the average Gravel bike weighs 7.01% less than Grail CF SL 8.0.
Grail CF SL 8.0 components
Fork material
The fork on this bike is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
The wheels on Grail CF SL 8.0 are the aluminum type. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Canyon Grail CF SL 8.0 bike has 7 sizes, in the range of 156 cm – 204 cm (5.12 ft – 6.69 ft). In conclusion, finding one for you shouldn’t be a problem.
