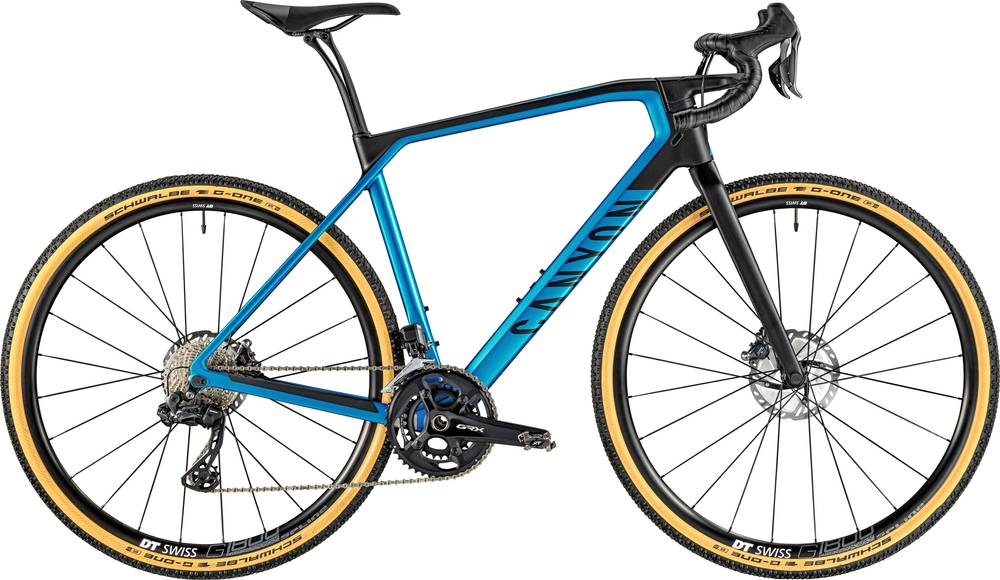

Canyon Grail CF SL 8.0 Di2 2020
2020 Road
Estimate price |
3,898$
Weight | 8.67 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 650b / 700c -
Groupset GRX Di2, GRX 800 -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 185cm
LG
183cm - 191cm
XL
189cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Grail CF SL Disc, Material: Carbon, Axle Dimension: 12 x 142 mm, Brake Mount: Flat Mount, Weight: 1040 g (M)
Suspension Fork
Canyon FK0070 CF Disc, Material: Carbon, Steerer: 1 1/4", Axle Dimension: 12 x 100 mm, Brake Mount: Flat Mount
Drivetrain
Rear Derailleur
Shimano GRX Di2 RX815 GS
Front Derailleur
Shimano GRX Di2 RX815
Shift Levers
Shimano GRX Di2 RX815 2s | Shimano GRX Di2 RX815 11s
Cassette
Shimano Ultegra HG800 11-34 11s
Crank
Shimano RX810 48/31
Bottom Bracket
Shimano Pressfit BB72
Pedals
None included
Wheels
Rims
DT Swiss G1800 Spline db | DT Swiss G1800 Spline db SH11
Tires
Schwalbe G-One Bite 40 mm, Technology: Tubeless Easy
Brakes
Brake Levers
Shimano GRX Di2 RX815 2s | Shimano GRX Di2 RX815 11s
Disk Rotors
Shimano RT800, Disc Mount: Centerlock
Seat
Saddle
Fizik Aliante R5
Seatpost
Canyon S15 VCLS 2.0 CF, Material: Carbon, Setback: 13 mm / 25 mm, Technology: VCLS 2.0 | Fliphead, Weight: 220 g
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Front Center | 580 mm | 582 mm | 606 mm | 615 mm | 626 mm | 649 mm | 659 mm |
| Top Tube Length | 521 mm | 531 mm | 555 mm | 577 mm | 588 mm | 612 mm | 623 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 432 mm | 462 mm | 492 mm | 522 mm | 552 mm | 582 mm | 612 mm |
| Head Tube Angle | 70.3 ° | 71.3 ° | 71 ° | 72.5 ° | 72.5 ° | 72.8 ° | 72.8 ° |
| Head Tube Length | 70 mm | 88 mm | 78 mm | 97 mm | 125 mm | 146 mm | 167 mm |
| Chainstay Length | 413 mm | 413 mm | 423 mm | 423 mm | 423 mm | 423 mm | 423 mm |
| Wheelbase | 986 mm | 988 mm | 1018 mm | 1027 mm | 1038 mm | 1061 mm | 1071 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 751 mm | 776 mm | 803 mm | 831 mm | 858 mm | 886 mm | 910 mm |
| Wheels | 650 | 650 | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 167 cm | 173 cm | 179 cm | 185 cm | 191 cm | 197 cm | cm |
Model Overview
Grail CF SL 8.0 Di2 is part of the Canyon Grail model. 90 bikes variations carry this model name so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Canyon Grail 6 2020 is the most affordable bike of this model and has a price of 1549$. On the other hand, Canyon Grail CF SLX 8.0 ETAP 2020, is the most expensive and costs 5499$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Gravel bikes
According to our math, the average price for a trustworthy Gravel bike is 2462$. However, even though the average price of a Gravel bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
This bike was released in 2020 and its price was 3609$. If we compare this with the average Gravel bike cost we notice that the price is 46.59% more expensive.
Gravel bikes average weight
Gravel bikes weigh an average of 8.13 kg (17.92 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
a bit heavier than average, Grail CF SL 8.0 Di2 has a weight of 8.67 kg (19.11 lbs). In other words, this model is 6.64% heavier than the average Gravel bike.
Grail CF SL 8.0 Di2 components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
When leaving the production line, the Grail CF SL 8.0 Di2 model has aluminum wheels. After 700c wheels, 650b is the second most popular choice for road bikes. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Canyon Grail CF SL 8.0 Di2 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
