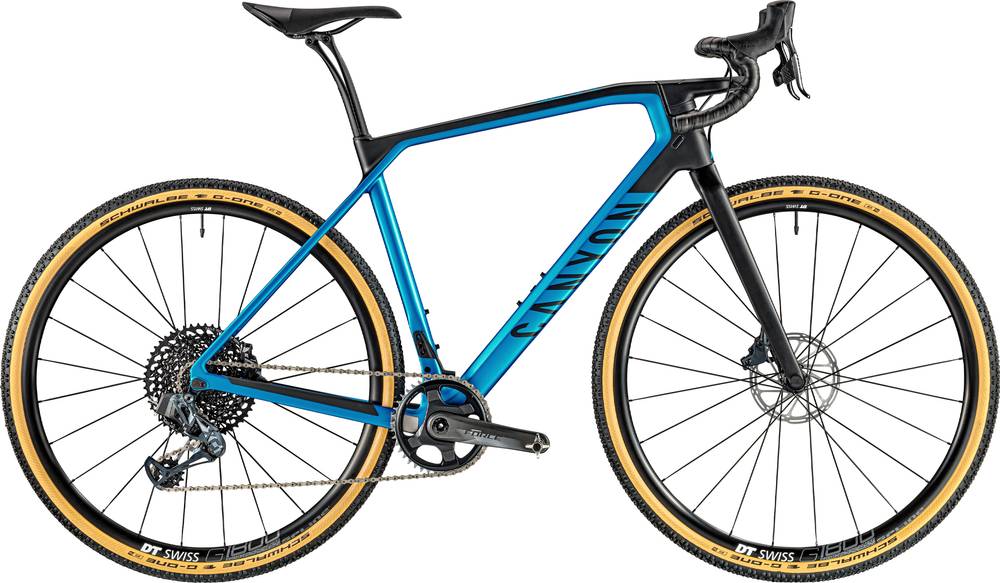

Canyon Grail CF SL 8.0 ETAP 2020
2020 Road
Estimate price |
4,799$
Weight | 8.6 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 650b / 700c -
Groupset X01 Eagle AXS, Force eTAP -
Suspension Rigid -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 185cm
LG
183cm - 191cm
XL
189cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Grail CF SL Disc, Material: Carbon, Axle Dimension: 12 x 142 mm, Brake Mount: Flat Mount, Weight: 1040 g (M)
Suspension Fork
Canyon FK0070 CF Disc, Material: Carbon, Steerer: 1 1/4", Axle Dimension: 12 x 100 mm, Brake Mount: Flat Mount
Drivetrain
Rear Derailleur
SRAM X01 Eagle AXS
Shift Levers
SRAM Force eTap AXS HRD 2s | SRAM Force eTap AXS HRD 12s
Cassette
SRAM XG-1275 Eagle 10-50 12s
Crank
SRAM Force 1 42T 42
Bottom Bracket
SRAM Pressfit RED DUB, Pressfit BB86 road standard, compatible with SRAM DUB axles. Weight: 72 g
Pedals
None included
Wheels
Rims
DT Swiss G1800 Spline db | DT Swiss G1800 Spline db XD-R
Tires
Schwalbe G-One Bite 40 mm, Technology: Tubeless Easy
Brakes
Brake Levers
SRAM Force eTap AXS HRD 2s | SRAM Force eTap AXS HRD 12s
Disk Rotors
SRAM Centerline Rounded Edges, Disc Mount: 6-Hole
Seat
Saddle
Fizik Aliante R5
Seatpost
Canyon S15 VCLS 2.0 CF, Material: Carbon, Setback: 13 mm / 25 mm, Technology: VCLS 2.0 | Fliphead, Weight: 220 g
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Front Center | 580 mm | 582 mm | 606 mm | 615 mm | 626 mm | 649 mm | 659 mm |
| Top Tube Length | 521 mm | 531 mm | 555 mm | 577 mm | 588 mm | 612 mm | 623 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 432 mm | 462 mm | 492 mm | 522 mm | 552 mm | 582 mm | 612 mm |
| Head Tube Angle | 70.3 ° | 71.3 ° | 71 ° | 72.5 ° | 72.5 ° | 72.8 ° | 72.8 ° |
| Head Tube Length | 70 mm | 88 mm | 78 mm | 97 mm | 125 mm | 146 mm | 167 mm |
| Chainstay Length | 413 mm | 413 mm | 423 mm | 423 mm | 423 mm | 423 mm | 423 mm |
| Wheelbase | 986 mm | 988 mm | 1018 mm | 1027 mm | 1038 mm | 1061 mm | 1071 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 751 mm | 776 mm | 803 mm | 831 mm | 858 mm | 886 mm | 910 mm |
| Wheels | 650 | 650 | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 167 cm | 173 cm | 179 cm | 185 cm | 191 cm | 197 cm | cm |
About this model
Grail CF SL 8.0 ETAP is a Canyon Grail model. 90 bikes variations carry this model name so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Canyon Grail 6 2020 is the cheapest bike model and costs 1549$. Canyon Grail CF SLX 8.0 ETAP 2020 is the most expensive one and costs 5499$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Gravel bikes average price
Our math shows that the average cost of a dependable Gravel bike is 2462$. However, even though the average price of a Gravel bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2020 for 4799$. If we compare this with the average Gravel bike cost we notice that the price is 94.92% more expensive.
Average weight for Gravel bikes
Gravel bikes weigh an average of 8.13 kg (17.92 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 8.6 kg (18.96 lbs), the Grail CF SL 8.0 ETAP model is a bit heavier than average. In other words, this model is 5.78% heavier than the average Gravel bike.
Grail CF SL 8.0 ETAP components
Fork material
The fork is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
When it comes to wheels, the Grail CF SL 8.0 ETAP bike is equipped with the aluminum model. After 700c wheels, 650b is the second most popular choice for road bikes. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Canyon Grail CF SL 8.0 ETAP has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
