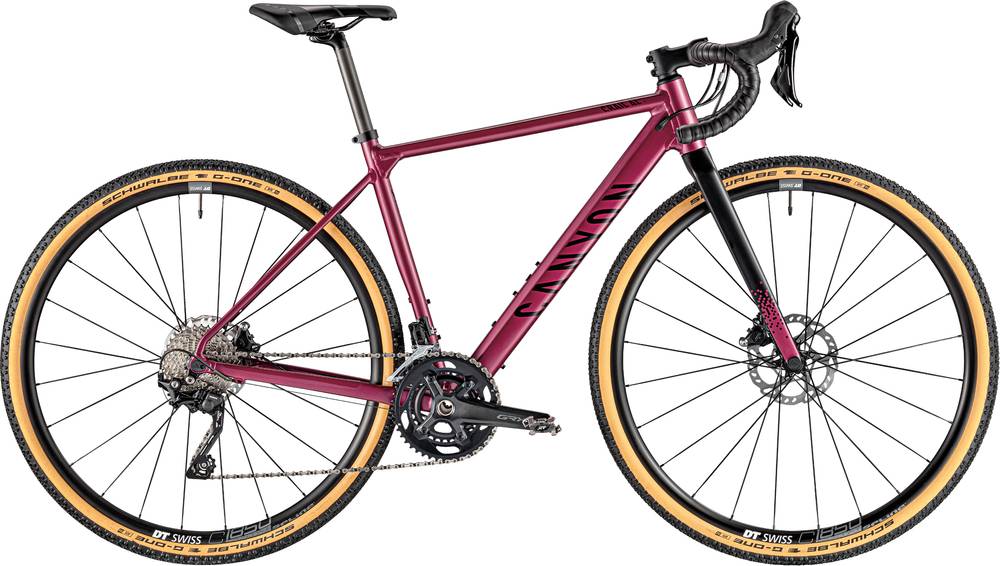

Canyon Grail WMN AL 6.0 2020
2020 Road
Estimate price |
1,719$
Weight | 9.42 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 650b / 700c -
Groupset GRX 400, GRX 600 -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
165cm - 173cm
SM
171cm - 179cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Grail AL Disc, Material: Aluminium 6061, Axle Dimension: 12 x 142 mm, Brake Mount: Flat Mount, Weight: 1480 g (M)
Suspension Fork
Canyon FK0070 CF Disc, Material: Carbon, Steerer: 1 1/4", Axle Dimension: 12 x 100 mm, Brake Mount: Flat Mount
Drivetrain
Rear Derailleur
Shimano GRX RX400 GS
Front Derailleur
Shimano GRX RX400
Shift Levers
Shimano GRX RX400 2s | Shimano GRX RX400 10s
Cassette
Shimano HG500 11-34 10s
Crank
Shimano RX600 46/30
Bottom Bracket
Shimano Pressfit BB72
Pedals
None included
Wheels
Rims
DT Swiss C 1850 Spline db, Rim Material: Aluminium, Rim Height: 23 mm, Inner Width: 22 mm, Weight: 842 g | DT Swiss C 1850 Spline db SH11, Rim Material: Aluminium, Rim Height: 23 mm, Inner Width: 22 mm, Weight: 979 g
Tires
Schwalbe G-One Bite 40 mm, Technology: Tubeless Easy
Brakes
Brake Levers
Shimano GRX RX400 2s | Shimano GRX RX400 10s
Disk Rotors
Shimano RT70, Disc Mount: Centerlock
Cockpit
Stem
Canyon V13
Handlebar
Canyon HB 0050 Ergobar AL, Material: Aluminium, Shape: Ergo, Reach: 70 mm, Drop: 130 mm
Seat
Saddle
Selle Italia X3 Lady
Seatpost
Canyon SP0043 VCLS CF, Material: Carbon, Setback: 20 mm, Technology: VCLS
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.43 mm | 1.43 mm | 1.43 mm |
| Front Center | 576 mm | 582 mm | 608 mm | 616 mm |
| Rake | 41 mm | 41 mm | 44 mm | 44 mm |
| Trail | 76 mm | 70 mm | 75 mm | 65 mm |
| Stack | 512 mm | 531 mm | 554 mm | 577 mm |
| Reach | 362 mm | 371 mm | 388 mm | 403 mm |
| Top Tube Length | 514 mm | 529 mm | 553 mm | 575 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 432 mm | 462 mm | 492 mm | 522 mm |
| Head Tube Angle | 70 ° | 71 ° | 70.8 ° | 72.3 ° |
| Head Tube Length | 117 mm | 133 mm | 124 mm | 143 mm |
| Chainstay Length | 413 mm | 413 mm | 428 mm | 428 mm |
| Wheelbase | 982 mm | 988 mm | 1025 mm | 1033 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 75 mm | 75 mm |
| Standover Height | 723 mm | 749 mm | 779 mm | 806 mm |
| Wheels | 650 | 650 | 700 | 700 |
| Rider Max Height | 167 cm | 173 cm | 179 cm | cm |
About this model
Grail WMN AL 6.0 belongs to the Canyon Grail model. Canyon launched 90 bikes of this model so far. Take a sneak peek at all Canyon Grail bikes models from 2020, by clicking here.
Model range prices
Canyon Grail 6 2020 is the most affordable bike of this model and has a price of 1549$. On the other hand, Canyon Grail CF SLX 8.0 ETAP 2020, is the most expensive and costs 5499$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Gravel bikes
According to our math, the average price for a trustworthy Gravel bike is 2462$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2020 for 1592$. Comparing the average cost of a Gravel bike to this one, you will see that Grail WMN AL 6.0 price is 54.65% lower.
Average weight for Gravel bikes
The average weight for Gravel bikes is 8.13 kg (17.92 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
much heavier than average, Grail WMN AL 6.0 has a weight of 9.42 kg (20.77 lbs). To sum up, it’s 15.87% heavier than the average weight of Gravel bikes.
Grail WMN AL 6.0 components
Fork material
Grail WMN AL 6.0 has a carbon fork, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
When it comes to wheels, the Grail WMN AL 6.0 bike is equipped with the aluminum model. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Grail WMN AL 6.0 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
