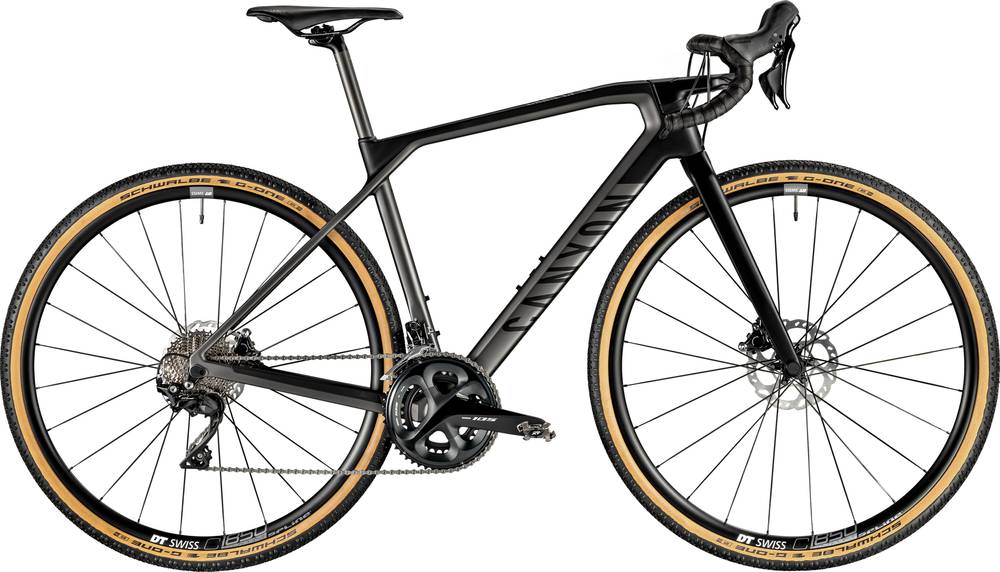

Canyon Grail WMN CF SL 7.0 2019
2019 Road
Estimate price |
2,499$
Weight | 8.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 650b / 700c -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XXS
156cm - 167cm
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Grail CF SL Disc, Material: Carbon, Axle Dimension: 12 x 142 mm, Brake Mount: Flat Mount
Suspension Fork
Canyon FK0047 CF SLX Disc, Material: Carbon, Steerer: 1 1/4", Axle Dimension: 12 x 100 mm, Brake Mount: Flat Mount
Drivetrain
Rear Derailleur
Shimano 105 R7000 GS
Front Derailleur
Shimano 105 R7000
Shift Levers
Shimano 105 R7025 2s, Weight: 310 g | Shimano 105 R7025 11s, Weight: 310 g
Cassette
Shimano HG700 11-34 11s
Crank
Shimano 105 R7000, 50/34
Bottom Bracket
Shimano Pressfit BB72
Chain
Shimano CN-HG600-11
Pedals
None included
Wheels
Rims
DT Swiss C 1850 Spline db, Rim Material: Aluminium, Rim Height: 23 mm, Inner Width: 22 mm, Weight: 842 g | DT Swiss C 1850 Spline db SH11, Rim Material: Aluminium, Rim Height: 23 mm, Inner Width: 22 mm, Weight: 979 g
Tires
Schwalbe G-One Bite 40 mm, Technology: Tubeless Easy
Brakes
Brake Levers
Shimano 105 R7025 2s, Weight: 310 g | Shimano 105 R7025 11s, Weight: 310 g
Disk Rotors
Shimano RT70, Disc Mount: Centerlock
Cockpit
Headset
Canyon | Acros
Seat
Saddle
Selle Italia X1 Lady Flow
Seatpost
Canyon SP0043 VCLS CF, Material: Carbon, Setback: 20 mm, Technology: VCLS
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD |
|---|---|---|---|---|
| Front Center | 580 mm | 582 mm | 606 mm | 615 mm |
| Top Tube Length | 521 mm | 531 mm | 555 mm | 577 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 432 mm | 462 mm | 492 mm | 522 mm |
| Head Tube Angle | 70.25 ° | 71.25 ° | 71 ° | 72.5 ° |
| Head Tube Length | 70 mm | 88 mm | 78 mm | 97 mm |
| Chainstay Length | 413 mm | 413 mm | 423 mm | 423 mm |
| Wheelbase | 986 mm | 988 mm | 1018 mm | 1027 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 75 mm | 75 mm |
| Standover Height | 751 mm | 776 mm | 803 mm | 831 mm |
| Wheels | 650 | 650 | 700 | 700 |
| Rider Min Height | 156 cm | 165 cm | 171 cm | 177 cm |
| Rider Max Height | 167 cm | 173 cm | 179 cm | 184 cm |
About this model
Grail WMN CF SL 7.0 completes the Canyon Grail model. Canyon released 90 bikes variations of this model so far. Take a sneak peek at all Canyon Grail bikes models from 2019, by clicking here.
Model range prices
Canyon Grail WMN AL 6.0 2019 is the most economical model, with a starting price of 1273$. Canyon Grail CF SLX 8.0 Di2 2019 on the other hand costs 5000$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Gravel bikes average price
If you want to purchase a solid Gravel bike, it is important to know that the average cost is 2462$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, Canyon Grail WMN CF SL 7.0 price was 2499$. If we compare this with the average Gravel bike cost we notice that the price is 1.5% higher.
Gravel bikes average weight
The average weight for Gravel bikes is 8.13 kg (17.92 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 8.9 kg (19.62 lbs), the Grail WMN CF SL 7.0 model is a bit heavier than average. In short, the average Gravel bike weight is 9.47% lower than this one.
Overview of components
Fork material
Grail WMN CF SL 7.0 has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
The Grail WMN CF SL 7.0 2019 bike is equipped with aluminum wheels when leaving the factory. After 700c wheels, 650b is the second most popular choice for road bikes. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Canyon Grail WMN CF SL 7.0 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 156 cm – 184 cm (5.12 ft – 6.04 ft). In conclusion, finding one for you shouldn’t be a problem.
