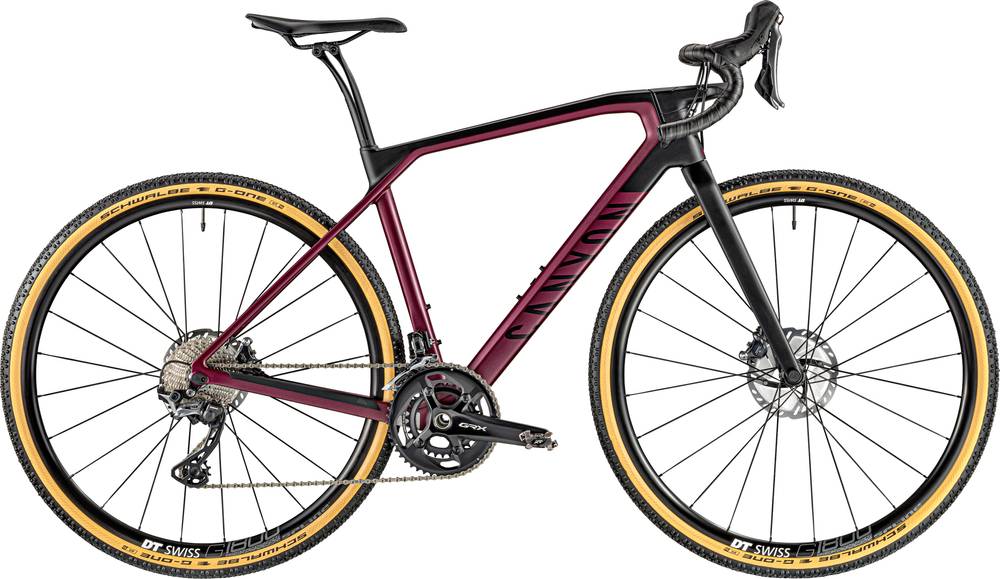

Canyon Grail WMN CF SL 8.0 2020
2020 Road
Estimate price |
3,210$
Weight | 8.86 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 650b / 700c -
Groupset GRX 800 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
165cm - 173cm
SM
171cm - 179cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Grail CF SL Disc, Material: Carbon, Axle Dimension: 12 x 142 mm, Brake Mount: Flat Mount, Weight: 1040 g (M)
Suspension Fork
Canyon FK0070 CF Disc, Material: Carbon, Steerer: 1 1/4", Axle Dimension: 12 x 100 mm, Brake Mount: Flat Mount
Drivetrain
Rear Derailleur
Shimano GRX RX810 GS
Front Derailleur
Shimano GRX RX810
Shift Levers
Shimano GRX RX810 2s | Shimano GRX RX810 11s
Cassette
Shimano Ultegra HG800 11-34 11s
Crank
Shimano RX810 48/31
Bottom Bracket
Shimano Pressfit BB72
Pedals
None included
Wheels
Rims
DT Swiss G1800 Spline db | DT Swiss G1800 Spline db SH11
Tires
Schwalbe G-One Bite 40 mm, Technology: Tubeless Easy
Brakes
Brake Levers
Shimano GRX RX810 2s | Shimano GRX RX810 11s
Disk Rotors
Shimano RT800, Disc Mount: Centerlock
Seat
Saddle
Fizik Luce
Seatpost
Canyon S15 VCLS 2.0 CF, Material: Carbon, Setback: 13 mm / 25 mm, Technology: VCLS 2.0 | Fliphead, Weight: 220 g
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD |
|---|---|---|---|---|
| Front Center | 580 mm | 582 mm | 606 mm | 615 mm |
| Top Tube Length | 521 mm | 531 mm | 555 mm | 577 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 432 mm | 462 mm | 492 mm | 522 mm |
| Head Tube Angle | 70.3 ° | 71.3 ° | 71 ° | 72.5 ° |
| Head Tube Length | 70 mm | 88 mm | 78 mm | 97 mm |
| Chainstay Length | 413 mm | 413 mm | 423 mm | 423 mm |
| Wheelbase | 986 mm | 988 mm | 1018 mm | 1027 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 75 mm | 75 mm |
| Standover Height | 751 mm | 776 mm | 803 mm | 831 mm |
| Wheels | 650 | 650 | 700 | 700 |
| Rider Max Height | 167 cm | 173 cm | 179 cm | cm |
About this model
Grail WMN CF SL 8.0 completes the Canyon Grail model. Canyon released 90 bikes variations of this model so far. You can easily view all of the Canyon Grail bikes models from 2020, here.
Model range prices
Canyon Grail 6 2020 is the most economical model, with a starting price of 1549$. Canyon Grail CF SLX 8.0 ETAP 2020 on the other hand costs 5499$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Gravel bikes
If you want to purchase a solid Gravel bike, it is important to know that the average cost is 2462$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Canyon Grail WMN CF SL 8.0 price was 2972$. If we compare this with the average Gravel bike cost we notice that the price is 20.71% higher.
Average weight for Gravel bikes
Gravel bikes have an average weight of 8.13 kg (17.92 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 8.86 kg (19.53 lbs), the Grail WMN CF SL 8.0 model is a bit heavier than average. To sum up, it’s 8.98% heavier than the average weight of Gravel bikes.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
As for the wheels, Canyon Grail WMN CF SL 8.0 2020, has a aluminum model. After 700c wheels, 650b is the second most popular choice for road bikes. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
