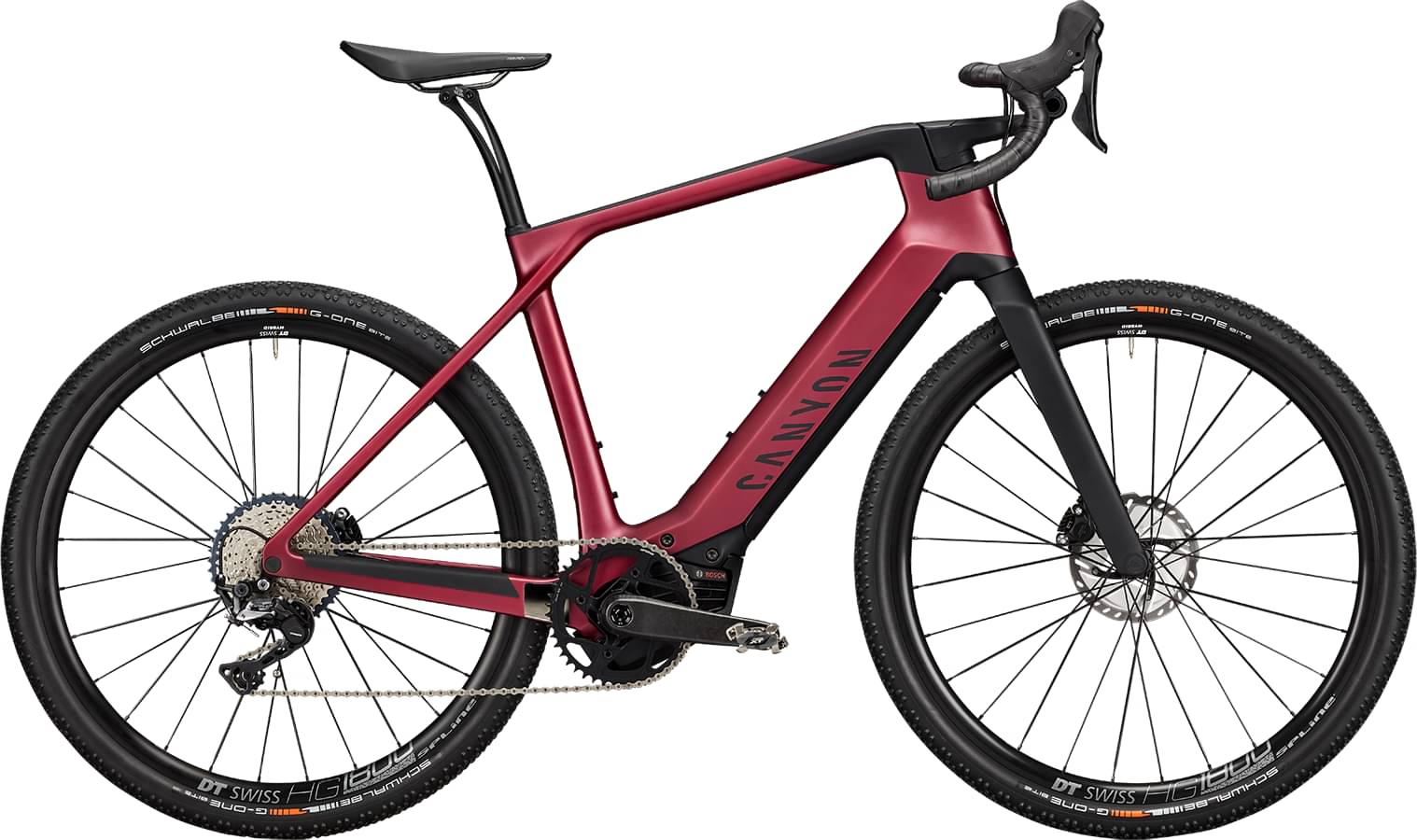

Canyon Grail:ON CF 7 WMN 2022
2022 E-bike
Estimate price |
5,734$
Weight | 17.1 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset GRX 800, GRX 600 -
Suspension Rigid -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
165cm - 173cm
SM
171cm - 179cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Grail:ON CF, Material: Carbon (CF)
Suspension Fork
Canyon FK0064 CF Disc
Drivetrain
Rear Derailleur
Shimano GRX RX812 GS, Cage Length: long
Shift Levers
Shimano GRX RX600 11s, Right-hand shifter with anti-slip brake lever for more security on bumpy terrain. Featuring adjustable reach. | Shimano GRX RX600
Cassette
Shimano SLX M7000 11-42 11s, 11-speed cassette. Gearing: 11-42T.
Crank
FSA CK-702 Gen4
Chain
Shimano CN-HG701 11s, High-grade chain with premium SIL-TEC treatment on roller link plate and pin link plate for increased durability and efficiency.
Wheels
Rims
DT Swiss HG 1800 Spline, Rotor Mount: Center Lock | DT Swiss HG 1800 Spline S11, Rotor Mount: Center Lock
Tires
Schwalbe G-One Bite TLE, 50mm, Width: 50mm
Brakes
Brakes
hydraulicDisc
Brake Levers
Shimano GRX RX600 11s, Right-hand shifter with anti-slip brake lever for more security on bumpy terrain. Featuring adjustable reach. | Shimano GRX RX600
Disk Rotors
Shimano MT800, Light, high-grade centrelock brake rotor. Featuring Ice Freeza technology for superior heat management, creating consistent braking performance and increasing brake pad life. Weight: 133 g. | Shimano RT-MT800 Brake Rotor
Seat
Saddle
Fizik Tempo Argo R3, Endurance saddle with pressure-relieving short-nose design. Shell material: nylon. Rail material: Kium hollow.
Seatpost
Canyon S15 VCLS 2.0 CF, Material: Carbon, Setback: 13 mm / 25 mm, Technology: VCLS 2.0 | Fliphead, Weight: 220 g
Motor & Battery
Motor
Bosch Performance Line CX
Battery
Bosch PowerTube
Remote
Bosch Purion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD |
|---|---|---|---|---|
| Stack Reach Ratio | 1.31 mm | 1.29 mm | 1.32 mm | 1.37 mm |
| Front Center | 605 mm | 616 mm | 625 mm | 624 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 74 mm | 70 mm | 70 mm | 71 mm |
| Stack | 510 mm | 522 mm | 539 mm | 559 mm |
| Reach | 390 mm | 404 mm | 407 mm | 409 mm |
| Top Tube Length | 542 mm | 559 mm | 567 mm | 575 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 432 mm | 462 mm | 492 mm | 522 mm |
| Head Tube Angle | 70 ° | 70.75 ° | 70.75 ° | 71.5 ° |
| Head Tube Length | 110 mm | 119 mm | 137 mm | 122 mm |
| Chainstay Length | 423 mm | 423 mm | 423 mm | 438 mm |
| Wheelbase | 1021 mm | 1032 mm | 1041 mm | 1051 mm |
| Bottom Bracket Drop | 61 mm | 61 mm | 61 mm | 75 mm |
| Standover Height | 723 mm | 749 mm | 779 mm | 806 mm |
| Wheels | 650 | 650 | 650 | 700 |
| Rider Max Height | 167 cm | 173 cm | 179 cm | cm |
Model Overview
Grail:ON CF 7 WMN completes the Canyon E Grailon model. 14 e-bikes variations carry this model name so far. You can easily view all of the Canyon E Grailon e-bikes models from 2022, here.
Model range prices
Canyon Grail:ON CF 7 2022 is the cheapest e-bike model and costs 5308$. Canyon Grail:ON CF 8 eTap 2022 is the most expensive one and costs 6999$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Gravel e-bikes
If you want an acceptable Gravel e-bike you should know that the average price is 3642$. However, this doesn’t mean that if you spend less money on a Gravel e-bike, you couldn’t get a decent one. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
This e-bike was released in 2022 and its price was 5308$. In conclusion, this e-bike price is 45.74% more expensive than the price of the average Gravel e-bike.
Average weight for Gravel e-bikes
Gravel e-bikes weigh an average of 13.58 kg (29.94 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Canyon Grail:ON CF 7 WMN it’s weighing 17.1 kg (37.7 lbs). At this weight, is much heavier than average. In short, the average Gravel e-bike weight is 25.92% lower than this one.
Overview of components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
The Grail:ON CF 7 WMN 2022 e-bike is equipped with aluminum wheels when leaving the factory. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
For your safety, it is important to have quality breaks on your bike. Canyon Grail:ON CF 7 WMN has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
