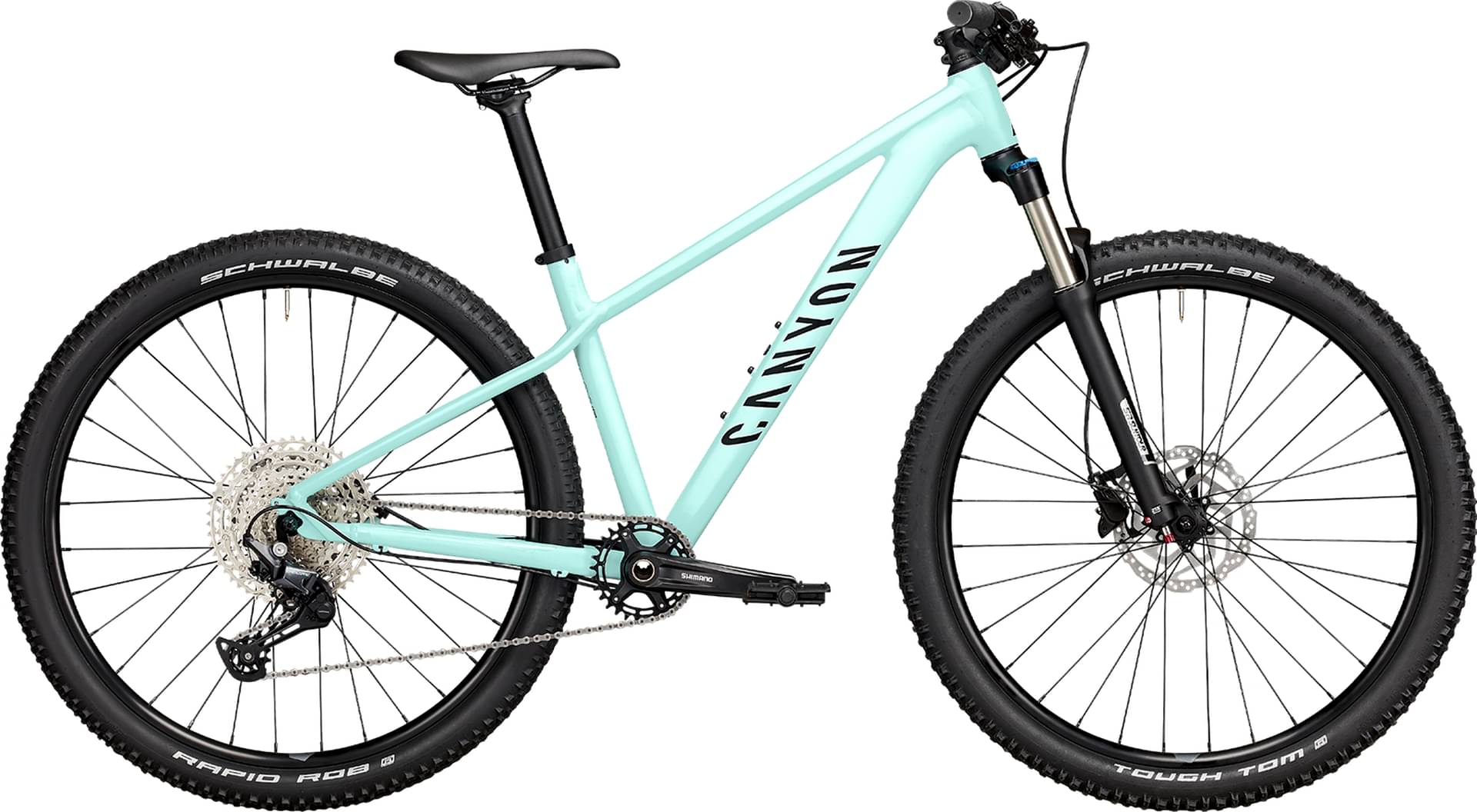

Canyon Grand 5 WMN 2023
2023 Mountain
Estimate price |
699$
Weight | 13.66 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork Suntour XCR
-
Groupset Deore, Shimano -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 163cm
SM
161cm - 173cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Grand Canyon WMN AL
Suspension Fork
SR Suntour XCR
Drivetrain
Rear Derailleur
Shimano DEORE M6100, 1x12 drivetrain for simpler, intuitive shifting. Long-cage design is compatible with wide-range cassettes.
Shift Levers
Shimano Deore M6100 12s
Cassette
Shimano DEORE M6100, Gear range: 10-51
Crank
Shimano MT510
Bottom Bracket
Shimano BSA BB52
Chain
Shimano CN-M6100 12s
Wheels
Rims
Canyon
Tires
Schwalbe Rapid Rob 27.5" x 2.25 MTB Tyre, Casing: K-Guard | Schwalbe Tough Tom 2.25"
Brakes
Brakes
Shimano MT200
Cockpit
Stem
Iridium
Handlebar
Iridium Flatbar, Material: Aluminium, Rise: 5 mm
Grips
Iridium
Seat
Saddle
Iridium WMN Fitness
Seatpost
Iridium
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD |
|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.57 mm | 1.49 mm | 1.46 mm |
| Bottom Bracket Height | 301 mm | 301 mm | 301 mm | 315 mm |
| Front Center | 608 mm | 634 mm | 663 mm | 694 mm |
| Rake | 47 mm | 47 mm | 47 mm | 48 mm |
| Trail | 90 mm | 90 mm | 90 mm | 96 mm |
| Stack | 565 mm | 593 mm | 602 mm | 623 mm |
| Reach | 363 mm | 378 mm | 404 mm | 427 mm |
| Top Tube Length | 523 mm | 546 mm | 575 mm | 604 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 305 mm | 350 mm | 395 mm | 440 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 90 mm | 90 mm | 100 mm | 105 mm |
| Chainstay Length | 429 mm | 429 mm | 429 mm | 437 mm |
| Wheelbase | 1031 mm | 1057 mm | 1086 mm | 1124 mm |
| Bottom Bracket Drop | 54 mm | 54 mm | 54 mm | 59 mm |
| Standover Height | 677 mm | 707 mm | 747 mm | 797 mm |
| Front Travel | 100 mm | 100 mm | 100 mm | 100 mm |
| Wheels | 27" | 27" | 27" | 29" |
| Rider Max Height | 153 cm | 163 cm | 173 cm | cm |
Model Overview
Grand Canyon 5 WMN is part of the Canyon Grand Canyon model. There are 49 bikes that carry this model name. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
The most economical model, the Canyon Grand Canyon 5 2023 has a starting price of 699$. Canyon Grand Canyon 9 2023 on the other hand is the most expensive at 1910$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Crosscountry bikes average price
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Canyon released this model in 2023, its price was 699$. Comparing this to the average Crosscountry bike price, we see that the price is 172.53% smaller.
Average weight for Crosscountry bikes
On a deeper look, we notice that the average weight of a Crosscountry bike is 12.4 kg (27.34 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 13.66 kg (30.12 lbs), the Grand Canyon 5 WMN model is considerably heavier than average. In short, the average Crosscountry bike weight is 10.16% lower than this one.
Overview of components
Fork

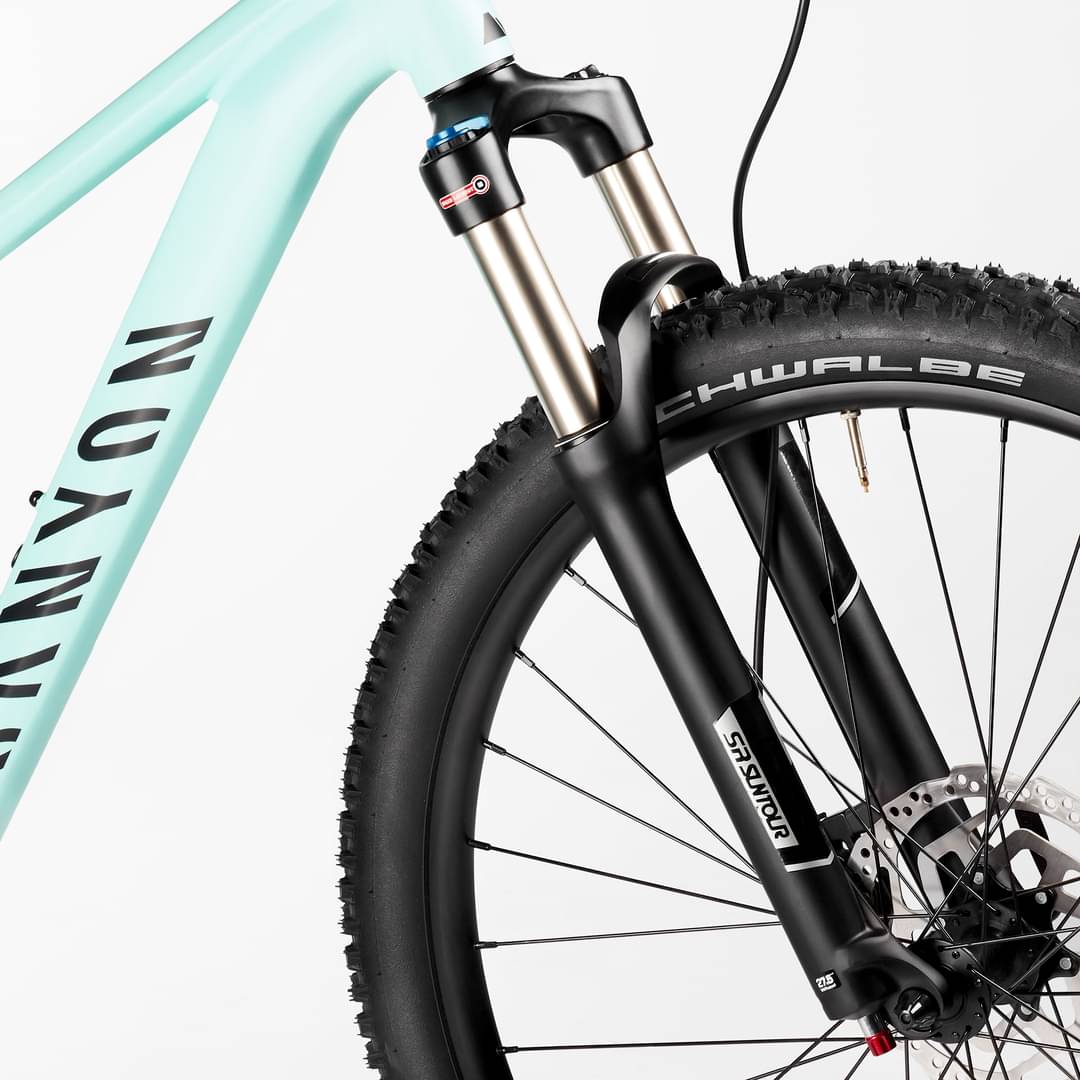

Canyon Grand Canyon 5 WMN 2023 bike is equipped with the Suntour XCR fork, and has 100mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
As for the wheels, Canyon Grand Canyon 5 WMN 2023, has a 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Grand Canyon 5 WMN comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
