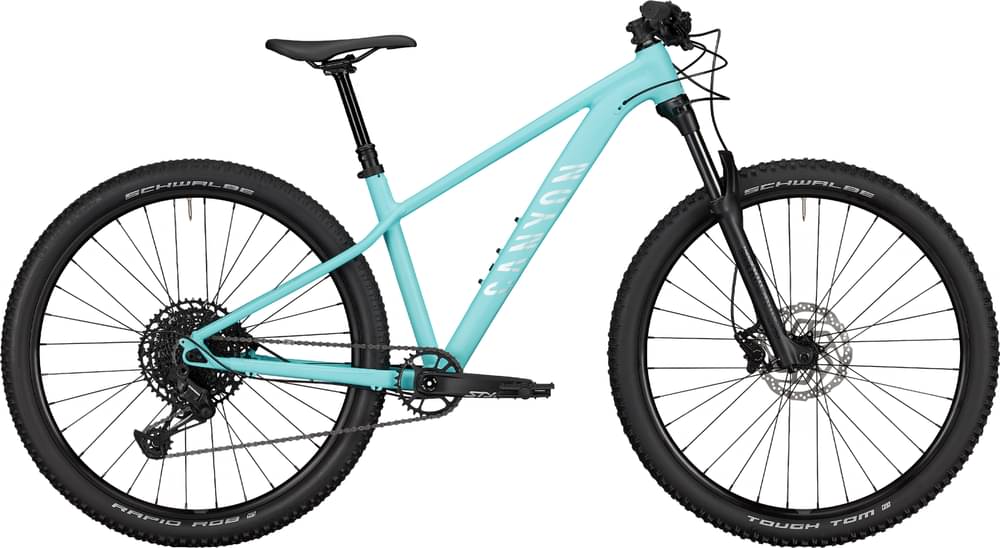

Canyon Grand 7 WMN 2022
2022 Mountain
Estimate price |
1,299$
Weight | 13.66 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" / 29" -
Travel Front 120mm -
Fork RockShox Judy
-
Groupset SX Eagle, Truvativ Stylo -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 163cm
SM
161cm - 173cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Grand Canyon WMN AL SL
Suspension Fork
RockShox Judy Silver, Travel: 120 mm, Axle Dimension: 15 x 110 mm, Size XS bikes: 100 mm travel
Drivetrain
Rear Derailleur
SRAM SX Eagle, SRAM SX Eagle rear derailleur provides quick and quiet shifts across 10-50 or 11-50 tooth cassettes.
Shift Levers
SRAM SX Eagle Trigger 12s, SX Eagle's 12-speed shifters offer quick and crisp gear changes.
Cassette
SRAM PG-1210 Eagle 11-50 12s, SRAM's SX Eagle 11-50 cassette packs a wide, 454% gear range into a surprisingly affordable package.
Crank
Truvativ Stylo 6K DUB 30T
Bottom Bracket
SRAM Pressfit DUB
Chain
SRAM SX Eagle 12s
Wheels
Rims
Alexrims MD25 | Shimano MT400 | Alexrims MD25 | Shimano MT400 SH11
Tires
Schwalbe Rapid Rob 2.25'', Casing: K-Guard | Schwalbe Tough Tom 2.25"
Brakes
Brakes
Shimano MT400
Disk Rotors
Shimano RT10, Shimano's 180mm RT10 rotor provides a good balance of stopping power and modulation. | Shimano RT10, Rotor diameter: 160 mm.
Cockpit
Stem
Iridium
Handlebar
Iridium Flatbar, Material: Aluminium, Rise: 5 mm
Grips
Canyon
Seat
Saddle
Iridium WMN Fitness
Seatpost
Iridium Dropper
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD |
|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.57 mm | 1.49 mm | 1.46 mm |
| Bottom Bracket Height | 301 mm | 301 mm | 301 mm | 315 mm |
| Front Center | 608 mm | 634 mm | 663 mm | 694 mm |
| Rake | 47 mm | 47 mm | 47 mm | 48 mm |
| Trail | 90 mm | 90 mm | 90 mm | 96 mm |
| Stack | 565 mm | 593 mm | 602 mm | 623 mm |
| Reach | 363 mm | 378 mm | 404 mm | 427 mm |
| Top Tube Length | 523 mm | 546 mm | 575 mm | 604 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 305 mm | 350 mm | 395 mm | 440 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 90 mm | 90 mm | 100 mm | 105 mm |
| Chainstay Length | 429 mm | 429 mm | 429 mm | 437 mm |
| Wheelbase | 1031 mm | 1057 mm | 1086 mm | 1124 mm |
| Bottom Bracket Drop | 54 mm | 54 mm | 54 mm | 59 mm |
| Standover Height | 677 mm | 707 mm | 747 mm | 797 mm |
| Front Travel | 120 mm | 120 mm | 120 mm | 120 mm |
| Wheels | 27" | 27" | 27" | 29" |
| Rider Max Height | 153 cm | 163 cm | 173 cm | cm |
About this model
Grand Canyon 7 WMN is a Canyon Grand Canyon model. 49 bikes variations carry this model name so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Canyon Grand Canyon 5 WMN 2022 is the cheapest bike model and costs 901$. Canyon Grand Canyon 9 2022 is the most expensive one and costs 1910$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2022 for 1299$. If we compare this with the average Trail bike cost we notice that the price is 112.63% smaller.
Trail bikes average weight
On a deeper look, we notice that the average weight of a Trail bike is 12.98 kg (28.62 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Canyon Grand Canyon 7 WMN it’s weighing 13.66 kg (30.12 lbs). At this weight, is a bit heavier than average. In other words, this model is 5.24% heavier than the average Trail bike.
Overview of components
Fork
The Grand Canyon 7 WMN comes factory-installed with the RockShox Judy fork. This has a travel range of 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
The wheels on Grand Canyon 7 WMN are the 27.5″ aluminum type. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Canyon Grand Canyon 7 WMN has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Dropper post
A dropper post is included with the Grand Canyon 7 WMN. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
