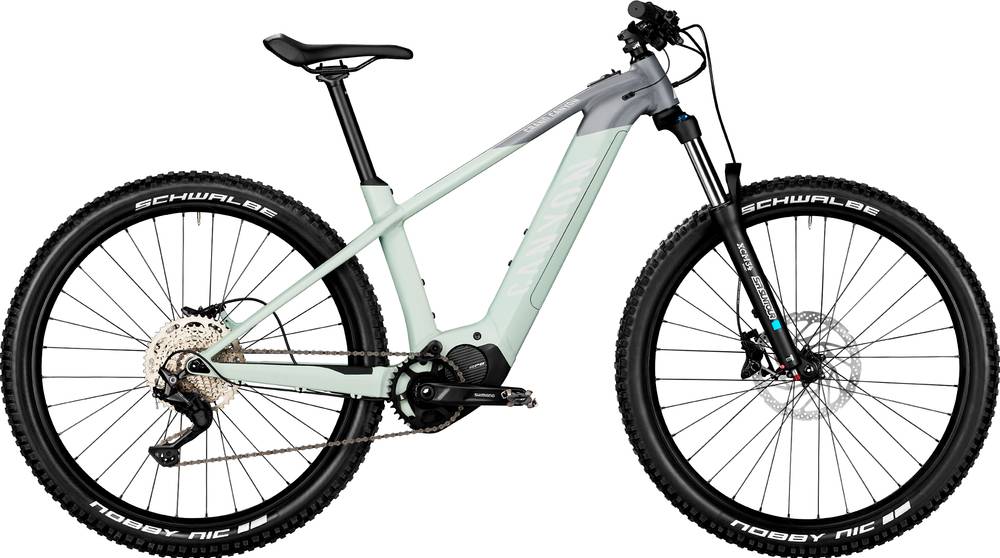

Canyon Grand :ON 7 WMN 2021
2021 E-bike
Estimate price |
3,325$
Weight | 23.16 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" / 29" -
Travel Front 120mm -
Fork SunTour XCM
-
Groupset Deore, Shimano -
Suspension Hardtail -
Motor Shimano 250W 85Nm mid-drive -
Battery Shimano STEPS 504-Wh Battery, Lithium-Ion battery, IPX5 water resistant, 3.1 Kg, adaptor for external charging not included -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
159cm - 173cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Grand Canyon:ON, Aluminium frame, 120 mm fork travel, balanced geometry, frame size-dependent wheel sizing (29-inch wheels on M-L bikes, 27.5-inch wheels on XS-S), integrated battery with anti-theft design, USB-C charging jack.
Suspension Fork
Suntour XCM34, 120mm, 120mm of front suspension, 29er fork, Boost 110 spacing, 34mm stanchions, coil spring with preload adjuster
Drivetrain
Rear Derailleur
Shimano Deore, 10-speed, 10/11-speed, max cassette size: 46T. Weight: 331 g, Shadow RD+ chain stabilizing system
Shift Levers
Shimano Deore, 10-speed, Rear derailleur shifter, 10-speed, 2-way release, I-Spec EV clamp allows 14mm lateral adjustment and 10-degrees rotation adjustment, 133 g
Cassette
Shimano Deore, 10-speed (11-46), All-steel cog design, Shimano HG freehub compatible, Gear range: 11-46T, weight: 360 g,
Crank
Shimano STEPS e-MTB crank arms, Designed for the rigors of E-MTB riding, 24mm spindle, 170mm crank arms
Bottom Bracket
STEPS, press-fit
Wheels
Rims
Rodi TRYP 30 | Shimano MT400, Shimano MT400 front hub with Boost 110 spacing, Iridium 30 aluminum rim, 30mm inner rim width | TRYP 30 | Shimano MT400, Shimano MT400 rear hub with Boost 148 spacing, TRYP 30 aluminum rim, 30mm inner rim width
Tires
Schwalbe Nobby Nic Performance, 2.6, 29x2.6"
Brakes
Brakes
Shimano MT420 4-piston, front brake, Shimano 4-piston caliper provide 20% more stopping power than equivalent 2-piston version | Shimano MT410 2-piston, rear brake, Deore-caliber, 2-piston disc brake, resin pads
Disk Rotors
Shimano Tourney TX front rotor, A big Shimano RT830 brake rotor delivers equally big stopping power. | Shimano EM300 STEPS rear rotor, 203mm, Specifically designed to work with E-MTB speed sensors. Center lock mounting for quick installation/removal. Resin pad only.
Cockpit
Stem
Canyon:ON Stem, 35mm clamp diameter, 60mm length
Handlebar
Canyon:ON HB0056 Riser bar, Aluminum, 760mm width, 35mm clamp diameter, 20mm rise
Grips
Canyon Lock-On Grips
Seat
Saddle
Canyon SD:ON, Perfect for long rides in a seated position or on steep climbs, extra padding around sit bones, additional rear support prevents you from sliding backwards on steep climbs, chromoly rails, durable nylon composite shell, 290 g
Seatpost
Iridium Seatpost, Alloy seatpost.
Motor & Battery
Motor
Shimano Steps EP8 Motor
Battery
Shimano STEPS 504-Wh Battery, Lithium-Ion battery, IPX5 water resistant, 3.1 Kg, adaptor for external charging not included
Remote
Shimano Steps SC-E7000 Display
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.49 mm | 1.51 mm |
| Bottom Bracket Height | 301 mm | 301 mm | 309 mm |
| Front Center | 675 mm | 693 mm | 730 mm |
| Rake | 48 mm | 49 mm | 56 mm |
| Trail | 99 mm | 98 mm | 91 mm |
| Stack | 585 mm | 603 mm | 652 mm |
| Reach | 396 mm | 406 mm | 431 mm |
| Top Tube Length | 566 mm | 579 mm | 618 mm |
| Seat Tube Angle | 73.8 ° | 74 ° | 74 ° |
| Seat Tube Length | 350 mm | 400 mm | 440 mm |
| Head Tube Angle | 67 ° | 67 ° | 68 ° |
| Head Tube Length | 100 mm | 100 mm | 120 mm |
| Chainstay Length | 423 mm | 423 mm | 436 mm |
| Wheelbase | 1092 mm | 1110 mm | 1158 mm |
| Bottom Bracket Drop | 54 mm | 54 mm | 65 mm |
| Standover Height | 718 mm | 753 mm | 798 mm |
| Front Travel | 100 mm | 120 mm | 120 mm |
| Wheels | 27" | 27" | 29" |
| Rider Max Height | 161 cm | 173 cm | cm |
About this model
Grand Canyon:ON 7 WMN belongs to the Canyon E Grand Canyonon model. Canyon released 17 e-bikes variations of this model so far. Take a sneak peek at all Canyon E Grand Canyonon e-bikes models from 2021, by clicking here.
Model range prices
Canyon Grand Canyon:ON 7 2021 is the most economical model, with a starting price of 3078$. Canyon Grand Canyon:ON 9 2021 on the other hand costs 3609$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail e-bikes
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2021 for 3078$. Doing a quick comparison, we notice that Grand Canyon:ON 7 WMN price is 9.32% smaller than the average cost of a Trail e-bike.
Average weight for Trail e-bikes
On a deeper look, we notice that the average weight of a Trail e-bike is 23.7 kg (52.25 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 23.16 kg (51.06 lbs), the Grand Canyon:ON 7 WMN model is slightly lighter than average. In short, the average Trail e-bike weight is 2.33% higher than this one.
Grand Canyon:ON 7 WMN components
Fork
The fork installed on this bike is the SunTour XCM model. The travel on this model is 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
The wheels on Grand Canyon:ON 7 WMN are the 27.5″ aluminum type. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Grand Canyon:ON 7 WMN has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
