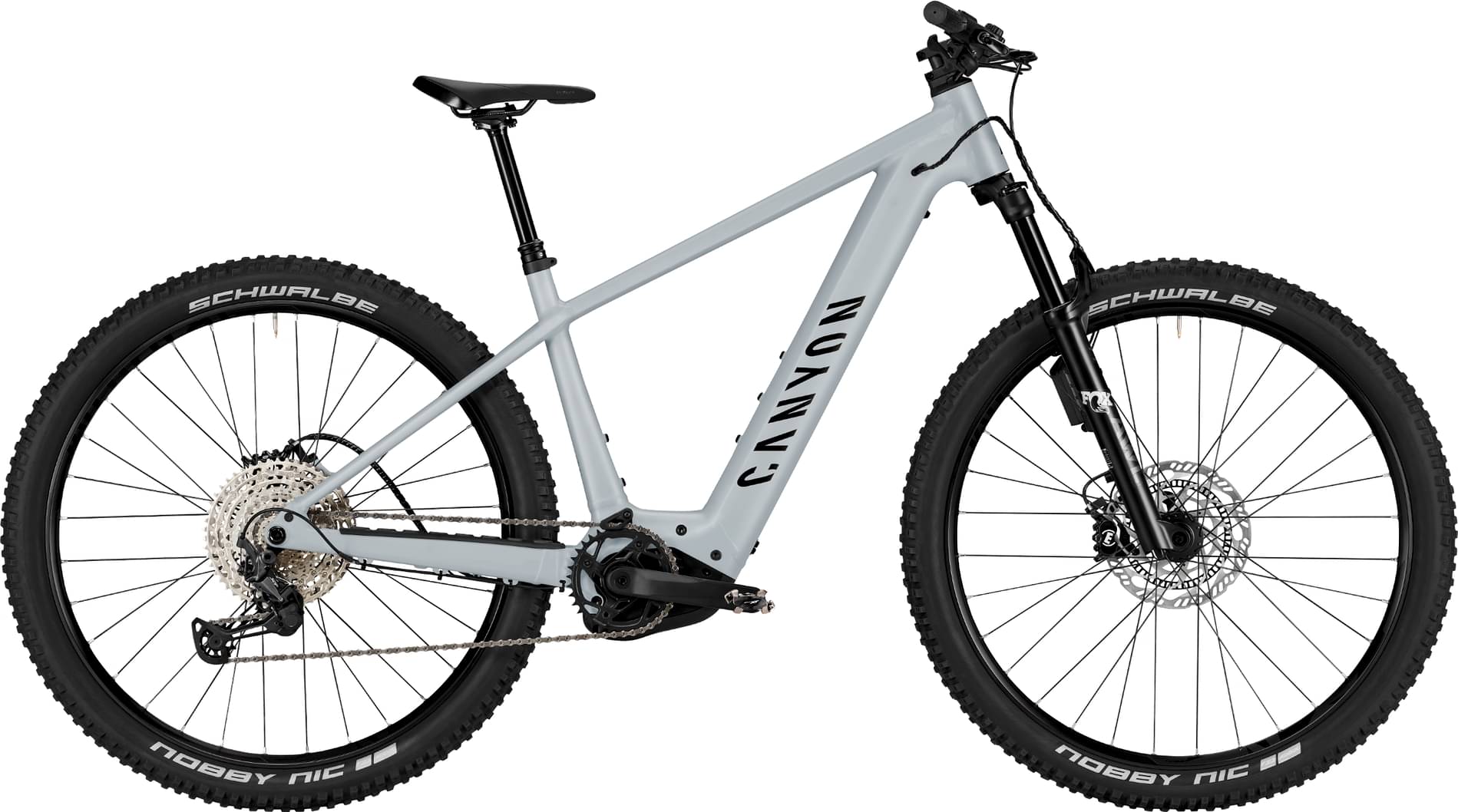

Canyon Grand :ON 9 2023
2023 E-bike
Estimate price |
4,931$
Weight | 24.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Fork Fox AWL
-
Groupset XT, Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 750Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 171cm
MD
169cm - 182cm
LG
180cm - 192cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Grand Canyon:ON AL, Axle dimension: 12x148 mm, Material: Aluminium (AL)

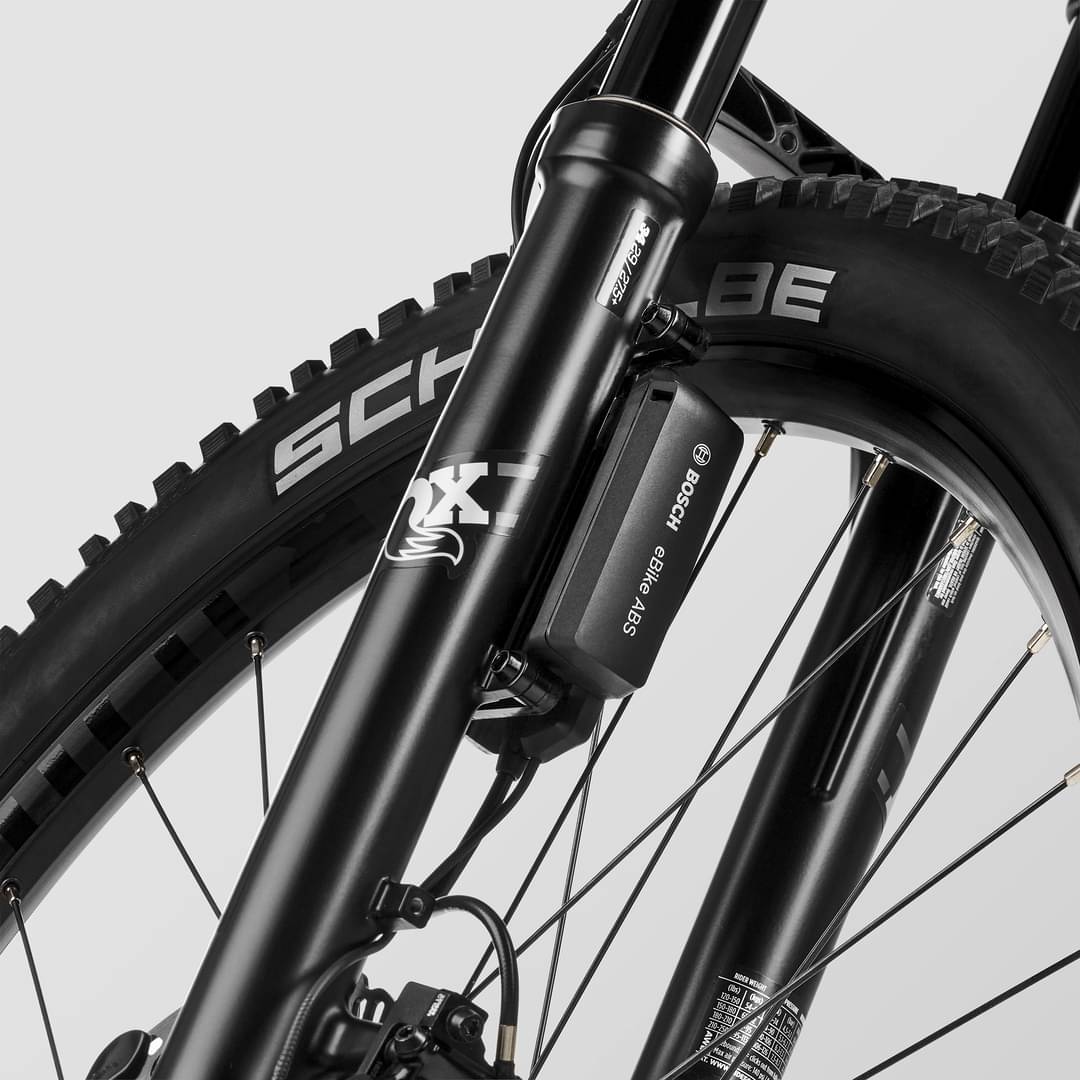

Suspension Fork
FOX 34 AWL, Axle dimension: 15x110 mm, Stanchion Diameter: 34 mm, Travel: 120 mm, Fork steer tube diameter: 1 1/8" - 1,5", Offset: 51 mm, Weight: 1.56 kg
Drivetrain
Rear Derailleur
Shimano DEORE XT M8100, Cage length: long, Weight: 286 g
Shift Levers
Shimano Deore M6100 12s
Cassette
Shimano DEORE M6100, Number of sprockets: 12 | Shimano CS-M6100 Deore 12-speed Cassette 10-51
Crank
FSA 745 E-Bike Crank for Bosch Gen4
Bottom Bracket
Bosch, press-fit
Chain
Shimano CN-M6100 | Shimano SM-CN910 12-speed Quick-Link Chain Connector | Shimano CN-M6100 Deore 12-speed Chain 138 Links
Chain Guide
Canyon GP0432-01 Chain Guide
Wheels
Rims
Rodi Tryp 30 12x148, Rotor mount: IS 6-bolt, Weight: 1.16 kg | Rodi Tryp 30 15x110, Rotor mount: IS 6-bolt, Weight: 1.09 kg
Tires
Schwalbe Nobby Nic Performance, 2.6, Width: 2.6"

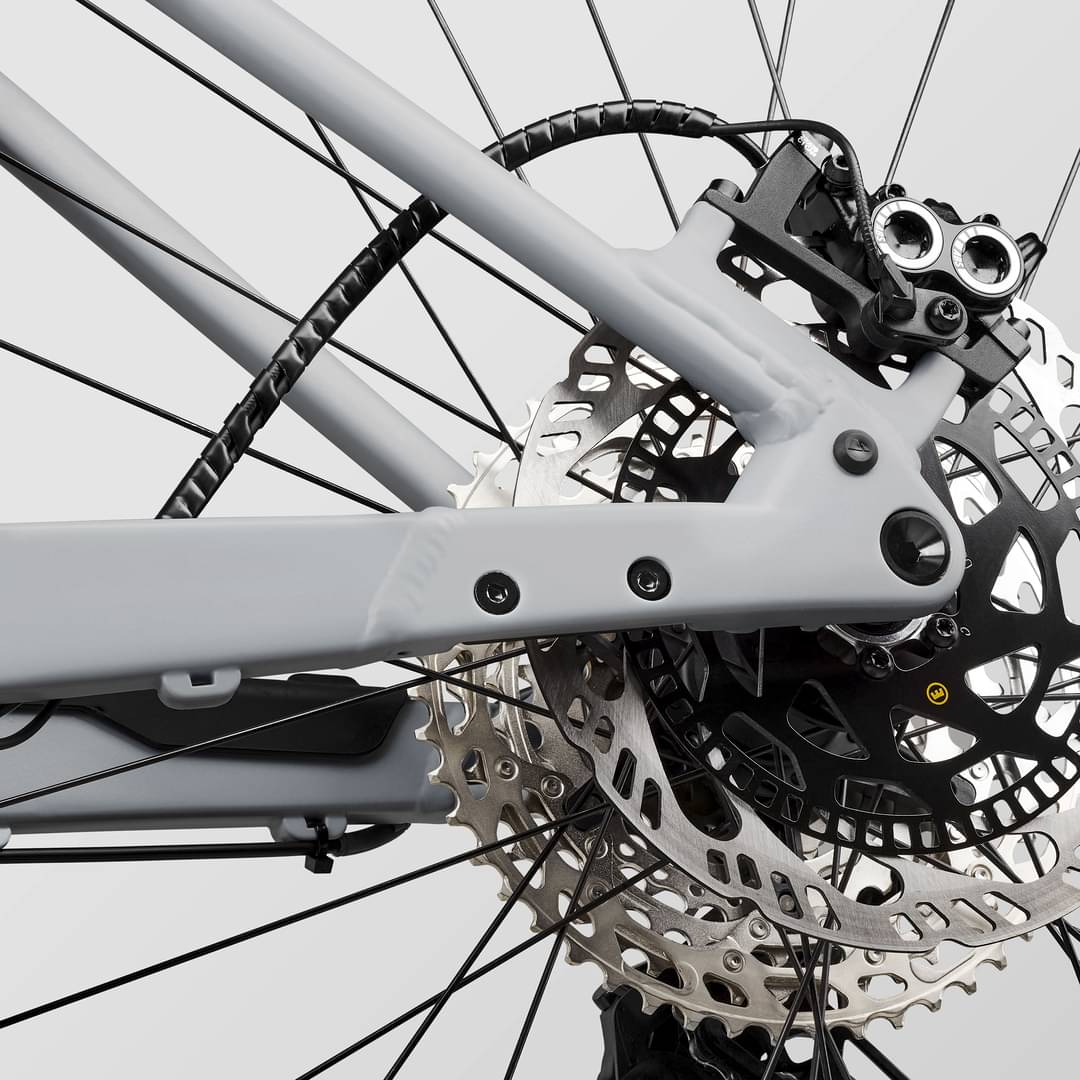

Brakes
Brakes
Magura CTE ABS, Number of pistons: 4
Cockpit
Stem
Canyon:ON ST0031, Canyon E-MTB stem., Length: 45 mm, Fork steer tube diameter: 1 1/8", Clamping diameter: 35,0 mm
Handlebar
Canyon:ON HB0056 Riser bar, Aluminum., Clamping diameter: 35,0 mm, Width: 760 mm, Rise: 20 mm
Grips
Canyon Lock-On Grips
Seat
Saddle
Fizik Terra Alpaca X5
Seatpost
Iridium Dropper Post, Move more freely on steep descents, by dropping down saddle with the press of a handlebar-mounted button. With internal cabling., Clamp diameter: 30,9 mm, Material: Aluminium (AL), Weight: 580 g
Motor & Battery

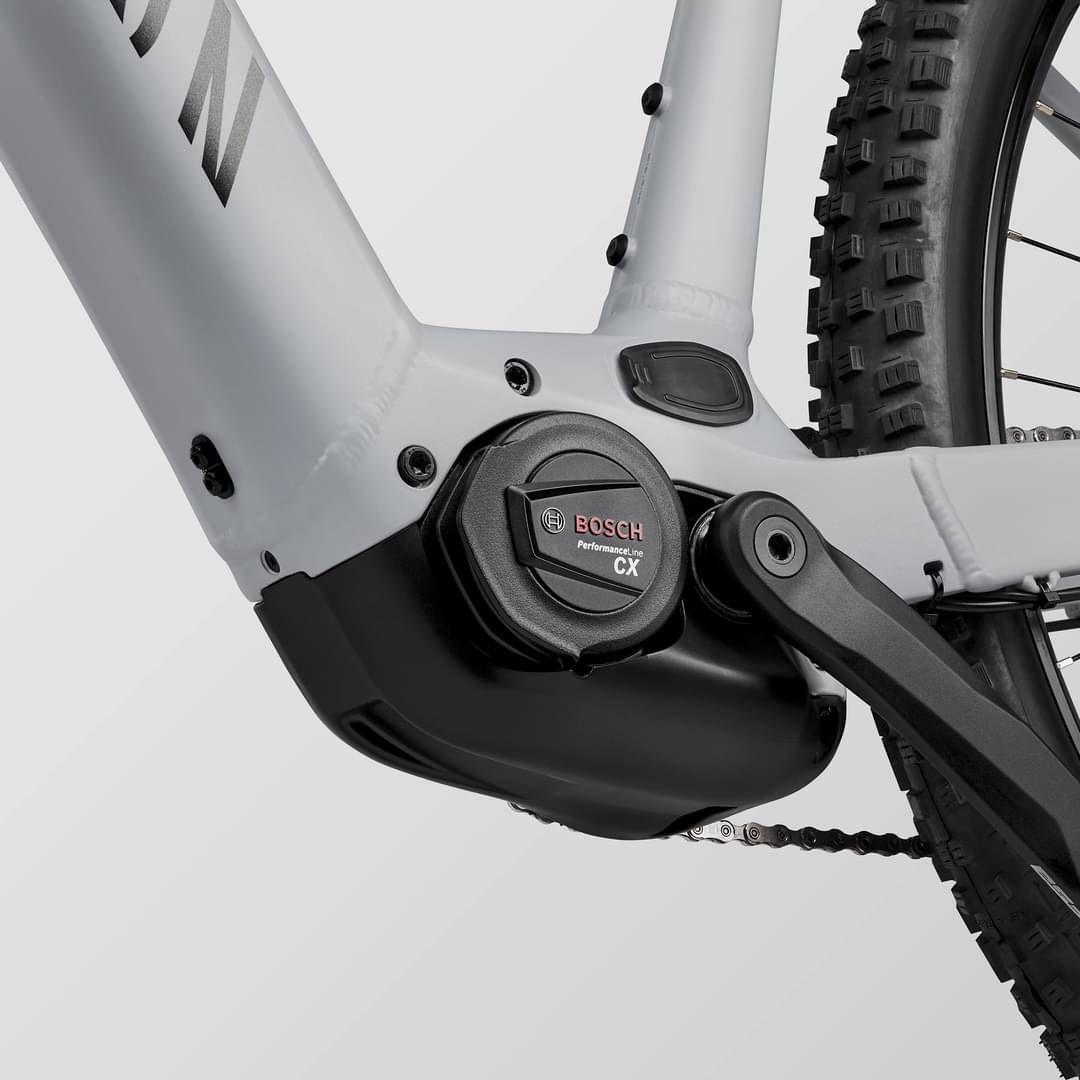

Motor
Bosch Performance Line CX
Battery
Bosch PowerTube 750Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.47 mm | 1.43 mm | 1.38 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 723 mm | 753 mm | 783 mm | 814 mm |
| Rake | 55 mm | 55 mm | 55 mm | 56 mm |
| Trail | 92 mm | 92 mm | 92 mm | 91 mm |
| Stack | 642 mm | 656 mm | 670 mm | 683 mm |
| Reach | 420 mm | 445 mm | 470 mm | 495 mm |
| Top Tube Length | 593 mm | 622 mm | 651 mm | 680 mm |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° | 76.5 ° |
| Seat Tube Length | 395 mm | 440 mm | 485 mm | 540 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 115 mm | 130 mm | 145 mm | 160 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1170 mm | 1201 mm | 1231 mm | 1262 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 777 mm | 787 mm | 818 mm | 832 mm |
| Front Travel | 120 mm | 120 mm | 120 mm | 120 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 169 cm | 180 cm | 190 cm |
| Rider Max Height | 171 cm | 182 cm | 192 cm | cm |
Model Overview
Grand Canyon:ON 9 is a Canyon E Grand Canyonon model. Canyon launched 17 e-bikes of this model so far. You can easily view all of the Canyon E Grand Canyonon e-bikes models from 2023, here.
Model range prices
Canyon Grand Canyon:ON 7 2023 is the most economical model, with a starting price of 3503$. Canyon Grand Canyon:ON 9 2023 on the other hand costs 4565$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail e-bikes average price
According to our calculations, the average cost of a Trail e-bike that is reliable is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2023 for 4565$. In conclusion, this e-bike price is 35.66% higher than the price of the average Trail e-bike.
Trail e-bikes average weight
Trail e-bikes weigh an average of 23.7 kg (52.25 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 24.5 kg (54.01 lbs), the Grand Canyon:ON 9 model is slightly heavier than average. In other words, this model is 3.38% heavier than the average Trail e-bike.
Grand Canyon:ON 9 components
Fork
The Grand Canyon:ON 9 comes factory-installed with the Fox AWL fork. This has a travel range of 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
The wheels on Grand Canyon:ON 9 are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The Grand Canyon:ON 9 has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Dropper post
Canyon Grand Canyon:ON 9 includes a dropper post. Therefore, climbing or descending will be a breeze.
