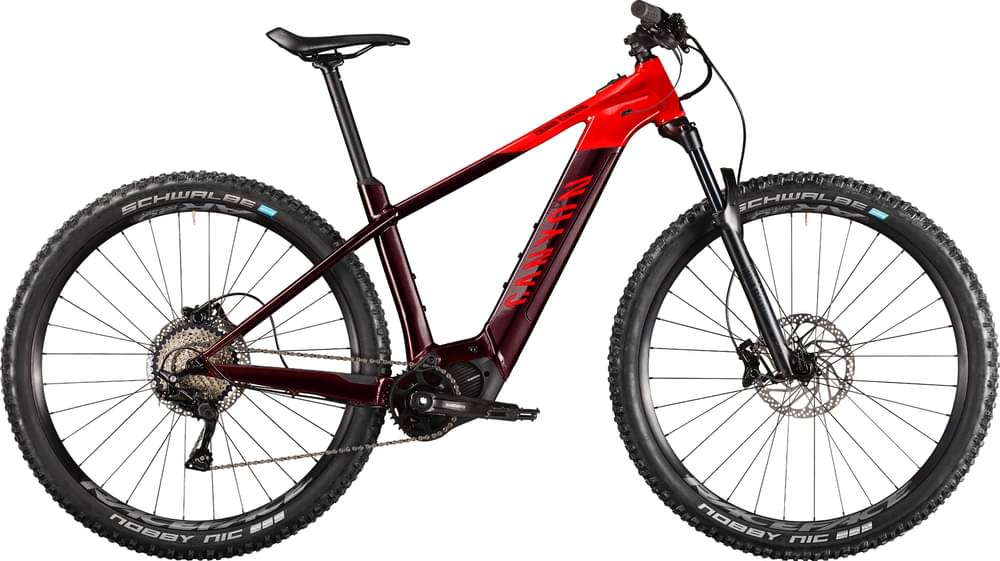

Canyon Grand :ON AL 8.0 2021
2021 E-bike
Estimate price |
3,612$
Weight | 21.45 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" / 29" -
Travel Front 120mm -
Fork RockShox Judy
-
Groupset Deore, Shimano -
Suspension Hardtail -
Motor Shimano 250W 70Nm mid-drive -
Battery Shimano BT-E8035-L 504Wh Battery, Lithium-Ion battery, IPX5 water resistant, 2.9 Kg, Adapter for external charging not included -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
159cm - 173cm
MD
171cm - 184cm
LG
182cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Grand Canyon:On, Material: Aluminium 6061, Axle Dimension: 12 x 148 mm, Brake Mount: Post Mount 180
Suspension Fork
RockShox Judy Silver, Travel: 120 mm, Axle Dimension: 15 x 110 mm, Size XS bikes: 100 mm travel
Drivetrain
Rear Derailleur
Shimano Deore M6000 GS
Shift Levers
Shimano Deore M6000 10s, Shimano Deore 10-speed shifters are reliable and precise.
Cassette
Shimano HG500 11-42 10s
Crank
Shimano E8000
Chain
SHIMANO HG54 10-speed
Wheels
Rims
RaceFace AR30 | Shimano MT400, Shimano MT400 front hub with Boost 110 spacing, RaceFace AR30 aluminum rim, 30mm inner rim width | RaceFace AR30 | Shimano MT400 SH11
Tires
Schwalbe Nobby Nic 2.6'', Technology: Tubeless Easy
Brakes
Brakes
Shimano MT420 | Shimano MT401
Disk Rotors
Shimano Tourney TX front rotor, 203mm, A big (203mm) Shimano RT830 brake rotor delivers equally big stopping power. | Shimano EM300 STEPS rear rotor, 203mm, Specifically designed to work with E-MTB speed sensors. Center lock mounting for quick installation/removal. Resin pad only.
Cockpit
Stem
Canyon:ON Stem, 35mm clamp diameter, 60mm length
Handlebar
Canyon:ON HB0056 Riser bar, Aluminum, 760mm width, 35mm clamp diameter, 20mm rise
Grips
Canyon Lock-On Grips
Seat
Saddle
Canyon SD:ON, Perfect for long rides in a seated position or on steep climbs, extra padding around sit bones, additional rear support prevents you from sliding backwards on steep climbs, chromoly rails, durable nylon composite shell, 290 g
Seatpost
Iridium
Motor & Battery
Motor
Shimano Steps E8000, Max. power output: 250 W, Torque: 70 Nm, Weight: 2.8 kg
Battery
Shimano BT-E8035-L 504Wh Battery, Lithium-Ion battery, IPX5 water resistant, 2.9 Kg, Adapter for external charging not included
Remote
Shimano Steps SC-E7000 Display
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.49 mm | 1.51 mm | 1.46 mm | 1.42 mm |
| Bottom Bracket Height | 301 mm | 301 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 675 mm | 693 mm | 730 mm | 761 mm | 784 mm |
| Rake | 48 mm | 49 mm | 56 mm | 56 mm | 55 mm |
| Trail | 99 mm | 98 mm | 91 mm | 91 mm | 92 mm |
| Stack | 585 mm | 603 mm | 652 mm | 666 mm | 676 mm |
| Reach | 396 mm | 406 mm | 431 mm | 456 mm | 476 mm |
| Top Tube Length | 566 mm | 579 mm | 618 mm | 647 mm | 669 mm |
| Seat Tube Angle | 73.81 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 350 mm | 400 mm | 440 mm | 480 mm | 540 mm |
| Head Tube Angle | 67 ° | 67 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 100 mm | 100 mm | 120 mm | 135 mm | 145 mm |
| Chainstay Length | 423 mm | 423 mm | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1092 mm | 1110 mm | 1158 mm | 1189 mm | 1212 mm |
| Bottom Bracket Drop | 54 mm | 54 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 718 mm | 753 mm | 798 mm | 815 mm | 845 mm |
| Front Travel | 100 mm | 120 mm | 120 mm | 120 mm | 120 mm |
| Wheels | 27" | 27" | 29" | 29" | 29" |
| Rider Max Height | 161 cm | 173 cm | 184 cm | 195 cm | cm |
About this model
Grand Canyon:ON AL 8.0 is a Canyon E Grand Canyonon model. There are 17 e-bikes that carry this model name. Take a sneak peek at all Canyon E Grand Canyonon e-bikes models from 2021, by clicking here.
Model range prices
The most economical model, the Canyon Grand Canyon:ON 7 2021 has a starting price of 3078$. Canyon Grand Canyon:ON 9 2021 on the other hand is the most expensive at 3609$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail e-bikes average price
If you want an acceptable Trail e-bike you should know that the average price is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
This e-bike was released in 2021 and its price was 3283$. If we compare this with the average Trail e-bike cost we notice that the price is 2.5% lower.
Average weight for Trail e-bikes
If we make a quick analysis of the average weight of a Trail e-bike, we get 23.7 kg (52.25 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Canyon Grand Canyon:ON AL 8.0 it’s weighing 21.45 kg (47.29 lbs). At this weight, is considerably lighter than average. In conclusion, the average Trail e-bike weighs 10.49% more than Grand Canyon:ON AL 8.0.
Overview of components
Fork
The RockShox Judy is included from the factory. It has a travel distance of 120mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
As for the wheels, Canyon Grand Canyon:ON AL 8.0 2021, has a 27.5″ aluminum model. These wheels will provide you with more control over the e-bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Canyon Grand Canyon:ON AL 8.0 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
