Canyon Grizl CF SL 7 Trail 2023
2023 Road
Estimate price |
3,669$
Weight | 10.04 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Travel Front 30mm -
Fork RockShox Rudy XPLR
-
Groupset Rival XPLR AXS, Rival AXS -
Suspension Hardtail -
Battery SRAM Powerpack -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
177cm - 185cm
LG
183cm - 190cm
XL
188cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Grizl CF SL, Light robust carbon frame with Gravel Pro geometry, 50 mm tyre clearance, and extended wheelbase for extra off-road stability., Axle dimension: 12x142 mm, Tyre Clearance: 50 mm, Material: Carbon (CF), Weight: 1.04 kg
Suspension Fork
RockShox Rudy 30, Axle dimension: 12x100 mm, Stanchion Diameter: 30 mm, Travel: 30 mm, Fork steer tube diameter: 1 1/4", Tyre Clearance: 50 mm, Weight: 2.30 kg
Drivetrain
Rear Derailleur
SRAM Rival XPLR eTap AXS
Shift Levers
SRAM Rival eTap AXS, 12-speed | SRAM Rival AXS, Number of pistons: 2, Weight: 468 g
Cassette
SRAM Rival XPLR XG-1251, 12-speed, 10-44T, Number of sprockets: 12 | SRAM XPLR XG-1251 12-speed Cassette
Crank
SRAM Rival D1 Wide, 40T, Number of chainrings: 1
Bottom Bracket
SRAM Pressfit DUB Wide, Bottom bracket standard: PF 86,5, Weight: 65 g
Chain
SRAM Rival D1 12s | SRAM Rival AXS 12-speed Chain 120 Links | SRAM RED AXS 12-speed Chain Lock
Pedals
None included
Wheels
Rims
DT Swiss G1800 Spline, Axle dimension: 12x100 mm, Rotor mount: Center Lock, Rim height: 25 mm, Weight: 880 g | DT Swiss G1800 Spline XDR, Axle dimension: 12x142 mm, Rotor mount: Center Lock, Rim height: 25 mm, Weight: 999 g
Tires
Schwalbe G-One Bite 45mm, Width: 45mm, Weight: 540 g | Schwalbe G-One R Super Race 28" x 45mm Gravel Tyre
Brakes
Brakes
Hydraulic Disc
Brake Levers
SRAM Rival eTap AXS, 12-speed | SRAM Rival AXS, Number of pistons: 2, Weight: 468 g
Cockpit
Stem
Canyon ST0035, A lightweight and durable aluminium stem for use on gravel and road bikes., Fork steer tube diameter: 1 1/4", Clamping diameter: 31,8 mm
Handlebar
Canyon HB0064 Ergo, Robust aluminium handlebar with flared drops for enhanced off-road control., Clamping diameter: 31,8 mm, Width: 440 mm
Seat
Saddle
Fizik Argo Terra X5, Gender: Unisex, Weight: 271 g
Seatpost
Canyon S15 VCLS 2.0 CF, Shock-absorbing carbon comfort seatpost delivering 20 mm of vertical travel in a lightweight package., Material: Carbon, Setback: 13 mm / 25 mm, Technology: VCLS 2.0 | Fliphead, Weight: 220 g
Motor & Battery
Battery
SRAM Powerpack
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.43 mm | 1.47 mm | 1.46 mm | 1.47 mm |
| Bottom Bracket Height | 274 mm | 274 mm | 274 mm | 274 mm | 274 mm |
| Front Center | 612 mm | 613 mm | 626 mm | 648 mm | 662 mm |
| Rake | 42 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 76 mm | 67 mm | 65 mm | 63 mm | 63 mm |
| Stack | 563 mm | 586 mm | 612 mm | 633 mm | 651 mm |
| Reach | 404 mm | 409 mm | 416 mm | 434 mm | 443 mm |
| Top Tube Length | 559 mm | 571 mm | 585 mm | 609 mm | 624 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 492 mm | 522 mm | 552 mm | 582 mm | 612 mm |
| Head Tube Angle | 71 ° | 72.25 ° | 72.5 ° | 72.75 ° | 72.75 ° |
| Head Tube Length | 118 mm | 138 mm | 164 mm | 185 mm | 204 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1043 mm | 1044 mm | 1057 mm | 1079 mm | 1093 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 796 mm | 823 mm | 852 mm | 877 mm | 899 mm |
| Front Travel | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 179 cm | 185 cm | 190 cm | 195 cm | cm |
About this model
Grizl CF SL 7 Trail belongs to the Canyon Grizl model. There are 80 bikes that carry this model name. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Canyon Grizl 5 2023 is the most economical model, with a starting price of 1376$. Canyon Grizl CF SLX 8 Force AXS Trail 2023 on the other hand costs 5611$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Gravel bikes
Our math shows that the average cost of a dependable Gravel bike is 2462$. However, this doesn’t mean that if you spend less money on a Gravel bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2023 for 3387$. Doing a quick comparison, we notice that Grizl CF SL 7 Trail price is 37.57% higher than the average cost of a Gravel bike.
Gravel bikes average weight
The average weight for Gravel bikes is 8.13 kg (17.92 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 10.04 kg (22.13 lbs), the Grizl CF SL 7 Trail model is much heavier than average. To sum up, it’s 23.49% heavier than the average weight of Gravel bikes.
Overview of components

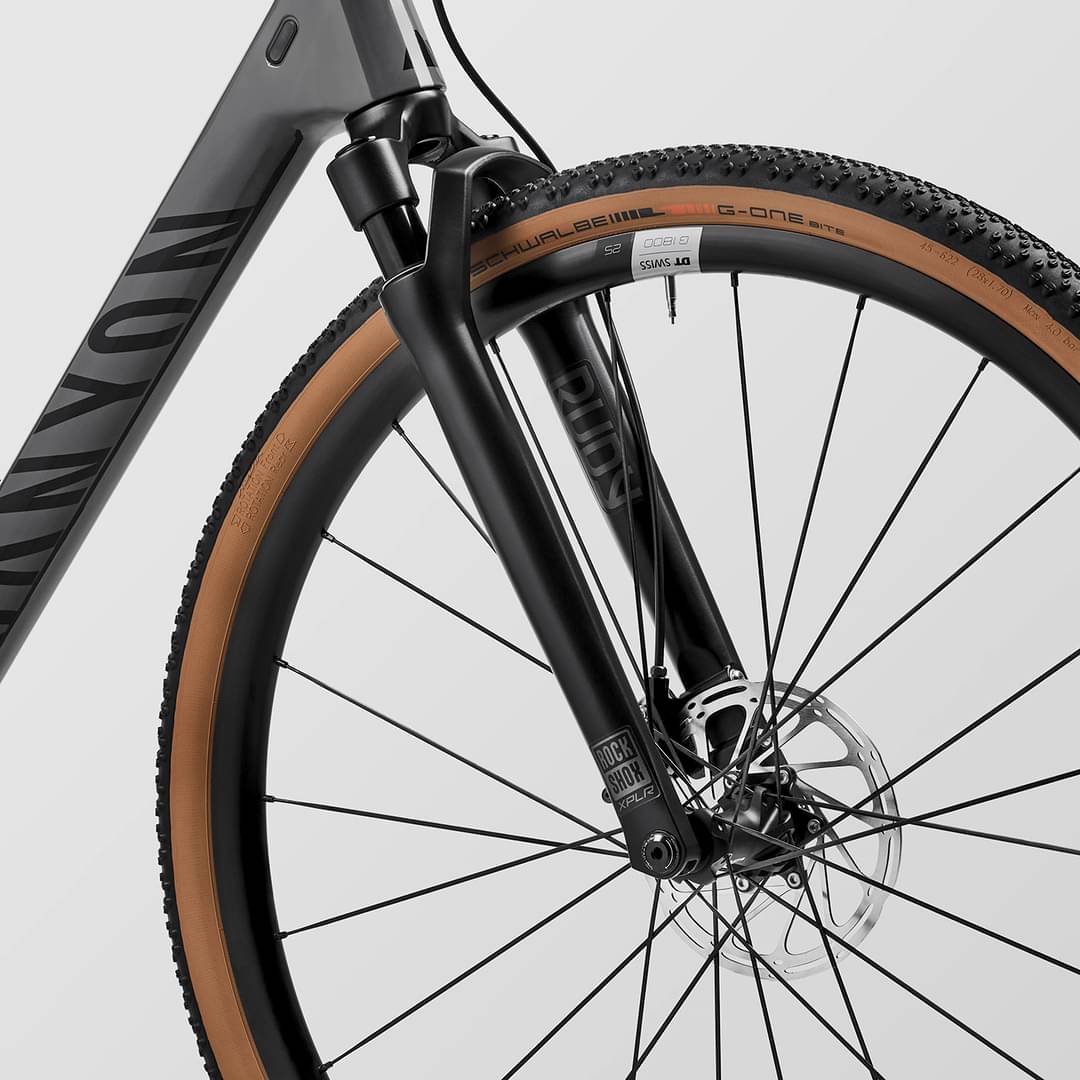

Fork
The RockShox Rudy XPLR is included from the factory. It has a travel distance of 30mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
As for the wheels, Canyon Grizl CF SL 7 Trail 2023, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Dropper post
Canyon Grizl CF SL 7 Trail comes with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
