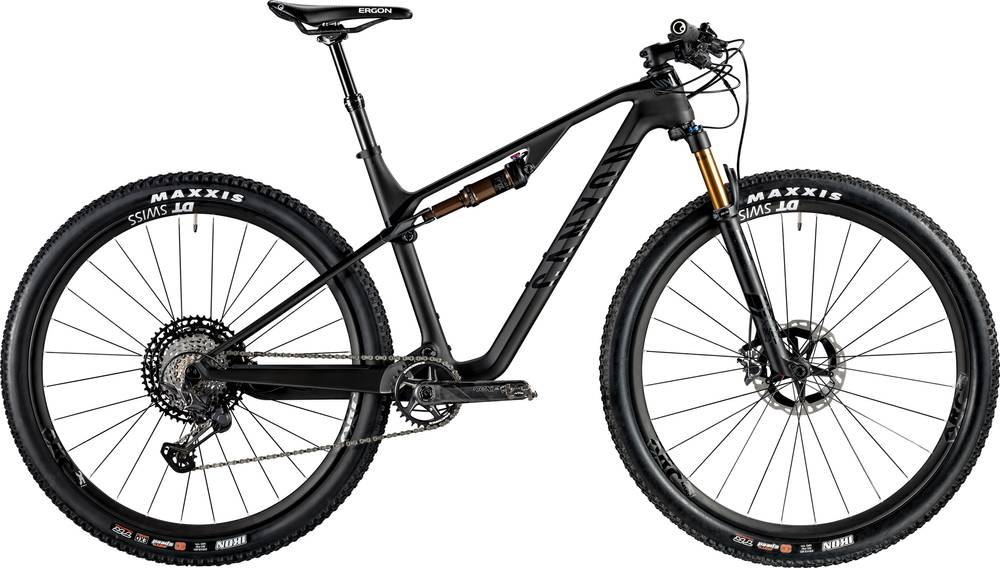

Canyon Lux CF SLX 9.0 Race Team 2020
2020 Mountain
Estimate price |
7,500$
Weight | 10.2 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Travel Rear 100mm -
Fork Fox Factory Float 32
-
Groupset XTR, Race Face -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
174cm - 184cm
LG
182cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Lux CF SLX, Material: Carbon, Travel: 100 mm, Axle Dimension: 12 x 148 mm, Brake Mount: Flat Mount
Suspension Fork
FOX 32 Stepcast Factory, Travel: 100 mm, Technology: FIT4, Axle Dimension: 15 x 110 mm, Remote: Remote Lever
Rear Shock
FOX FLOAT DPS Factory Remote, Length: 210 x 55 mm
Drivetrain
Rear Derailleur
Shimano XTR M9100 SGS
Shift Levers
Shimano XTR M9100 12s, Clamp: I-Spec EV
Cassette
Shimano XTR M9100 10-51 12s
Crank
Race Face Next SL G5 Carbon 34T 34
Bottom Bracket
Race Face Pressfit Cinch
Pedals
None included
Wheels
Rims
DT Swiss XRC 1200, Rim Material: Carbon, Inner Width: 25 mm, Weight: 647 g | DT Swiss XRC 1200 SH12, Rim Material: Carbon, Inner Width: 25 mm, Freewheel: Ratchet, Weight: 787 g
Tires
MAXXIS Ikon 2.2'', Compound: 3C Triple, Technology: Tubeless ready | MAXXIS Ikon 2.2'', Casing: Exo, Compound: 3C Triple, Technology: Tubeless ready
Brakes
Brakes
Shimano XTR M9100
Disk Rotors
RT SHIM RT-MT900 180 CL W / LOCK RING EX | Shimano RT-MT900, Disc Mount: Centerlock
Cockpit
Stem
Canyon V14
Handlebar
Canyon H20 Carbon Flatbar, Material: Carbon, Rise : 5 mm
Grips
Ergon GA20
Seat
Saddle
Ergon SM Team
Seatpost
Kind Shock Lev CI
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.39 mm | 1.36 mm | 1.35 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 673 mm | 696 mm | 721 mm | 750 mm |
| Rake | 58 mm | 57 mm | 57 mm | 58 mm |
| Trail | 75 mm | 76 mm | 76 mm | 75 mm |
| Stack | 576 mm | 586 mm | 600 mm | 623 mm |
| Reach | 401 mm | 421 mm | 441 mm | 461 mm |
| Top Tube Length | 566 mm | 591 mm | 616 mm | 641 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 425 mm | 465 mm | 505 mm | 545 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 90 mm | 100 mm | 115 mm | 140 mm |
| Chainstay Length | 426 mm | 426 mm | 426 mm | 426 mm |
| Wheelbase | 1097 mm | 1120 mm | 1145 mm | 1174 mm |
| Bottom Bracket Drop | 34 mm | 34 mm | 34 mm | 34 mm |
| Standover Height | 777 mm | 780 mm | 787 mm | 802 mm |
| Front Travel | 100 mm | 100 mm | 100 mm | 100 mm |
| Rear Travel | 100 mm | 100 mm | 100 mm | 100 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Max Height | 176 cm | 184 cm | 193 cm | cm |
Model Overview
Lux CF SLX 9.0 Race Team is a Canyon Lux model. There are 57 bikes that carry this model name. Take a sneak peek at all Canyon Lux bikes models from 2020, by clicking here.
Model range prices
The most economical model, the Canyon Lux CF SL 6.0 2020 has a starting price of 3399$. Canyon Lux CF SLX 9.0 Race Limited 2020 on the other hand is the most expensive at 7999$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Canyon released this model in 2020, its price was 7500$. Comparing the average cost of a Crosscountry bike to this one, you will see that Lux CF SLX 9.0 Race Team price is 293.7% higher.
Crosscountry bikes average weight
Crosscountry bikes have an average weight of 12.4 kg (27.34 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 10.2 kg (22.49 lbs), Canyon bike is much lighter than average. In conclusion, the average Crosscountry bike weighs 21.57% more than Lux CF SLX 9.0 Race Team.
Lux CF SLX 9.0 Race Team components
Fork
Canyon Lux CF SLX 9.0 Race Team 2020 bike is equipped with the Fox Factory Float 32 fork, and has 100mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
Canyon Lux CF SLX 9.0 Race Team bike has the FOX FLOAT DPS Factory Remote model installed, and has a travel of 100mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
When it comes to wheels, the Lux CF SLX 9.0 Race Team bike is equipped with the 29″ carbon model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Dropper post
A dropper post is included with the Lux CF SLX 9.0 Race Team. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
