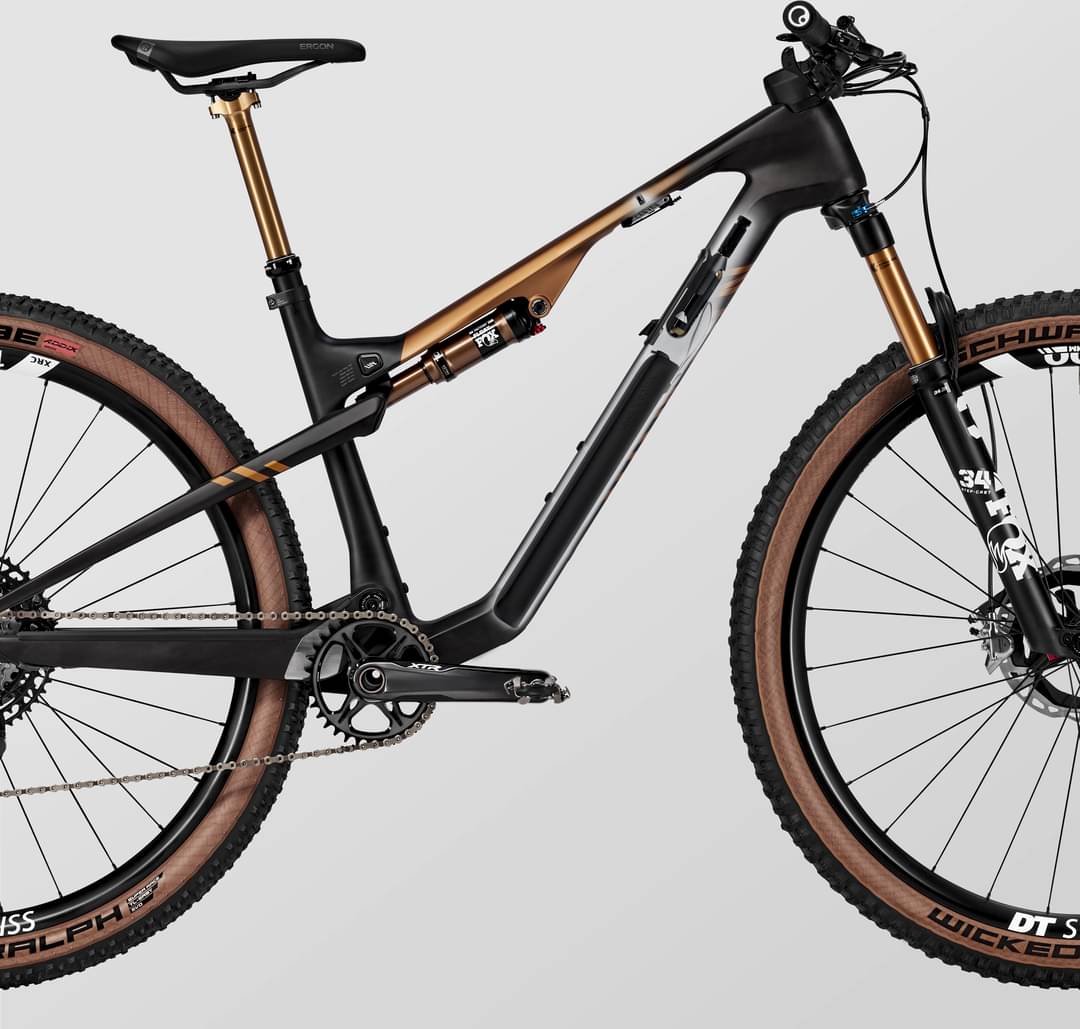

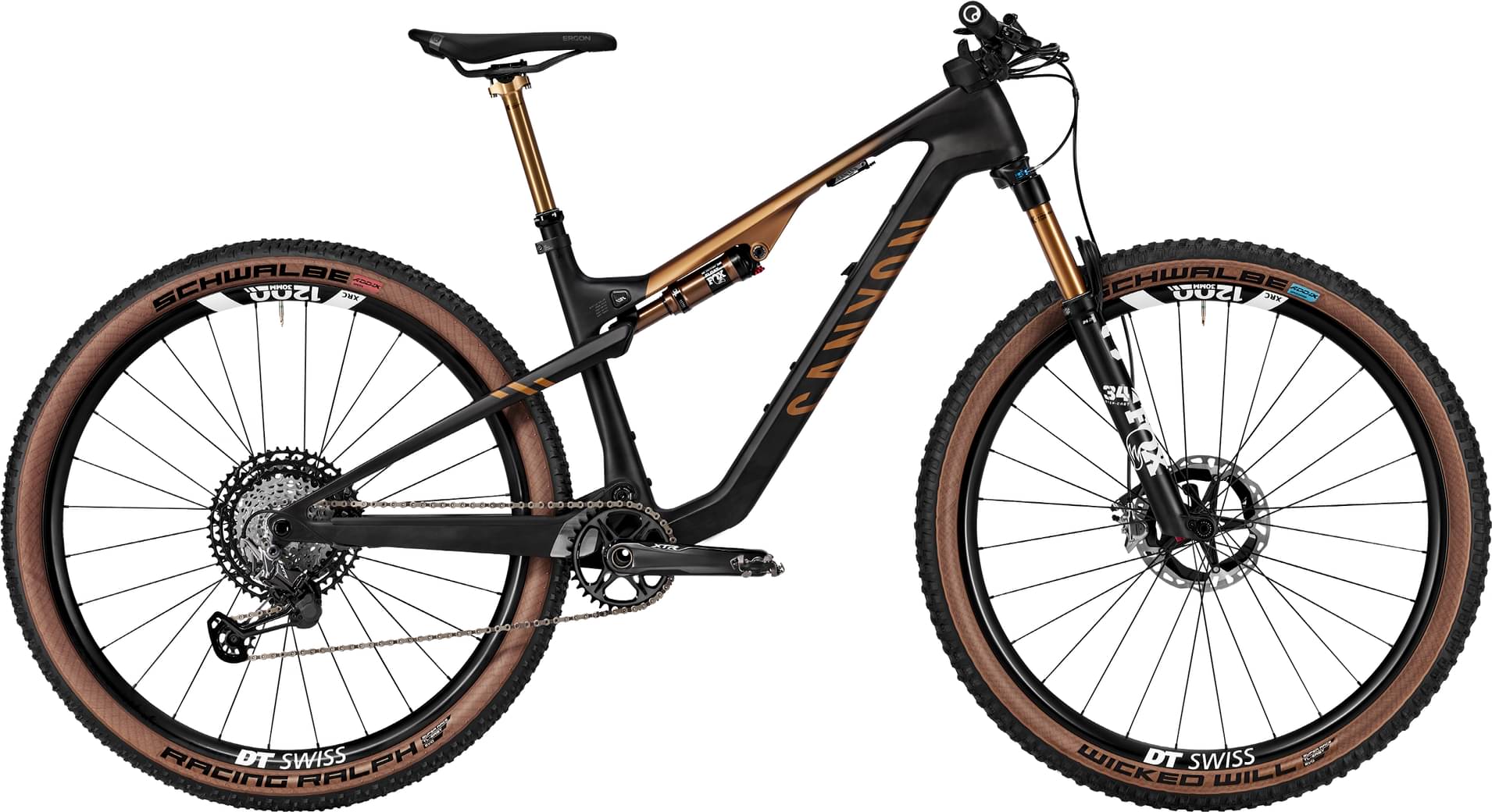

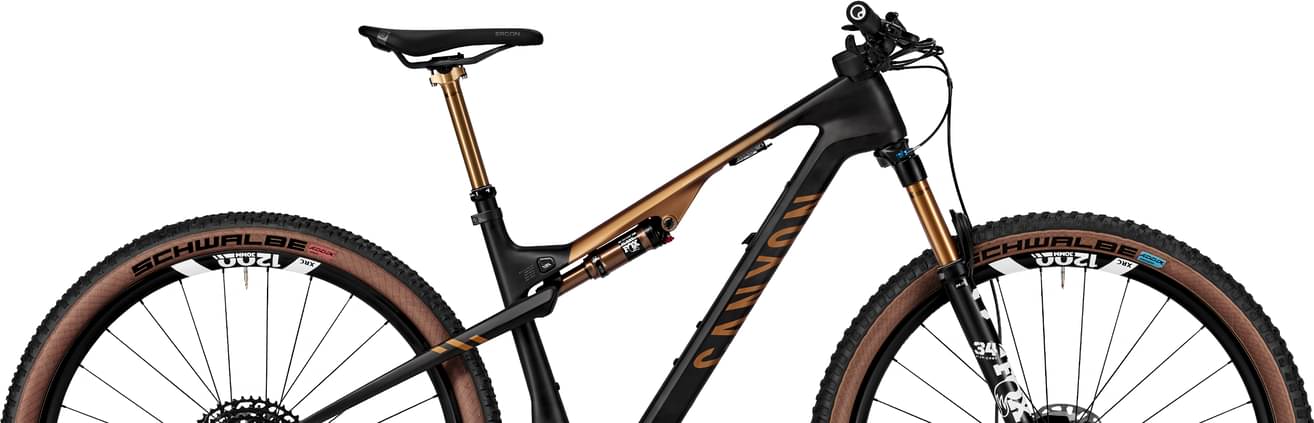

Canyon Lux Trail CFR 2024
2024 Mountain
Estimate price |
8,028$
Weight | 11.25 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 115mm -
Fork Fox Factory Float 34
-
Groupset XTR -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
165cm - 176cm
MD
174cm - 184cm
LG
182cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Lux Trail CFR, Superlight, pro-level CFR build of the ultra-capable Lux Trail down-country bike, delivering the highest levels of climbing efficiency and descending performance., Axle dimension: 12x148 mm, Material: Carbon (CFR)
Suspension Fork
FOX 34 Stepcast Factory Remote, Axle dimension: 15x110 mm, Travel: 120 mm, Fork steer tube diameter: 1 1/8" - 1,5"
Rear Shock
FOX Float SL Factory Remote
Drivetrain
Rear Derailleur
Shimano XTR, 12-speed, Cage length: long, Weight: 230 g
Shift Levers
Shimano XTR, 12-speed
Cassette
Shimano XTR CS-M9101 12s 10-51, Number of sprockets: 12 | Shimano XTR CS-M9100 12-speed Cassette 10-51

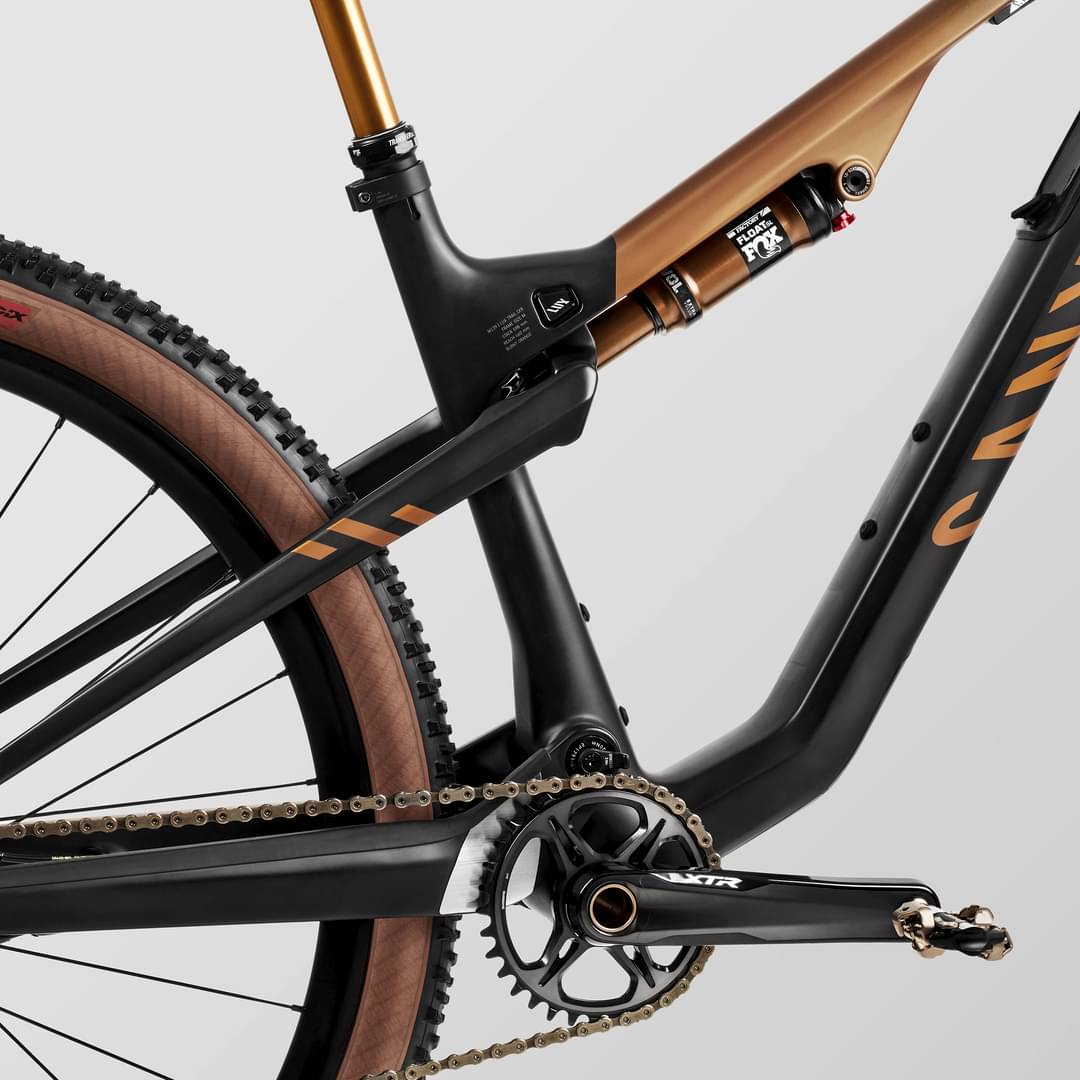

Crank
Shimano XTR M9125 34T, Number of chainrings: 1
Bottom Bracket
Shimano BSA BB93, Bottom bracket standard: BSA 68/73
Chain
Shimano M9100 XTR Chain, SIL-TEC treatment for extended offroad durability, HYPERGLIDE+ shift technology, quick link for easy connect and tool-free assembly | Shimano SM-CN910 12-speed Quick-Link Chain Connector | Shimano XTR CN-M9100 12-speed Chain 138 Links
Pedals
None included
Wheels
Rims
DT Swiss XRC 1200 Spline, Axle dimension: 12x148 mm, Rotor mount: Center Lock, Inner width: 30 mm, Weight: 799 g | DT Swiss XRC 1200 Spline, Axle dimension: 15x110 mm, Rotor mount: Center Lock, Inner width: 30 mm, Weight: 679 g
Tires
Schwalbe Racing Ralph SR TLE EVO 2.35", Width: 2.35" | Schwalbe Wicked Will SR TLE EVO 2.4", Width: 2.4"
Brakes
Brakes
Shimano XTR, Number of pistons: 2 | Shimano M9110, Number of pistons: 2

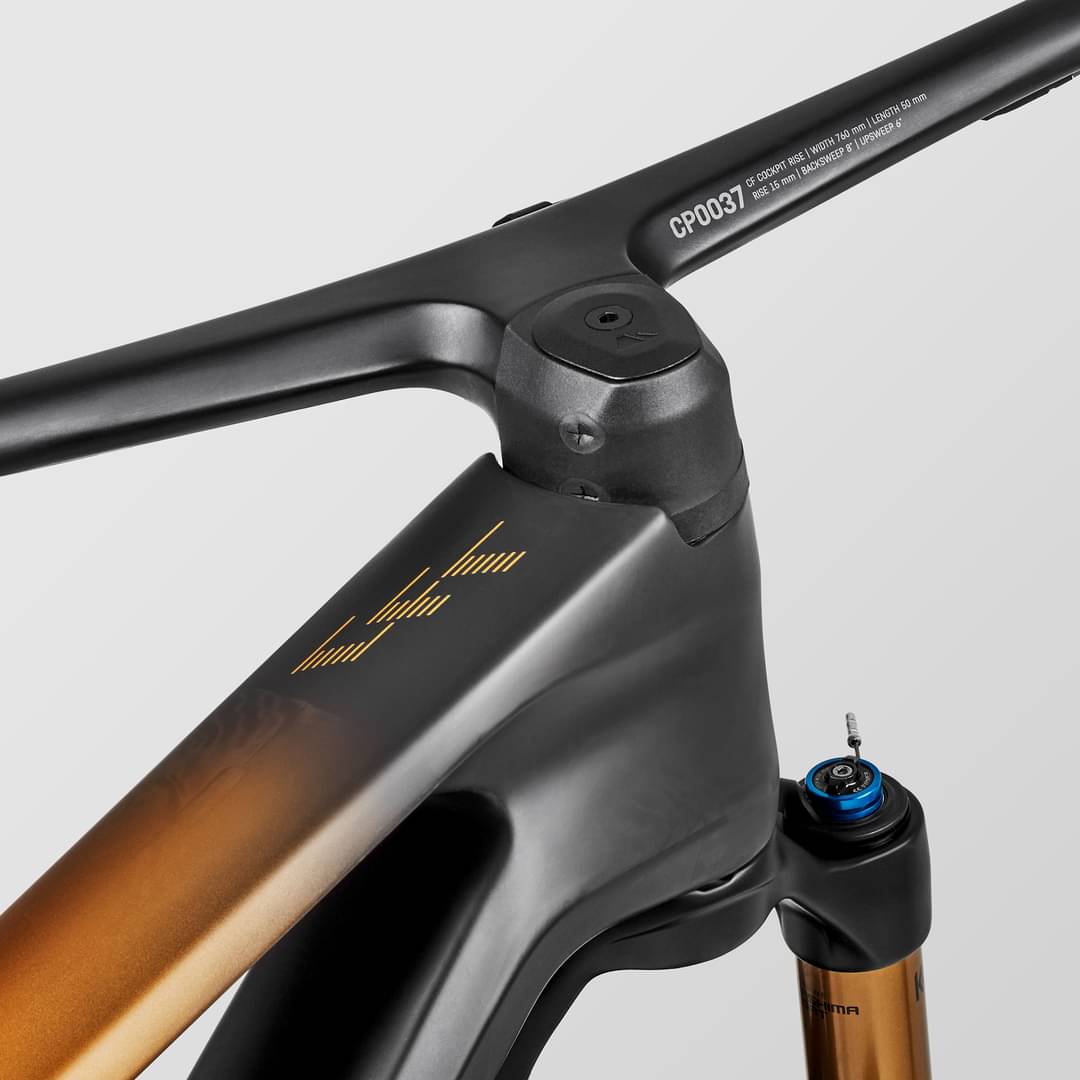

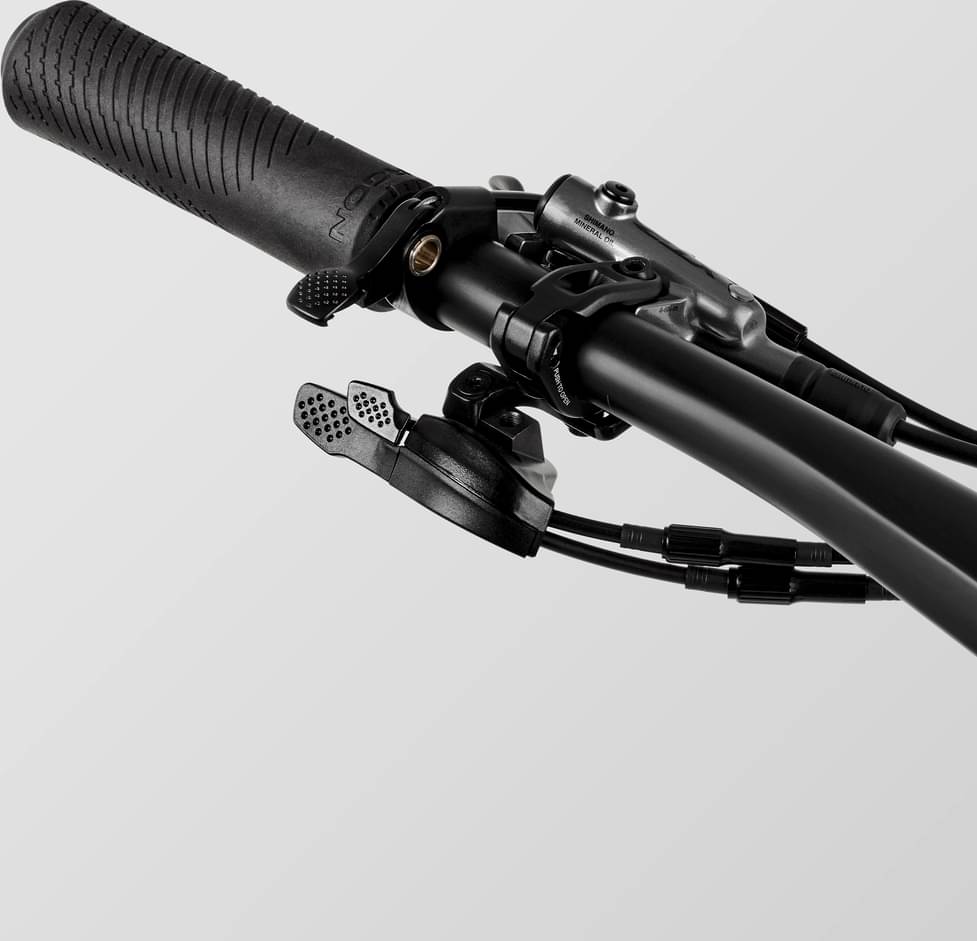

Cockpit
Grips
Ergon GXR
Seat
Saddle
Ergon SM10 Pro, Gender: Male, Weight: 235 g
Seatpost
FOX Transfer SL Factory, Clamp diameter: 31,6 mm, Material: Aluminium (AL), Weight: 421 g
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.345 mm | 1.3 mm | 1.275 mm | 1.252 mm |
| Bottom Bracket Height | 336 mm | 336 mm | 336 mm | 336 mm | 336 mm |
| Front Center | 697 mm | 723 mm | 748 mm | 774 mm | 800 mm |
| Rake | 46 mm | 46 mm | 45 mm | 45 mm | 45 mm |
| Trail | 109 mm | 109 mm | 110 mm | 110 mm | 110 mm |
| Stack | 589 mm | 589 mm | 598 mm | 612 mm | 626 mm |
| Reach | 412 mm | 438 mm | 460 mm | 480 mm | 500 mm |
| Top Tube Length | 559 mm | 585 mm | 609 mm | 633 mm | 656 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 415 mm | 420 mm | 420 mm | 450 mm | 480 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 90 mm | 90 mm | 100 mm | 115 mm | 130 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1129 mm | 1155 mm | 1180 mm | 1206 mm | 1232 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm | 38 mm | 38 mm |
| Standover Height | 768 mm | 768 mm | 772 mm | 777 mm | 783 mm |
| Front Travel | 120 mm | 120 mm | 120 mm | 120 mm | 120 mm |
| Rear Travel | 115 mm | 115 mm | 115 mm | 115 mm | 115 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Max Height | 167 cm | 176 cm | 184 cm | 193 cm | cm |
About this model
Lux Trail CFR is part of the Canyon Lux model. Canyon released 64 bikes variations of this model so far. You can easily view all of the Canyon Lux bikes models from 2024, here.
Model range prices
Canyon Lux Trail CF 6 2024 is the most economical model, with a starting price of 3493$. Canyon Lux Trail CFR LTD 2024 on the other hand costs 9000$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry bikes
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Canyon Lux Trail CFR price was 7411$. If we compare this with the average Crosscountry bike cost we notice that the price is 289.03% higher.
Crosscountry bikes average weight
Crosscountry bikes have an average weight of 12.4 kg (27.34 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Lux Trail CFR weighs 11.25 kg (24.8 lbs) and is considerably lighter than the average. To sum up, it’s 10.22% lighter than the average weight of Crosscountry bikes.
Lux Trail CFR components
Fork
The fork installed on this bike is the Fox Factory Float 34 model. The travel on this model is 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.

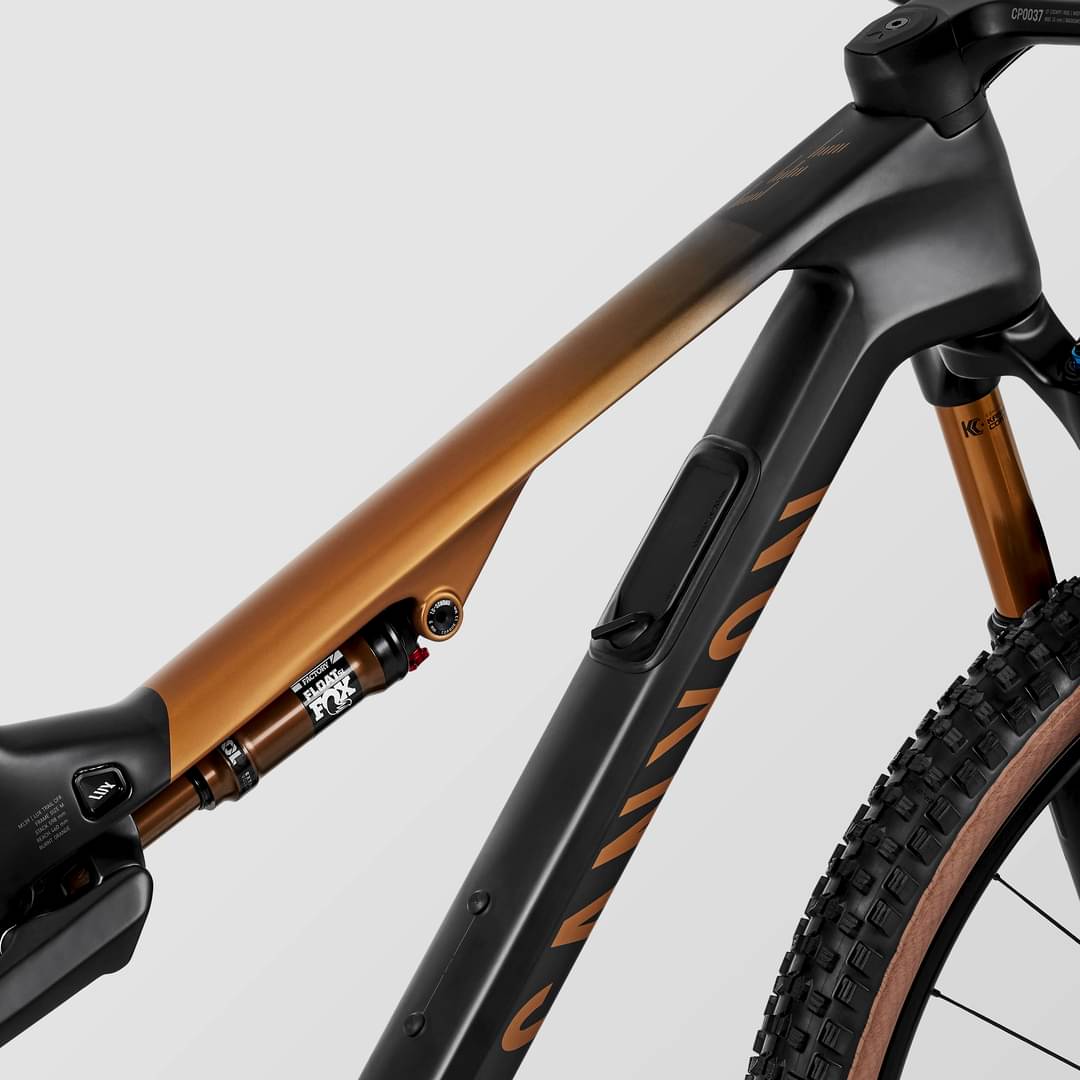

Rear Shock
The Lux Trail CFR has a rear shock with a travel of 115mm. The model FOX Float SL Factory Remote is the one installed in this bike. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.

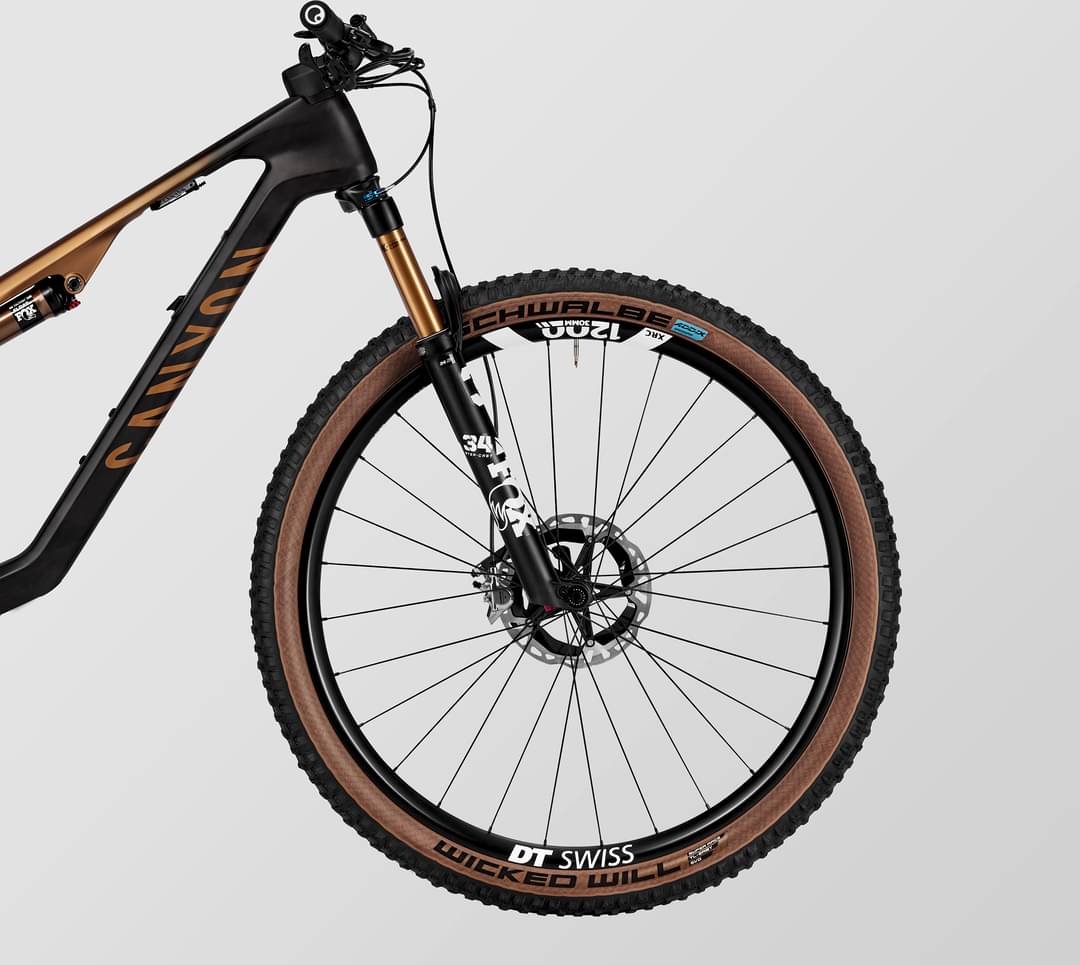

Wheels
When leaving the production line, the Lux Trail CFR model has 29″ carbon wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The Lux Trail CFR has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Dropper post
Canyon Lux Trail CFR includes a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
