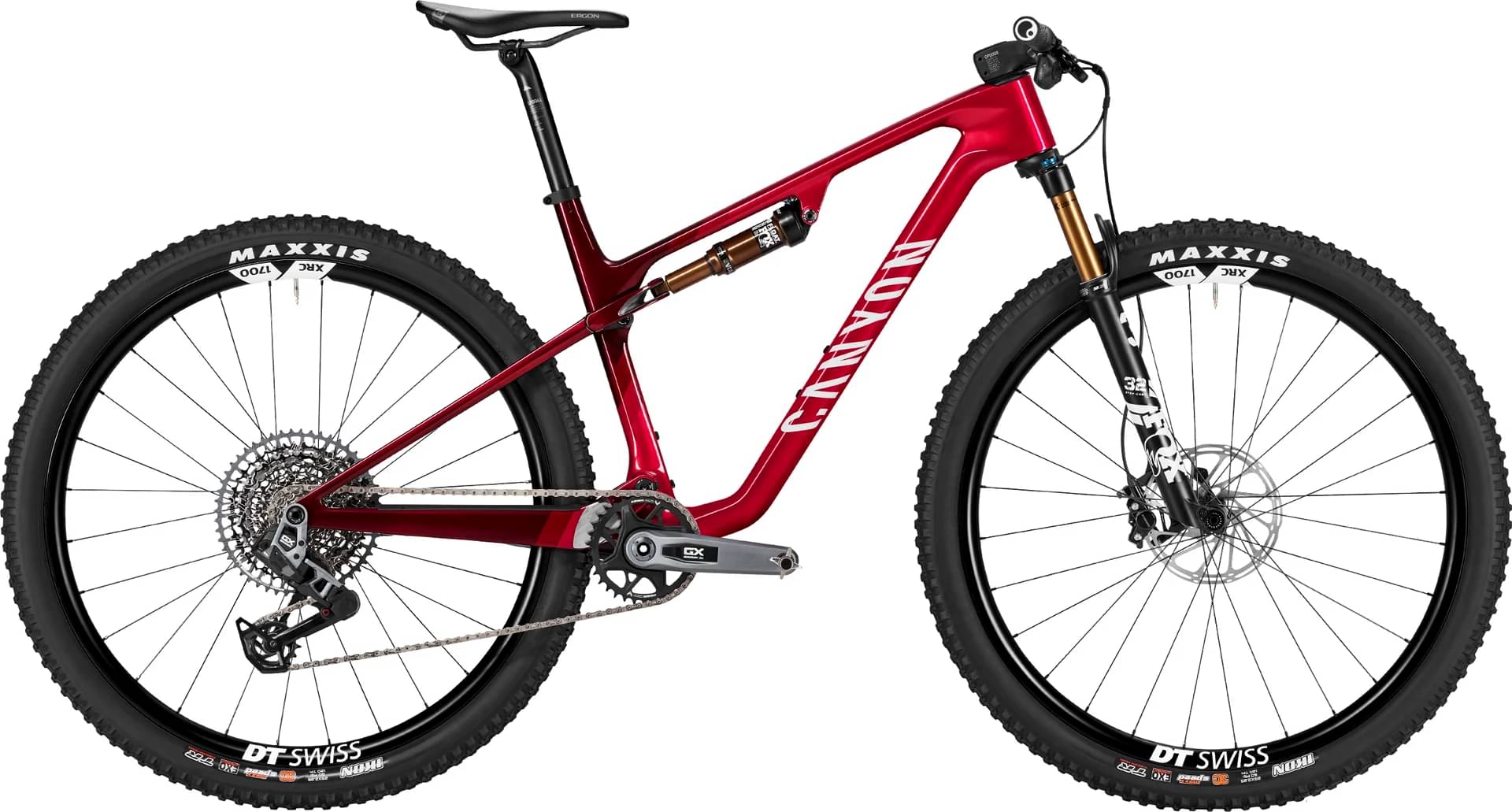

Canyon Lux World Cup CF 8 2024
2024 Mountain
Estimate price |
5,499$
Weight | 11.42 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Travel Rear 100mm -
Fork Fox Factory Float 32
-
Groupset GX Eagle Transmission, X01 Eagle AXS -
Suspension Full -
Battery SRAM Powerpack -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
165cm - 176cm
MD
174cm - 184cm
LG
182cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Lux WC CF, Lightweight full-suspension carbon XC frame, featuring the World Championship-winning design DNA of the flagship Lux World Cup CFR., Axle dimension: 12x148 mm, Material: Carbon (CF)
Suspension Fork
FOX 32 Step-Cast Factory Remote, Axle dimension: 15x110 mm, Stanchion Diameter: 32 mm, Travel: 100 mm, Fork steer tube diameter: 1 1/8" - 1,5", Weight: 1.48 kg
Rear Shock

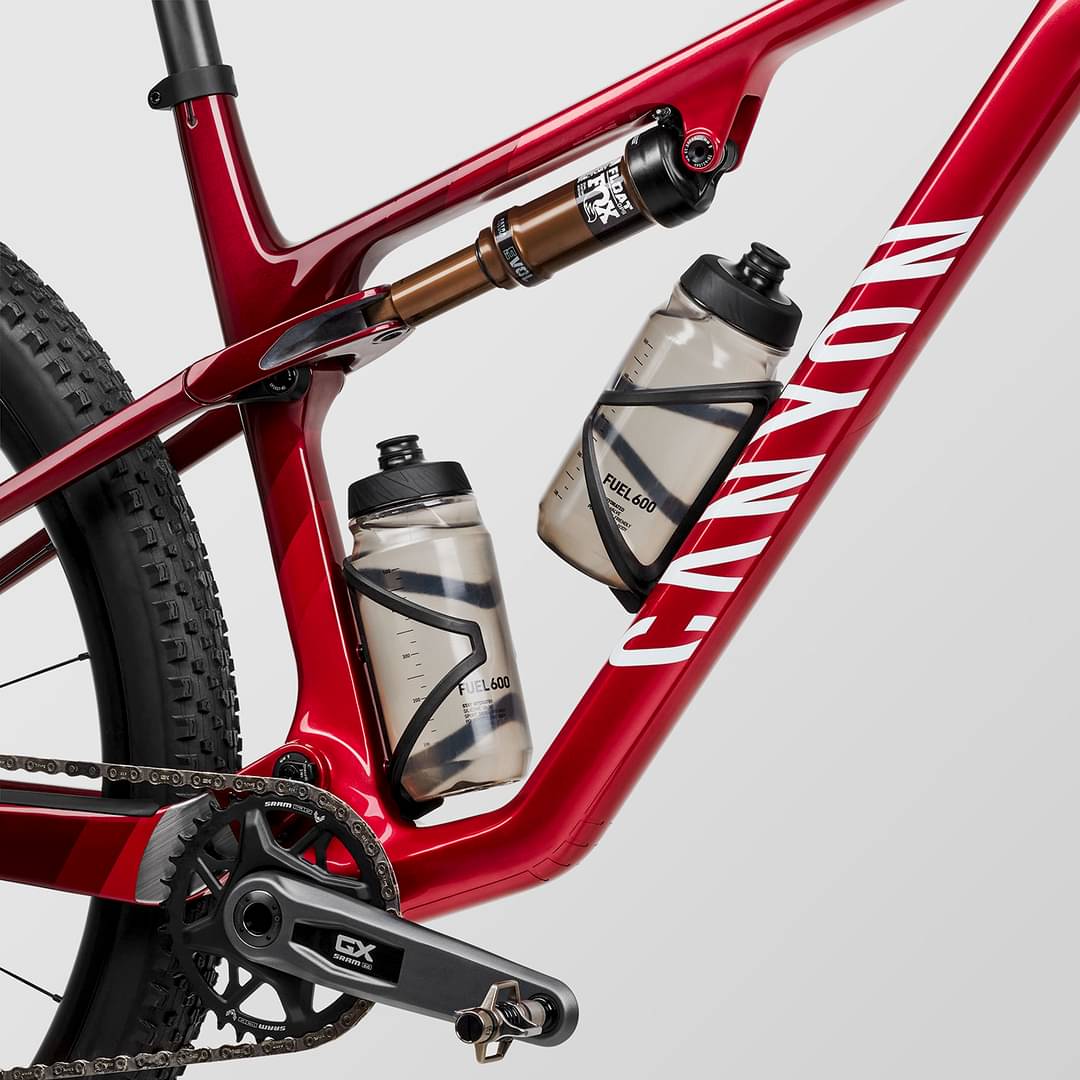

FOX Float DPS Factory Remote
Drivetrain
Rear Derailleur
SRAM GX Eagle AXS Transmission
Shift Levers
SRAM AXS Pod Ultimate
Cassette
SRAM GX Eagle Transmission Cassette 12s 10-52, Number of sprockets: 12
Crank
SRAM GX Eagle, Number of chainrings: 1
Bottom Bracket
SRAM DUB, Bottom bracket standard: PF 92, Weight: 82 g
Chain
SRAM GX Eagle Transmission
Pedals
None included
Wheels
Rims
DT Swiss XRC 1700 SPLINE, Axle dimension: 12x148 mm, Rotor mount: IS 6-bolt, Weight: 881 g | DT Swiss XRC 1700, Axle dimension: 15x110 mm, Rotor mount: IS 6-bolt, Weight: 791 g
Tires
Maxxis Ikon EXO MaxxSpeed, Width: 2.35"
Brakes
Brakes
SRAM Level Silver Stealth 2 Piston, Number of pistons: 2
Cockpit
Grips
Ergon GA20
Seat
Saddle
Ergon SR10 Pro
Seatpost
Canyon SP0061 Carbon Seatpost, Clamp diameter: 30,9 mm, Material: Carbon (CF), Weight: 179 g
Motor & Battery
Battery
SRAM Powerpack
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.407 mm | 1.342 mm | 1.293 mm | 1.268 mm | 1.245 mm |
| Bottom Bracket Height | 336 mm | 336 mm | 336 mm | 336 mm | 336 mm |
| Front Center | 671 mm | 691 mm | 713 mm | 738 mm | 764 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm |
| Stack | 577 mm | 577 mm | 582 mm | 596 mm | 610 mm |
| Reach | 410 mm | 430 mm | 450 mm | 470 mm | 490 mm |
| Top Tube Length | 564 mm | 581 mm | 602 mm | 625 mm | 648 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 375 mm | 415 mm | 455 mm | 495 mm | 535 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 90 mm | 90 mm | 95 mm | 110 mm | 125 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1100 mm | 1120 mm | 1142 mm | 1167 mm | 1193 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm | 38 mm | 38 mm |
| Standover Height | 777 mm | 777 mm | 780 mm | 784 mm | 793 mm |
| Front Travel | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm |
| Rear Travel | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Max Height | 167 cm | 176 cm | 184 cm | 193 cm | cm |
About this model
Lux World Cup CF 8 is part of the Canyon Lux model. 64 bikes variations carry this model name so far. Take a sneak peek at all Canyon Lux bikes models from 2024, by clicking here.
Model range prices
Canyon Lux Trail CF 6 2024 is the most affordable bike of this model and has a price of 3493$. On the other hand, Canyon Lux Trail CFR LTD 2024, is the most expensive and costs 9000$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry bikes
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2024 for 5499$. If we compare this with the average Crosscountry bike cost we notice that the price is 188.66% more expensive.
Average weight for Crosscountry bikes
On a deeper look, we notice that the average weight of a Crosscountry bike is 12.4 kg (27.34 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Canyon Lux World Cup CF 8 it’s weighing 11.42 kg (25.18 lbs). At this weight, is a bit lighter than average. In conclusion, the average Crosscountry bike weighs 8.58% more than Lux World Cup CF 8.
Overview of components
Fork
The Lux World Cup CF 8 comes factory-installed with the Fox Factory Float 32 fork. This has a travel range of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The shock that’s installed on this bike is FOX Float DPS Factory Remote, with a travel distance of 100mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
When leaving the production line, the Lux World Cup CF 8 model has 29″ carbon wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. Canyon Lux World Cup CF 8 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
