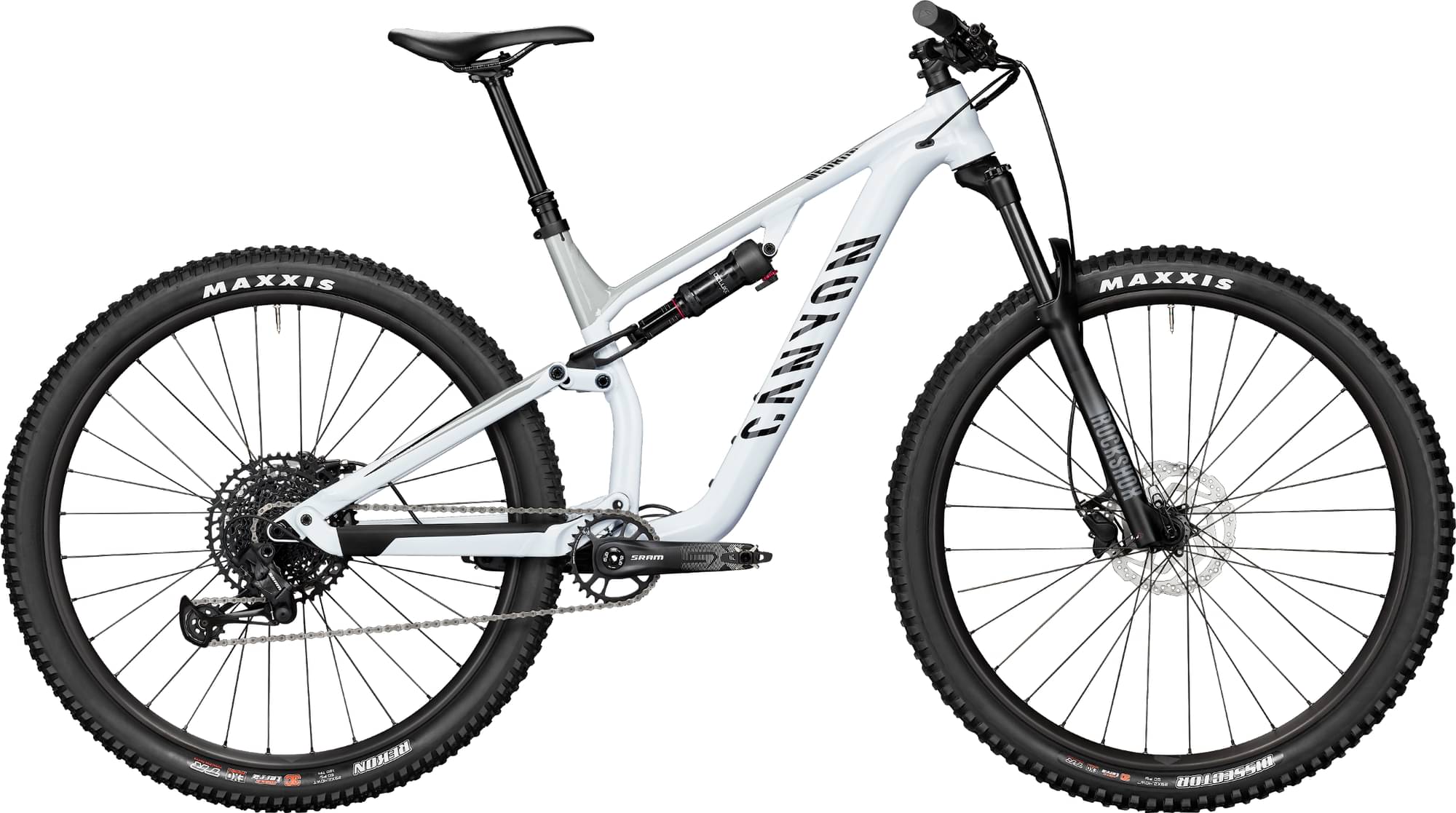

Canyon Neuron 5 WMN 2022
2022 Mountain
Estimate price |
2,299$
Weight | 15.38 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 27.5" -
Travel Front 130mm -
Travel Rear 130mm -
Fork RockShox Judy
-
Groupset SX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
154cm - 166cm
SM
164cm - 175cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Neuron AL, Material: Aluminium 6061, Travel: 130 mm, Axle Dimension: 12 x 148 mm, Brake Mount: Post Mount 180
Suspension Fork
RockShox Judy Silver, 130mm, 130mm of front suspension. 29er fork. Boost 110 spacing. 30mm stanchions, TurnKey compression lockout, adjustable rebound damping
Rear Shock
RockShox Deluxe Select+
Drivetrain
Rear Derailleur
SRAM SX Eagle, SRAM SX Eagle rear derailleur provides quick and quiet shifts across 10-50 or 11-50 tooth cassettes.
Shift Levers
SRAM SX Eagle Trigger 12s, SX Eagle's 12-speed shifters offer quick and crisp gear changes.
Cassette
SRAM PG-1210 Eagle 11-50 12s, SRAM's SX Eagle 11-50 cassette packs a wide, 454% gear range into a surprisingly affordable package.
Crank
SRAM SX Eagle DUB
Bottom Bracket
SRAM BSA DUB
Chain
SRAM NX Eagle 12s
Pedals
None included
Wheels
Rims
Rodi TRYP 30 | Shimano MT400, Shimano MT400 front hub with Boost 110 spacing, Iridium 30 aluminum rim, 30mm inner rim width | Iridium 25/ Shimano MT410 S12
Tires
MAXXIS Dissector 2.4", The Dissector tire offers outstanding traction and control. | MAXXIS Rekon 2.4"
Brakes
Brakes
Shimano MT200
Disk Rotors
Shimano RT10, Disc Mount: Centerlock
Cockpit
Stem
Iridium
Handlebar
Iridium Flatbar, Material: Aluminium, Rise: 5 mm
Grips
Canyon EP111 Lock-On
Seat
Saddle
Iridium WMN
Seatpost
Iridium Dropper Post
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD |
|---|---|---|---|---|
| Stack Reach Ratio | 1.532 mm | 1.455 mm | 1.409 mm | 1.413 mm |
| Bottom Bracket Height | 337 mm | 337 mm | 337 mm | 336 mm |
| Front Center | 673 mm | 693 mm | 717 mm | 729 mm |
| Rake | 52 mm | 52 mm | 52 mm | 53 mm |
| Trail | 94 mm | 94 mm | 94 mm | 98 mm |
| Stack | 579 mm | 579 mm | 589 mm | 612 mm |
| Reach | 378 mm | 398 mm | 418 mm | 433 mm |
| Top Tube Length | 539 mm | 559 mm | 581 mm | 603 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 400 mm | 400 mm | 400 mm | 445 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67.5 ° |
| Head Tube Length | 90 mm | 90 mm | 100 mm | 100 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 440 mm |
| Wheelbase | 1102 mm | 1122 mm | 1146 mm | 1166 mm |
| Bottom Bracket Drop | 18 mm | 18 mm | 18 mm | 38 mm |
| Standover Height | 751 mm | 751 mm | 755 mm | 774 mm |
| Front Travel | 130 mm | 130 mm | 130 mm | 130 mm |
| Rear Travel | 130 mm | 130 mm | 130 mm | 130 mm |
| Wheels | 27" | 27" | 27" | 29" |
| Rider Max Height | 156 cm | 166 cm | 175 cm | cm |
Model Overview
Neuron 5 WMN is part of the Canyon Neuron model. Canyon released 68 bikes variations of this model so far. Take a sneak peek at all Canyon Neuron bikes models from 2022, by clicking here.
Model range prices
The most economical model, the Canyon Neuron 5 2022 has a starting price of 2299$. Canyon Neuron CF SLX LTD 2022 on the other hand is the most expensive at 8493$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
When Canyon released this model in 2022, its price was 2299$. Doing a quick comparison, we notice that Neuron 5 WMN price is 20.14% lower than the average cost of a Trail bike.
Trail bikes average weight
On a deeper look, we notice that the average weight of a Trail bike is 12.98 kg (28.62 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Neuron 5 WMN weighs 15.38 kg (33.91 lbs) and is much heavier than the average. To sum up, it’s 18.49% heavier than the average weight of Trail bikes.
Overview of components
Fork
The Neuron 5 WMN comes factory-installed with the RockShox Judy fork. This has a travel range of 130mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
Canyon Neuron 5 WMN bike has the RockShox Deluxe Select+ model installed, and has a travel of 130mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When it comes to wheels, the Neuron 5 WMN bike is equipped with the 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Neuron 5 WMN has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Dropper post
The Canyon model is also equipped with a dropper post. Therefore, climbing or descending will be a breeze.
