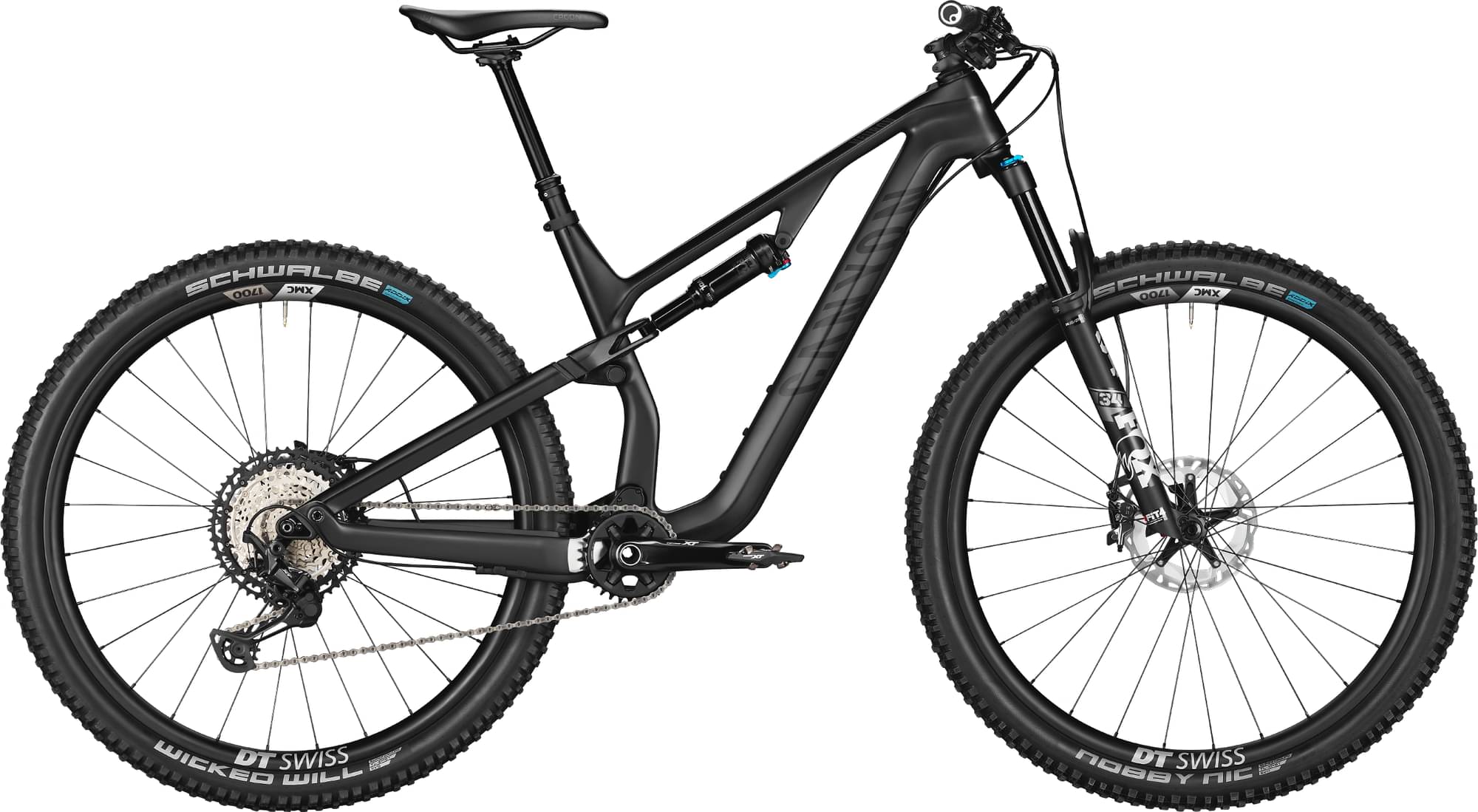

Canyon Neuron CF 9 2022
2022 Mountain
Estimate price |
4,587$
Weight | 13.16 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 130mm -
Fork Fox Performance Elite Float 34
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
164cm - 175cm
MD
173cm - 183cm
LG
181cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Neuron CF
Suspension Fork
FOX 34 Performance Elite
Rear Shock
FOX Float DPS Performance
Drivetrain
Rear Derailleur
Shimano Deore XT M8100 12speed, Precise 1x12 drivetrain.
Shift Levers
Shimano Deore XT, 12-speed, Rear derailleur shifter, 12-speed, Textured rubber lever pad, Multi-Release, 2-way release, I-Spec EV clamp allows 14mm lateral adjustment and 20-degrees rotation adjustment, 130 g
Cassette
Shimano XT, 12-speed (10-51), Cassette size: 10-51T. Gear range: 510%.
Crank
Shimano Deore XT M8100 30T
Bottom Bracket
Shimano MT800, Threaded, Hassle-free Shimano Hollowtech II threaded bottom bracket
Chain
Shimano CN-M7100 12s
Pedals
None included
Wheels
Rims
DT Swiss XMC1700
Tires
Schwalbe Nobby Nic 29x2.4" black skin | Schwalbe Wicked Will 29"x2.4"
Brakes
Brakes
Shimano XT M8120, High-power 4-piston brake, reach adjust, quick pad retraction, banjo-type connection, ICE TECH brake pads, 410 g | Shimano Deore XT M8120
Disk Rotors
Shimano RT-MT800, 180mm
Cockpit
Stem
Race Face Ride, Durable, fuss-free alloy stem. Length: 60 mm. Clamp diameter: 35 mm. Material: 6061 aluminium., Stem Spacer: S: 5, M: 10, L: 15, XL: 20.
Handlebar
Race Face Ride Riserbar, Robust, reliable alloy bar. Width: 760 mm. Diameter: 35 mm. Material: 6061 aluminium., Rise: 10mm. Upsweep: 5°. Backsweep: 8°.
Grips
Ergon GA20, High-grade lock-on grips providing comfort and control in equal measure.
Seat
Saddle
Ergon SM10 Sport
Seatpost
Iridium Dropper Post
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.452 mm | 1.409 mm | 1.418 mm | 1.375 mm | 1.376 mm |
| Bottom Bracket Height | 337 mm | 337 mm | 336 mm | 336 mm | 336 mm |
| Front Center | 692 mm | 717 mm | 730 mm | 753 mm | 785 mm |
| Rake | 46 mm | 46 mm | 47 mm | 46 mm | 46 mm |
| Trail | 104 mm | 104 mm | 108 mm | 109 mm | 109 mm |
| Stack | 578 mm | 589 mm | 614 mm | 623 mm | 651 mm |
| Reach | 398 mm | 418 mm | 433 mm | 453 mm | 473 mm |
| Top Tube Length | 558 mm | 581 mm | 603 mm | 626 mm | 654 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 400 mm | 400 mm | 445 mm | 480 mm | 520 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 88 mm | 100 mm | 102 mm | 112 mm | 143 mm |
| Chainstay Length | 430 mm | 430 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1121 mm | 1146 mm | 1167 mm | 1190 mm | 1222 mm |
| Bottom Bracket Drop | 18 mm | 18 mm | 38 mm | 38 mm | 38 mm |
| Standover Height | 761 mm | 765 mm | 784 mm | 788 mm | 799 mm |
| Front Travel | 140 mm | 140 mm | 140 mm | 140 mm | 140 mm |
| Rear Travel | 130 mm | 130 mm | 130 mm | 130 mm | 130 mm |
| Wheels | 27" | 27" | 29" | 29" | 29" |
| Rider Max Height | 166 cm | 175 cm | 183 cm | 193 cm | cm |
About this model
Neuron CF 9 completes the Canyon Neuron model. 68 bikes variations carry this model name so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Canyon Neuron 5 2022 is the cheapest bike model and costs 2299$. Canyon Neuron CF SLX LTD 2022 is the most expensive one and costs 8493$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Canyon released this model in 2022, its price was 4246$. Doing a quick comparison, we notice that Neuron CF 9 price is 53.73% higher than the average cost of a Trail bike.
Trail bikes average weight
Trail bikes have an average weight of 12.98 kg (28.62 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Neuron CF 9 weighs 13.16 kg (29.01 lbs) and is slightly heavier than the average. To sum up, it’s 1.39% heavier than the average weight of Trail bikes.
Overview of components
Fork
The Neuron CF 9 comes factory-installed with the Fox Performance Elite Float 34 fork. This has a travel range of 140mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The Neuron CF 9 has a rear shock with a travel of 130mm. The model FOX Float DPS Performance is the one installed in this bike. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
As for the wheels, Canyon Neuron CF 9 2022, has a 27.5″ carbon model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Neuron CF 9 has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Dropper post
A dropper post is included with the Neuron CF 9. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
