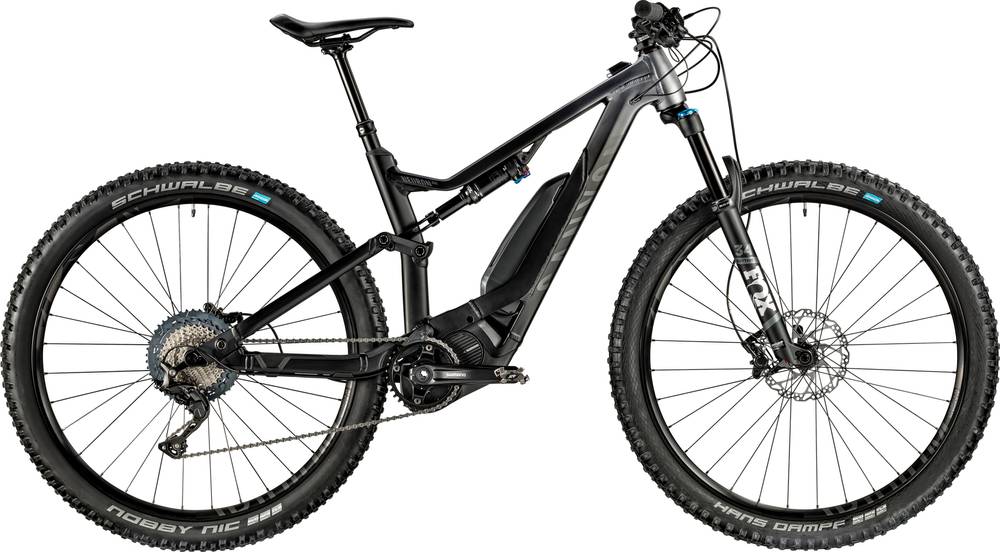

Canyon Neuron:ON 6.0 2019
2019 E-bike
Estimate price |
3,898$
Weight | 22.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" / 29" -
Travel Front 130mm -
Travel Rear 130mm -
Fork Fox Rhythm Float 34
-
Groupset XT, SLX -
Suspension Full -
Motor Shimano 250W 70Nm mid-drive -
Battery Shimano Steps E8010 504 Wh -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
165cm - 175cm
MD
173cm - 184cm
LG
182cm - 192cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Neuron:On, Material: Aluminium 6061, Travel: 130 mm, Axle Dimension: 12 x 148 mm, Brake Mount: Post Mount 180
Suspension Fork
FOX 34 Rhythm, Travel: 130 mm, Technology: GRIP, Axle Dimension: 15 x 110 mm
Rear Shock
FOX FLOAT DPS Performance, Length: 210 x 50 mm
Drivetrain
Rear Derailleur
Shimano Deore XT M8000 GS
Shift Levers
Shimano SLX M7000 11s, Clamp: I-Spec II
Cassette
Shimano SLX M7000 11-46 11s
Crank
Shimano E8000
Chain
Shimano CN-HG601 11s
Wheels
Rims
Alexrims EM30 | Shimano Deore SH11, Rim Material: Aluminium, Inner Width: 30 mm, Hub Type: M6010
Tires
Schwalbe Nobby Nic 2.6'', Compound: Addix Speedgrip, Technology: Tubeless Easy
Brakes
Brakes
Shimano Deore M6000
Disk Rotors
Shimano RT54, Disc Mount: Centerlock
Cockpit
Stem
Race Face Ride
Handlebar
Race Face Ride Riserbar, Material: Aluminium, Rise: 20 mm
Grips
Canyon Lock-On
Seat
Saddle
Canyon SD:ON
Seatpost
Iridium Dropper
Motor & Battery
Motor
Shimano Steps E8000
Battery
Shimano Steps E8010 504 Wh
Remote
Shimano Steps E7000
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.41 mm | 1.41 mm | 1.38 mm | 1.35 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 344 mm | 344 mm | 344 mm |
| Front Center | 699 mm | 721 mm | 734 mm | 760 mm | 785 mm |
| Rake | 51 mm | 51 mm | 52 mm | 52 mm | 52 mm |
| Trail | 100 mm | 100 mm | 99 mm | 99 mm | 99 mm |
| Stack | 587 mm | 591 mm | 617 mm | 631 mm | 644 mm |
| Reach | 398 mm | 418 mm | 438 mm | 458 mm | 478 mm |
| Top Tube Length | 565 mm | 587 mm | 614 mm | 638 mm | 662 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 420 mm | 430 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 66.3 ° | 66.3 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 95 mm | 100 mm | 110 mm | 125 mm | 140 mm |
| Chainstay Length | 441 mm | 441 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1139 mm | 1161 mm | 1175 mm | 1201 mm | 1226 mm |
| Bottom Bracket Drop | 20 mm | 20 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 763 mm | 767 mm | 782 mm | 788 mm | 791 mm |
| Front Travel | 130 mm | 130 mm | 130 mm | 130 mm | 130 mm |
| Rear Travel | 130 mm | 130 mm | 130 mm | 130 mm | 130 mm |
| Wheels | 27" | 27" | 29" | 29" | 29" |
| Rider Max Height | 167 cm | 175 cm | 184 cm | 192 cm | cm |
Model Overview
Neuron:ON 6.0 is a Canyon E Neuronon model. Canyon released 27 e-bikes variations of this model so far. You can get a glimpse at all models from 2019, by clicking on this link.
Model range prices
The most economical model, the Canyon Neuron:ON 5.0 2019 has a starting price of 3078$. Canyon Neuron:ON 7.0 2019 on the other hand is the most expensive at 4140$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail e-bikes average price
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Canyon Neuron:ON 6.0 price was 3609$. If we compare this with the average Trail e-bike cost we notice that the price is 7.25% higher.
Trail e-bikes average weight
Trail e-bikes weigh an average of 23.7 kg (52.25 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 22.5 kg (49.6 lbs), the Neuron:ON 6.0 model is a bit lighter than average. In conclusion, the average Trail e-bike weighs 5.33% more than Neuron:ON 6.0.
Overview of components
Fork
This e-bike has the Fox Rhythm Float 34 fork installed. The fork’s travel is 130mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
Canyon Neuron:ON 6.0 e-bike has the FOX FLOAT DPS Performance model installed, and has a travel of 130mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
When leaving the production line, the Neuron:ON 6.0 model has 27.5″ aluminum wheels. These wheels will provide you with more control over the e-bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Canyon Neuron:ON 6.0 has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Dropper post
A dropper post is included with the Neuron:ON 6.0. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
