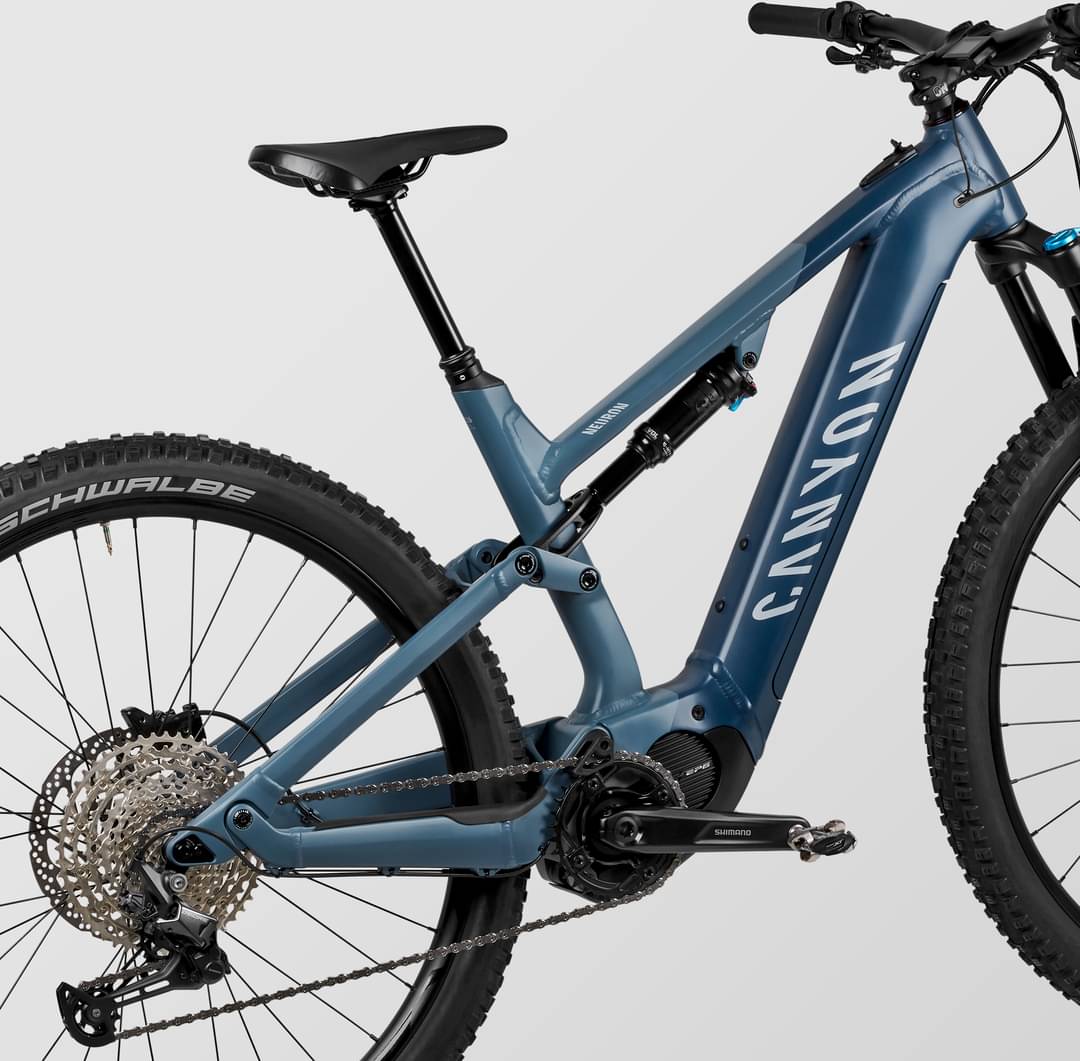

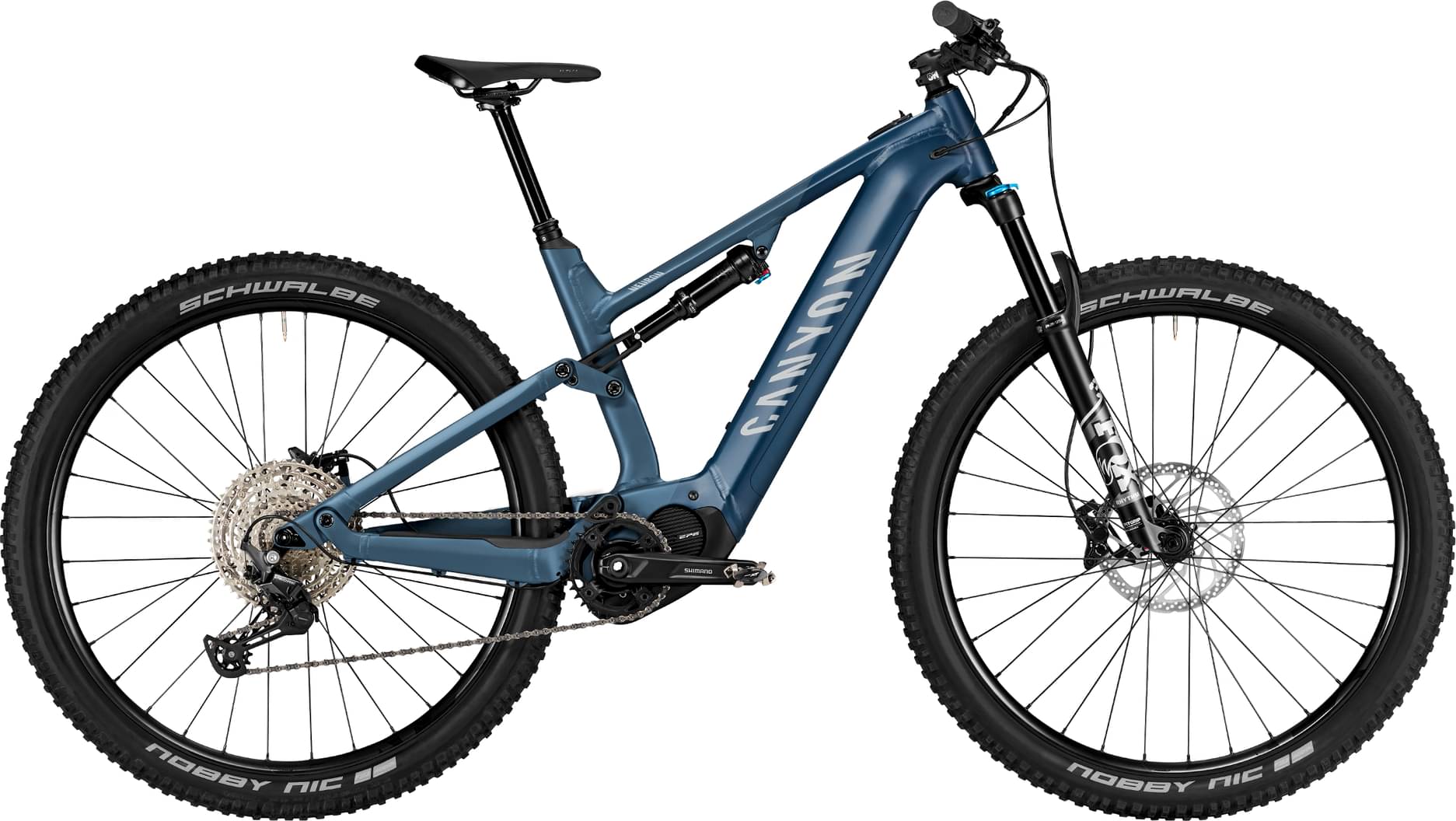

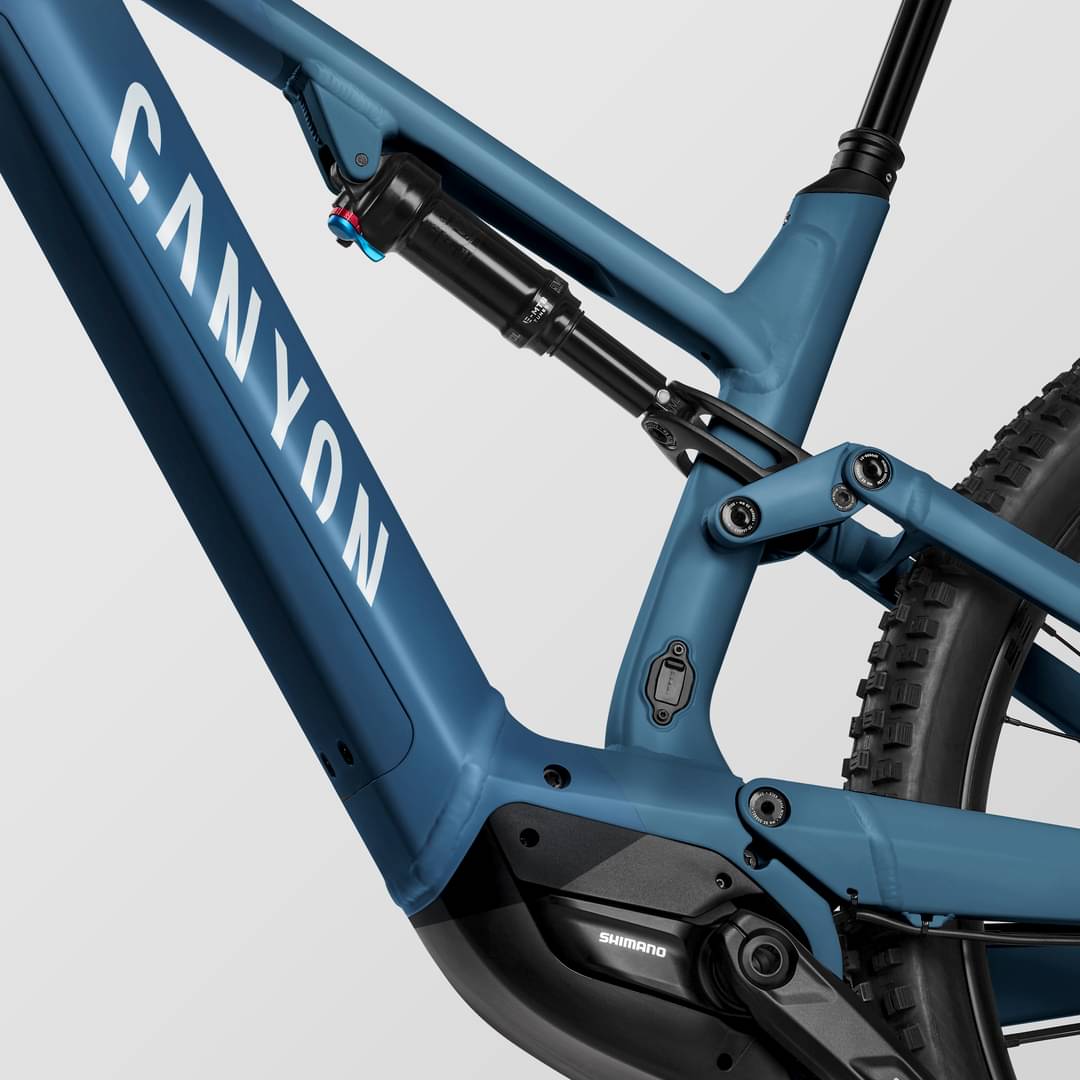

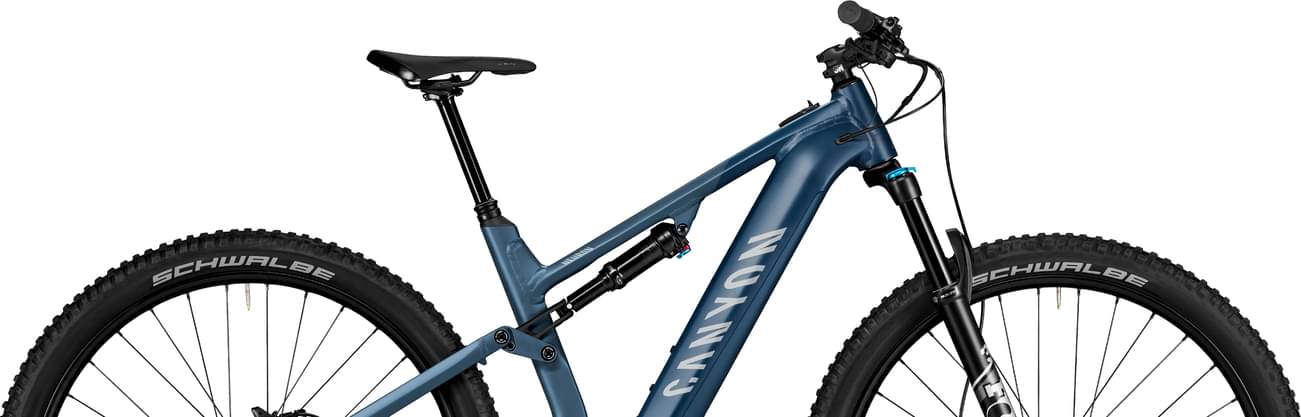

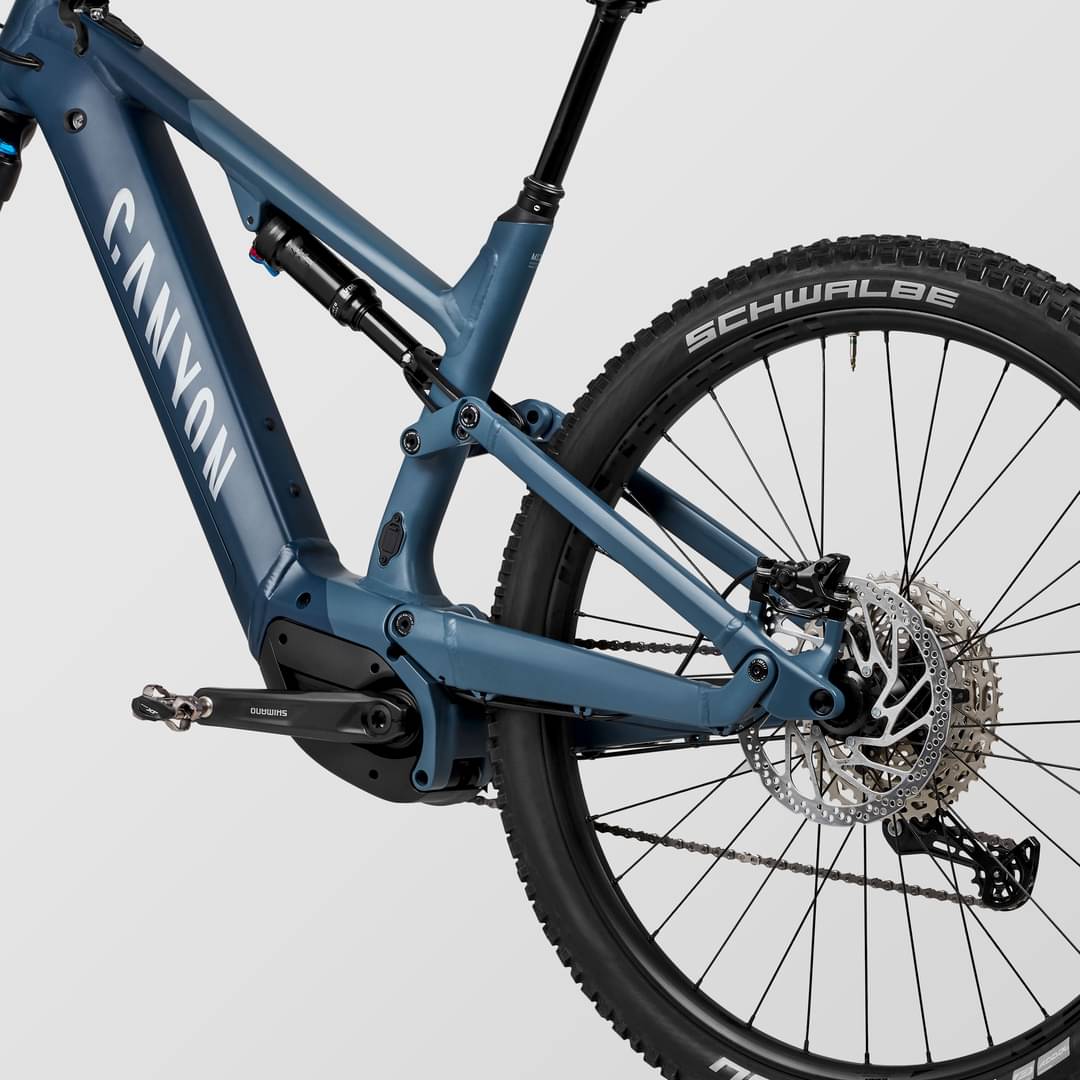

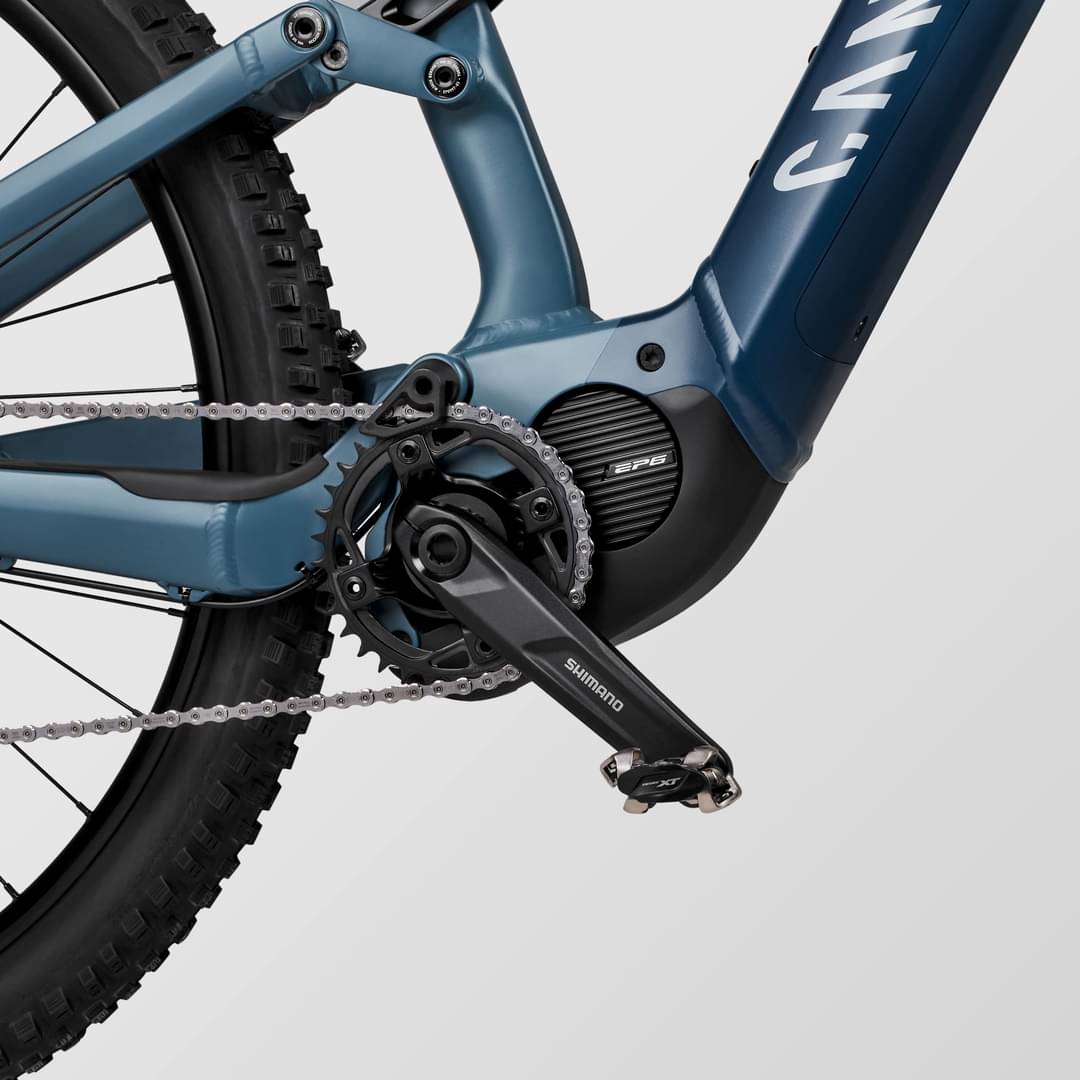

Canyon Neuron:ON 6 2023
2023 E-bike
Estimate price |
4,357$
Weight | 24.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 130mm -
Travel Rear 130mm -
Fork Fox Rhythm Float 34
-
Groupset Deore, Shimano -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Shimano BT-E806 -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
159cm - 173cm
MD
171cm - 184cm
LG
182cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Neuron:ON, Canyon Neuron:ON aluminium frame, 130 mm rear travel in sizes M-XL (125 mm in sizes XS-S). Incredible kinematics thanks to Triple Phase Suspension design. Integrated battery. Boost standard rear axle (148 mm). Post mount brakes (180 mm rotors)., Axle dimension: 12x148 mm, Material: Aluminium (AL)
Suspension Fork
FOX 34 Rhythm Grip, Stanchion Diameter: 34 mm, Travel: 130 mm, Fork steer tube diameter: 1 1/8" - 1 1/4"
Rear Shock
FOX FLOAT DPS Performance
Drivetrain
Rear Derailleur
Shimano DEORE M6100, Cage length: long, Weight: 317 g
Shift Levers
Shimano Deore M6100 12s
Cassette
Shimano DEORE M6100, Number of sprockets: 12 | Shimano CS-M6100 Deore 12-speed Cassette 10-51
Crank
Shimano Steps E-MTB
Bottom Bracket
STEPS, press-fit
Chain
Shimano CN-M6100 | Shimano CN-M6100 Deore 12-speed Chain 138 Links | Shimano SM-CN910 12-speed Quick-Link Chain Connector
Chain Guide
Canyon Chainguide EP1001-02
Wheels
Rims
RODI TRYP30 EVO, Rotor mount: Center Lock, Weight: 1.09 kg | RODI TRYP30 EVO, Rotor mount: Center Lock, Weight: 1.19 kg
Tires
Schwalbe Nobby Nic Performance, 2.6, Width: 2.6"
Brakes
Brakes
Shimano MT420 | Shimano BR-MT410 Deore
Cockpit
Stem
Canyon:ON Stem, 35mm clamp diameter, 60mm length
Handlebar
Canyon:ON HB0056 Riser bar, Aluminum., Clamping diameter: 35,0 mm, Width: 760 mm, Rise: 20 mm
Grips
Canyon Lock-On
Seat
Saddle
Fizik Terra Alpaca X5
Seatpost
Iridium Dropper Post, Move more freely on steep descents, by dropping down saddle with the press of a handlebar-mounted button. With internal cabling., Clamp diameter: 30,9 mm, Material: Aluminium (AL), Weight: 580 g
Motor & Battery
Motor
Shimano EP600
Battery
Shimano BT-E806
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.43 mm | 1.44 mm | 1.4 mm | 1.36 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 341 mm | 341 mm | 341 mm |
| Front Center | 701 mm | 731 mm | 737 mm | 761 mm | 785 mm |
| Rake | 46 mm | 46 mm | 52 mm | 52 mm | 52 mm |
| Trail | 104 mm | 104 mm | 99 mm | 99 mm | 99 mm |
| Stack | 581 mm | 604 mm | 622 mm | 631 mm | 641 mm |
| Reach | 402 mm | 422 mm | 432 mm | 452 mm | 472 mm |
| Top Tube Length | 559 mm | 585 mm | 605 mm | 628 mm | 651 mm |
| Seat Tube Angle | 75 ° | 75 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 380 mm | 420 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 100 mm | 100 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 432 mm | 432 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1132 mm | 1162 mm | 1172 mm | 1196 mm | 1220 mm |
| Bottom Bracket Drop | 20 mm | 20 mm | 33 mm | 33 mm | 33 mm |
| Standover Height | 763 mm | 769 mm | 795 mm | 797 mm | 805 mm |
| Front Travel | 120 mm | 120 mm | 130 mm | 130 mm | 130 mm |
| Rear Travel | 130 mm | 130 mm | 130 mm | 130 mm | 130 mm |
| Wheels | 27" | 27" | 29" | 29" | 29" |
| Rider Max Height | 161 cm | 173 cm | 184 cm | 195 cm | cm |
Model Overview
Neuron:ON 6 is part of the Canyon E Neuronon model. Canyon launched 27 e-bikes of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Canyon Neuron:ON 6 2023 is the cheapest e-bike model and costs 4034$. Canyon Neuron:ON CF 9 2023 is the most expensive one and costs 7431$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail e-bikes average price
According to our math, the average price for a trustworthy Trail e-bike is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
This e-bike was released in 2023 and its price was 4034$. If we compare this with the average Trail e-bike cost we notice that the price is 19.88% more expensive.
Average weight for Trail e-bikes
Trail e-bikes weigh an average of 23.7 kg (52.25 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
slightly heavier than average, Neuron:ON 6 has a weight of 24.6 kg (54.23 lbs). In short, the average Trail e-bike weight is 3.8% lower than this one.
Overview of components
Fork
The Fox Rhythm Float 34 is included from the factory. It has a travel distance of 130mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The Neuron:ON 6 has a rear shock with a travel of 130mm. The model FOX FLOAT DPS Performance is the one installed in this e-bike. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
The Neuron:ON 6 2023 e-bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Canyon Neuron:ON 6 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Dropper post
A dropper post is included with the Neuron:ON 6. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
