Canyon Neuron:ON CF 9 2023
2023 E-bike
Estimate price |
8,028$
Weight | 22.84 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 140mm -
Fork RockShox Pike Ultimate
-
Groupset GX Eagle Transmission, X01 Eagle AXS -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery SRAM Powerpack | Bosch PowerTube 750Wh -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
174cm - 184cm
LG
182cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components

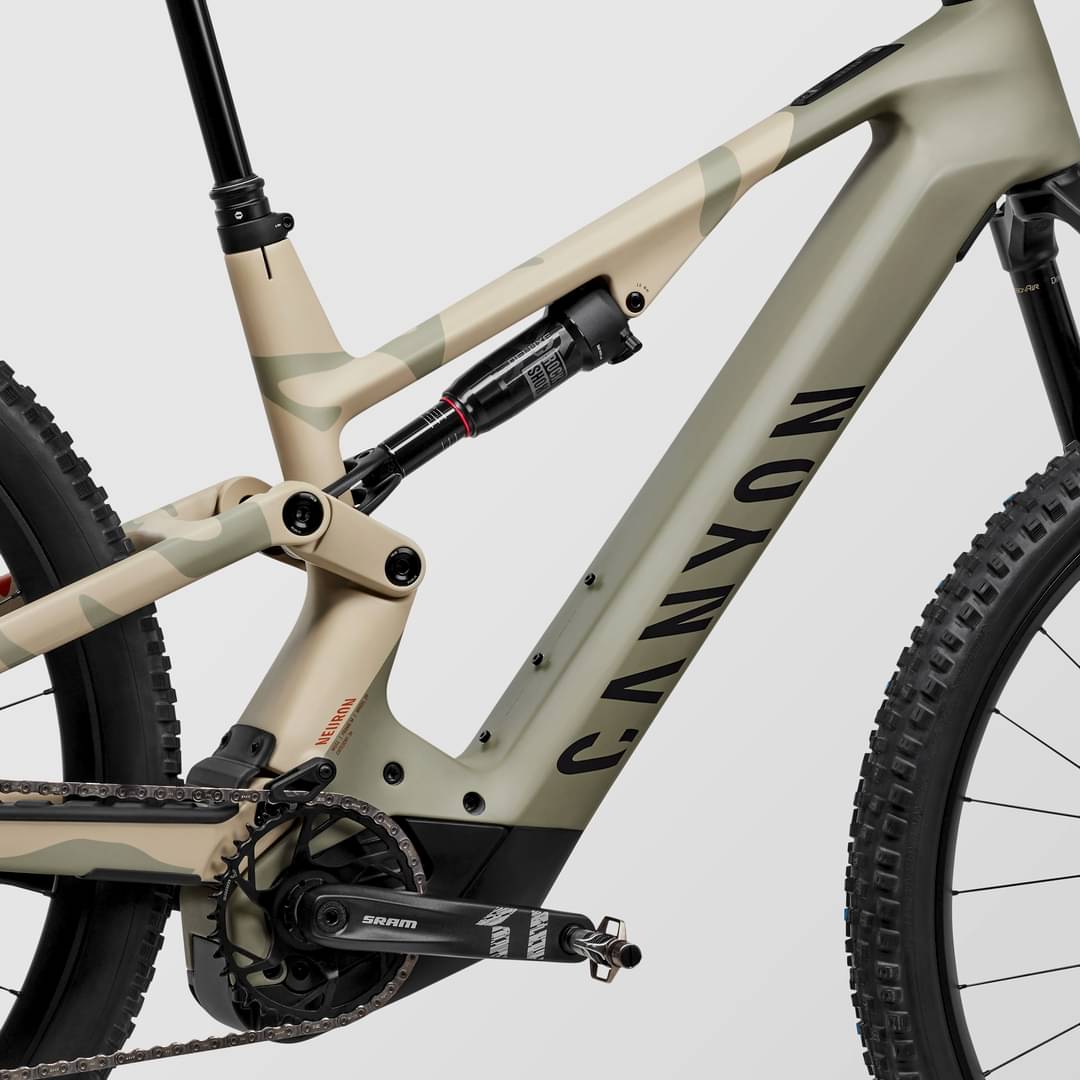

Frame
Frame
Canyon Neuron:ON, Sleek carbon e-MTB frame with a fixed, integrated battery combines an all-day riding position with trail-capable geometry. The Triple Phase Suspension delivers next level compliance and grip., Axle dimension: 12x148 mm, Material: Carbon (CF)
Suspension Fork
Rockshox Pike Ultimate, Travel: 140 mm, Fork steer tube diameter: 1 1/8" - 1,5", Weight: 2.34 kg

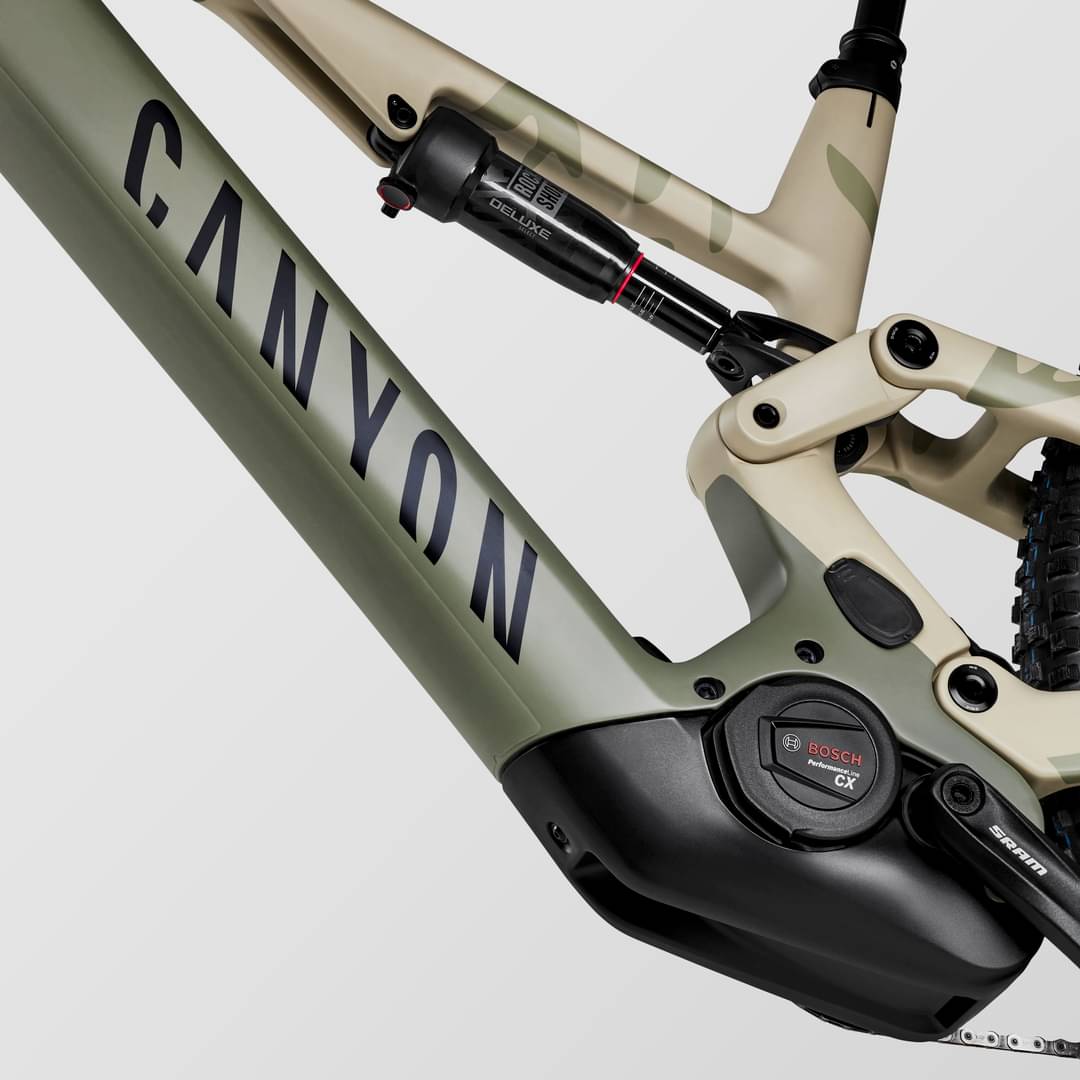

Rear Shock
RockShox Deluxe Select R
Drivetrain
Rear Derailleur
SRAM GX Eagle AXS Transmission
Shift Levers
SRAM AXS Pod Ultimate
Cassette
SRAM GX Eagle Transmission Cassette 12s 10-52, Number of sprockets: 12 | SRAM XS-1275 T-Type GX 12-speed Cassette 10-52
Crank
SRAM X1
Chain
SRAM GX Eagle Transmission | SRAM Eagle Transmission PowerLock | SRAM GX T-Type 12-speed Chain 126L
Chain Guide
Canyon Chainguide M091/M129
Wheels
Rims
DT SWISS HX1700, Rotor mount: IS 6-bolt, Weight: 1.13 kg | DT Swiss HX1700, Axle dimension: 15x110 mm, Rotor mount: IS 6-bolt, Rim height: 21 mm, Hub Technology: Spline, Inner width: 30 mm, Rim material: Aluminium, Weight: 1000 g
Tires
Schwalbe Nobby Nic 29x2.4 black skin, Width: 2.4" | Maxxis Minion DHR II EXO+ 3C MaxxTerra WT 29" x 2.4" MTB Tyre | Maxxis Minion DHR II EXO 3C MaxxGrip WT 29" x 2.4" MTB Tyre
Brakes
Brakes
SRAM Code RSC
Cockpit
Stem
Canyon:ON ST0031, Canyon E-MTB stem., Length: 45 mm, Fork steer tube diameter: 1 1/8", Clamping diameter: 35,0 mm
Handlebar
Canyon:ON HB0056 Riser bar, Aluminum, 780mm width, 35mm clamp diameter, 20mm rise
Grips
Canyon Lock-On Grips
Seat
Saddle
Fizik Terra Alpaca X5
Seatpost
Iridium Dropper Post, Move more freely on steep descents, by dropping down saddle with the press of a handlebar-mounted button. With internal cabling., Clamp diameter: 30,9 mm, Material: Aluminium (AL), Weight: 580 g
Motor & Battery

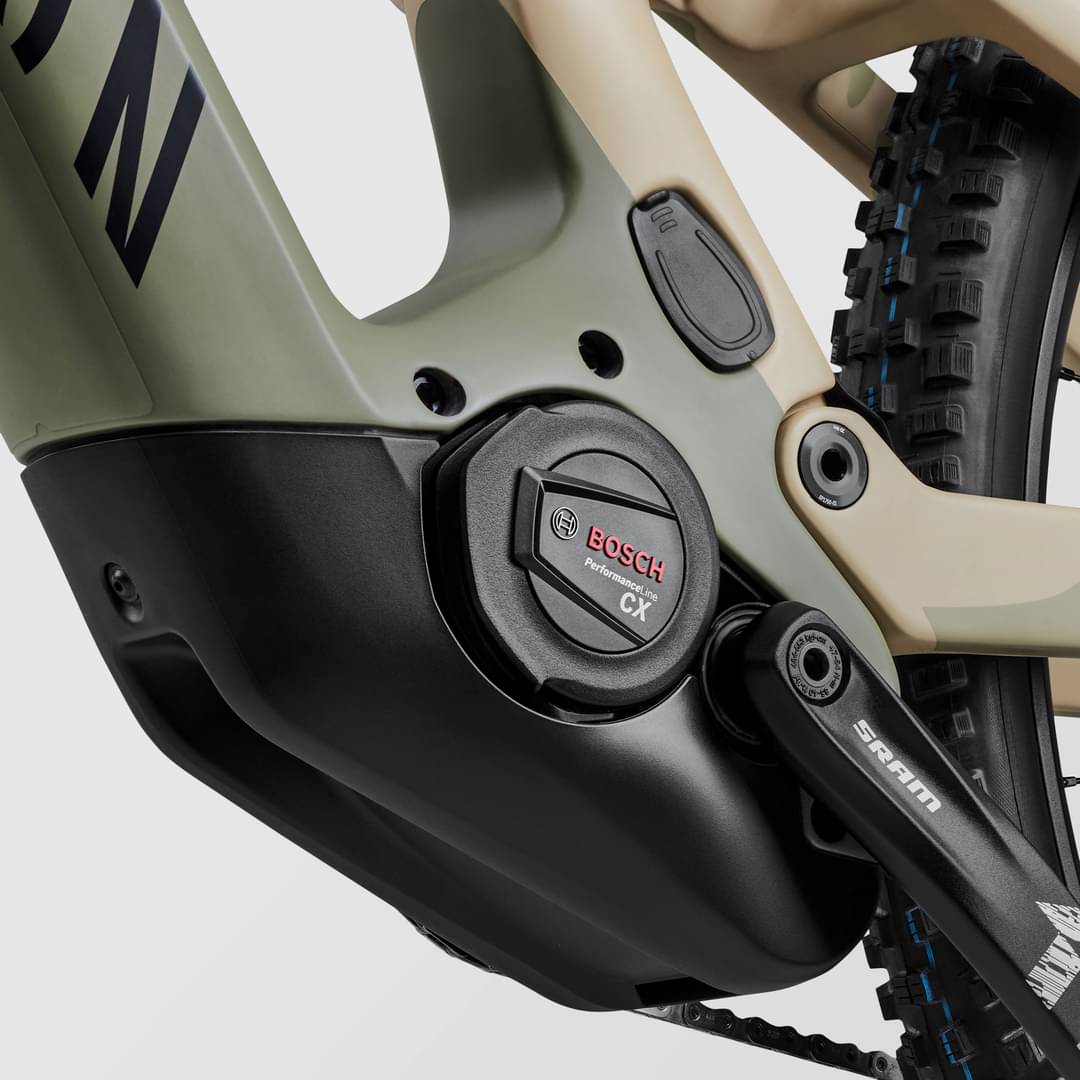

Motor
Bosch Performance Line CX
Battery
SRAM Powerpack | Bosch PowerTube 750Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.39 mm | 1.34 mm | 1.29 mm |
| Bottom Bracket Height | 338 mm | 338 mm | 338 mm | 338 mm |
| Front Center | 755 mm | 784 mm | 808 mm | 837 mm |
| Rake | 44 mm | 43 mm | 39 mm | 39 mm |
| Trail | 122 mm | 123 mm | 128 mm | 128 mm |
| Stack | 634 mm | 644 mm | 653 mm | 662 mm |
| Reach | 438 mm | 463 mm | 488 mm | 513 mm |
| Top Tube Length | 590 mm | 617 mm | 644 mm | 671 mm |
| Seat Tube Angle | 68.6 ° | 69.3 ° | 69.9 ° | 70.2 ° |
| Seat Tube Length | 420 mm | 440 mm | 460 mm | 480 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 120 mm | 130 mm | 140 mm | 150 mm |
| Chainstay Length | 453 mm | 453 mm | 453 mm | 453 mm |
| Wheelbase | 1206 mm | 1235 mm | 1259 mm | 1288 mm |
| Bottom Bracket Drop | 36 mm | 36 mm | 36 mm | 36 mm |
| Standover Height | 776 mm | 782 mm | 788 mm | 793 mm |
| Front Travel | 140 mm | 140 mm | 140 mm | 140 mm |
| Rear Travel | 140 mm | 140 mm | 140 mm | 140 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Max Height | 176 cm | 184 cm | 193 cm | cm |
About this model
Neuron:ON CF 9 belongs to the Canyon E Neuronon model. There are 27 e-bikes that carry this model name. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
The most economical model, the Canyon Neuron:ON 6 2023 has a starting price of 4034$. Canyon Neuron:ON CF 9 2023 on the other hand is the most expensive at 7431$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail e-bikes
According to our math, the average price for a trustworthy Trail e-bike is 3365$. However, you could also get a good Trail e-bike even if you pay a lower amount than the average price. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
This e-bike was released in 2023 and its price was 7431$. If we compare this with the average Trail e-bike cost we notice that the price is 120.83% higher.
Trail e-bikes average weight
If we make a quick analysis of the average weight of a Trail e-bike, we get 23.7 kg (52.25 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 22.84 kg (50.35 lbs), the Neuron:ON CF 9 model is slightly lighter than average. To sum up, it’s 3.77% lighter than the average weight of Trail e-bikes.
Neuron:ON CF 9 components
Fork
The RockShox Pike Ultimate is included from the factory. It has a travel distance of 140mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
Canyon Neuron:ON CF 9 e-bike has the RockShox Deluxe Select R model installed, and has a travel of 140mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
The wheels on Neuron:ON CF 9 are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Dropper post
Canyon Neuron:ON CF 9 comes with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
