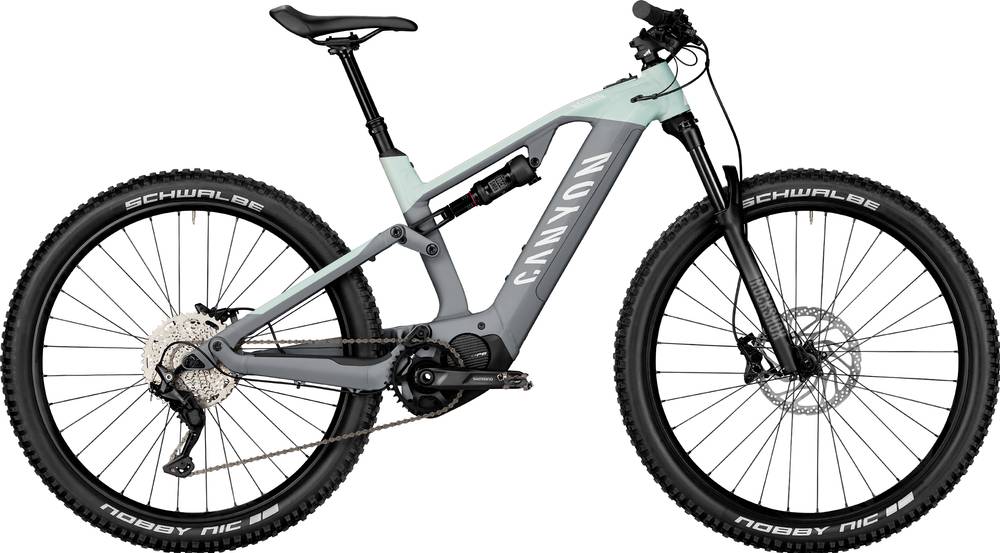

Canyon Neuron:ON 7 WMN 2021
2021 E-bike
Estimate price |
4,243$
Weight | 23.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" / 29" -
Travel Front 120mm -
Travel Rear 130mm -
Fork RockShox Judy
-
Groupset Deore, Shimano -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Shimano STEPS 504-Wh Battery, Lithium-Ion battery, IPX5 water resistant, 3.1 Kg, adaptor for external charging not included -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
159cm - 173cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Neuron:ON, Aluminium frame, 130mm of rear suspension on Med-XL frames (125mm travel on XS-SM frames), award-winning Triple Phase Suspension design, internal battery, Boost 148 rear spacing, post-style brake mount (180)
Suspension Fork
RockShox Judy Silver, 130mm, 130mm of front suspension. 29er fork. Boost 110 spacing. 30mm stanchions, TurnKey compression lockout, adjustable rebound damping
Rear Shock
RockShox Deluxe Select R, 210x50, 130mm of rear suspension. The Deluxe Select delivers proven damping performance in a lightweight package, highly tunable DebonAir™ spring, adjustable rebound damping.
Drivetrain
Rear Derailleur
Shimano Deore, 10-speed, 10/11-speed, max cassette size: 46T. Weight: 331 g, Shadow RD+ chain stabilizing system
Shift Levers
Shimano Deore, 10-speed, Rear derailleur shifter, 10-speed, 2-way release, I-Spec EV clamp allows 14mm lateral adjustment and 10-degrees rotation adjustment, 133 g
Cassette
Shimano Deore, 10-speed (11-46), All-steel cog design, Shimano HG freehub compatible, Gear range: 11-46T, weight: 360 g,
Crank
Shimano STEPS e-MTB crank arms, Designed for the rigors of E-MTB riding, 24mm spindle, 170mm crank arms
Bottom Bracket
STEPS, press-fit
Wheels
Rims
Rodi TRYP 30 | Shimano MT400, Shimano MT400 front hub with Boost 110 spacing, Iridium 30 aluminum rim, 30mm inner rim width | TRYP 30 | Shimano MT400, Shimano MT400 rear hub with Boost 148 spacing, TRYP 30 aluminum rim, 30mm inner rim width
Tires
Schwalbe Nobby Nic Performance, 2.6, 29x2.6"
Brakes
Brakes
Shimano MT420 4-piston, front brake, Shimano 4-piston caliper provide 20% more stopping power than equivalent 2-piston version | Shimano MT410 2-piston, rear brake, Deore-caliber, 2-piston disc brake, resin pads
Disk Rotors
Shimano Tourney TX front rotor, A big Shimano RT830 brake rotor delivers equally big stopping power. | Shimano EM300 STEPS rear rotor, 203mm, Specifically designed to work with E-MTB speed sensors. Center lock mounting for quick installation/removal. Resin pad only.
Cockpit
Stem
Canyon:ON Stem, 35mm clamp diameter, 60mm length
Handlebar
Canyon:ON HB0056 Riser bar, Aluminum, 760mm width, 35mm clamp diameter, 20mm rise
Grips
Canyon Lock-On Grips
Seat
Saddle
Canyon SD:ON, Perfect for long rides in a seated position or on steep climbs, extra padding around sit bones, additional rear support prevents you from sliding backwards on steep climbs, chromoly rails, durable nylon composite shell, 290 g
Seatpost
Iridium Dropper Post, Iridium dropper posts provide seat-height adjustability, varying depending on frame size. Internally routed, cable actuated, 30.9mm diameter.
Motor & Battery
Motor
Shimano Steps EP8 Motor
Battery
Shimano STEPS 504-Wh Battery, Lithium-Ion battery, IPX5 water resistant, 3.1 Kg, adaptor for external charging not included
Remote
Shimano Steps SC-E7000 Display
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.43 mm | 1.44 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 341 mm |
| Front Center | 694 mm | 714 mm | 736 mm |
| Rake | 40 mm | 30 mm | 51 mm |
| Trail | 111 mm | 122 mm | 100 mm |
| Stack | 581 mm | 604 mm | 622 mm |
| Reach | 402 mm | 422 mm | 432 mm |
| Top Tube Length | 548 mm | 556 mm | 593 mm |
| Seat Tube Angle | 75 ° | 75 ° | 74.5 ° |
| Seat Tube Length | 380 mm | 420 mm | 440 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 67.5 ° |
| Head Tube Length | 100 mm | 100 mm | 120 mm |
| Chainstay Length | 432 mm | 432 mm | 437 mm |
| Wheelbase | 1125 mm | 1145 mm | 1171 mm |
| Bottom Bracket Drop | 20 mm | 20 mm | 33 mm |
| Standover Height | 763 mm | 769 mm | 795 mm |
| Front Travel | 120 mm | 120 mm | 130 mm |
| Rear Travel | 130 mm | 130 mm | 130 mm |
| Wheels | 27" | 27" | 29" |
| Rider Max Height | 161 cm | 173 cm | cm |
About this model
Neuron:ON 7 WMN is a Canyon E Neuronon model. There are 27 e-bikes that carry this model name. You can easily view all of the Canyon E Neuronon e-bikes models from 2021, here.
Model range prices
Canyon Neuron:ON 7 WMN 2021 is the most economical model, with a starting price of 3928$. Canyon Neuron:ON 9 2021 on the other hand costs 4671$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail e-bikes average price
According to our math, the average price for a trustworthy Trail e-bike is 3365$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
At the moment of the release date, Canyon Neuron:ON 7 WMN price was 3928$. If we compare this with the average Trail e-bike cost we notice that the price is 16.73% higher.
Trail e-bikes average weight
Trail e-bikes have an average weight of 23.7 kg (52.25 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 23.5 kg (51.81 lbs), the Neuron:ON 7 WMN model is slightly lighter than average. In other words, this model is 0.85% lighter than the average Trail e-bike.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Neuron:ON 7 WMN components
Fork
The RockShox Judy is included from the factory. It has a travel distance of 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
As for the rear shock, this e-bike has the RockShox Deluxe Select R model, with a travel of 130mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
When it comes to wheels, the Neuron:ON 7 WMN e-bike is equipped with the 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Canyon Neuron:ON 7 WMN has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Dropper post
Every bike should have a dropper post, and this one does. Therefore, climbing or descending will be a breeze.
