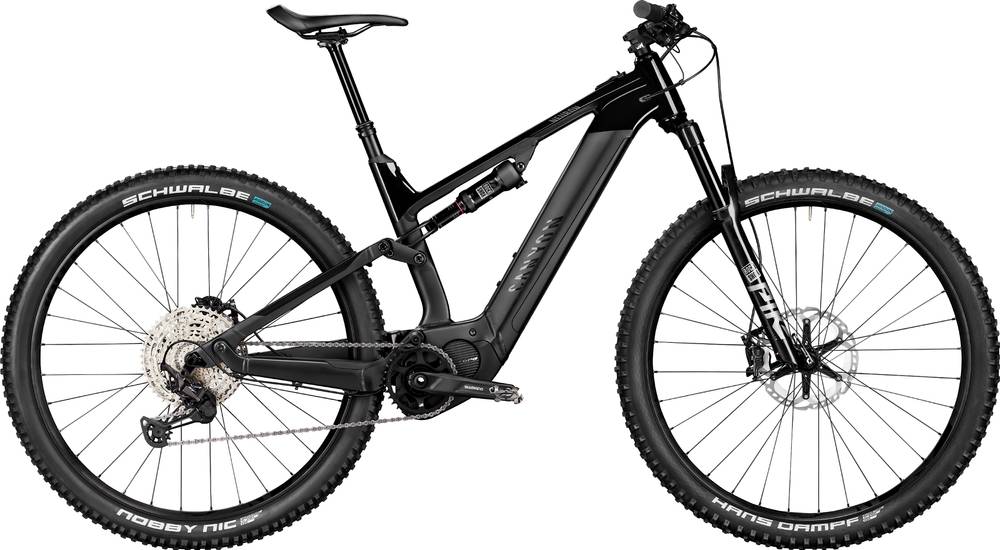

Canyon Neuron:ON 9 2021
2021 E-bike
Estimate price |
5,045$
Weight | 24.39 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" / 29" -
Travel Front 130mm -
Travel Rear 130mm -
Fork RockShox Pike Select
-
Groupset XT, Shimano -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Shimano BT-E8036 Akku 630WH -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
171cm - 184cm
LG
182cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Neuron:ON, Aluminium frame, 130mm of rear suspension on Med-XL frames (125mm travel on XS-SM frames), award-winning Triple Phase Suspension design, internal battery, Boost 148 rear spacing, post-style brake mount (180)
Suspension Fork
Rock Shox Pike Select+, 130mm, 130mm of front suspension, 29er fork, Boost 110 spacing, 35mm stanchions, Charger 2.1 low-speed compression adjuster, Debonair air spring, low-friction SKF wiper seals, external rebound damping adjuster
Rear Shock
RockShox Deluxe Select R, 210x50, 130mm of rear suspension. The Deluxe Select delivers proven damping performance in a lightweight package, highly tunable DebonAir™ spring, adjustable rebound damping.
Drivetrain
Rear Derailleur
Shimano Deore XT, 12-speed, 1x12 drivetrain for simpler, intuitive shifting. Proven Shimano XT performance.
Shift Levers
Shimano Deore XT, 12-speed, Rear derailleur shifter, 12-speed, Textured rubber lever pad, Multi-Release, 2-way release, I-Spec EV clamp allows 14mm lateral adjustment and 20-degrees rotation adjustment, 130 g
Cassette
Shimano Deore, 12-speed (10-51), Cassette packed with tricke-down performance features. Hyperglide+ tech provides fast, smooth shifting. Beam spider construction cuts weights and boosts stiffness. Gear range: 10-51.
Crank
Shimano STEPS e-MTB crank arms, Designed for the rigors of E-MTB riding, 24mm spindle, 170mm crank arms
Bottom Bracket
STEPS, press-fit
Chain
Shimano M6100 12-speed, HYPERGLIDE+ shift technology, quick link for easy connect and tool-free assembly
Wheels
Rims
Rodi TRYP 30 | Shimano MT400, Shimano MT400 front hub with Boost 110 spacing, Iridium 30 aluminum rim, 30mm inner rim width | Iridium 30 | Shimano MT510, Shimano MT510 rear hub with Boost 148 spacing, Iridium 30 aluminum rim, 30mm inner rim width
Tires
Schwalbe Nobby Nic SuperTrail Speedgrip, 29x2.6". Super Trail version, highly puncture-resistant with Apex sidewall protection, and bead-to-bead Snakeskin fabric layer, Tubeless Easy version | Schwalbe Hans Dampf SuperTrail, 2.6, 29x2.6". Super Trail version, highly puncture-resistant with Apex sidewall protection, and bead-to-bead Snakeskin fabric layer, Tubeless Easy version
Brakes
Brakes
Shimano XT 4-piston brake, High-power 4-piston brake, reach adjust, quick pad retraction, banjo-type connection, ICE TECH brake pads, 410 g | Shimano XT 2-piston rear brake, Shimano's lighter duty XT brake, reach adjust, quick pad retraction, banjo-type connection, ICE TECH brake pads
Disk Rotors
Shimano XT STEPS rear rotor, 203mm, Specifically designed to work with E-MTB speed sensors. ICE TECH FREEZA design reduces heat build-up and brake fade, center-lock mounting for quick installation/removal | Shimano XT brake rotor, 203mm, ICE TECH FREEZA design reduces heat build-up and brake fade, center lock mounting for quick installation/removal
Cockpit
Stem
Canyon:ON Stem, 35mm clamp diameter, 60mm length
Handlebar
Canyon:ON HB0056 Riser bar, Aluminum, 760mm width, 35mm clamp diameter, 20mm rise
Grips
Canyon Lock-On Grips
Seat
Saddle
Canyon SD:ON, Perfect for long rides in a seated position or on steep climbs, extra padding around sit bones, additional rear support prevents you from sliding backwards on steep climbs, chromoly rails, durable nylon composite shell, 290 g
Seatpost
Iridium Dropper Post, Iridium dropper posts provide seat-height adjustability, varying depending on frame size. Internally routed, cable actuated, 30.9mm diameter.
Motor & Battery
Motor
Shimano Steps EP8 Motor
Battery
Shimano BT-E8036 Akku 630WH
Remote
Shimano Steps SC-E7000 Display
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.43 mm | 1.39 mm | 1.35 mm |
| Bottom Bracket Height | 335 mm | 341 mm | 341 mm | 341 mm |
| Front Center | 714 mm | 736 mm | 759 mm | 783 mm |
| Rake | 30 mm | 51 mm | 50 mm | 50 mm |
| Trail | 122 mm | 100 mm | 101 mm | 101 mm |
| Stack | 610 mm | 628 mm | 637 mm | 647 mm |
| Reach | 428 mm | 438 mm | 458 mm | 478 mm |
| Top Tube Length | 562 mm | 599 mm | 620 mm | 641 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 420 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 66.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 100 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 438 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1151 mm | 1177 mm | 1200 mm | 1224 mm |
| Bottom Bracket Drop | 20 mm | 33 mm | 33 mm | 33 mm |
| Standover Height | 775 mm | 801 mm | 803 mm | 811 mm |
| Front Travel | 120 mm | 130 mm | 130 mm | 130 mm |
| Rear Travel | 130 mm | 130 mm | 130 mm | 130 mm |
| Wheels | 27" | 29" | 29" | 29" |
| Rider Max Height | 173 cm | 184 cm | 195 cm | cm |
About this model
Neuron:ON 9 belongs to the Canyon E Neuronon model. Canyon released 27 e-bikes variations of this model so far. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
Canyon Neuron:ON 7 WMN 2021 is the cheapest e-bike model and costs 3928$. Canyon Neuron:ON 9 2021 is the most expensive one and costs 4671$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail e-bikes
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, you could also get a good Trail e-bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4671$. Comparing this to the average Trail e-bike price, we see that the price is 38.81% higher.
Trail e-bikes average weight
On a deeper look, we notice that the average weight of a Trail e-bike is 23.7 kg (52.25 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Canyon Neuron:ON 9 it’s weighing 24.39 kg (53.77 lbs). At this weight, is slightly heavier than average. In conclusion, the average Trail e-bike weighs 2.91% less than Neuron:ON 9.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Neuron:ON 9 components
Fork
This e-bike has the RockShox Pike Select fork installed. The fork’s travel is 130mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The Neuron:ON 9 has a rear shock with a travel of 130mm. The model RockShox Deluxe Select R is the one installed in this e-bike. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
The Neuron:ON 9 2021 e-bike is equipped with 27.5″ aluminum wheels when leaving the factory. The 27.5″ wheels are a great choice for smaller riders. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Neuron:ON 9 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Dropper post
A dropper post is included with the Neuron:ON 9. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
