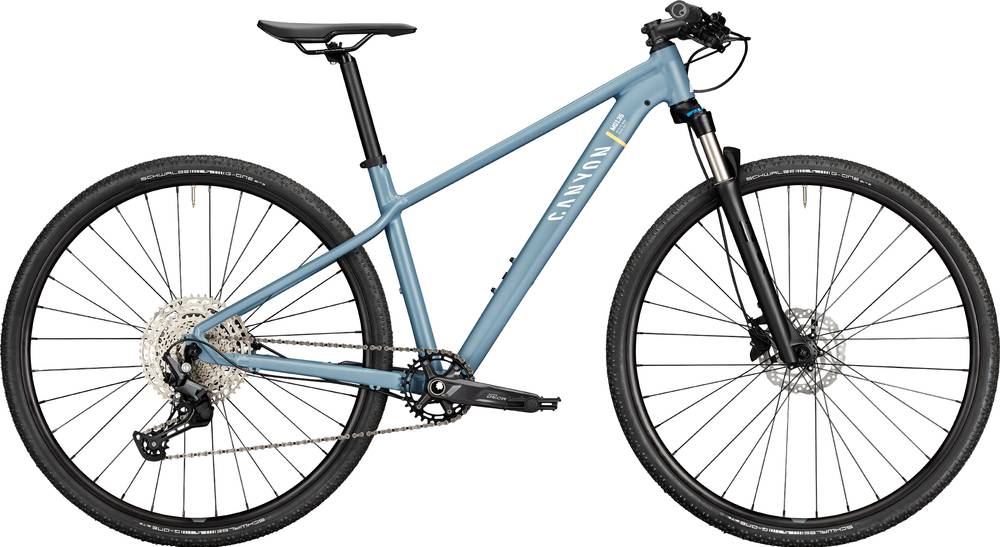

Canyon Pathlite 5 WMN 2021
2021 Urban
Estimate price |
1,008$
Weight | 12.84 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 650b / 29" -
Travel Front 75mm -
Fork SunTour NRX D
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
155cm - 163cm
SM
161cm - 173cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Pathlite WMN AL
Suspension Fork
SR Suntour NRX-D Coil, Travel: 75 mm, Technology: LO, Axle Dimension: 9 x 100 mm, Steerer: 1 1/8''
Drivetrain
Rear Derailleur
Shimano Deore M5100 11s
Shift Levers
Shimano Deore M5100
Cassette
Shimano Deore M5100 11s 11-51
Crank
Shimano Deore M5100 32T 32
Bottom Bracket
Shimano BSA BB52
Chain
KMC X11-93
Wheels
Rims
Alexrims DP23 | Shimano TX505 S11
Tires
Schwalbe G-One Bite 40 mm
Brakes
Brakes
Shimano MT200
Disk Rotors
Shimano RT10
Cockpit
Stem
Iridium
Handlebar
Iridium Flatbar, Material: Aluminium, Rise: 5 mm
Grips
Ergon GA3
Seat
Saddle
Canyon Sport Saddle EP1249
Seatpost
Iridium
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD |
|---|---|---|---|---|
| Stack Reach Ratio | 1.57 mm | 1.54 mm | 1.54 mm | 1.58 mm |
| Front Center | 613 mm | 632 mm | 635 mm | 650 |
| Rake | 46 mm | 46 mm | 45 mm | 46 mm |
| Trail | 71 mm | 71 mm | 73 mm | 72 mm |
| Stack | 586 mm | 596 mm | 618 mm | 642 mm |
| Reach | 373 mm | 388 mm | 401 mm | 407 mm |
| Top Tube Length | 548 mm | 566 mm | 585 mm | 598 mm |
| Seat Tube Angle | 73.25 ° | 73.25 ° | 73.25 ° | 73.25 ° |
| Seat Tube Length | 355 mm | 385 mm | 425 mm | 455 mm |
| Head Tube Angle | 70 ° | 70 ° | 71 ° | 71 ° |
| Head Tube Length | 90 mm | 100 mm | 100 mm | 125 mm |
| Chainstay Length | 446 mm | 446 mm | 446 mm | 446 mm |
| Wheelbase | 1055 mm | 1074 mm | 1074 mm | 1089 mm |
| Bottom Bracket Drop | 44 mm | 44 mm | 62 mm | 62 mm |
| Standover Height | 703 mm | 723 mm | 757 mm | 785 mm |
| Front Travel | 75 mm | 75 mm | 75 mm | 75 mm |
| Wheels | 650 | 650 | 29" | 29" |
| Rider Max Height | 157 cm | 163 cm | 173 cm | cm |
About this model
Pathlite 5 WMN is part of the Canyon Pathlite model. Canyon launched 41 bikes of this model so far. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
The most economical model, the Canyon Pathlite 5 2021 has a starting price of 933$. Canyon Pathlite 7 WMN 2021 on the other hand is the most expensive at 1549$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Fitness bikes average price
Our math shows that the average cost of a dependable Fitness bike is 656$. However, this doesn’t mean that if you spend less money on a Fitness bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2021 for 933$. Comparing the average cost of a Fitness bike to this one, you will see that Pathlite 5 WMN price is 42.23% more expensive.
Fitness bikes average weight
Fitness bikes have an average weight of 11.24 kg (24.78 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Pathlite 5 WMN weighs 12.84 kg (28.31 lbs) and is considerably heavier than the average. In other words, this model is 14.23% heavier than the average Fitness bike.
Overview of components
Fork
This bike has the SunTour NRX D fork installed. The fork’s travel is 75mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When it comes to wheels, the Pathlite 5 WMN bike is equipped with the aluminum model. After 700c wheels, 650b is the second most popular choice for road bikes. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
