Canyon Pathlite 5 WMN 2023
2023 Urban
Estimate price |
1,031$
Weight | 13.16 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 75mm -
Fork Suntour NRX D
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
163cm - 175cm
Parts list
Components
Main components, grouped by system.
Bike components

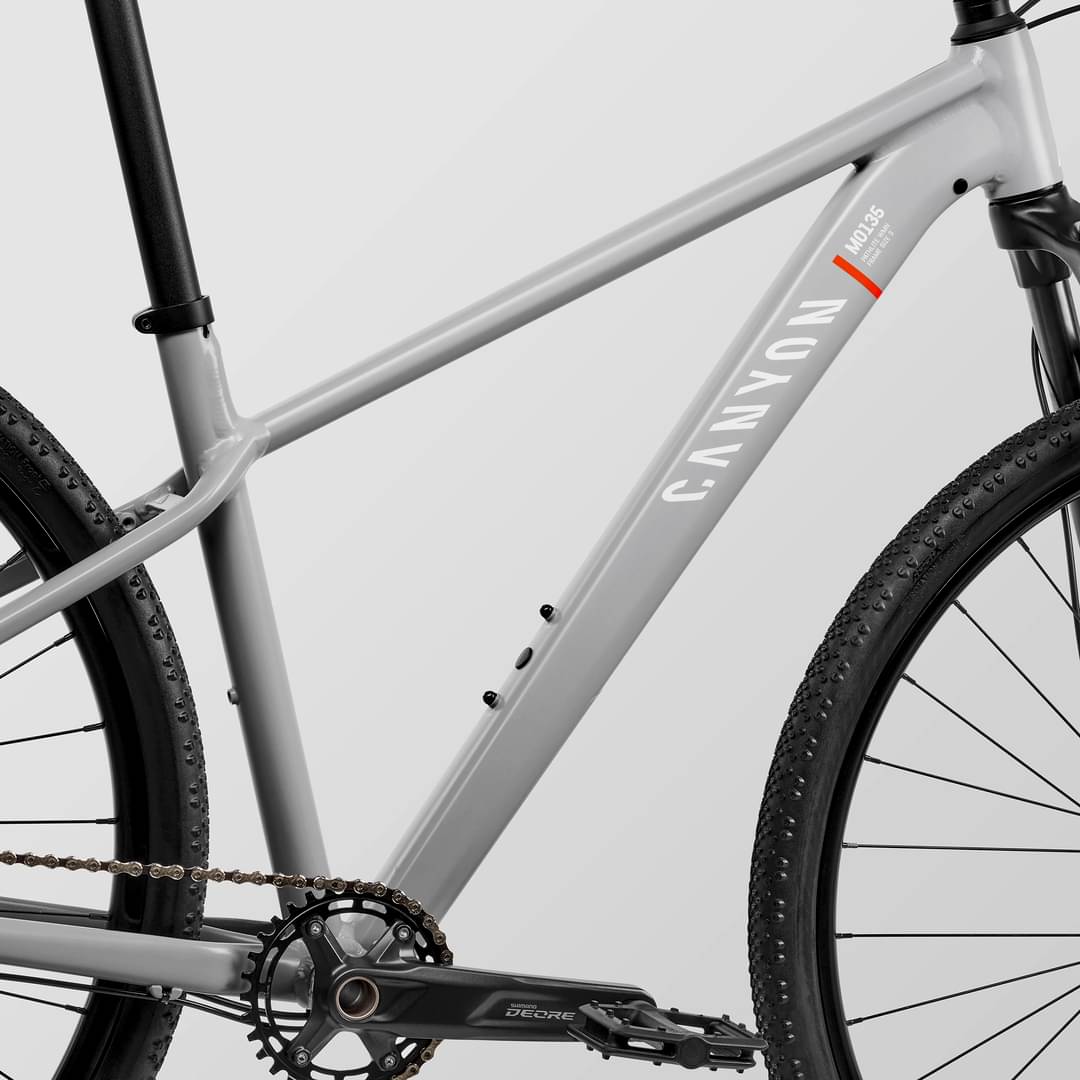

Frame
Frame
Canyon Pathlite WMN AL, Material: Aluminium (AL)
Suspension Fork
SR Suntour NRX-D Coil, Stanchion Diameter: 30 mm, Travel: 75 mm, Fork steer tube diameter: 1 1/8", Weight: 1.93 kg

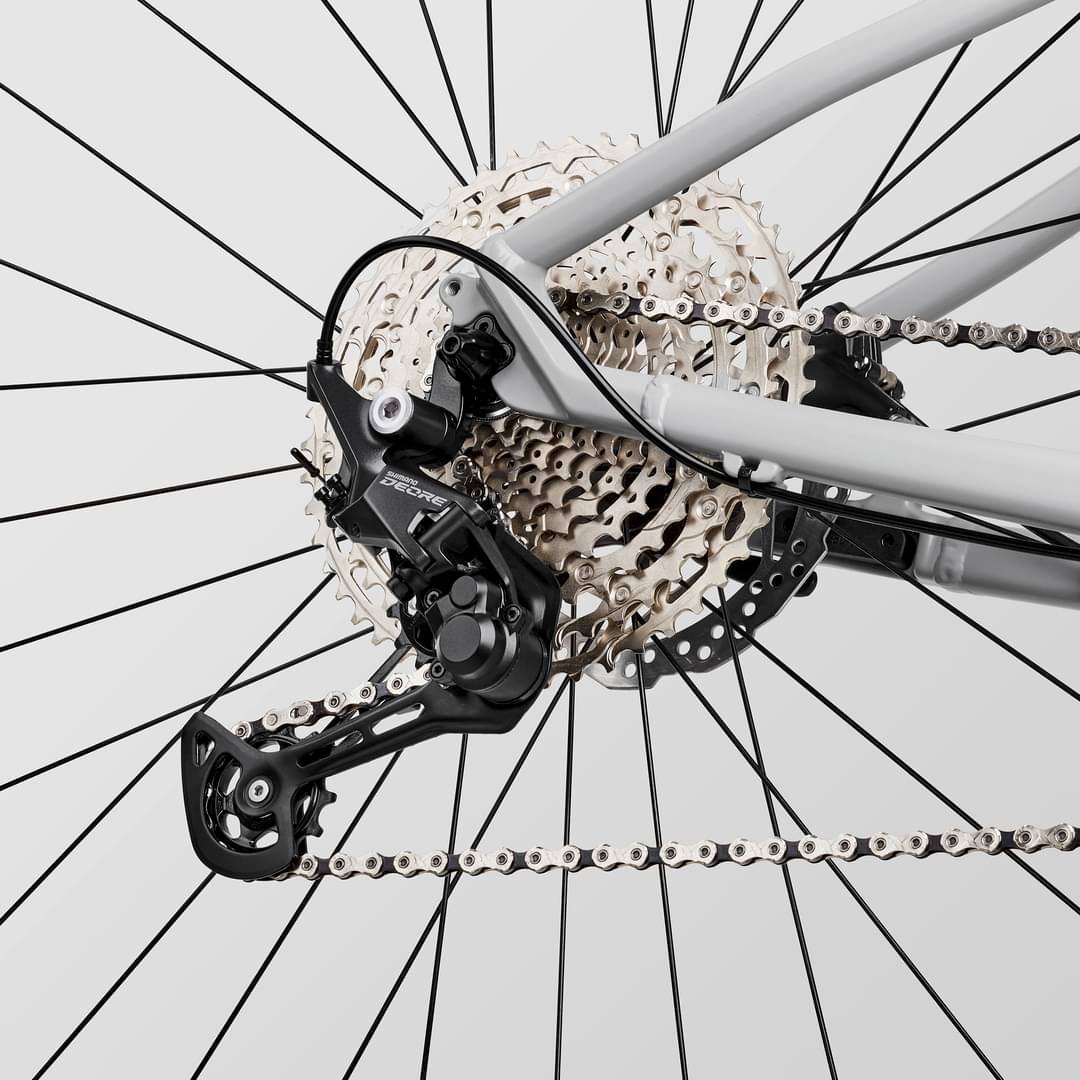

Drivetrain
Rear Derailleur
Shimano Deore M5100 11s, Cage length: long, Weight: 356 g
Shift Levers
Shimano Deore M5100 11s
Cassette
Shimano Deore M5100 11s 11-51, Number of sprockets: 11 | Shimano Deore CS-M5100 11-speed Cassette 11-51
Crank
Shimano Deore M5100 32T, Number of chainrings: 1
Bottom Bracket
Shimano BB-MT501, Bottom bracket standard: BSA HT2 68/73, Weight: 73 g
Chain
KMC X11-93
Wheels
Rims
Alexrims DP23 | Shimano TX505, Rotor mount: Center Lock | Alexrims DP23 | Shimano TX505 S11, Rotor mount: Center Lock
Tires
Schwalbe G-One Bite 45mm, Width: 45mm, Weight: 540 g | Schwalbe G-One R Super Race 28" x 45mm Gravel Tyre
Brakes
Brakes
Shimano MT200
Cockpit
Stem
Iridium Stem, Fork steer tube diameter: 1 1/8", Clamping diameter: 31,8 mm
Handlebar
Iridium Flatbar, Material: Aluminium, Rise: 5 mm
Grips
Ergon GA3
Seat
Saddle
Canyon Sport Saddle EP1249
Seatpost
Iridium, Clamp diameter: 30,9 mm, Material: Aluminium (AL), Weight: 280 g
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.56 mm | 1.6 mm |
| Front Center | 619 mm | 623 mm | 637 mm |
| Rake | 46 mm | 46 mm | 45 mm |
| Trail | 78 mm | 72 mm | 73 mm |
| Stack | 585 mm | 605 mm | 629 mm |
| Reach | 374 mm | 387 mm | 393 mm |
| Top Tube Length | 550 mm | 568 mm | 581 mm |
| Seat Tube Angle | 73.25 ° | 73.25 ° | 73.25 ° |
| Seat Tube Length | 385 mm | 425 mm | 455 mm |
| Head Tube Angle | 70 ° | 71 ° | 71 ° |
| Head Tube Length | 96 mm | 94 mm | 119 mm |
| Chainstay Length | 422 mm | 427 mm | 427 mm |
| Wheelbase | 1037 mm | 1042 mm | 1056 mm |
| Bottom Bracket Drop | 44 mm | 62 mm | 62 mm |
| Standover Height | 699 mm | 753 mm | 753 mm |
| Front Travel | 75 mm | 75 mm | 75 mm |
| Wheels | 700 | 700 | 700 |
| Rider Max Height | 165 cm | 175 cm | cm |
About this model
Pathlite 5 WMN belongs to the Canyon Pathlite model. Canyon released 41 bikes variations of this model so far. You can easily view all of the Canyon Pathlite bikes models from 2023, here.
Model range prices
Canyon Pathlite 4 WMN 2023 is the cheapest bike model and costs 742$. Canyon Pathlite 7 WMN 2023 is the most expensive one and costs 1592$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Fitness bikes
Our math shows that the average cost of a dependable Fitness bike is 656$. However, even if your budget is less than the average, you might still be able to get a top-quality Fitness bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
This bike was released in 2023 and its price was 955$. Comparing this to the average Fitness bike price, we see that the price is 45.58% higher.
Average weight for Fitness bikes
Fitness bikes have an average weight of 11.24 kg (24.78 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
much heavier than average, Pathlite 5 WMN has a weight of 13.16 kg (29.01 lbs). In short, the average Fitness bike weight is 17.08% lower than this one.
Overview of components

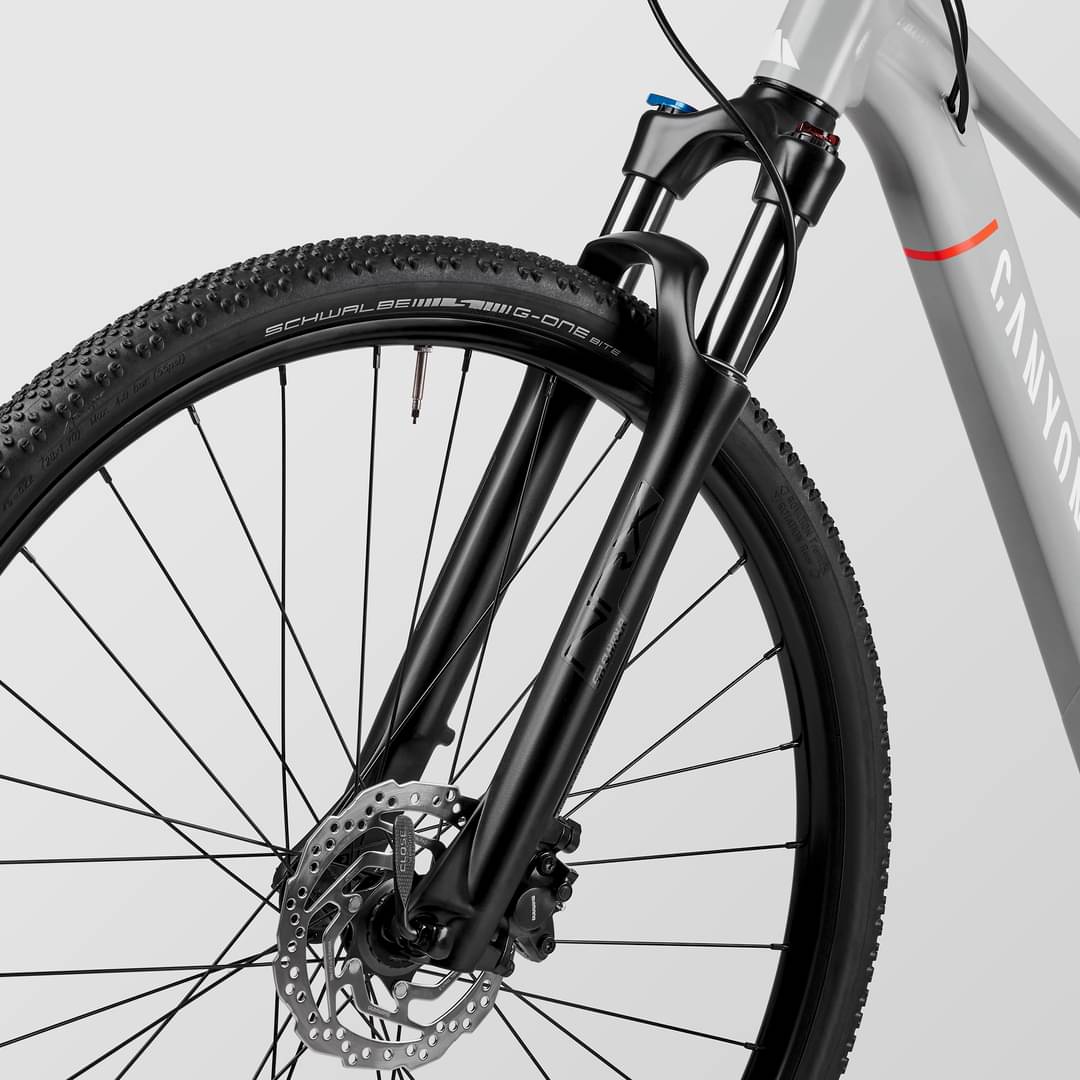

Fork
The Suntour NRX D is included from the factory. It has a travel distance of 75mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
The wheels on Pathlite 5 WMN are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.

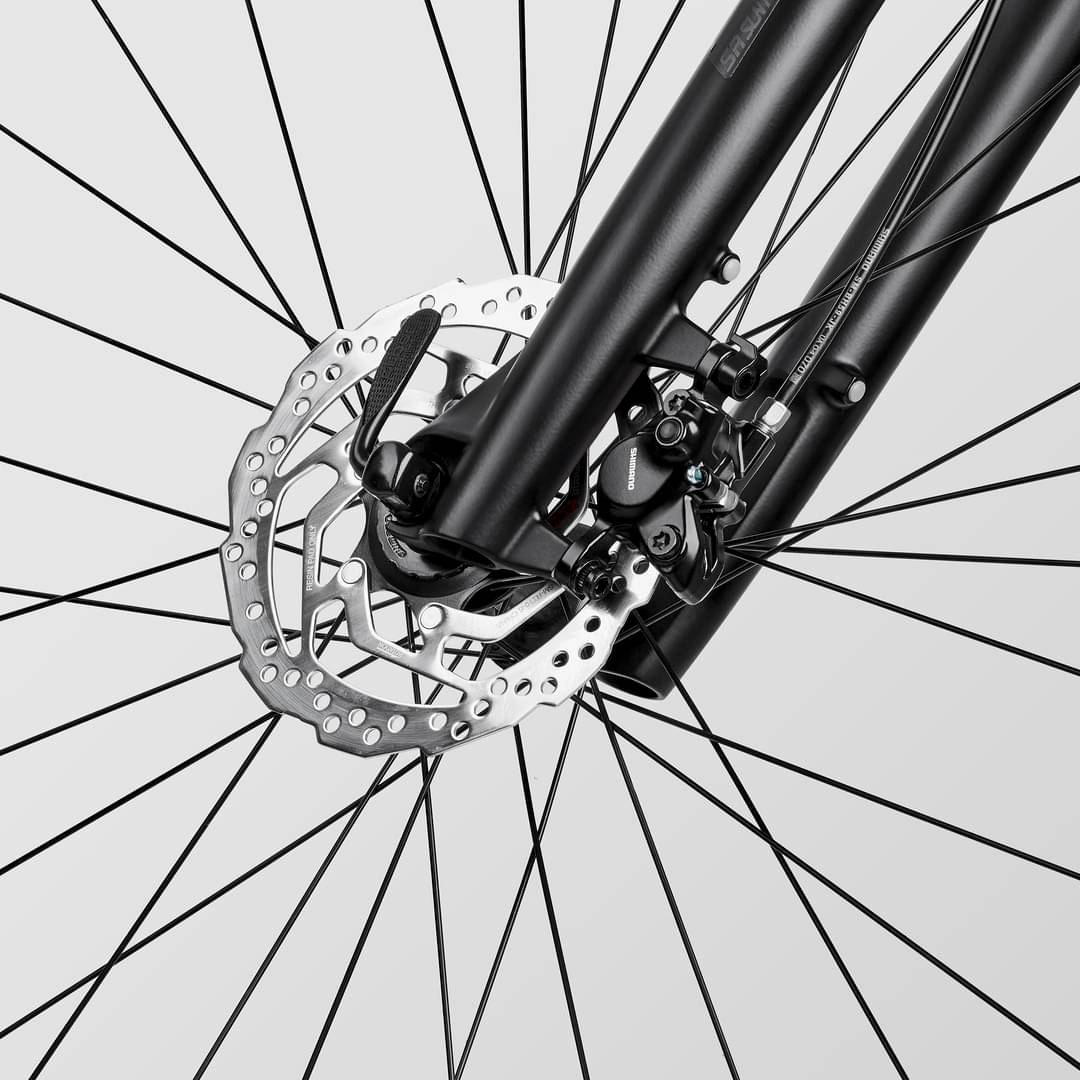

Brakes
Nothing is more important on a bike than its ability to brake properly. Canyon Pathlite 5 WMN is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
