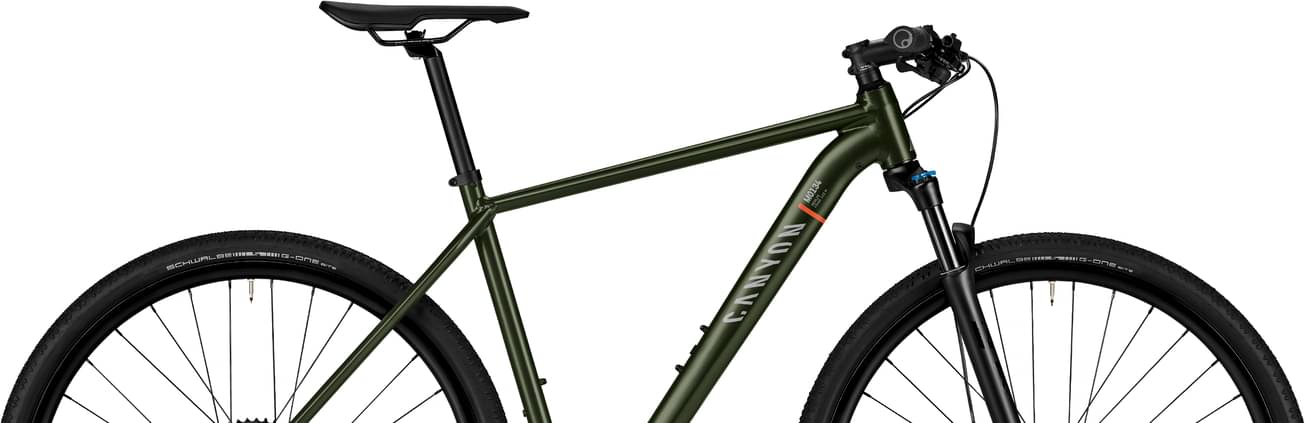

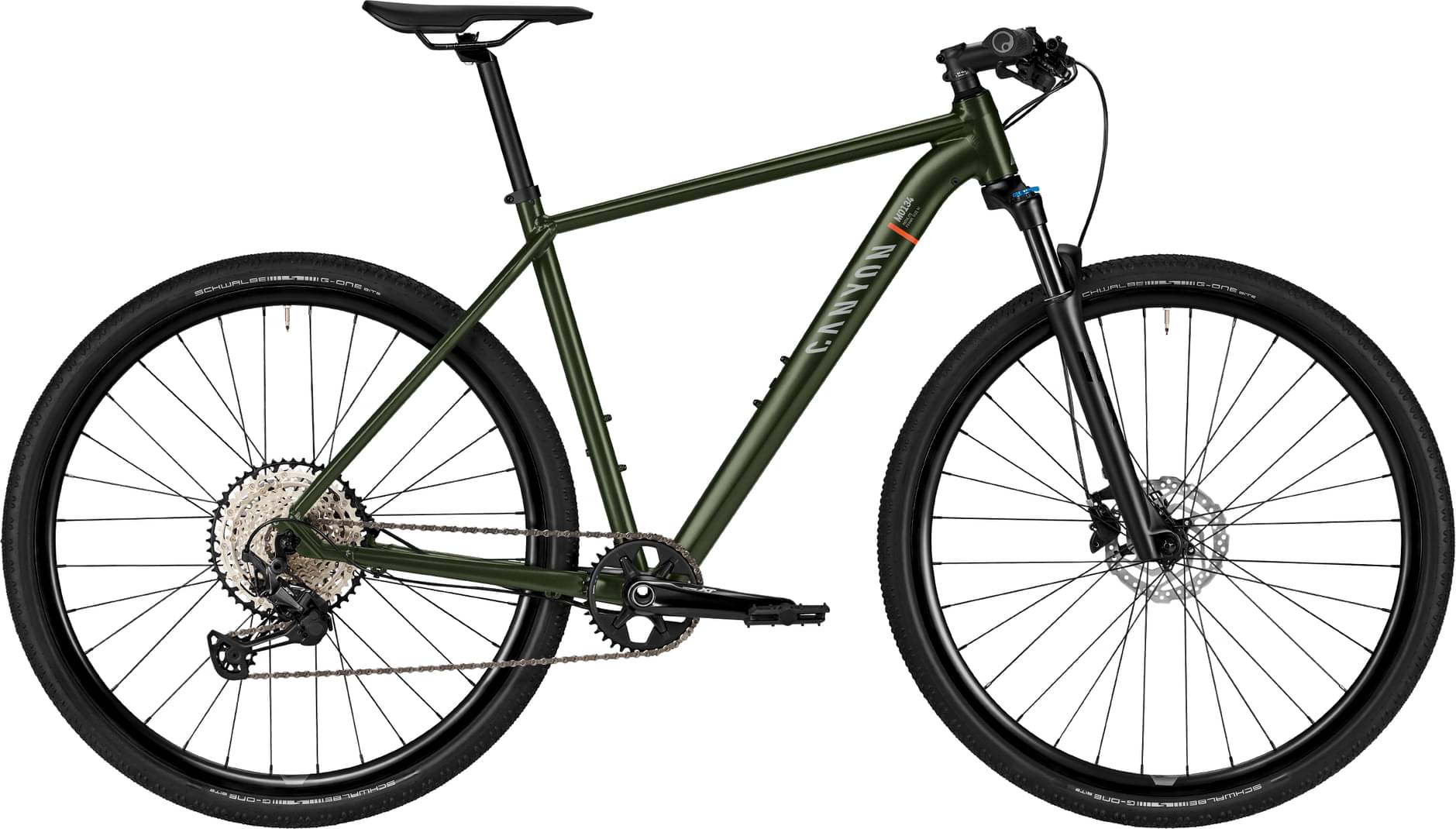

Canyon Pathlite 6 2023
2023 Urban
Estimate price |
999$
Weight | 13.44 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 75mm -
Fork Suntour NRX D
-
Groupset XT, Deore -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
165cm - 176cm
MD
174cm - 184cm
LG
182cm - 191cm
XL
189cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components

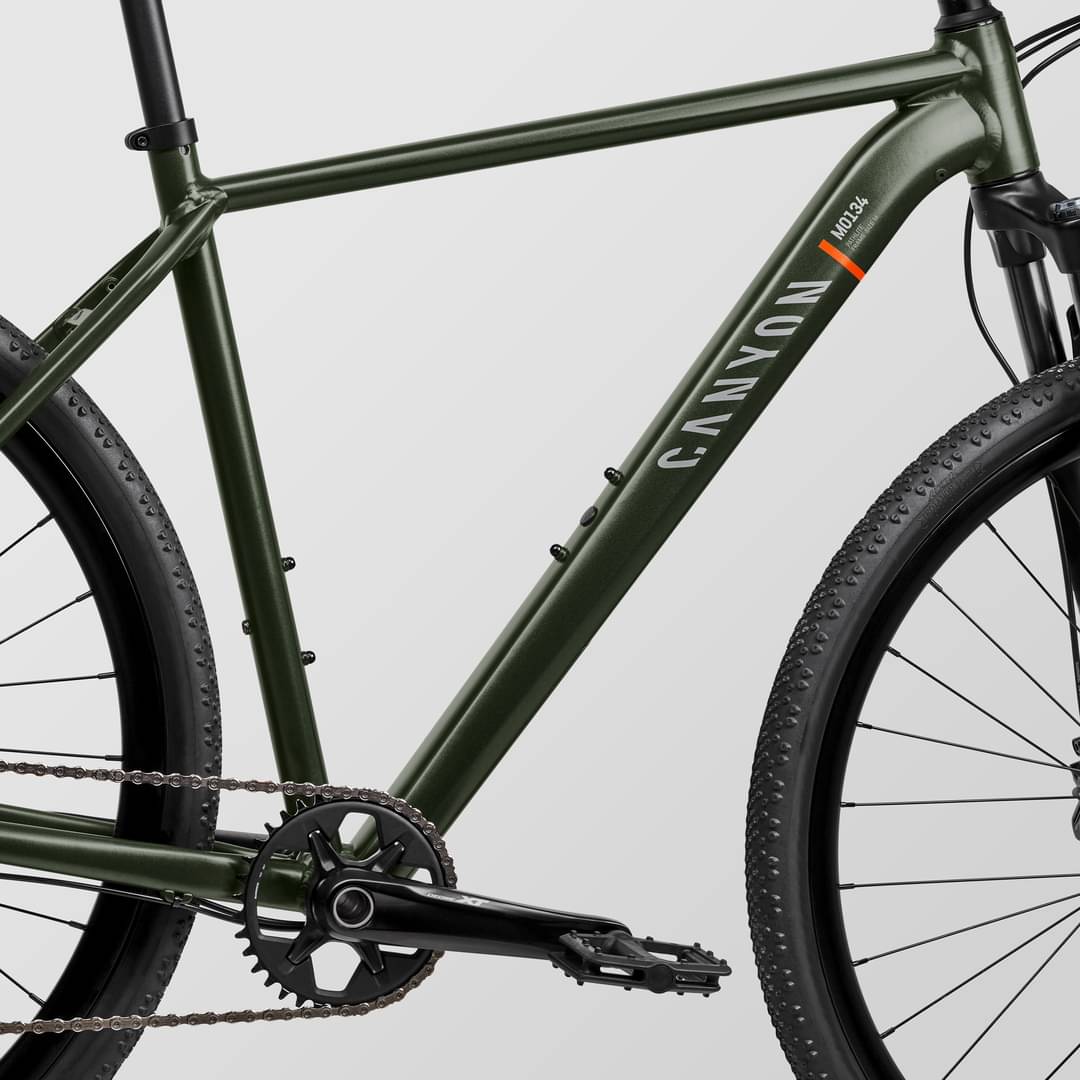

Frame
Frame
Canyon Pathlite AL, Material: Aluminium (AL)
Suspension Fork
SR Suntour NRX-D Air, Stanchion Diameter: 30 mm, Travel: 75 mm, Fork steer tube diameter: 1 1/8", Weight: 2.11 kg

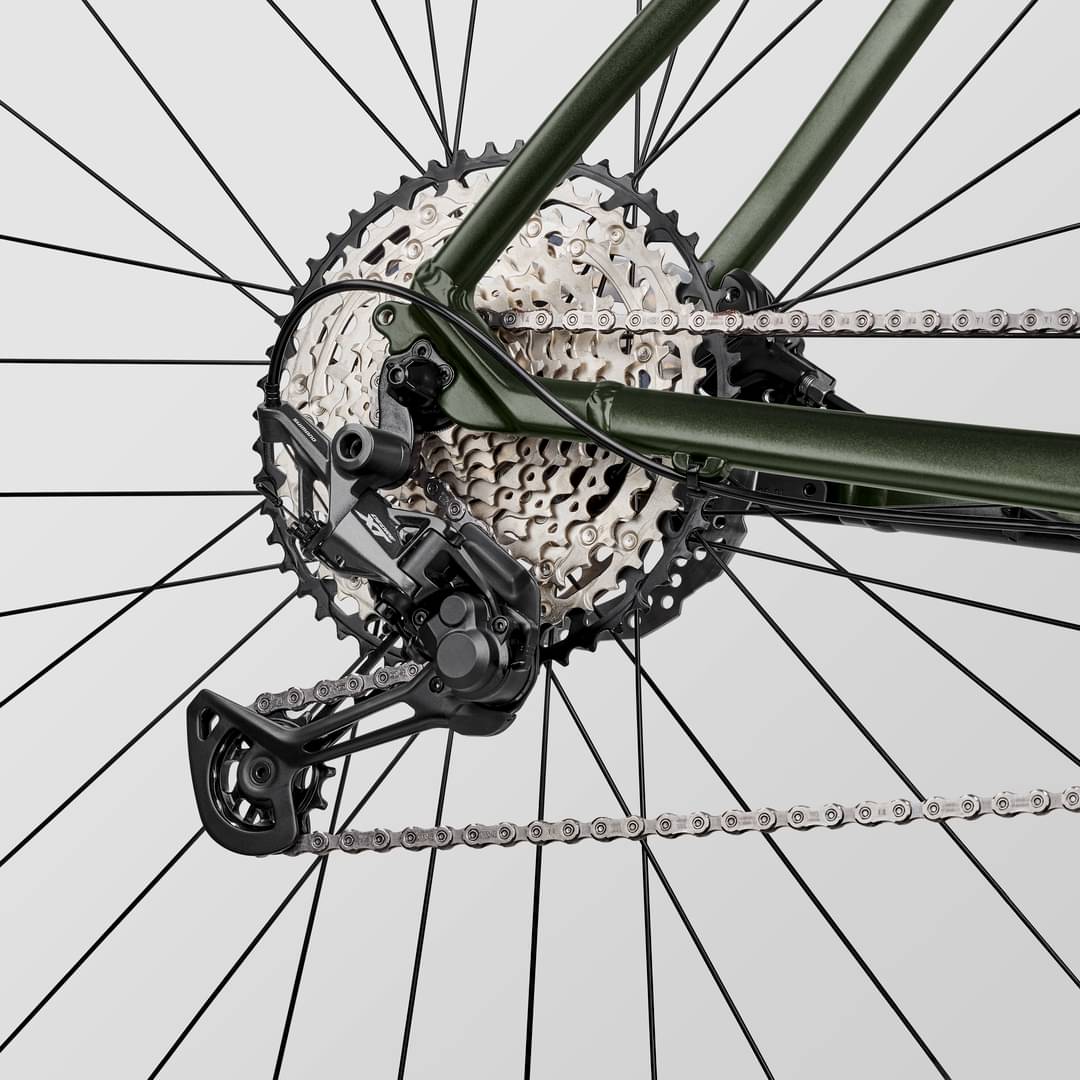

Drivetrain
Rear Derailleur
Shimano DEORE XT M8100, Cage length: long, Weight: 286 g
Shift Levers
Shimano Deore M6100 12s
Cassette
Shimano SLX M7100, Number of sprockets: 12
Crank
Shimano XT M8100 36T, Number of chainrings: 1 | Shimano XT M8100 36, Number of chainrings: 1
Bottom Bracket
Shimano BB-MT501, Bottom bracket standard: BSA HT2 68/73, Weight: 73 g
Chain
Shimano CN-M6100
Wheels
Rims
Alexrims GX26P / Shimano MT4050, Rotor mount: Center Lock | Alexrims GX26P / Shimano MT401, Rotor mount: Center Lock
Tires
Schwalbe G-One Bite 45mm, Width: 45mm, Weight: 540 g
Brakes
Brakes
Shimano MT200
Cockpit
Stem
Iridium Stem, Fork steer tube diameter: 1 1/8", Clamping diameter: 31,8 mm
Handlebar
Iridium Flatbar, Material: Aluminium, Rise: 5 mm
Grips
Ergon GA3
Seat
Saddle
Canyon Sport Saddle EP1249
Seatpost
Iridium Seatpost, Clamp diameter: 27,2 mm, Material: Aluminium (AL), Weight: 270 g
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.52 mm | 1.54 mm | 1.54 mm | 1.57 mm | 1.57 mm |
| Front Center | 633 mm | 639 mm | 647 mm | 664 mm | 674 mm | 699 mm |
| Rake | 46 mm | 47 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 71 mm | 70 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Stack | 572 mm | 594 mm | 609 mm | 628 mm | 646 mm | 670 mm |
| Reach | 379 mm | 392 mm | 396 mm | 407 mm | 411 mm | 428 mm |
| Top Tube Length | 554 mm | 574 mm | 582 mm | 599 mm | 608 mm | 632 mm |
| Seat Tube Angle | 73.25 ° | 73.25 ° | 73.25 ° | 73.25 ° | 73.25 ° | 73.25 ° |
| Seat Tube Length | 460 mm | 490 mm | 520 mm | 550 mm | 580 mm | 610 mm |
| Head Tube Angle | 70 ° | 71 ° | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 90 mm | 90 mm | 105 mm | 125 mm | 145 mm | 145 mm |
| Chainstay Length | 412 mm | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm |
| Wheelbase | 1041 mm | 1048 mm | 1056 mm | 1074 mm | 1084 mm | 1109 mm |
| Bottom Bracket Drop | 44 mm | 62 mm | 62 mm | 62 mm | 62 mm | 62 mm |
| Standover Height | 770 mm | 796 mm | 818 mm | 843 mm | 867 mm | 893 mm |
| Front Travel | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Wheels | 650 | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 167 cm | 176 cm | 184 cm | 191 cm | 197 cm | cm |
About this model
Pathlite 6 completes the Canyon Pathlite model. 41 bikes variations carry this model name so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
The most economical model, the Canyon Pathlite 4 WMN 2023 has a starting price of 742$. Canyon Pathlite 7 WMN 2023 on the other hand is the most expensive at 1592$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Fitness bikes
If you want to purchase a solid Fitness bike, it is important to know that the average cost is 656$. However, even though the average price of a Fitness bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2023 for 999$. Comparing the average cost of a Fitness bike to this one, you will see that Pathlite 6 price is 52.29% higher.
Average weight for Fitness bikes
On a deeper look, we notice that the average weight of a Fitness bike is 11.24 kg (24.78 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Pathlite 6 weighs 13.44 kg (29.63 lbs) and is much heavier than the average. In other words, this model is 19.57% heavier than the average Fitness bike.
Pathlite 6 components

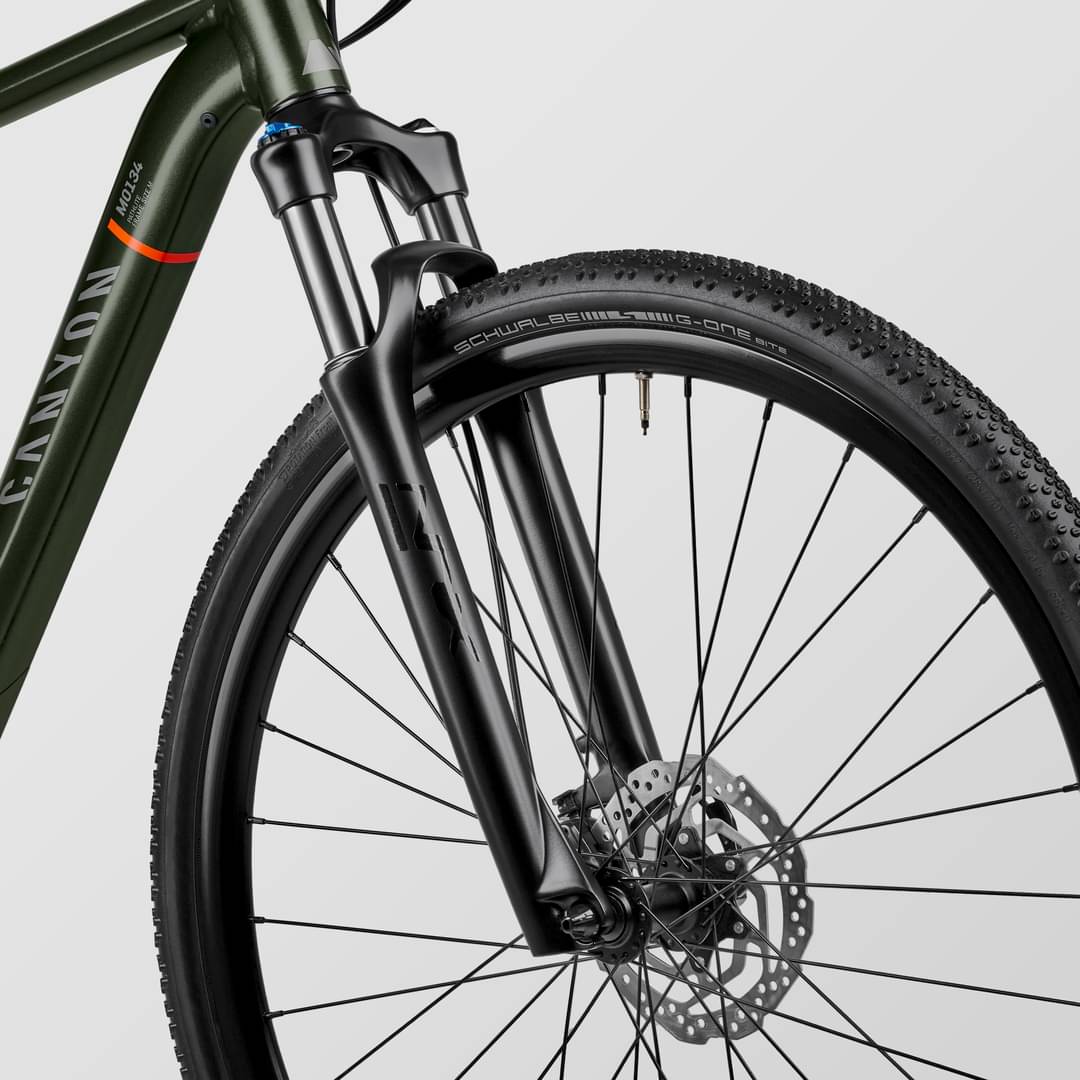

Fork
This bike has the Suntour NRX D fork installed. The fork’s travel is 75mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
As for the wheels, Canyon Pathlite 6 2023, has a aluminum model. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if you want higher speeds, you should look for a bike with 700c wheels.

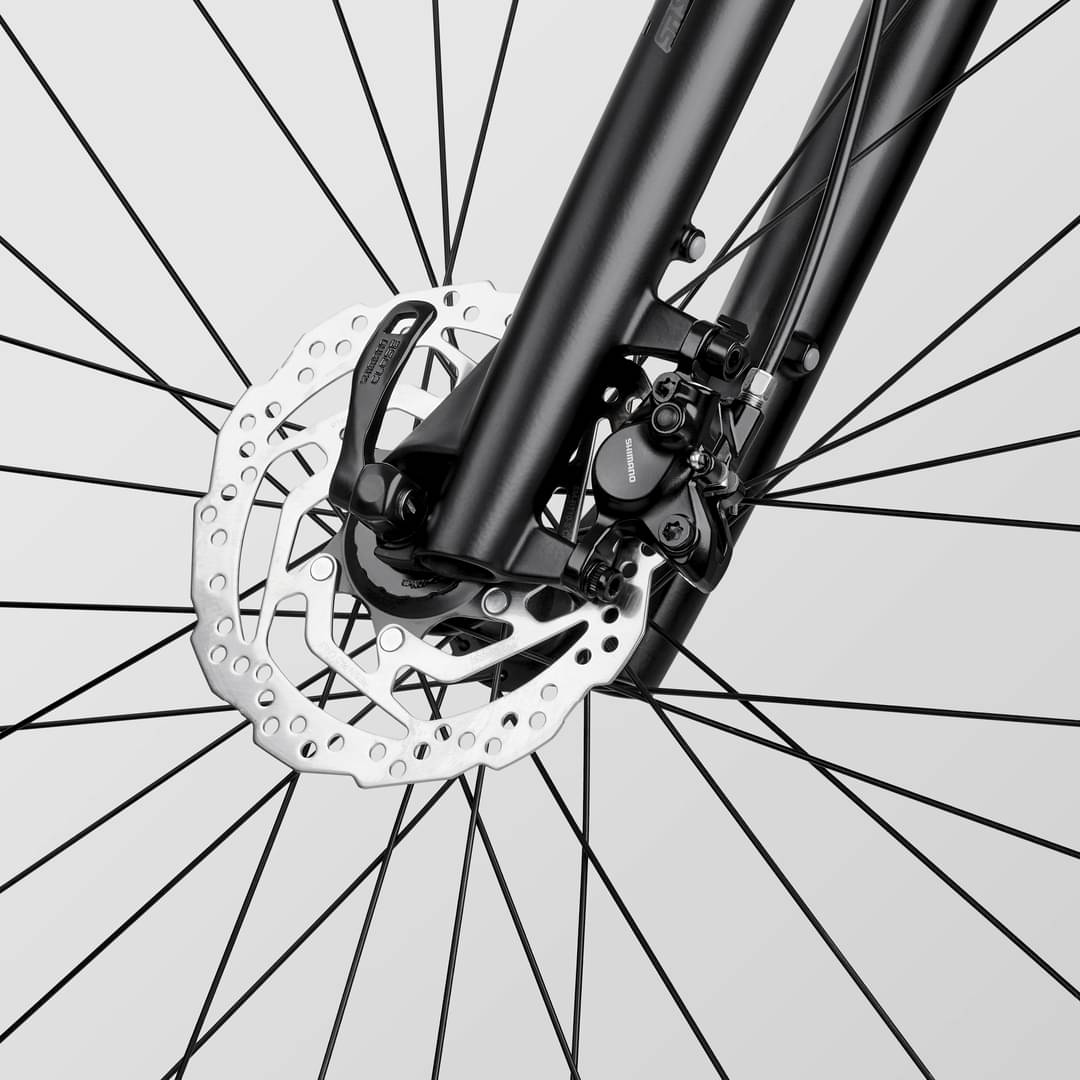

Brakes
For your safety, it is important to have quality breaks on your bike. Canyon Pathlite 6 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
