Canyon Pathlite 6 mid-step 2023
2023 Urban
Estimate price |
1,261$
Weight | 12.92 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 75mm -
Fork Suntour NRX D
-
Groupset XT, Deore -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
163cm - 175cm
Parts list
Components
Main components, grouped by system.
Bike components

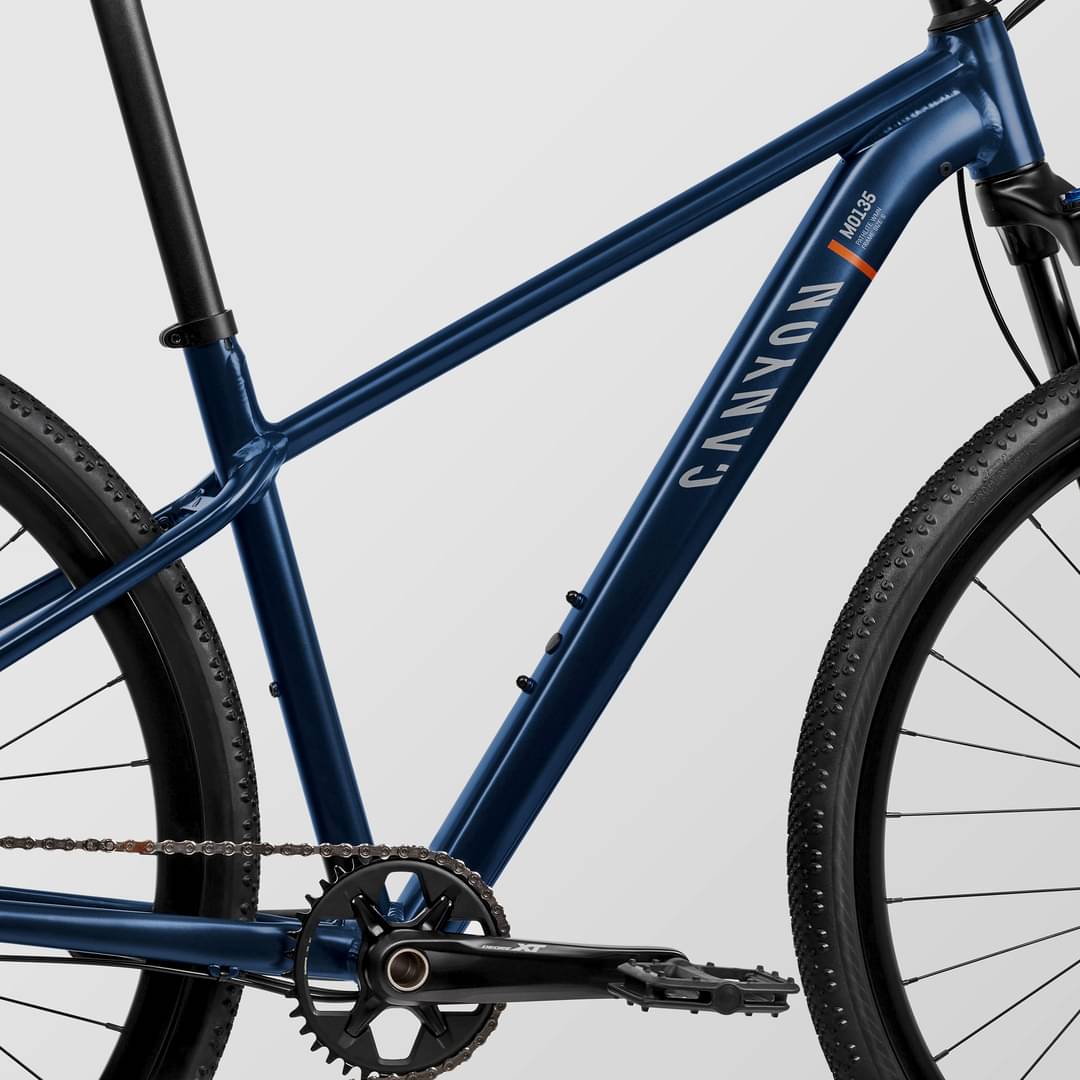

Frame
Frame
Canyon Pathlite WMN AL, Comfortable, capable robust aluminium touring bike with female-specific geometry., Material: Aluminium (AL)
Suspension Fork
SR Suntour NRX-D Air, Stanchion Diameter: 30 mm, Travel: 75 mm, Fork steer tube diameter: 1 1/8", Weight: 2.11 kg
Drivetrain

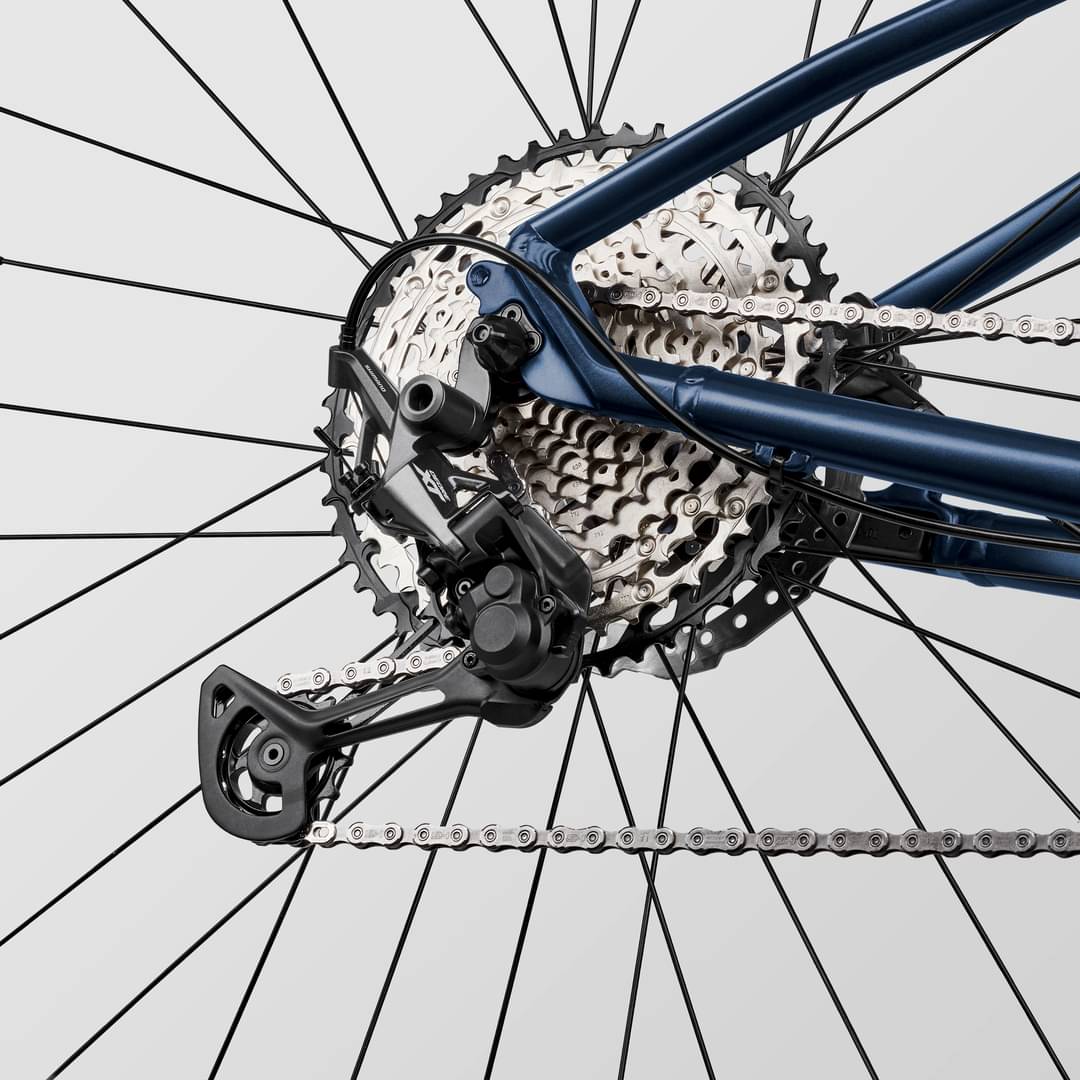

Rear Derailleur
Shimano Deore XT M8100, Cage length: long, Weight: 286 g
Shift Levers
Shimano Deore M6100 12s
Cassette
Shimano SLX M7100, Number of sprockets: 12 | Shimano CS-M7100 MTB 12-speed Cassette
Crank
Shimano XT M8100 36T, Number of chainrings: 1
Bottom Bracket
Shimano BB-MT501, Bottom bracket standard: BSA HT2 68/73, Weight: 73 g | Shimano MTB BB-MT801 68/73 Bottom Bracket
Chain
Shimano CN-M6100 | Shimano SM-CN910 12-speed Quick-Link Chain Connector | Shimano CN-M6100 Deore 12-speed Chain 138 Links
Wheels
Rims
Alexrims GX26P / Shimano MT4050, Rotor mount: Center Lock | Alexrims GX26P / Shimano MT401, Rotor mount: Center Lock
Tires
Schwalbe G-One Bite 45mm, Width: 45mm, Weight: 540 g | Schwalbe G-One R Super Race 28" x 45mm Gravel Tyre
Brakes
Brakes
Shimano MT200
Cockpit
Stem
Iridium Stem, Fork steer tube diameter: 1 1/8", Clamping diameter: 31,8 mm
Handlebar
Iridium Flatbar, Material: Aluminium, Rise: 5 mm
Grips
Ergon GA3
Seat
Saddle
Canyon Sport Saddle EP1249
Seatpost
Iridium, Clamp diameter: 30,9 mm, Material: Aluminium (AL), Weight: 280 g
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.56 mm | 1.6 mm |
| Front Center | 619 mm | 623 mm | 637 mm |
| Rake | 46 mm | 46 mm | 45 mm |
| Trail | 71 mm | 72 mm | 73 mm |
| Stack | 585 mm | 605 mm | 629 mm |
| Reach | 374 mm | 387 mm | 393 mm |
| Top Tube Length | 550 mm | 568 mm | 581 mm |
| Seat Tube Angle | 73.25 ° | 73.25 ° | 73.25 ° |
| Seat Tube Length | 385 mm | 425 mm | 455 mm |
| Head Tube Angle | 70 ° | 71 ° | 71 ° |
| Head Tube Length | 96 mm | 94 mm | 119 mm |
| Chainstay Length | 422 mm | 427 mm | 427 mm |
| Wheelbase | 1037 mm | 1042 mm | 1056 mm |
| Bottom Bracket Drop | 44 mm | 62 mm | 62 mm |
| Standover Height | 720 mm | 753 mm | 753 mm |
| Front Travel | 75 mm | 75 mm | 75 mm |
| Wheels | 650 | 700 | 700 |
| Rider Max Height | 165 cm | 175 cm | cm |
About this model
Pathlite 6 mid-step is part of the Canyon Pathlite model. Canyon launched 45 bikes of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Canyon Pathlite 4 WMN 2023 is the most affordable bike of this model and has a price of 740$. On the other hand, Canyon Pathlite 7 mid-step 2023, is the most expensive and costs 1587$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Fitness bikes
According to our calculations, the average cost of a Fitness bike that is reliable is 656$. However, even though the average price of a Fitness bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2023 for 1164$. Comparing the average cost of a Fitness bike to this one, you will see that Pathlite 6 mid-step price is 77.44% more expensive.
Average weight for Fitness bikes
On a deeper look, we notice that the average weight of a Fitness bike is 11.24 kg (24.78 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
considerably heavier than average, Pathlite 6 mid-step has a weight of 12.92 kg (28.48 lbs). In short, the average Fitness bike weight is 14.95% lower than this one.
Overview of components

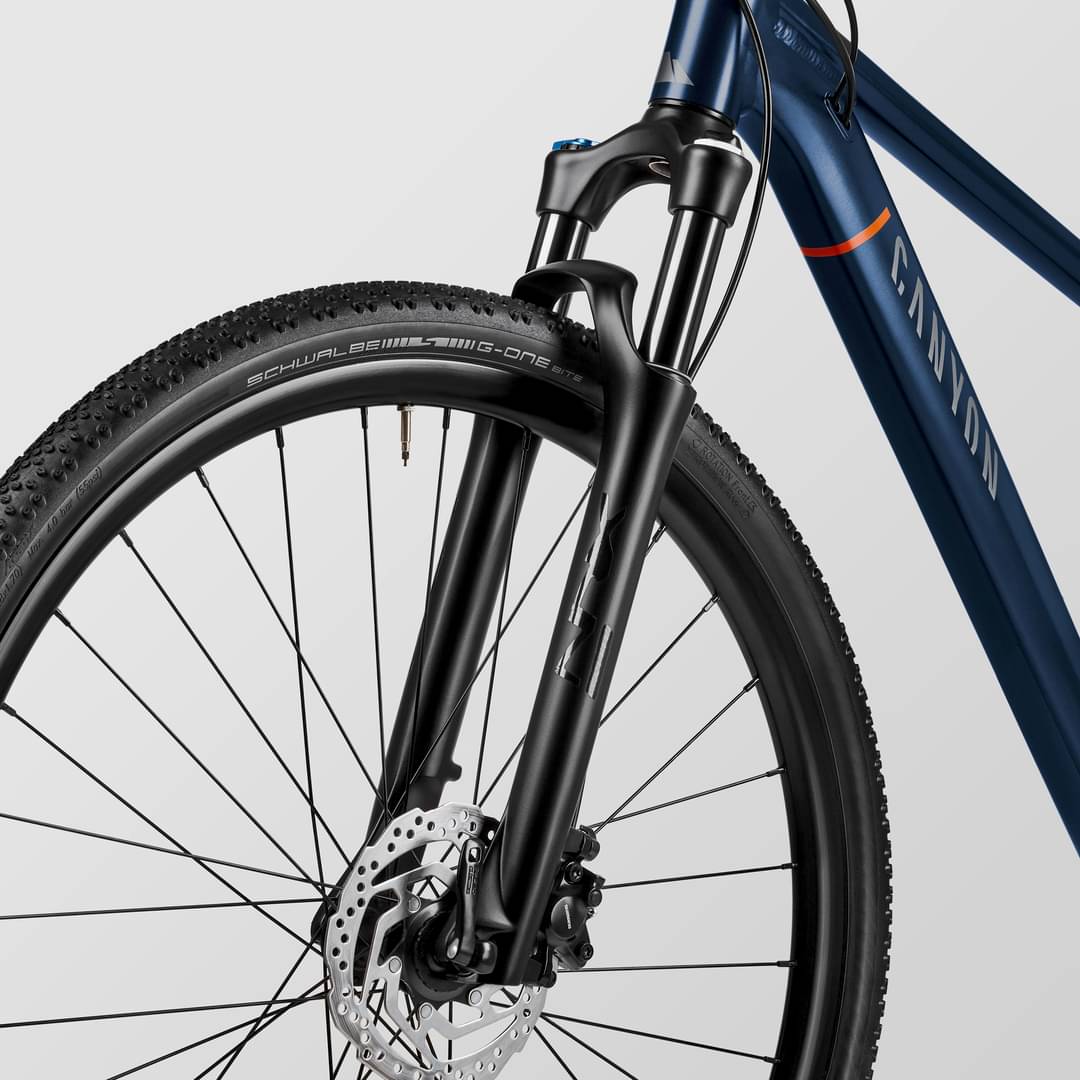

Fork
Canyon Pathlite 6 mid-step 2023 bike is equipped with the Suntour NRX D fork, and has 75mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When leaving the production line, the Pathlite 6 mid-step model has aluminum wheels. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if speed is what you’re after, 700c wheels are a better fit.

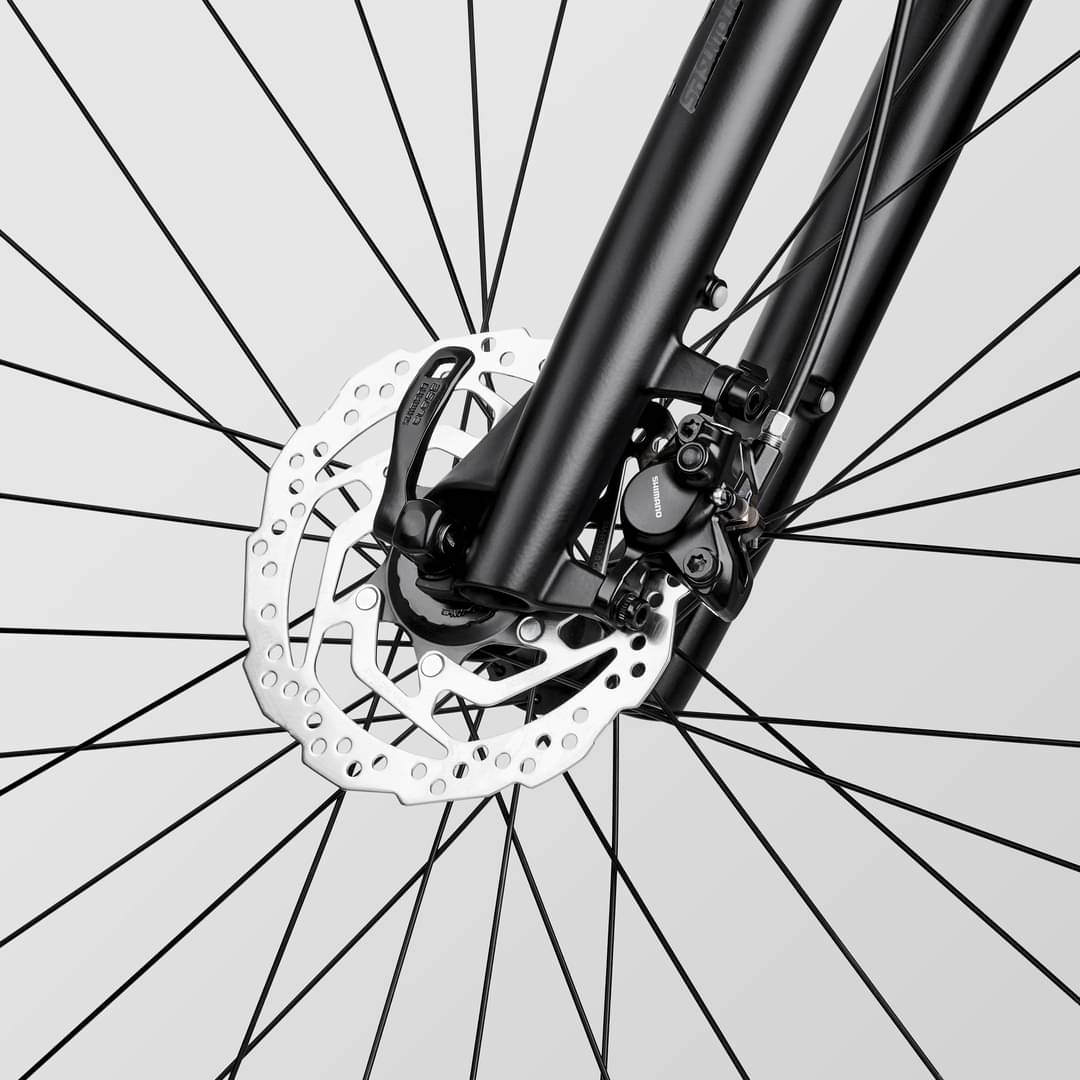

Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Pathlite 6 mid-step comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
