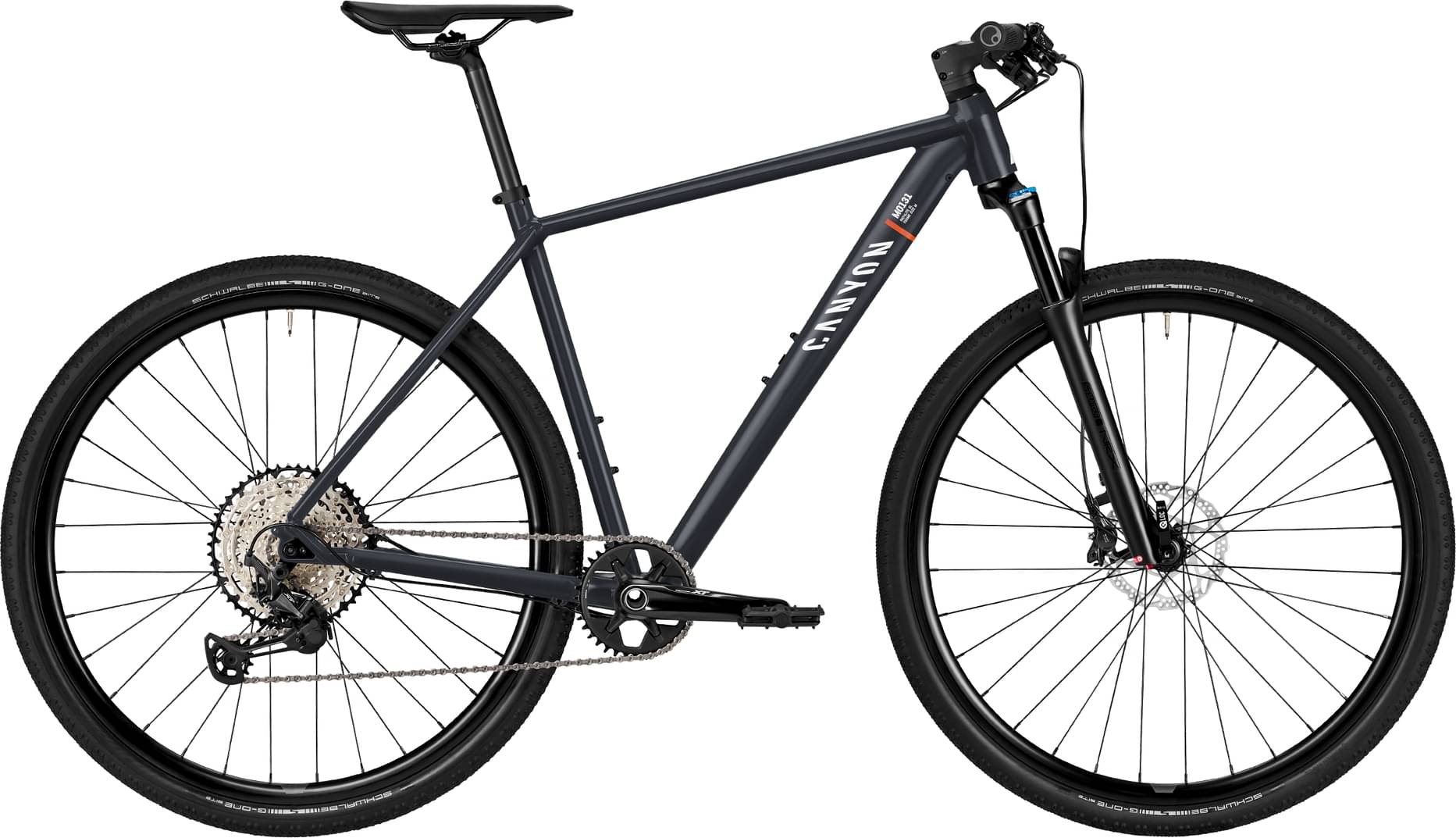

Canyon Pathlite 7 2023
2023 Urban
Estimate price |
1,299$
Weight | 12.24 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 75mm -
Fork Suntour NRX E
-
Groupset XT, SLX -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
164cm - 174cm
LG
183cm - 190cm
XL
190cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components

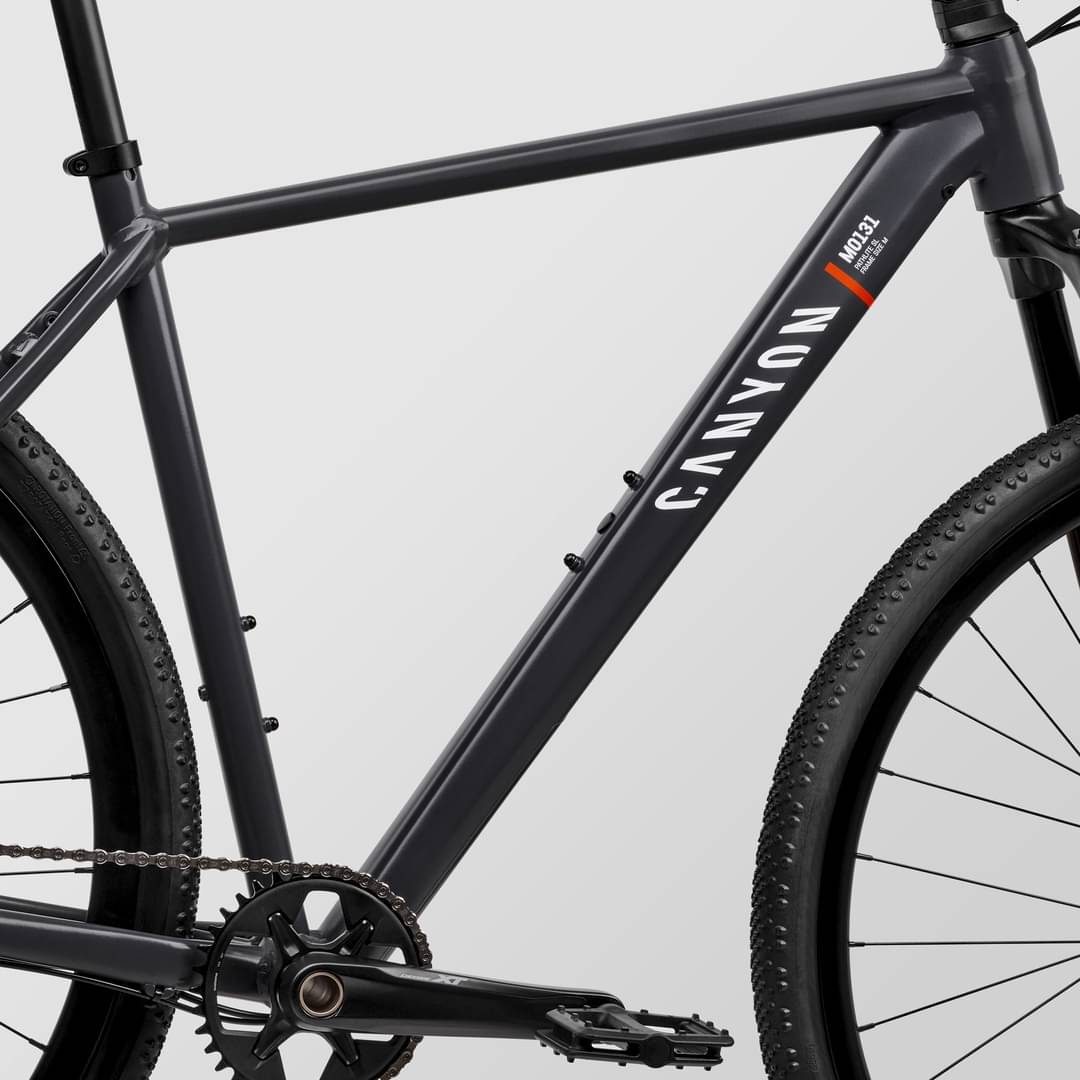

Frame
Frame
Canyon Pathlite AL SL
Suspension Fork
SR Suntour NRX-E Air, Travel: 75 mm, Axle Dimension: 15 x 100 mm
Drivetrain

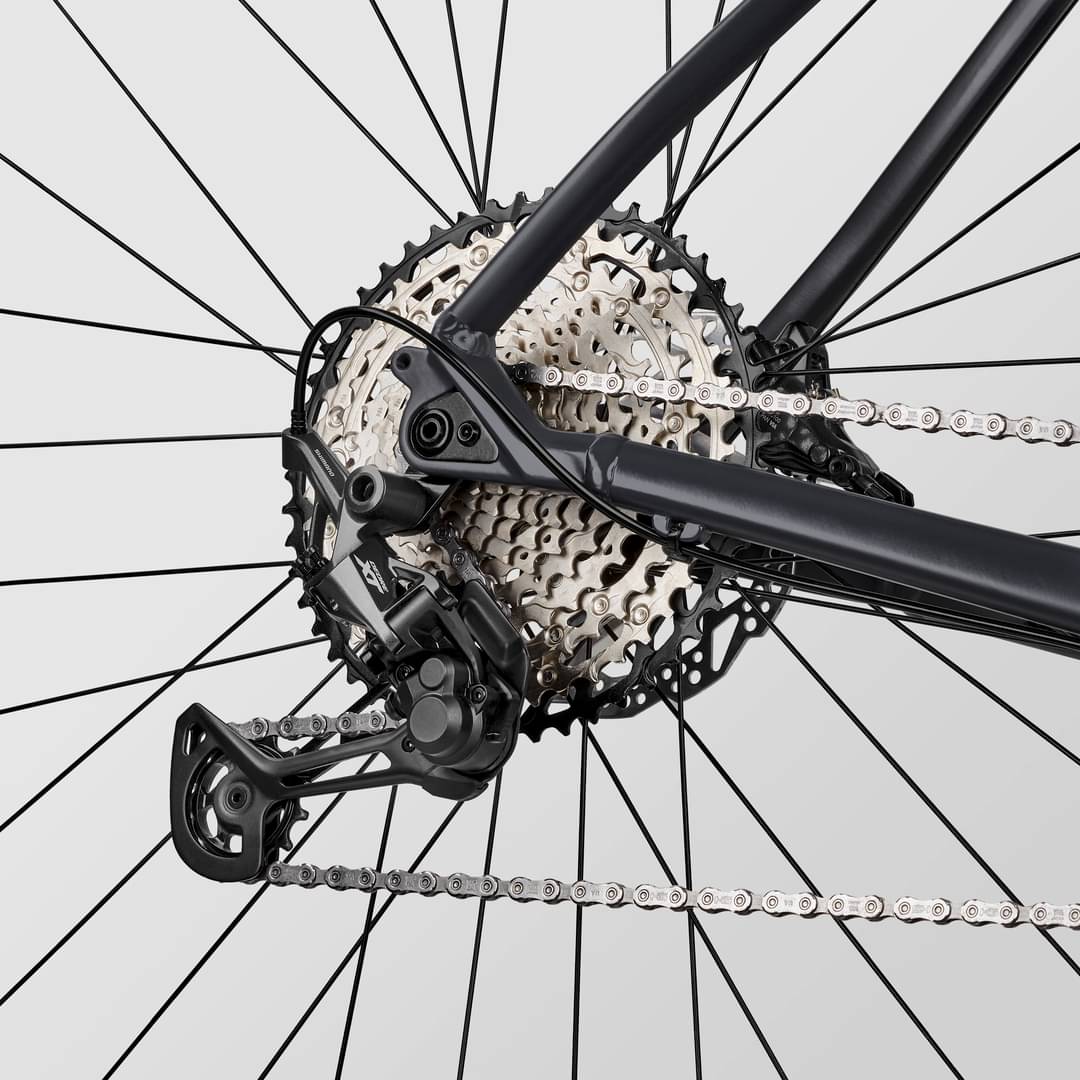

Rear Derailleur
Shimano DEORE XT M8100, Precise 1x12 drivetrain.
Shift Levers
Shimano SLX M7100
Cassette
Shimano SLX M7100, Cassette size: 10-51T. Gear range: 510%.
Crank
Shimano XT M8100 36
Bottom Bracket
Shimano Pressfit BB-MT500
Chain
Shimano CN-M6100 12s
Wheels
Rims
Alexrims GX26P / Shimano MT400 | Alexrims GX26P | Shimano MT410 S12
Tires
Schwalbe G-One Bite 45mm, Specialist gravel tyres. Open tread design and strong outer blocks provide traction on loose surfaces and stability when cornering. Technology: Tubeless Easy for simple tubeless setup.
Brakes
Brakes
Shimano Deore XT M8100

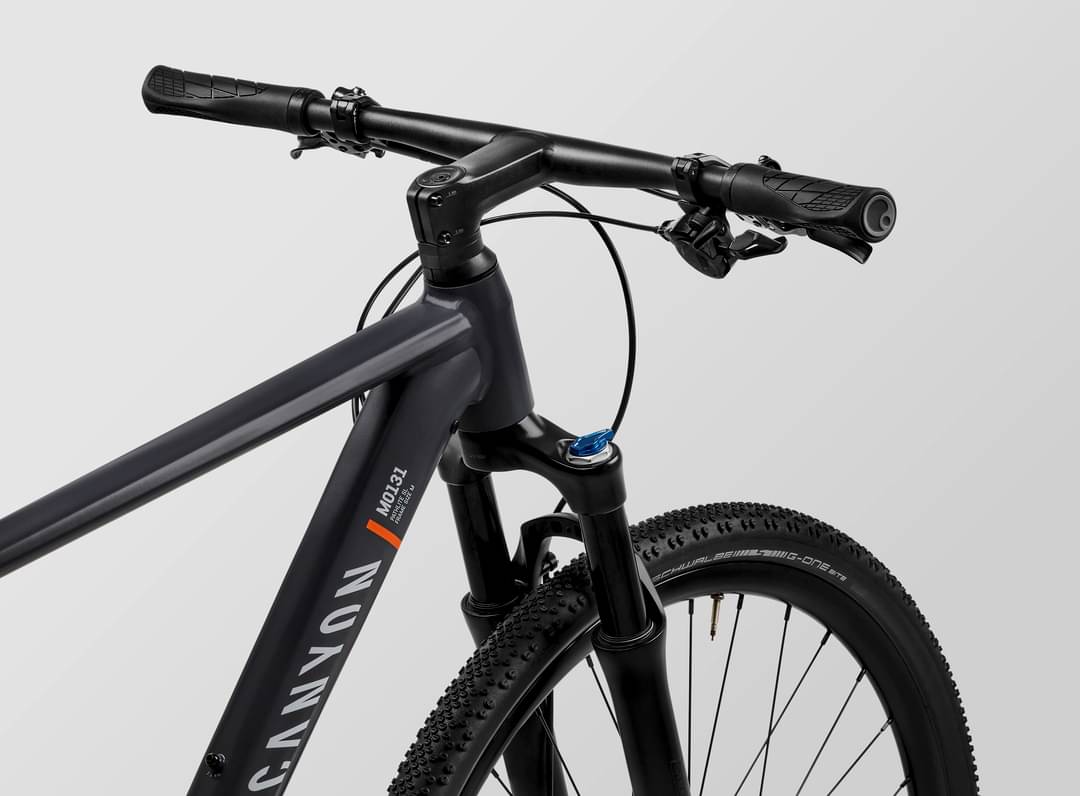

Cockpit
Grips
Ergon GA3, Premium grips design for extra hand support.
Seat
Saddle
Canyon Sport Saddle EP1249
Seatpost
Canyon SP0043 VCLS CF, Material: Carbon, Setback: 20 mm, Technology: VCLS
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.52 mm | 1.54 mm | 1.54 mm | 1.57 mm | 1.57 mm |
| Front Center | 633 mm | 639 mm | 647 mm | 664 mm | 674 mm | 699 mm |
| Rake | 46 mm | 47 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 71 mm | 70 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Stack | 572 mm | 594 mm | 609 mm | 628 mm | 646 mm | 670 mm |
| Reach | 379 mm | 392 mm | 396 mm | 407 mm | 411 mm | 428 mm |
| Top Tube Length | 554 mm | 574 mm | 582 mm | 599 mm | 608 mm | 632 mm |
| Seat Tube Angle | 73.25 ° | 73.25 ° | 73.25 ° | 73.25 ° | 73.25 ° | 73.25 ° |
| Seat Tube Length | 460 mm | 490 mm | 520 mm | 550 mm | 580 mm | 610 mm |
| Head Tube Angle | 70 ° | 71 ° | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 90 mm | 90 mm | 105 mm | 125 mm | 145 mm | 170 mm |
| Chainstay Length | 412 mm | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm |
| Wheelbase | 1041 mm | 1048 mm | 1056 mm | 1074 mm | 1084 mm | 1109 mm |
| Bottom Bracket Drop | 44 mm | 62 mm | 62 mm | 62 mm | 62 mm | 62 mm |
| Standover Height | 710 mm | 743 mm | 743 mm | 843 mm | 867 mm | 893 mm |
| Front Travel | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Wheels | 650 | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 164 cm | 174 cm | cm | 190 cm | 196 cm | cm |
Model Overview
Pathlite 7 is part of the Canyon Pathlite model. There are 41 bikes that carry this model name. Take a sneak peek at all Canyon Pathlite bikes models from 2023, by clicking here.
Model range prices
Canyon Pathlite 4 WMN 2023 is the most affordable bike of this model and has a price of 742$. On the other hand, Canyon Pathlite 7 WMN 2023, is the most expensive and costs 1592$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Fitness bikes average price
If you want an acceptable Fitness bike you should know that the average price is 656$. However, even if your budget is less than the average, you might still be able to get a top-quality Fitness bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2023 for 1299$. Comparing this to the average Fitness bike price, we see that the price is 98.02% more expensive.
Fitness bikes average weight
The average weight for Fitness bikes is 11.24 kg (24.78 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 12.24 kg (26.98 lbs), the Pathlite 7 model is a bit heavier than average. To sum up, it’s 8.9% heavier than the average weight of Fitness bikes.
Pathlite 7 components

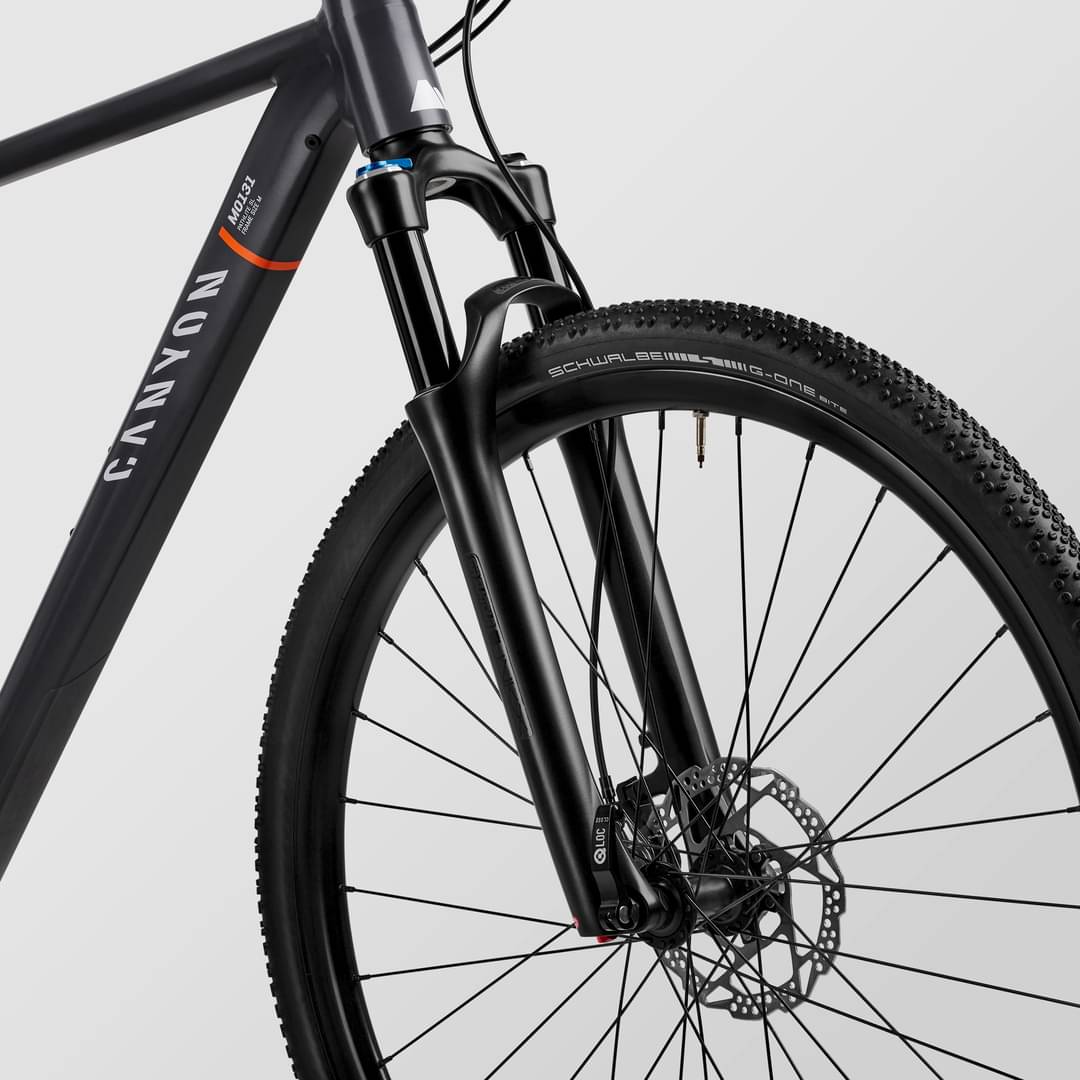

Fork
This bike has the Suntour NRX E fork installed. The fork’s travel is 75mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
The Pathlite 7 2023 bike is equipped with aluminum wheels when leaving the factory. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Canyon Pathlite 7 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
