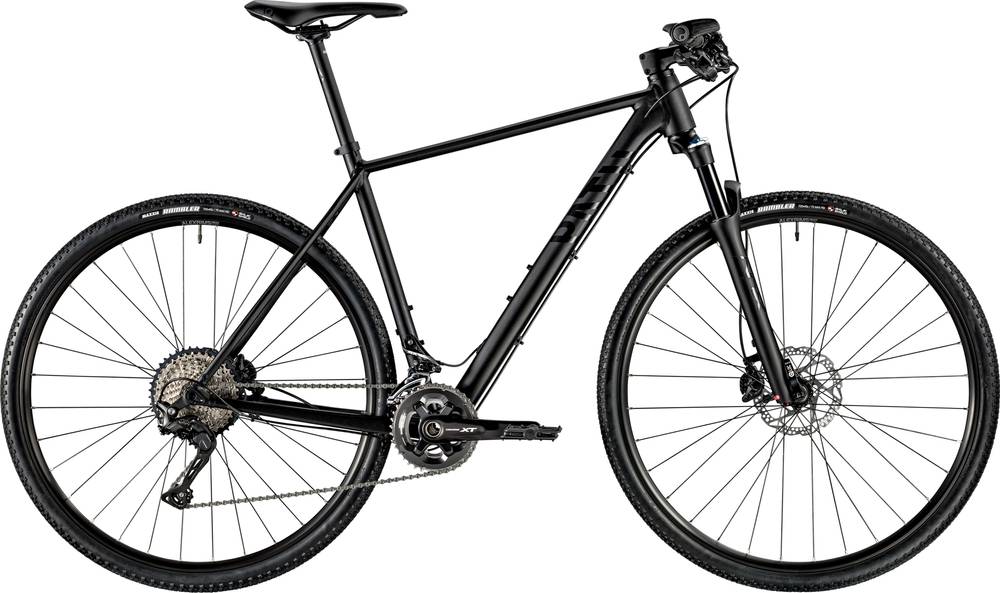

Canyon Pathlite SL 7.0 2019
2019 Urban
Estimate price |
1,399$
Weight | 11.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 650b / 700c -
Travel Front 75mm -
Fork SunTour NRX E
-
Groupset XT, SLX -
Suspension Hardtail -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
167cm - 179cm
MD
177cm - 185cm
LG
182cm - 191cm
XL
188cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Pathlite AL SL, Material: Aluminium, Axle Dimension: 12 x 142 mm, Brake Mount: Post Mount
Suspension Fork
SR Suntour NRX-E Air, Travel: 75 mm, Axle Dimension: 15 x 100 mm
Drivetrain
Rear Derailleur
Shimano Deore XT M8000 SGS
Front Derailleur
Shimano SLX M7020
Shift Levers
Shimano SLX M7000 2/3s, Clamp: I-Spec II | Shimano SLX M7000 11s, Clamp: I-Spec II
Cassette
Shimano SLX M7000 11-42 11s
Crank
Shimano Deore XT M8000 38/28 38/28
Bottom Bracket
Shimano Pressfit BB-MT500
Wheels
Rims
Alexrims MD23 | MT400, Rim Material: Aluminium, Rim Width: 23 mm, Hub Type: MT400 | Alexrims MD23 | MT400 SH10, Rim Material: Aluminium, Rim Width: 23 mm, Hub Type: MT400
Tires
MAXXIS Rambler 40mm
Brakes
Brakes
Shimano SLX M7000, Technology: Ice Tech
Disk Rotors
Shimano RT54, Disc Mount: Centerlock | Shimano RT54
Cockpit
Grips
Ergon GS2
Seat
Saddle
Ergon SMC4
Seatpost
Iridium
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.51 mm | 1.52 mm | 1.54 mm | 1.58 mm | 1.57 mm |
| Front Center | 632 mm | 638 mm | 645 mm | 663 mm | 675 mm | 700 |
| Rake | 46 mm | 46 mm | 47 mm | 46 mm | 46 mm | 46 mm |
| Trail | 71 mm | 72 mm | 70 mm | 72 mm | 72 mm | 72 mm |
| Stack | 570 mm | 593 mm | 600 mm | 625 mm | 649 mm | 672 mm |
| Reach | 379 mm | 392 mm | 396 mm | 407 mm | 411 mm | 428 mm |
| Top Tube Length | 553 mm | 573 mm | 579 mm | 598 mm | 609 mm | 633 mm |
| Seat Tube Angle | 73.25 ° | 73.25 ° | 73.25 ° | 73.25 ° | 73.25 ° | 73.25 ° |
| Seat Tube Length | 460 mm | 490 mm | 520 mm | 550 mm | 580 mm | 610 mm |
| Head Tube Angle | 70 ° | 71 ° | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 92 mm | 92 mm | 101 mm | 127 mm | 152 mm | 176 mm |
| Chainstay Length | 412 mm | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm |
| Wheelbase | 1040 mm | 1047 mm | 1054 mm | 1073 mm | 1085 mm | 1110 mm |
| Bottom Bracket Drop | 44 mm | 62 mm | 62 mm | 62 mm | 62 mm | 62 mm |
| Front Travel | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Wheels | 650 | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 169 cm | 179 cm | 185 cm | 191 cm | 197 cm | cm |
About this model
Pathlite SL 7.0 is a Canyon Pathlite model. There are 41 bikes that carry this model name. You can get a glimpse at all models from 2019, by clicking on this link.
Model range prices
Canyon Pathlite 4.0 2019 is the most affordable bike of this model and has a price of 689$. On the other hand, Canyon Pathlite SL 8.0 2019, is the most expensive and costs 1804$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Fitness bikes
Our math shows that the average cost of a dependable Fitness bike is 656$. However, this doesn’t mean that if you spend less money on a Fitness bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, Canyon Pathlite SL 7.0 price was 1399$. Doing a quick comparison, we notice that Pathlite SL 7.0 price is 113.26% higher than the average cost of a Fitness bike.
Fitness bikes average weight
If we make a quick analysis of the average weight of a Fitness bike, we get 11.24 kg (24.78 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
slightly heavier than average, Pathlite SL 7.0 has a weight of 11.8 kg (26.01 lbs). In other words, this model is 4.98% heavier than the average Fitness bike.
Overview of components
Fork
The Pathlite SL 7.0 comes factory-installed with the SunTour NRX E fork. This has a travel range of 75mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
When leaving the production line, the Pathlite SL 7.0 model has aluminum wheels. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
For your safety, it is important to have quality breaks on your bike. Canyon Pathlite SL 7.0 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
